Adjusta-Flex Base 800W Motor User Manual

ADJUSTA-FLEX BASE 800 w/MOTOR

SAVE THESE INSTRUCTIONS!Proper operation of your adjustable bed is necessary to ensure the long life and durability you expect from a high-quality product. The manufacturer has tested and inspected this product prior to shipment.

Safety Precautions

ATTENTION

IMPORTANT SAFETY INSTRUCTIONS. PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE USING THIS PRODUCT. PROPER OPERATION OF YOUR ADJUSTABLE BED IS NECESSARY TO ENSURE THE LONG LIFE AND DURABILITY YOU EXPECT FROM A HIGH QUALITY PRODUCT.

ELECTRICAL SAFETY

Always unplug this adjustable bed frame from the electrical outlet before any cleaning or maintenance of the bed frame. To safely disconnect, make sure all controls are in the off position,then remove the plug from the outlet.Keep cord away from heated surfaces. Keep air openings free of lint, hair, debris – never operate when air openings are blocked. Never drop or insert any object into any opening. Use only indoors.Cease use of this bed frame and contact the customer service for repair if: (1) it has a damaged cord or plug, (2) it is not working properly, (3) it has been dropped or damaged, or (4) it has been dropped into water.

ATTENTION FOR MOVING PARTS

Keep body parts clear of all moving parts to avoid injury while the product is in use. Keep moving parts clear of obstruction during operation.

GROUNDING SAFETY

To reduce the risk of electric shock, electrical fire ,or faulty operation of this product, your adjustable bed features a polarized plug meant to be used only with a grounded electrical outlet. If this plug does not fit into your outlet, contact a qualified electrician to install a properly grounded outlet. Failure to use a properly grounded outlet for this product will compromise this important grounding safety feature. The use of adapters is not recommended unless the outlet is checked by a qualified electrician to ensure the proper grounding of the adapter. Please note: Unauthorized modifications to this product could void the electrical portion of your warranty.

WARRANTY WARNING

Any opening or tampering with the control box, motors or hand controls (with the exception of the battery compartment if equipped) will void the warranty. Only those authorized may conduct repairs or part replacement on your adjustable bed.

FOR OPTIMAL SAFETY, YOUR ADJUSTABLE BED SHOULD BE PLUGGED INTO A SURGE PROTECTOR (not supplied with this Adjustable Bed).

IN-HOME USE ONLY

This Adjustable Bed is designed exclusively for in-home use.

HOSPITAL DISCLAIMER:

It is NOT designed for hospital use and is NOT designed to meet hospital standards. Do not use this bed with TEND TYPE oxygen therapy equipment or use near explosive gases.

IMPORTANT SAFETY FEATURE

Weight fail safe feature: In the case that an overload of weight is placed on the head or foot mechanism, the control unit will automatically stop all functions. The control unit will automatically resume all functions 30 seconds after excess weight is removed. Weight Restrictions: For people + mattress, the recommended weight limits on our adjustable beds are: Twin XL/Split CA King:700 pounds, FULL/Queen:850 poundsLocking caster feature: This adjustable bed may be equipped with special locking casters. For your safety, these casters will prevent bed movement when all casters are in the locked position. To lock casters, push down the safety latch on the caster. To resume product mobility, lift the safety latch up. Plese note: If your adjustable bed is positioned on a hard floor surface such as hardwood or tile, it is strongly recommended that rubber caster cups or carpet squares are placed under the casters in addition to locking them in place. Casters will not roll when locked, but may slide on an uncarpeted surface.

RADIO FREQUENCY IS 2.400-2.4835 GHZ.

FCC compliance device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CONSUMERS WITH PACEMAKERS

PRODUT RATINGS

It is possible that the (optional) vibrating feature of this bed may be misinterpreted by some pacemakers as movement and/or exercise. This is common with any product that produces a vibrating motion,and may ormay not affect your pacemaker.Please consult your physician with any concerns.Lift Motor Restrictions: The lift motors in this bed are NOT designed to operate continuously for more than three (3) minutes over a thirty (30) minute time period,or approximately 10% duty cycle .To ensure reliablefunctionality and full life of this product,do not attempt to exceed these limits.NOTE:Attempting to circumvent or exceed this rating will shorten the life expectancy of the product and may void the warrantyNOTE: Exceeding the recommended weight restrictions could damage your adjustable bed and void your warranty.The structure of the bed will support the recommended weight when distributed evenly across the bed.The head and foot sections are not designed to individually support or lift this amount of weight. For optimal performance, entering and exiting the adjustable bed with the bed in the flat or level position is recommended.

SMALL CHILDREN AND PETS WARNING

Immediately dispose of all packing materials as it can pose a smother risk to small children and pets. Injury could occur also if children or pets are permitted to play on or under the bed. Do not allow children to operate this bed without adult supervision.

LIFT WARNING

DO NOT SIT ON THE HEAD OR FOOT SECTIONS WHILE IN THE RAISED POSITION,OR DURING LIFT OR LOWERING CYCLES

MOVING AFTER INSTALLATION

Do not place adjustable bed vertically on its head or foot sections, This may cause injury to persons or damage to the base. Two people are required for moving this base dut to its heavy weight.

SAFETY

In the case that an overload of weight is placed on head or foot mechanism, the control unit will automatically stop all functions. The control unit will automatically resume all functions 30 seconds after excess weight is removed.

MOVING AFTER INSTALLATION

Do not place adjustable bed vertically on its head or foot sections, This may cause injury to persons or damage to the base. Two people are required for moving this base dut to its heavy weight.

The input transformer voltage is 110-240V~,50/60Hz,1.6A, the output voltage is 29V 2A. In the case of a short circuit, a fuse on the transformer will blow to protect the electrical equipment (Fuse:1A-1.6A.).

Notice: The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Important Note: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the exposure requirements and void user’s authority to operate the device.

PART LIST

NOTE: Before discarding any packing materials, check the adjustable bed frame carton and verify all items in the parts list are included:

Installation Guide

Note: For safety reasons, the Adjustable Base should be lifted by two people. Always keep the bed flat when lifting.

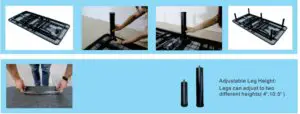

Unpack & Assembly of the Legs to the base (If no need)

Open the carton box and unfold the metal bed frame. Then open all the boxes containing all the parts. If using the base as a platform base, the legs do not need to be installed. Place the legs in a safe place in case they are needed in the future. Place the base on your bed frame and plug the base into an outlet. plugged then your base is now ready for use!If needed, to tighten the bed legs, turn the legs clockwise until tight.
. Flip over the bed frame, insert the mattress bar

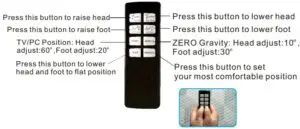

Adjusta-Flex Base 800 Remote

How to set your Memory Button:

Use Head Up and Foot Up buttons to set your desired position.
Once your desired position is set, press FLAT and Memory button at the same time, when you hear the “Beep” sound from control box, it means the remote is paired to the control box.
Press Memory Button again, if it works, your desired position is now set, please follow the same steps to set “TV/PC”, “ZERO G” buttons if needed.

Remote Pairing

Steps:

Put the remote close to the “Remote Pairing” as shown.
When you hear the “beep” sound, press any button on the remote. Your 800 Adjustable Bases should now be paired.
Test the 800 Adjustable Bases to ensure the two bases have been paired. If they have not, then repeat steps 1 and 2.

Sync Two Twin XL Adjustable Bases (If Needed)

After completing the bed legs installation, then plug the sync cord to the specific hole of Control Box A and Control Box B as shown;

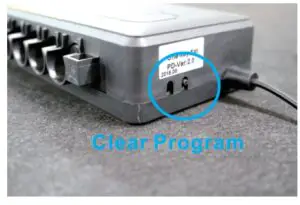

Plug in the power cord, you should hear the beep sound from Box A & B. Clear the program on Control Box A & Control Box B. To clear the program, press the black button on the side of Control Box A for 3 seconds, when you hear the beep sound follow the same procedure to clear the program for Control Box B.

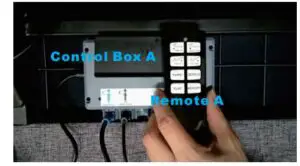

Place remote A close to the “Remote Pairing” area on Control Box A. When you hear the “Beep” sound from Control Box A, press the “Head Up” or “Foot Up” button. If both bases are working properly, your beds are properly synched and will work with one remote.

REMOTE FEATURE

The Adjustable Bed uses a RF (Radio Frequency) hand control system.NOTE: This bed may show minor intermittent performance because of typical RF interference. This is normal in the operation of the bed, not a defect.

The buttons are backlit when pressed, to aid in the visibility of the remote in low light environments.
It is not necessary to face the receiver to operate the remote control. Remote signal is best transmitted within 9 feet (3 meters) of the receiver.

TROUBLESHOOTING

Provided are a list of possible symptoms and their solutions should the adjustable base fail to operate properly.

Symptoms:

If there is a power failure, please try to use battery backup.
The remote does not work or light up
The base does not respond when the remote is used. Remote LED illuminates and appears to be normal.
Base stutters while in motion.

Solutions:

It is recommend that you purchase 2*9V batteries and install them in the AC/DC adapter on the Power Unit. This function is a battery backup, which will allow the base to adjust to the flat position,press the flat button on the remote to get the bed flat.
Check the remote LED Light is lighting up when pressed. If not, please replace 3*1.5V AAA batteries.
Perform any or all of the following:※ Check that the power cord is plugged into a working and grounded electrical outlet.※ Check that the light on the control box is on※ Check the home’s circuit breaker and fuses.※ Unplug the power cord from the outlet. After one minute, plug it back in. Press any button on the remote. The base should be working.
※ Clear any clutter or obstructions under and around the adjustable base. Radio frequency interference from other remotes or electronic devices may affect normal operation.※ Check batteries in remote※ Assure the keys on remote are being pressed firmly down when operating the Head and Foot buttons.

ADJUSTABLE BASE WARRANTY

Warranty for Adjusta-Flex 1002, 1003 Base

Boyd Adjusta-Flex warrants this adjustable bed to the consumer who is the original purchaser (the “purchaser,” subject to the terms and conditions set forth herein).This warranty begins on the “warranty commencement date” which is the date of purchase for new unused beds and the date of manufacture for beds that have been used for floor display models. Thus, on a floor model bed, the warranty is a portion of 1-year warranty. If original proof of purchase is not provided by purchaser, Boyd Adjusta-Flex reserves the right to determine the frame is not covered by this warranty or to use the manufacturing date as the warranty commencement date.

FULL 1-YEAR WARRANTY

This adjustable bed is warranted against defects in the workmanship or materials for a period of one (1) year from the warranty commencement date. Upon notice during the first year from the warranty commencement date, Boyd Adjusta-Flex will send replacement parts (at no cost to the purchaser) for any defective adjustable bed part to the purchaser, and Boyd Adjusta-Flex will pay authorized labor and transportation cost associated with the repair or replacement of any parts Boyd Adjusta-Flex determines to be defective. This one (1) year warranty shall not apply if purchaser does not return any and all defective parts to Boyd Adjusta-Flex within 15 days of purchaser’s receipt of replacement part.

ADDITIONAL TERMS AND CONDITIONS

This warranty does not apply;(a) to any damages caused by the purchaser;(b) if there has been any unauthorized repair or replacement of adjustable bed parts;(c) if the adjustable bed has been mishandled (whether in transit or by other means), subjected to physical or electrical abuse or misuse,(d) to damage to mattress, fabric, cables, electrical cords, or items sup -plied by Resellers, Contact the Reseller or relevant party for warranty information on these items:(e) if there has been any unnecessary service calls, including cost for in-home service calls solely for the purpose of educating the consumer about the adjustable bed for finding an unsatisfactory power connection;(g) if the recommended weight restrictions are not followed (330 lbs.-TXL; 660-Queen) the warranty will be void.

Repairs to or replacement of the adjustable bed or its components under the terms of this limited warranty will apply to the original warranty period and will not serve to extend such period. The decision to repair or replace defective parts under this warranty shall be made, or case to be made, by Boyd Adjusta-Flex at its option and in its sole discretion.

REPAIR OR REPLACEMENT SHALL BE THE SOLE REMEDY OF THE PURCHASER, THERE SHALL BE NO LIABILITY ON THE PART OF BOYD ADJUSTA FLEX FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OR FOR ANY OTHER DAMAGE, CLAIM, OR LOSS NOT EXPRESSLY COVERED BY THE TERMS OF THIS WARRANTY.

This limited warranty does not include reimbursement for inconvenience, removal, installation, setup time, loss of use, shipping, or any other cost or expenses.

Boyd Adjusta-Flex MAKES NO OTHER WARRANTY WHATSOEVER, EXPRESS OR IMPLIED, AND ALL IMPLIED WARRANTIES OR MERCANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED BY BoydAdjusta-Flex AND EXCLUDED FROM THIS AGREEMENT.

IF YOU EXPERIENCE ANY TROUBLE WITH YOUR BED FRAME DURING THE WARRANTY PERIOD, PLEASE CALL: (314)-993-2693.

PLEASE HAVE YOUR RECEIPT READY AND AVAILABLE. THANK YOU AND ENJOY YOUR BOYD ADJUSTA-FLEX BED FRAME!

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or excl -usion may not apply to every purchaser specific legal rights, and the purchaser may also have other rights, which may vary from state to state. This warranty is valid in all 50 states, Puerto Rico, and Canada.
