Sandon1.5 Bowl
Fireclay ceramic
 |
 |
|
Fitting type: Undermount or Inset Sink handing: Left-hand main bowl Finish style: White glaze |
| • Min. base unit (bowl, tap & overflow only): 800 mm | • Durable finest grade fireclay construction throughout |
| • Packaged size L x W x D: 655 x 575 x 300mm | • One a half bowl design for maximum practicality |
| • Supplied boxed or sleeved: Boxed – brown | • Can be fitted as undermount or inset |
| Boxed weight: 24.70 kg | • Smooth lined luxury Orbit waste supplied as standard |
| • Sink only weight: 19.40 kg | • Hand finished quality |
Included parts:
 |
 |
 |
 |
| 2 X AX1002 (m)90mm (1.5″) Orbit manual basketstrainer waste – long bolt | 1 X AX1105 (m)Rectangular overflow (55x30mm vertical) | 1 X AX1009 (m)1.5 or 2.0 Bowl pipework | 1 X AX4003 (m)Fitting & care instructions & data sheet – ceramic undermount |
Recommended accessories:
1 X AX2503High & Dry drainer rack – White andgrey
All accessories can bepurchased directly fromwww.abode-shop.co.ukor phone 01226 283434
Materials and workmanship warranty summary:
- Sink materials & workmanship 10 years.
- Waste kits 1 year.
- Connecting pipework 1 year.
Care instructions:
- Clean the products regularly using soapy water and a nonabrasive cloth, regular cleaning will prevent the build-up of limescale and dirt.
- Avoid contact with corrosive or abrasive substances.
- After cleaning rinse thoroughly with clean water then dry.
- For more detail see supplied booklet orwww.abodedesigns.co.uk
Product order code: (AW1033)

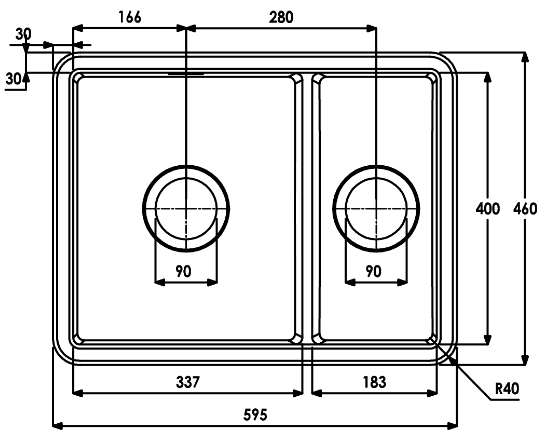

Product dimensions and installation information: note:
symbol indicates position of acoustic pad on stainless products.
Additional notes: Ceramic is a natural hand-finished material, you should expect variances in product finishes and sizesOverall product size: 595 x 460 x 220 corner radius 40mm
Taphole(s) detail: NoneCompatability with large square taps:Waste hole(s) detail (mm): 90 / 90 / N/A (nb. 90mm wastes accept a waste disposal unit)
Min. base unit (refers to space required for bowl, tap and overflow only): fits 800mm carcassMin. Recessed fitting width: required (bowl(s), tap and overflow: 560mm*Worktop cut out size: 0x0 corner radius 0mm, for .DXF cut files please see www.abode.euMin. & Max worktop depth or clip depth reach range: 0 – 0mmFitting temple supplied? No, use cut out instructions as supplied, adjust according to the product receivedDishwasher under drainer? Distance from top of worktop to underside of the drainer 0mm
*Important, fabricator/installer notes for under mount & flush mount sinks:
The cutout size indicated is aligned with the outside edge of the bowl top radius (see example below).
You should confirm with your client if the worksurface cutout is to be cut flush, inside or outside this suggested perimeter shape & size.
If you create the cutout smaller or larger than the indicated size then the fit of the accessories may be affected and should be physically checked.
General:All details are provided in good faith but do not include the tolerances of the material or manufacturing process.
We request that a test cutout is made in scrap timber and checked against the actual sink to be installed before committing to cutting the final work surface.Abode can not accept liability for problems or costs incurred by failure to follow this request.
Note: the dimensions on ceramic fireclay products are subject to wider tolerances dueto the nature of this natural material and the firing process.
CAD cutout files can be downloaded from www.abodedesigns.co.uk

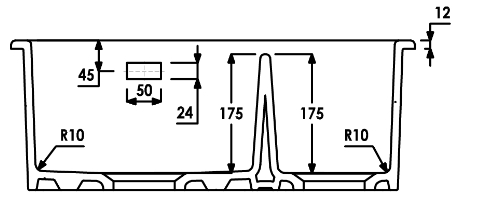

| Bowl details: (sizes in mm unless specified otherwise)Bowl 1 (typically main bowl):Bowl 1 size L x W x D (mm): 337 x 400 x 175Bowl 1 construction: Moulded, 12.00mmBowl 1 floor radius (mm): 10Bowl 1 Wastehole diameter (mm): 90Bowl 1 overflow: RectangularBowl 1 texture: White glazeBowl 1 apx. volume (litres): 21.50Bowl 2 (typically ½ or ¾ bowl):Bowl 2 size L x W x D (mm): 183 x 400 x 175Bowl 2 construction: Moulded, 12.00mmBowl 2 floor radius (mm): 10Bowl 2 Wastehole diameter (mm): 90 | Bowl 2 overflow: N/ABowl 2 texture: White glazeBowl 2 apx. volume (litres): 11.10Bowl 3:Bowl 3 size L x W x D (mm): N/A x N/A x N/ABowl 3 construction: N/A, N/AmmBowl 3 floor radius (mm): N/ABowl 3 Wastehole diameter (mm): N/ABowl 3 overflow: N/ABowl 3 texture: N/ABowl 3 apx. volume (litres): N/A |
09/02/2018 – This sheet is a summary of the product information full details are available on request, errors & omissions excepted, details are subject to change without prior notification. www.abodedesigns.co.uk
