adobe AW5103 Ixis Stainless Steel 1.5 Bowl and Drainer User Guide

adobe AW5103 Ixis Stainless Steel 1.5 Bowl and Drainer

Fitting type: InsetSink handing: ReversibleFinish style: Brushed steel

  • Min. base unit (bowl, tap & overflow only): 600 mm
  • Packaged size L x W x D: 1057 x 570 x 207mm
  • Supplied boxed or sleeved: Boxed
  • Boxed weight: 10.47 kg
  • Sink only weight: 5.32 kg
  • Durable 304 stainless steel construction throughout
  • Smooth lined luxury Orbit waste supplied as standard
  • Profited worktop seal
  • Softened square edges for a sharp but easy clean look
  • One a half bowl design for maximum practicality

Included parts

1 X AX1012 (m)90mm Orbit wastes & rectangular overflow pack for 1.5 & 2.0 – short bolt

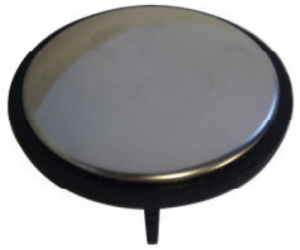

1 X AX1014 (m)35mm tap hole cover plate – brushed steel

1 X AX1071 (m)Inset stainless steel fixing clips x 10

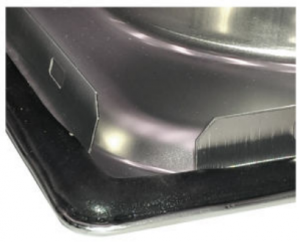

1 X AX1057 (m)factory fitted rim worktop seal

1 X AX1009 (m)1.5 or 2.0 Bowl pipework

1 X AX4016 (m)Fitting & care instructions & data sheet – st/st inset

Recommended accessories

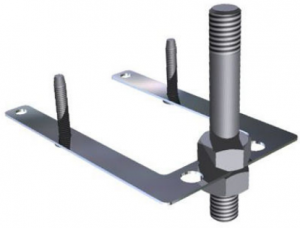

1 X AX1011Tap stabilizing bracket

1 X AX2501Silicone drainer mat 330 x 390mm

1 X AX2503High & Dry drainer rack – White and grey

All accessories can be purchased directly from www.abode-shop.co.uk or phone 01226 283434

Materials and workmanship warranty summary

  • Sink materials & workmanship 10 years.
  • Waste kits 1 year.
  • Connecting pipework 1 year.

Care instructions

  • Clean the products regularly using soapy water and a non abrasive cloth, regular cleaning will prevent the build up of lime scale and dirt.
  • Avoid contact with corrosive or abrasive substances.
  • After cleaning rinse thoroughly with clean water then dry.
  • For more detail see supplied booklet or www.abodedesigns.co.uk

Product dimensions and installation information

Note: symbol indicates position of acoustic pad on stainless products

Additional notes:Overall product size: 1000 x 500 x 195 corner radius 8mm

Tap hole(s) detail: 2 x Ø 35mm, precutCompatibility with large square taps:Waste hole(s) detail (mm): 90 / 90 / N/A (nb. 90mm wastes accept a waste disposal unit)

Min. base unit (refers to space required for bowl, tap and overflow only): fits 600mm carcassMin. Recessed fitting width: required (bowl(s), tap and overflow: 550mm*Worktop cut out size: 980×480 corner radius 10mm, for .DXF cut files please see www.abode.euMin. & Max worktop depth or clip depth reach range: 24 – 44mmFitting temple supplied? No, use cut out instructions as suppliedDishwasher under drainer? Distance from top of worktop to underside of the drainer 10mm

*Important, fabricator / installer notes for undermount & flushmount sinks:

The cut out size indicated is aligned with outside edge of the bowl top radius (see example below).

You should confirm with your client if the worksurface cutout is to be cut flush, inside or outside this suggested perimeter shape & size.

If you create the cutout smaller or larger than the indicated size then the fit of the accessories may be affected and should be physically checked.

General:

All details are provided in good faith but do not include the tolerances of the material or manufacturing process.

We request that a test cutout is made in scrap timber and checked against the actual sink to be installed before committing to cutting the final worksurface.

Abode can not accept liability for problems or costs incurred by failure to follow this request.

Note: the dimensions on ceramic fireclay products are subject to wider tolerances due to the nature of this natural material and the firing process.

CAD cutout files can be downloaded from www.abodedesigns.co.uk

Bowl details: (sizes in mm unless specified otherwise)
Bowl 1 (typically main bowl): Bowl 2 (typically ½ or ¾ bowl): Bowl 3:
Bowl 1 size L x W x D (mm): 330 x 400 x 173 Bowl 2 size L x W x D (mm): 170 x 290 x 115 Bowl 3 size L x W x D (mm): N/A x N/A x N/A
Bowl 1 construction: Welded, 0.80mm Bowl 2 construction: Welded, 0.60mm Bowl 3 construction: N/A, N/Amm
Bowl 1 floor radius (mm): 40 Bowl 2 floor radius (mm): 20 Bowl 3 floor radius (mm): N/A
Bowl 1 Wastehole diameter (mm): 90 Bowl 2 Wastehole diameter (mm): 90 Bowl 3 Wastehole diameter (mm): N/A
Bowl 1 overflow: Slotted, std equal pattern Bowl 2 overflow: N/A Bowl 3 overflow: N/A
Bowl 1 texture: Brushed stainless Bowl 2 texture: Brushed stainless Bowl 3 texture: N/A
Bowl 1 apx. volume (litres): 16.80 Bowl 2 apx. volume (litres): 5.40 Bowl 3 apx. volume (litres): N/A

This sheet is a summary of the product information full details are available on request, errors & omissions excepted, details are subject to change without prior notification. www.abodedesigns.co.uk
