Equipped with AEM ® Dryflow™ FilterNo Oil Required!INSTALLATION INSTRUCTIONSPART NUMBER21-8128DC (Gun Metal Gray Finish)
2015 FORD F150 EcoBoost 2.7L & 3.5L Turbo

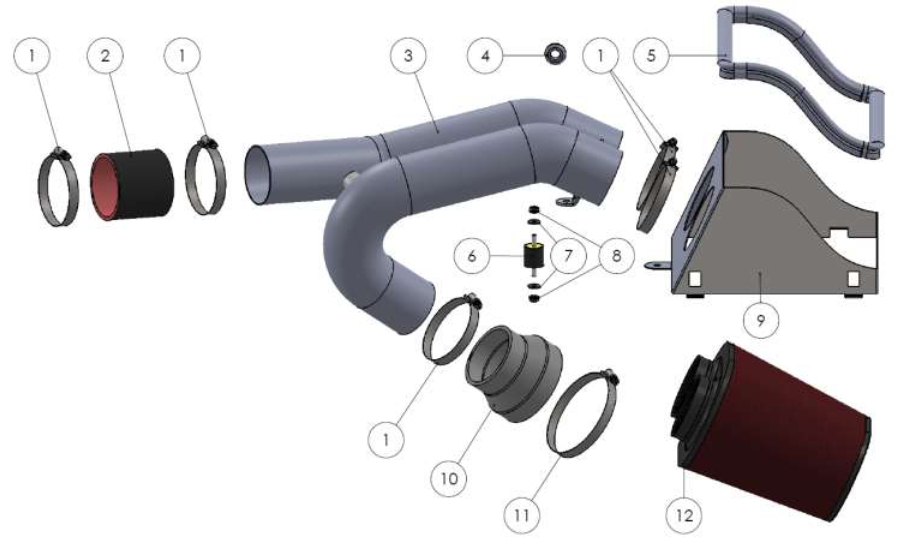

Parts List
|
ITEM NO. |
PART NUMBER | DESCRIPTION |
QTY. |
| 1 | 9448 | 1/2″ BNDHOSE CLAMP,2.56″-3.50″ | 5 |
| 2 | 5-300 | HOSE; SILICONE 3.00 X 3″ BLK | 1 |
| 3 | 2-1532C | INTAKE TUBE; ASSY, 3.00″OD X 40″ | 1 |
| 4 | 784646 | GROMMET, 1/2″ 3/32 GW | 1 |
| 5 | 102499 | EDGE TRIM; 3/4″BULB,TOP LOC.,42″L | 1 |
| 6 | 1228599 | MOUNT, RUBBER 1″ X 6MM | 1 |
| 7 | 444.460.04 | NUT; M6 HEX SERRATED | 2 |
| 8 | 08275 | WASHER; 1/4″ID X 5/8″OD – SAE | 2 |
| 9 | 20-8551 | HEAT SHIELD, AEM-21-8128, FORD F150 | 1 |
| 10 | 5-430 | HOSE, ADAPTER 4.00/3.00X3″ BLK | 1 |
| 11 | 9464 | 1/2″ BNDHOSE CLAMP,3.56″-4.50″ | 1 |
| 12 | 21-2138DK | AIR FILTER; DUAL 3″FLG | 1 |
Read and understand these instructions BEFORE attempting to install this product. Failure to follow installation instructions and not using the provided hardware may damage the intake tube, throttle body and engine.
1. Preparing Vehiclea. Make sure the vehicle is parked on a level surface.b. Set the parking brake.c. If the engine has run in the past two hours, let it cool down.d. Disconnect negative battery terminal.e. Do not discard stock components after removal of the factory system.f. Open the air intake kit package and make sure all parts are included.
Tools NeededScrew driver 10MM socket Driver Knife

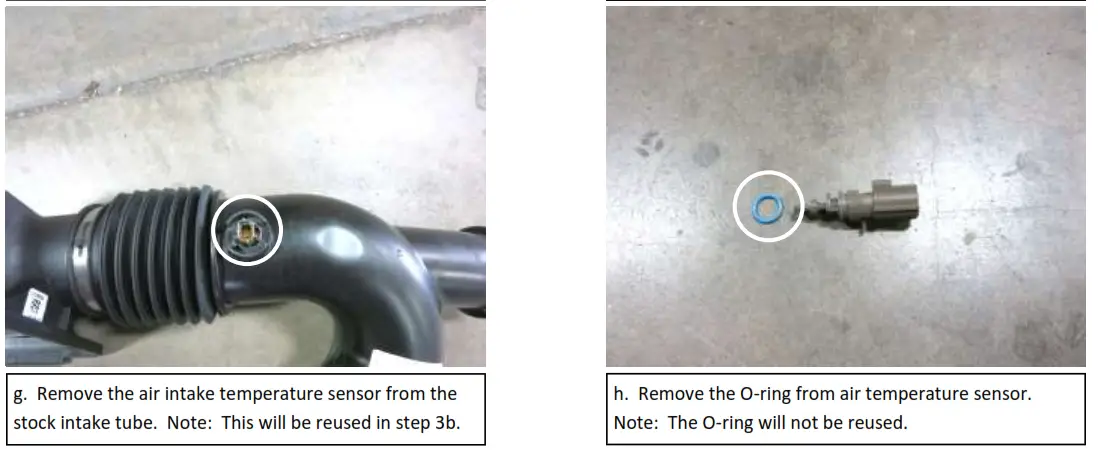

2. Removal of stock system
4. Reassemble Vehiclea. Position the inlet pipes for the best fitment. Be sure that the pipes or any other components do not contact any part of the vehicle.b. Check for proper hood clearance. Re-adjust pipes if necessary and re-tighten them.c. Inspect the engine bay for any loose tools and check that all fasteners that were moved or removed are properly tightened.d. Reconnect negative battery terminal and start the engine. Let the vehicle idle for 3 minutes. Perform a final inspection before driving the vehicle.5. Service and Maintenancea. AEM Induction Systems requires cleaning the intake system’s air filter element every 100,000 miles. When used in dusty or off-road environments, our filters will require cleaning more often. We recommend that you visually inspect your filter once every 25,000 miles to determine if the screen is still visible. When the screen is no longer visible someplace on the filter element, it is time to clean it. To clean, purchase our Synthetic air filter cleaner, part number 1-1000, and follow the easy instructions.b. Use window cleaner to clean your powder coated AEM intake tube.NOTE: DO NOT USE aluminum polish on powder-coated AEM ® ® intake tubes.Learn more about the performance air intake systems we have.
