G22 Smart Watch>> Welcome Guide
Thanks for choosing this product. Please read this [user manual] carefully before use and keep this instruction for future reference. Any problems with this product, please feel free to contact us at [email protected].

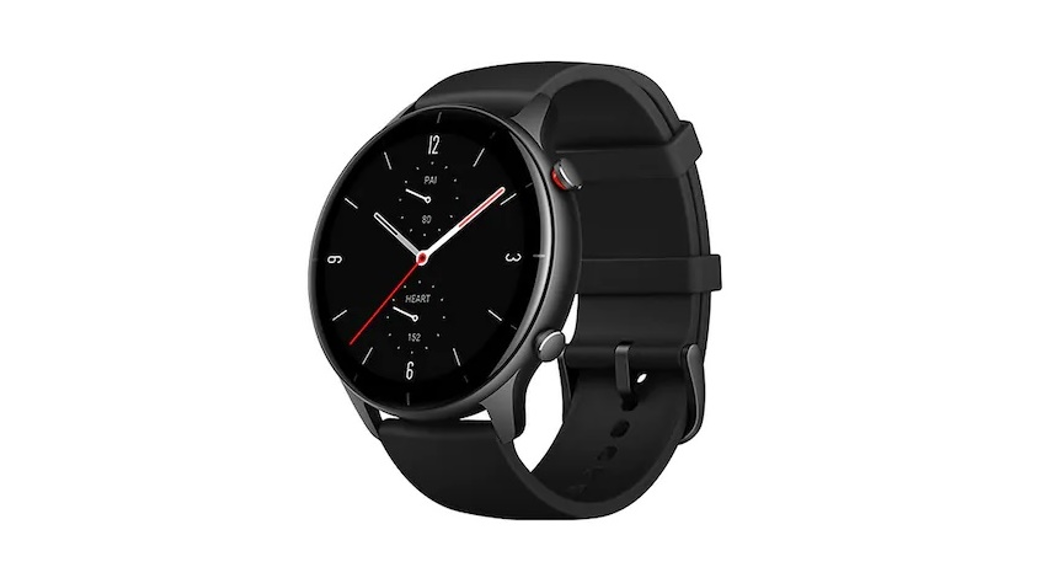

Product Overview
Note: Long press red button to power on.
Charging Watch
1. Buckle the watch into the charger seat as shown in the picture. It needs to be charged to activate the watch when it is started for the first time.2. Insert the USB end of the charger seat into
USB wall charger or USB interface of a computer.

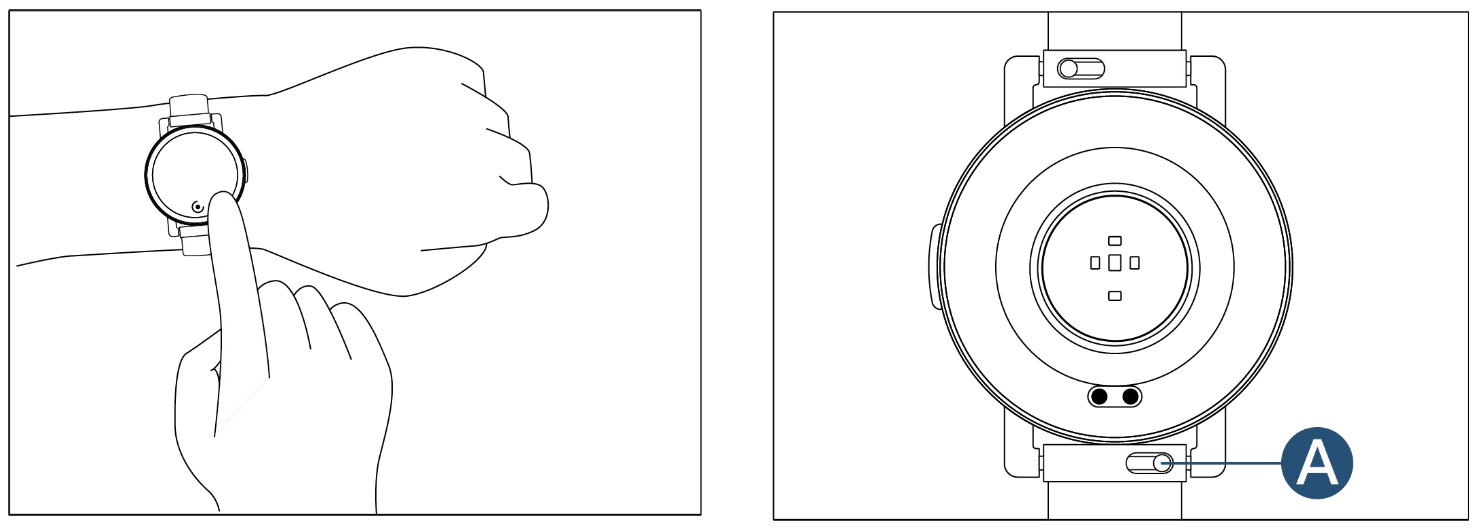

Wear/Install
1. Wear: Wear the wristband one finger away from the wrist bone and adjust the tightness of the wristband to a comfortable position.2. Replace The Strap: Flip the switch and take out the wristband. (A: Switch)
Tip: Wearing too loosely may affect the accuracy of heart rate data.
Download App
https://app.help-document.com/gloryfit/download/index.html
1. Download “GloryFit” from “Apple store” or “Google play store” (Android App store).2. Scan the left QR code.Note: Mobile phone must support Android 4.4/iOS 8.0+ and Bluetooth 4.0+.
Binding
1. For first use, start App “GloryFit”, register and log in.2. Go to [Device]>[Add a new device]>[Select device].3. After searching, select and click “G22” to complete the connection.
⦁ Main Interface3 Main interfaces are available. Press and hold (2S) the touchpoint on the main interface to switch.
⦁ Pedometer
24-Hour real-time recording your steps, walking distance, and burned calories during that day. They also can be viewed after syncing to the App.
⦁ Heart Rate
In the heart rate interface, it will enter into real-time monitoring.1. These data will be synchronized to App in time and analyze the conditions of your heart rate in the watch and App.
Note: The data of heart rate measurement are for reference only and cannot be used as a basis for medical-related aspects.
⦁ Sports
Switch to the Sports interface, and press and hold (2S) to access 7 different exercises. Select one of your favorite exercises, press and hold (2S) to start it. If wanna exit the current exercise, press and hold (2S) to exit or press the red button to return.
⦁ Message
Switch to the message interface, press and hold (2S) to access the message.
⦁ SettingSwitch to this interface, press and hold (2S) to access its function. A relative list will show: Bright, Info, Reset, Find, Off.1. Bright. Adjust the brightness of watch.2. Info. Check the firmware version and Bluetooth information.3. Reset. Restore the watch to factory state.4. Find. Find the mobile phone.5. Off. Turn off the watch.
Other Functions⦁ ReminderThe reminders (Call, SMS, SNS) need to turn on in the App and always stay connect between watch and App. All these reminder is to vibrate to notify.⦁ Sleep MonitorRecord your sleep from 23:00 pm to 8:00 am. The detected data only show in the App, not the watch. Sync and update the data through manually pulling down the the “Home” page of App.
Attentions
⦁ DON’T use over 5V/2A power adapter to charge it.⦁ This device is is an electronic product, not for medical reference, so the detected data is for reference only.⦁ Monitoring process: Take a comfortable, restful sitting position and keep your mind easeful. Forbidden to speak. Place the watch at the same height as your heart (as shown on the left).
FAQ
⦁ Why can’t I receive the notification?1. Android: When you turn on the QQ/Wechat reminder for the first time, the App will get the corresponding permissions automatically.2. iOS: (Call, SMS, SNS) When the reminders in the App are turned on, your phone will automatically pop up the accessing request, you just need to select OK.
Specifications
| Screen | 1.3 IPS color screen |
| Battery | 160mAh |
| WorkingTime | 7 days |
| BT Distance | 10m (In the open space) |
| ChargingWay | 5V/500mA USB charger;Computer USB |
| ChargingTime | 2 hours |
| Waterproof | IP67 |
| SupportAppReminder | QQ/Wechat/Linkedin/Line/Skype/Facebook/Twitter/WhatsApp/Viber… |
| Compatibility | ✔iOS8.0+/Android5.0+/Smartphones with BT 4.0+;✖Tablet/HuaweiP8/Sams-ungS7&S8&J3/LG/PC/iPad/Phone/Desktop/Windows |
