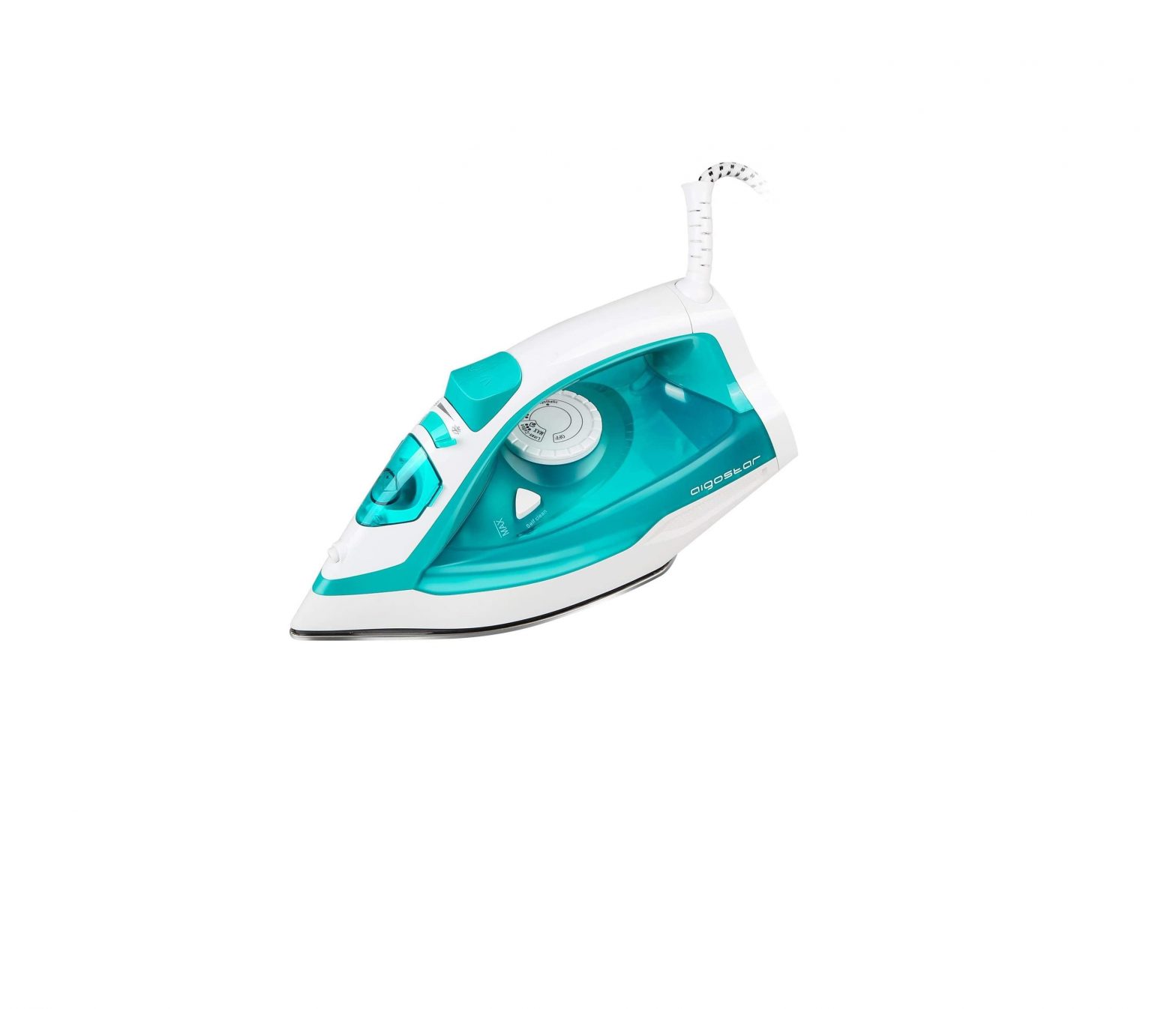

aigostar Multifunction Steam Iron
IMPORTANT SAFETY INSTRUCTIONS
When using your flatiron, basic safety precautions should always be followed,including the following:
READ ALL INSTRUCTIONS BEFORE USING
- Use iron only for its intended use.
- To protect against a risk of electric shock, do not immerse the iron in water or other liquids.
- The iron should always be turned to “min”, before plugging or unplugging from outlet. Never yank cord to disconnect from outlet; instead, grasp plug and pull to disconnect.
- Do not allow cord to touch hot surfaces. Let iron cool completely before putting away. Loop cord loosely around iron when storing.
- Always disconnect iron from electrical outlet when filling with water or emptying and when not in use.
- Do not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron. Take it to a qualified serviceman for examination and repair. Incorrect reassembly can cause a risk of electric shock when the iron is used.
- Close supervision is necessary for any appliance being used by or near children.Do not leave iron unattended while connected or on an ironing board.
- Burns can occur from touching hot metal parts, hot water, or steam. Use caution when you turn a steam iron upside down – there may be hot water in the reservoir.
- If the malfunction indicator goes on, the flatiron is not operating normally.Disconnect from the power supply and have the flatiron serviced by qualified service personnel.
- The iron must be used and rested on a stable surface.
- The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.
- This appliance is not intended for use by persons(including children)with reduced physical ,sensory or mental capabilities ,or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety .
- Children should be supervised to ensure that they do not play with appliance.
- The iron must not be left unattended while it is connected to the supply mains;
- The plug must be removed from the socked-outlet before the water reservoir is filled with water;
- When placing the iron on its stand, ensure that the surface on which the stand is placed is stable;
- The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.
- If the supply cord is damaged ,it must be replaced by the manufacturer. its service agent or similarly qualified persons in order to avoid a hazard.
SPECIAL INSTRUCTIONS
- To avoid a circuit overload, do not operate another high wattage appliance on the same circuit.
- If an extension cord is absolutely necessary, a 10-ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.
SAVE THESE INSTRUCTIONS
More specifically:
DO NOT let children or untrained persons use the appliance without supervision.NEVER immerse the iron, cable or plug in any liquid.DO NOT leave the hot iron touching fabrics or very inflammable surfaces.DO NOT leave the appliance unnecessarily plugged in. Disconnect the plug from the mains when the appliance is not being used.NEVER touch the appliance with wet or damp hands.DO NOT use the power cord or the appliance in order to pull the plug out of the socket.DO NOT leave the appliance exposed to the weather (rain, sun, etc. ).DO NOT leave the iron without supervision when it is connected to the power supplyDO NOT fill the reservoir with water before removing the plug from the socket.PLEASE NOTE!Do not use chemical additive, scented substances or decalcifies. Failure to comply with the above-mentioned regulations leads to the loss of guarantee.

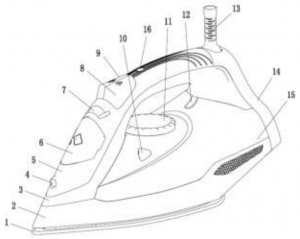

DESCRIPTION OF DEVICE
- soleplate
- skirt
- tank cover
- spray nozzle
- up cover
- water cover
- steam knob
- spray button
- burst button
- self clean button
- temperature knob
- lamp
- cord protector
- rear cover
- tank
- handle
GENERAL INSTRUCTIONS
When using the iron for the first time, you may notice a slight emission of smoke and hear some sounds made by the expanding plastics. This is quite normal and it stops after a short time. We also recommend passing the iron over an ordinary cloth before using it for the first time.
Suggestions before using the iron for the first time
- Certain parts of the iron have been lightly greased therefore the iron could give off a little smoke when plugged in for the first time. This will cease after a short while.
- Before using the iron for the first time , remove the plastic protector from the base (if it has one) clean the base with a soft cloth.
- Keep the base very smooth. Do not run it over metal objects (such as against the ironing board, buttons , zips ,etc.)
- Pure wool fibres (100% wool)can be ironed with the appliance in the steam position .by preference ,select a high steam position and use a dry ironing cloth.
Selecting the temperature
- Check the ironing instructions on the garment to be ironed.
- If the garment does not have any ironing instructions but you know the kind offabric in question, use the chart below.
- Fabrics that have some kind of finish(polishing . wrinkles , contrasts….)can be ironed at the lowest temperatures.
- If the fabric contains several kinds of fibres ,always select the temperature applicable ,if an article contains 60% polyester and 40% cotton ,you must always choose the temperature corresponding to polyester and without steam.
- First classify the articles to be ironed according to the most suitable ironingtemperature : wool with wool, cotton with cotton, etc. as the iron heats up as fast as it cools , start by ironing the articles requiring the lowest temperature such as those made of synthetic fibres . Progress towards those that require the highest temperatures.
- Turn the temperature control until it is in front of the appropriate signal according to the following:· position for nylon and acetate·· position for wool ,silk or mixures··· position for cotton or linen (steam).
How to fill the water tank.
- Unplug the iron.
- Set the steam ruler to dry ironing .
- Fill the tank through the filling hole.
- If you have hard water ,it is advisable to use only distilled or demineralized water.do not use chemically de-limed water or perfumed
- Do not store the iron with water in the tank.
Steam ironing
- Fill the iron as described in the section “how to fill the water tank”.
- Plug the iron into the mains.
- Steam ironing is only possible when the highest temperatures shown on the temperature control are selected .Otherwise ,water may escape through the soleplate.
- Wait until the pilot light goes out , which indicates that the selected temperature has been reached.
- Turn the steam button to the required position.
- When the ironing is finished and during breaks in ironing , place the iron in its upright position.
- Disconnect the iron from the mains supply . Pour of any remaining water and leave the iron to cool off.
Spray
- The spray can be used in any position, either in dry or steam ironing, as long as the water tank is filled with water.
- Press the spray button for this function
NOTE : This button has to be pressed repetitively to start this function for the first time.
Shot of steam
Shot of steam give extra steam for removing persistent wrinkles.
- Place the temperature selector at the “max” position and wait until the pilot light goes out
- Wait for a few seconds for the steam to penetrate the fibre before pressing again.
NOTE : For the best steam quality, do not use more than three successive bursts each time. Several pumping actions are needed to start this function.Excessive use of this feature will cause the iron to cool , ensure that the pilot light is out, before operating the shot of steam control
Cleaning
- Disconnect the appliance from the mains , before cleaning.
- Do not use solvents or abrasive products to clean the iron , clean with a damp cloth.
ANTI-DRIP
With the anti-drip system, you can perfectly iron even the most delicate fabrics.Always iron these fabrics at low temperatures. The plate may cool down to the point where no more steam comes out, but rather drops of boiling water that can leave marks or stains. In these cases, the Anti-drip system automatically activates to prevent vaporization, so that you can iron the most delicate fabrics without risk of spoiling or staining them.
Defects and repairs
Do not attempt to replace a defective mains lead .The appliance has to be returned to an authorized service centre for repair.Faults-reasons and solutions
Iron emits an odor or smoke
Iron gives off an odor when turned on for the first time. Oils used during manufacture need to be burnt off allow ten minutes for odor to disappear.
Iron does not heat
The iron should be plugged into a 230 Volt , AC electrical outlet only. The temperature dial must be set at the desired temperature.
Iron does not steam
The water tank many be empty. Turn the steam valve to “0” and add water .Allow the iron to heat, and then set the steam dial to the steam setting.
Burst of steam feature does not work
The water tank must be at least 1/4 full .Temperature must be set to steamposition. Iron should be in the horizontal position. Prime pump briefly. Allow a short pause between shots. Be sure to fully depress the burst of steam button.
Spry mist feature does not work
The water tank must be at least 1/4 full. Fill the iron as described in the section “how to fill the water tank”.
Iron is leaking
The variable steam dial must be set on” “,until the iron is hot . The temperature setting is too low to produce steam. Shot of steam used too much, allow iron to re-heat.
Warranty: 2 Years
