air volution BBQ Rangehood User Manual
A Residentia Group Initiative
Dear Customer,Congratulations on purchasing your new rangehood. The Airvolution brand is proudly distributed within Australia by Residentia Group Pty Ltd. Please refer to the warranty card at the rear of this manual for information regarding your product’s parts and labour warranty, or visit us online at www.residentia.group At Residentia Group, we are customer obsessed and our Support Team are there to ensure you get the most out of your appliance. Should you want to learn more about optional accessories (such as carbon filters) or most importantly taking care of your rangehood when cleaning, our Support Team are here to help. You can use our online Support Centre at anytime by visitinghttp://support.residentiagroup.com.au, or you can contact us via telephone by dialling 1300 11 HELP (4357). It is important that you read through the following use and care manual thoroughly to familiarise yourself with the installation and operation requirements of your appliance to ensure optimum performance. Again, thank you for choosing an Airvolution appliance and we look forward to being of service to you. Kind Regards, The Airvolution & Residentia Teams
SAFETY INSTRUCTIONS
This rangehood must only be installed in accordance with the instructions provided. Incorrect installation may cause harm to persons, damage property and voidthe product’s warranty.
ImportantPlease ensure that you read the entire instructions before beginning the installation of your rangehood.
WarningAll electrical work must be done in accordance with local and national electrical codes as applicable and should be undertaken by licenced and qualified persons onl .
– This rangehood is designed for domestic household use only.– This appliance is not intended to be used by children, or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the rangehood by a person responsible for their safety.– Young children should be supervised to ensure that they do not play with the appliance.– You must read the instructions concerning the method and frequency of cleaning
Important!
There is a risk of fi e if cleaning isn’t carried out in accordance with the instructions.– Never flambé under the rangehood.– Exhaust air must not be discharged into an existing flue which is used by other appliances for exhausting fumes.– If the power supply cord of this rangehood is damaged in any way, it must only be replaced by Residentia Group or one of it’s authorised service agents. Please call the Residentia Support Team for further assistance.– Your new rangehood is guaranteed against electrical or mechanical defects, subject to certain exclusions that are noted in the Warranty Terms and Conditions (at the rear of this user manual). The foregoing does not affect your statutory rights.– The use of this rangehood for any other purpose or in any other environment, without the express agreement of Residentia Group, will invalidate any warranty or liability claim.– No modifications to the appliance a e permitted by Residentia Group.– Repairs may only be carried out by authorised service agents.– Cleaning of the rangehood should be carried out on a regular basis.
Unpacking
During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packagingin a way that will not cause damage to the environment. All materials used for packaging the appliance are environmentally friendly; they are 100% recyclableand are marked with the appropriate symbol.
Caution! During unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept out of reach of children.
Disposal of the appliance
Old appliances should not simply be disposed of with normal household waste, but should be delivered to a collection and recycling centre for electric and electronicequipment. A symbol shown on the product, the instruction manual or the packaging shows that it is suitable for recycling. Materials used inside the appliance are recyclableand are labelled with information concerning this. By recycling materials or other parts from used devices you are making a significant contribution to the p otectionof our environment. Information on appropriate disposal centres for used devices can be provided by your local authority. There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).CAUTION: Accessible parts may become hot when used with cooking appliances.
YOUR RANGEHOOD
| Model | Product dimensions (W,D,H mm) |
| ARCBBQ | 1200mm × 700mm × 689-1279mm |
| Model | Extraction | Other features: |
| ARCBBQ | 2 × 1000m3/hr extraction | – 3 speed push button control
– 6 × 1W LED lamp – 8 × Baffle filter |
Rangehood components
Your Airvolution Canopy Rangehood is supplied with– 1 × Rangehood– 2 × Expandable 150mm ducting adapter– 1 × Packet of fasteners and wall plugs– 2 × Stainless Steel flue pieces (upper and lower)– 1 × Wall Bracket (“hook”) for the rangehood– 1 × Wall Bracket for the inside of the chimney pieces– 1 × “Outside Chimney” bracket
Typical installation tools required
You’ll most likely require the following tools/equipment (not supplied) for the installation of your rangehood.– Electrical drill– Tape Measure– Screw-driver– Spirit Level
If ducting your rangehood, you’ll also most likely require:– Jig saw– Ladder– Duct-tape– Ducting
OPERATING YOUR RANGEHOOD
Your Airvolution Canopy Rangehood features push button controls
0 off buttonIt’s used for turning off the fan.
1 Low Speed buttonIt’s used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam.
2 Medium Speed buttonAirflow speed is ideally for ventilation in standard cooking operation.
3 High Speed buttonWhen high density of smoke or steam produced, press high-speed button for highest effective ventilation.
Light buttonNOTE If Low / Medium / High speed buttons are press at the same time, the unit will only operate at the highest speed.
INSTALLATION INSTRUCTIONS
It’s important to carefully read the following installation instructions before beginning the installation of your oven.
Important installation safety
– Always switch the power off prior to beginning the installation.– Stainless steel is very easily damaged during installation. Wherever possible, protect the rangehood with the cardboard box or plastic wrap during theinstallation.– For safety reasons, this Rangehood must be earthed.– A power point must be located within 1.5m of the power cord exit from the rangehood, and it should be always accessible to allow isolation from powerduring cleaning or maintenance.– A 150mm round ducting adapter is supplied, however all other ducting accessories are not.– All ducting must comply with building codes and local requirements.– If you are re-circulating the air, rather than ducting, please ensure that the side outlet grilles are not obstructed in any way as this will effect the effi ciency of the rangehood.– Ensure that the rangehood is mounted in a level position, both horizontally and vertically. This is essential to ensure the rangehood operates correctly and prevents grease build up at one end.
Ducting options
Before beginning the installation of your rangehood, the method of ducting should be considered and selected. The guide below illustrates the various ducting options
Note: This rangehood can be operated in recirculation mode where required, although Airvolution recommends to duct wherever possible
- Into your ceiling cavity and then vented through your eaves
- Straight up and through your tiled or metal roof.
INSTALLATION INSTRUCTIONS CONTINUED
Through your wall
Further to your various ducting options, below are some tips on how to correctly duct your rangehood:– Always use correctly sized ducting – DO NOT reduce the size of the ducting– Always use solid ducting– Always use non-flammable ducting– Always duct to the outside atmosphere– Do not use flexible ducting– Do not duct into the ceiling space- always vent to the outside atmosphere.– Avoid sharp 90 degree bends as much as possible, use 45 degree bends instead wherever possible– Duct to the outside atmosphere using the shortest duct run possible– Use cylindrical ducting whenever possible
Positioning the rangehood
Installation heights– Over gas and electric cookers, Residentia Group recommends our rangehoods to be mounted at a height of between 600-800mm above the cooking surface.– Electric cooktops must have a minimum height of 600mm from the underside of the rangehood to the cooktop face.– Gas cooktops must have a minimum of 650mm from the burner to the underside of the rangedhood.– Over open flame grillers or barbecues, the Gas Regulations require the filters of the rangehood to be at least 1200mm above the cooking surface.
Installing the rangehood
– Drill 4 x 8mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the screws and wall plugs provided.
– Lift up the cooker hood and hang onto the wall bracket

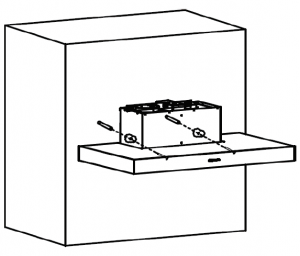

– We need the secure screws to make sure the hood is stable on the wall. After hanging the cooker hood on the bracket ,remove the filters , mark and drill 2 holes and fasten the hood on the wall with 2 wall plugs and 2 2 × ST4 × 30mm screws.
– Fix the one-way-valve to the air outlet of the cooker hood. Then, attach two exhaust pipes onto the one-way-valve as shown below.

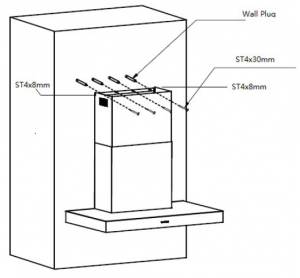

Chimney installation– Put the upper chimney into lower chimney . Mark and drill 4 holes depend on the plate I. Fasten the lower chimney on the wall with 4 wall plugs and 4×ST4×30mm screws.
Chimney installation
– Slide the upper chimney to adjust the chimney height. When the height required is reached, drill 4 × 8mm holes to accommodate the plate II. Screw and tighten the plate II onto the wall with 4 wall plugs and 4 x ST4x30mm . When finish ,fix the lower chimney with 2 x ST4x8mm
– Slide the upper chimney to adjust the chimney height. When the height required is reached, drill 4 × 8mm holes to accommodate the plate II.Screw and tighten the plate II onto the wall with 4 wall plugs and 4 x ST4x30mm . When finish ,fix the lower chimney with 2 x ST4x8mm
CLEANING & MAINTENANCE
By ensuring proper cleaning and maintenance of your Airvolution rangehood, you can ensure that it will have a long and fault free operation. Cleaning the baffle filtersKeeping this filter clean will eep the rangehood extraction performance at an optimum. Please strictly follow the guidelines below
– The baffle filter is made of stainless steel. Please ensure you never use a corrosive detergent during cleaning.– Method 1: Put the baffle filter into 40–50°C clean water with a small amount of regular dishwashing liquid, and soak for 2–3 mins. Wear gloves and clean with a soft brush. Please do not apply too much pressure, or the baffle filter will damage easy.– Method 2: You can wash your rangehood baffle filter in your dishwasher, however please ensure they aren’t washed at a temperature above 60°C degrees.
Cleaning the cooker hoodTo protect the main body of your rangehood from corrosion or stains, the cooker hood should be cleaned with hot water with a non-corrosive detergent every twomonths. For stubborn stains or marks, you can try using a specific stainless steel cleaner vailable from most supermarkets.
Warning!
Please do not use a corrosive detergent, or abrasive clothes, as it will damage the body.
– Keep the motor and other spare parts free from water, as this will cause damage to the appliance.– Before cleaning the rangehood, always switch the power off at the outlet and unplug the rangehood.– If your rangehood has a damaged plug or cord, please ensure your rangehood remains unplugged and contact the Residentia Support team for further assistance. Any electrical work should only be completed by a suitably licenced and authorised person.– If you’re using a carbon filte , it should never be exposed to heat.
TROUBLESHOOTING & TECHNICAL DATA
Operation in case of emergency In the event of an emergency you should
– Switch off all rangehood controls.– Switch the rangehood off at the power outlet and immediately unplug.– Call the Residentia Support Team on 1300 11 HELP (4357)
Some minor faults can be fi ed by referring to the instructions given in the Troubleshooting section below. There is also a self-help section online athttps://residentia.zendesk.com/
Important!
If your appliance appears to be operating incorrectly, then you should disconnect it from your electrical supply and then contact the Residentia Group Support team on 1300 11 HELP (4357). Warning! Do not attempt to repair the rangehood yourself
Please note that if an engineer is asked to attend whilst the product is under warranty and finds that the p oblem is not the result of an appliance fault, then you may be liablefor the cost of the call out charge. The appliance must be accessible for the engineer to perform any necessary repair. If your appliance is installed in such a way that an engineer is concerned that damage will be caused to the appliance or your kitchen, then they will not complete a repair. This includes situations where the rangehood has been tiled in or sealed in with a sealant. Please refer to the conditions of that appear on the warranty card at the rear of this user manual.
| Fault: | Common Cause: | Common Solutions: |
| The lights work, however the motor does not work | The motor is blocked or jammed or the capacitor is damaged. | Call the Residentia Support team for further guidance. |
| The capacitor damaged | Call the Residentia Support team for further guidance. | |
| Neither the lights or the motor works | Beside the above mentioned, check the following: | |
| Light globes are damaged or blown | Replace the light globe(s) | |
| The power cord is loose. | Ensure that the rangehood is correctly plugged in and the power outlet is s witched on. | |
| The rangehood is vibrating against the wall | The rangehood canopy is not fi ed to the wall correctly. | Ensure that the internal safety screws have been used and tight. |
| Insufficient suctio | The distance between the rangehood and your cooktop is too great. | Have your installer re-adjust the installation position, ensuring that the minimum distances are
observed as per the building code. |
WARRANTY
Warranty terms and conditionsCooking appliances (rangehoods) This document sets out the terms and conditions of the product warranties for Residentia Group Appliances. It isan important document. Please keep it with your proof of purchase documents in a safe place for future reference should you require service for your Appliance
- In this warranty(a) ‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning referred to in the ACL;(b) ‘ACL’ means Trade Practices Amendment (Australian Consumer Law) Act (No.2) 2010;(c) ‘Appliance’ means any Residentia Group product purchased by you accompanied by this document;(d) ‘ASR’ means Residentia Group authorised service representative;(e) ‘Residentia Group’ means Residentia Group Pty Ltd of 118 Campbell St Collingwood Victoria 3083, ACN 600 546 656 in respect of Appliances purchased in Australia;(f) ‘major failure’ as referred to in clause 10 of this warranty has the same meaning referred to in the ACL and includes a situation when an Appliance cannot be repaired or it is uneconomic for Residentia Group, at its discretion, to repair an Appliance during the Warranty Period;(g) ‘Warranty Period’ means:(i) where the Appliance is used for personal, domestic or household use (i.e. normal single family use) as set out in the instruction manual, the Appliance is warranted against manufacturing defects for 24 months, following the date of original purchase of the Appliance;(h) ‘you’ means the purchaser of the Appliance not having purchased the Appliance for re-sale, and ‘your’ has a corresponding meaning.
- This warranty only applies to Appliances purchased and used in Australia and is in addition to (and does not exclude, restrict, or modify in any way) any nonexcludable statutory warranties in Australia.
- During the Warranty Period Residentia Group or its ASR will, at no extra charge if your Appliance is readily accessible for service, without special equipment and subject to these terms and conditions, repair or replace any parts which it considers to be defective. Residentia Group or its ASR may use remanufactured parts to repair yourAppliance. You agree that any replaced Appliances or parts become the property of Residentia Group. This warranty does not apply to light globes, batteries, filters or similar perishable parts.
- Parts and Appliances not supplied by Residentia Group are not covered by this warranty.
- 5You will bear the cost of transportation, travel and delivery of the Appliance to and from Residentia Group or its ASR. If you reside outside of the service area, you will bear the cost of:(a) travel of an authorised representative;(b) transportation and delivery of the Appliance to and from Residentia Group or its ASR, in all instances, unless the Appliance is transported by Residentia Group or its ASR, the Appliance is transported at the owner’s cost and risk while in transit to and from Residentia Group or its ASR.
- Proof of purchase is required before you can make a claim under this warranty.
- You may not make a claim under this warranty unless the defect claimed is due to faulty or defective parts or workmanship. Residentia Group is not liable in thefollowing situations (which are not exhaustive):(a) the Appliance is damaged by:(i) accident(ii) misuse or abuse, including failure to properly maintain or service(iii) normal wear and tear(iv) power surges, electrical storm damage or incorrect power supply(v) incomplete or improper installation(vi) incorrect, improper or inappropriate operation(vii) insect or vermin infestation(viii) failure to comply with any additional instructions supplied with the Appliance;(b) the Appliance is modified without authority from Residentia Group in writing;(c) the Appliance’s serial number or warranty seal has been removed or defaced;(d) the Appliance was serviced or repaired by anyone other than Residentia Group, an authorised repairer or ASR.
- This warranty, the contract to which it relates and the relationship between you and Residentia Group are governed by the law applicable where the Appliance was purchased.
- To the extent permitted by law, Residentia Group excludes all warranties and liabilities (other than as contained in this document) including liability for anyloss or damage whether direct or indirect arising from your purchase, use or non use of the Appliance.
- For Appliances and services provided by Residentia Group in Australia, the Appliances come with a guarantee by Residentia Group that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Appliance repaired or replaced if the Appliance fails to be of acceptable quality and the failure does not amount to a major failure. Thebenefits to you given by this warranty are in addition to your other rights and remedies under a law in relation to the Appliances or services to which then warranty relates.
- At all times during the Warranty Period, Residentia Group shall, at its discretion, determine whether repair, replacement or refund will apply if an Appliance has a valid warranty claim applicable to it.
- To enquire about claiming under this warranty, please follow these steps:(a) carefully check the operating instructions, user manual and the terms of this warranty;(b) have the model and serial number of the Appliance available;(c) have the proof of purchase (e.g. an invoice) available;(d) telephone the numbers shown below.
- You accept that if you make a warranty claim, Residentia Group and its ASR may exchange information in relation to you to enable Residentia Group to meet its obligations under this warranty.
IMPORTANT
Before calling for service, please ensure that the steps in point 12 have been followedThe Australian Consumer Law requires the inclusion of the following statement with this warranty
Telephone contacts► Service: Please call 1300 11 HELP (4357)► Spare Parts: Please call 1300 11 SPARE (7727)
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for amajor failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if thegoods fail to be of acceptable quality and the failure does not amount to a major failure.
