Airthings Wave 2ndgen
Smart Radon Detector
Operating Manual Version 1, April 5, 2019
Setup your Airthings device in 3 simple steps:
- Download the Airthings Wave App, available on iOS and Android
- Create an account and insert Name, Email and Location*
- Follow the simple instructions in the app to create an account and connect your device
*We securely store your information in the Airthings Cloud.
Many easy ways to contact Airthings
Online
Look at our frequently asked questions, or contact us directly through our support form.
By email
Send an email directly to support at support.airthings.com
Social media
Message us on Facebook, Twitter, LinkedIn or Instagram!
Airthings
Airthingsglobal
Airthings
Airthings
Have any questions or comments that we didn’t get to here? Please let us know! support.airthings.com
Congratulations on taking this important step toward living a healthier life.
By keeping track of your radon levels, you can make healthier decisions in the spaces where you spend most of your time. Reducing your exposure to radon will reduce your risk of lung cancer.
The Airthings Wave provides you with detailed information about radon, temperature, and humidity levels on your phone, Airthings Dashboard or simply wave in front of the device for a visual indication of your radon levels. Airthings Wave 2ndgen connects using Bluetooth or with the Hub using Airthings Smart Link.
Breathe better, live better,
The Airthings team

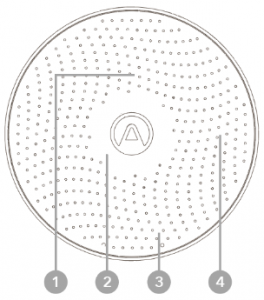

Features and content
1.Power indicator
2.Glowring
3.Wavesensor
4.Air inlets
5.Battery compartments(observe polarity symbols)
6.One-timebattery tab
7.Individual serial number
8.Mounting bracket
9.Screw
10. 2 AA batteries, inserted
Power indicator
Flashing dot every 20 seconds
Green: battery level okay
Blue: Bluetooth connectivity active
Red: replace batteries

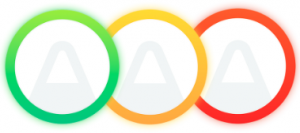

Light ring
Visual indication of your air quality levels.
Green: Good
Yellow: Fair
Red: Poor
Integrations
Glow ring
Status: Color Description
Waiting for first result :
White: No air quality assessment is available yet.
Good
Indoor Air quality is good
Spinning: updating internal firmware
Poor
Above recommended level and action should be taken to lower your levels
Red: One or more of the sensors are above the recommended level. Actions should be taken to increase ventilation. Check your app or dashboard for details about contaminant levels.
For details on sensor thresholds go to airthings.com/wave
Sensor icons
Radon–Decrease exposure to this radioactive gas that accumulates in buildings and homes. It is the number one cause of lung cancer among non-smokers but can be managed with continuous monitoring.
Temperature –Indoor temperatures can affect performance, mood and comfort level. Individual sleep patterns are also affected by indoor air temperature.
Humidity–Too much or too little humidity can affect allergies and cold or flu symptoms. When humidity levels are high, mold and rot can occur. Low humidity levels cause static electricity, dry skin and hair, and increased susceptibility to colds and respiratory illness.
Troubleshooting
- In the device settings menu, click update device.
- Make sure you have the detector within the range of 5 meters or 15 feet.
- Check if Bluetooth is turned on.
- Check if the power indicator is blinking.
- In the app, go to device settings menu and update radon alarm settings.
- Wave in front of the detector to snooze for 1 month when alert is active.
- Open your phone settings and verify that the Airthings Wave app is running in the background. You can usually find this in the app manager section of your phone settings.
- Make sure you are in Bluetooth range periodically.
- Check if the power indicator is blinking.
- If the power indicator is blinking red, or not blinking at all, the battery level is low. First, sync your data and then replace the batteries. We recommend AA alkaline (LR6).
Technical specifications
Operational and storage environment: Temperature: 4 °C (39 °F) to +40 °C (104 °F)
Radon details:
Initial accuracy/precision at 200 Bq/m3(5.4pCi.L):
7 days ~10%(1 std deviation)
2 months~5%
Measurement range: 0 Bq/m3to 20,000Bq/m3
(0 pCi/L to 500pCi/L)
See more specs in our Wave 2ndgen Product Sheet
Safety and maintenance
The Airthings Wave is intended for indoor use only. Avoid direct exposure to sunlight for long periods. Avoid exposure to direct heat sources. For correct usage, make sure the detector is operating in the specified temperature range (see technical specifications).
Limited liability
Terms & conditions
Regulatory information
Regulatory information Canada
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Innovation, Science and Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
RF exposure safety
This product is a radio transmitter and receiver.
It is designed not to exceed the emission limits for exposure to radio frequency (RF) energy set by the ISED.
The antenna must be installed and operated with minimum distance of 20 cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
CAN ICES-3 (B)/NMB-3(B)
This Class B digital apparatus complies with Canadian ICES-003
Regulatory information USA
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Class B device notice
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
RF exposure safety
This product is a radio transmitter and receiver.
It is designed not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission.
The antenna must be installed and operated with minimum distance of 20 cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
