HIFI Digital Power AmplifierUSER MANUALS
Model: A04

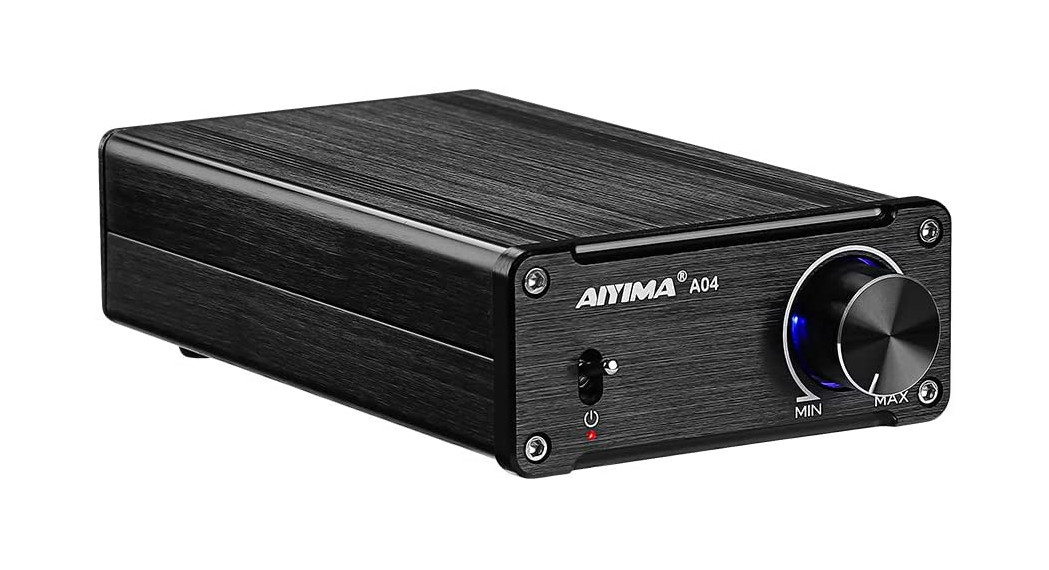

Front panel introduction
- POWER switch
- LED
- Volume
Rear panel introduction
- Line in jacks (Audio input)
- Output jacks (Audio output go to Passive Speaker)
- Power in jack( DC 24-35V Power input)
| Specifications | |
| Chips : TPA3251 +NE5532*2 | Max Power : 2*175W @ 40, 10% THD+N |
| Speaker impedance: 4-80 | Max Power : 20-20kHz ±3dB |
| SNR: >92dB | Input voltage : DC 18-35V |
| Overvoltage protection: YES | Overcurrent protection: YES |
| Undervoltage protection: YES | Undercurrent protection: YES |
| Over-temperature protection: YES | Power on “POP”: NO |
| Power off “POP”: YES |
Q & A
- The indicator light flashesPlease disconnect the power immediately and check the following conditions: Whether the power supply voltage is within the working range, whether the power is sufficient, and there is little over-temperature
- There is current sound and noiseA, The power supply filter used is not good; the current sound is caused by wrong input by the power or audio input.B, The input signal quality is poor; the output of the device connected to the input is improper, and the noise is caused by the abnormal input of the audio source.C, The input cable is of poor quality; the line is in poor connect; the wiring is damaged. the wiring is suspendedD, The input connection has other playback devices, and some devices share the PO-we supply to cause noise.’
- Volume broke and breaking sound when turn loudA, The power input is insufficient, confirm the wiring is correct first, and the supply current is sufficient,B, The speaker itself has poor performance or damage, and the speaker power is too small or too large.C, left and right channel speakers (+) (-) output are independent, can not be connected to each other
- No sound output, no sound in 1 channelA, The speaker is broken, or the speaker cable is not connected well.B, The input cable is not in good connect; the wiring is damaged; the output of the device connected to the input is improper.
- The volume power is not enough?Power and power supply voltage, the amplitude of the sound source signal, the size of the speaker impedance are all related, any kind of deficiency will affect the power
