3228 Station Port FXS DoorphoneInstallation and User GuideDocument #: 90-00059D240418-1
Algo Communication Products Ltd., Burnaby, BC Canada V5J 5L2www.algosolutions.com
Important Safety Notice
The 3228 Station Port FXS Doorphone is designed and tested to comply with EN 60950-1:2006 safety requirements. When our phone Controller is connected to wiring that exits the building, there is a potential risk of lightning-induced electrical surges or high voltages from fault conditions. To reduce risk, outdoor wiring should be protected by Earth grounded conduit whenever possible. If outdoor wiring will be connected to the Doorphone Controller then the power supply provided with the Doorphone Controller must first be connected to a properly Earthed mains supply. Under no circumstances can the Doorphone Controller be disconnected from Earth ground while connected to outdoor wiring. Customers are required to have adequate lightning protection where the telephone line enters the building. The 3228 is not intended for connection to the PSTN.
Support
Algo is pleased to offer telephone or email support relating to installation issues, applications assistance, or general product inquiries.Algo Communication Products Ltd.4500 Beedie StreetBurnaby, BC, Canada, V5J 5L2[email protected] Tel: 604.454.3792[email protected] Tel: 604.454.3790Algo products are warranted against defects in workmanship for a period of 12 months after installation not to exceed 18 months from the date of manufacture. For warranty or non-warranty repair support please contact your distributor or reseller. If necessary, contact Algo using the support contacts listed above.
FCC Compliance
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there s no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) Reorient or relocate the receiving antenna, 2) Increase the separation between the equipment and receiver, 3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected, or 4) Consult the dealer or an experienced radio/TV technician for help.
Disclaimer and Limitation of Liability
While every effort has been made to ensure that the information contained in this Installation and User Guide is accurate and complete, no liability can be accepted for any errors or omissions. Algo Communication Products Ltd. (hereinafter “Algo”) reserves the right to change the specifications of the hardware or software/firmware described herein at any time without prior notice. Algo and its subsidiaries assume no responsibility for any damage or loss resulting from the use of this Installation and User Guide.Algo and its subsidiaries assume no responsibility for any loss or claims by third parties which may arise through the use of this product. Algo makes no warranties, either expressed or implied, regarding the Algo 3228 Doorphone or elated software and firmware, its merchantability, or its fitness for any particular purpose. The exclusion of implied warranties is not permitted by some states. As such, the exclusion may not apply to you.The Algo 3228 Doorphone has been tested using a variety of network systems. However, the large number of possible hardware and network configurations makes testing under every circumstance impossible. Thus, Algo does not guarantee uninterrupted service or correction of errors or that the functions or performance of the product will meet your requirements.

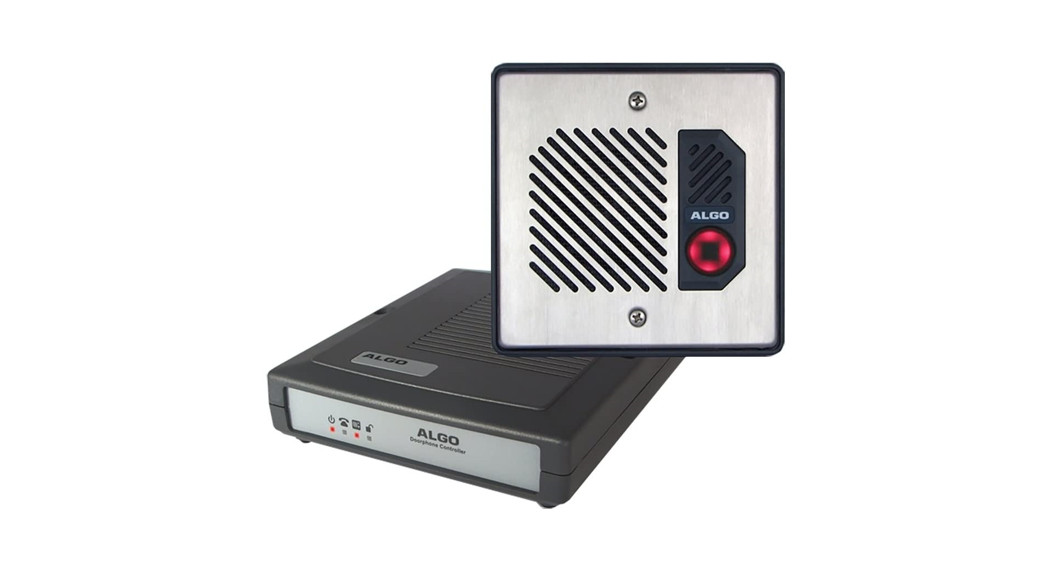

Introduction

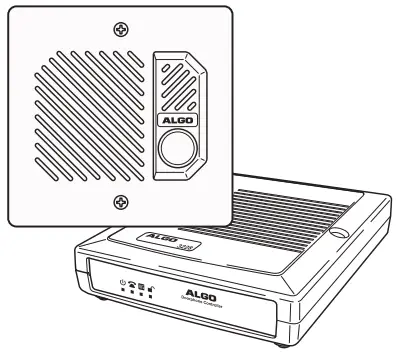

The 3228 Station Port FXS Doorphone provides a simple-to-install telephone integrated entry security intercom solution for business and residential applications. isitors cause a telephone to ring which enables conversation when answered and the capability to allow remote entry using door release features.Designed to emulate an analog telephone set, the 3228 connects to any FXS gateway or telephone system analog station port.The 3228 Doorphone includes a Control Unit, Door Station, and Power Supply.The Control Unit and Door Station can be connected with a single twisted pair wire up to 1,000 feet (300 m) with the Door Station located outdoors and the Control Unit in a dry indoor location.
Features
- Single pair digital communication between Door Station and Control Unit
- Hands-free voice communication at the Door Station
- DSP enhanced audio for superior performance in noisy environments
- Programmable outbound dial number
- Door control relay contacts and available 24 Vdc 0.3 A strike power
- Configurable dry contact input and output from Control Unit
- Configurable dry contact input and output from Door Station
- Programmable by DTMF or USB connection to PC
- International 110/220 V, 50/60 Hz switching power supply
- Regulatory: CSA/UL, FCC, EN60950-1 2006 CB Scheme
Quick Install & Test
The 3228 Station Port FXS Doorphone is pre-configured for a typical installation. All that is needed is to configure a target phone number.Programming is only required to change the default setting or for more advanced applications.
- Connect the power supply to the Power Jack of the Doorphone Controller and plug it into an available AC outlet.
- Flush or surface-mount the Digital Door Station at the desired location and connect a twisted telephone wire pair between the “CTRL” terminals of the Door station and the center pair (red and green) of the supplied Telephone Wiring Jack. Polarity is not important.
- Using the short six conductors modular cable, connect the Telephone Wiring Jack to the Door Station Jack of the Doorphone Controller.
- Using the 6 foot (1.8 m) two-wire modular cable, connect your FXS Gateway or analog station port of a traditional phone system to the telephone jack of the Doorphone Controller.
- Program the target telephone number for the 3228 to dial by using either the DTMF interface or by connecting to a PC via USB (see “Programming & Configuration” on page 10).
To use the DTMF commands for programming, first establish a call by dialing the telephone number 3228 from another telephone.The 3228 will auto-answer the call. - Press the call button of the Door Station. The phone will ring and the call button will flash.
- Answer to communicate with the Door Station. Press the DTMF digit 6 to activate the door control relay for three seconds if applicable.
Application Basics
Typical Applications for Auxiliary Inputs and OutputsThe 3228 architecture and digital link between the Door Station and Controller provide flexible options using the auxiliary inputs and outputs. These are some typical applications:
Cancel Ring When Door OpenedIn a residential or warehouse installation, it is not uncommon for the door to be answered in person before the phone is answered. Either Door Station or Control Unit inputs can be configured to cancel ring if the door is opened before a call is answered. This requires a normally closed or normally open contact to detect the door open.
Trigger Door Bell from Door StationWhen the Door Station call button is pressed, either (or both) the Door Station or Control Unit dry contact output can be configured to activate a door bell or auxiliary alerting system in addition to the phone ring.
Trigger Door Station from External Button/EventEither the Control Unit or Door Station can accept a dry contact closure to activate the Doorphone as if the call button had been pressed. This could be an external doorbell button, PIR detector, or some other system.
Cancel Door Open Relay once Door OpenedThe door opening control can be set for activation (using the `Open Code’) up to 30 seconds (set by the `Relay Time’ setting) to allow sufficient time for entry. For security, the 3228 Doorphone can be configured to cancel Door Opening once the door is opened to prevent “tailgating” by unauthorized personnel.
Unlock Door Indefinitely until CanceledThe door opening control can be set to unlock indefinitely (using the `Latch Open Code’) until canceled (using the `Release Code’) that locks it again. This allows an entrance to be used repeatedly for a period of time without requiring multiple activations of the door control relay.
Anti-Door TamperA feature of the 3228 Doorphone is to ring the telephone(s) with a warning alert in the event a door is ajar due to tampering (such as a door blocked open after being legitimately released for a visitor).
In-Use and RingEither the Control Unit or Door Station can be configured to provide a dry contact output during ring or in-use for channel selection (typically) of third-party video monitoring systems.For more information on applications for the3228 Station Port FXS Doorphone, please visit www.algosolutions.com/3228.The 3228 Doorphone firmware may be modified by USB connection to a PC and Algo routinely accepts requests for custom firmware for unique applications.

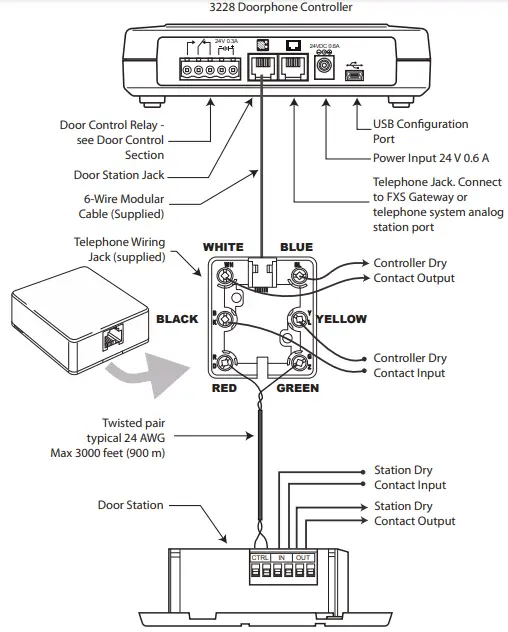

Basic Wiring Setup
Programming & Configuration
The 3228 Station Port FXS Doorphone may be programmed either by DTMF or through software using the USB connection on the 3228 Controller.To enter Program Mode via the DTMF interface, dial **00 followed by the four-digit password if configured (there is no password by default). The password may be entered or changed via the USB interface.After completing programming, return on-hook to exit programming mode before testing the new settings, as the audio path to the speaker is disabled while in programming mode.
Program Settings and Codes
| SettingName | DTMFCode | Description | Default | |
| Dial Settings | Outgoing Call Mode | **11 nn | nn=00: No outgoing callsnn=1:Hotline dialnn=2:Dial number after Dialtonenn=3:Dial number after a delay | 01 Hotline dial |
| Incoming Call Mode | **12 nn | nn=00: Answer incoming calls nn=01: Ignore incoming calls | 00 Answer incoming calls | |
| Outgoing Ring Limit | **13 nn | nn=00: Coll Button Disabled nn=01..09: Limit to 1-9 rings nn=10: No limit (ring forever) | 5 rings | |
| Cancel Ring ifDoor Opened | **14 nn | nn=00: Nonn=01: Yes (Requires Door Sensor) | 00 No | |
| Outgoing Dial Number | **15 LL S… | LL = length of string (00 to 10)S… = numeric string (e.g. “15041234 = “1234”) | None | |
| Audio | Speaker Volume | **21 nn | nn=00..10: Speaker audio level in 3 dB steps | 9 |
| Mic Volume | **22 nn | nn=00..10: Microphone audio level in 3 dB steps | 8 | |
| DSP | **23 nn | nn=00: Full Duplex with Noise Reduction nn=01: Full Duplex without Noise Reduction | 01 FullDuplexwithout Noise Reduction | |
| Microphone AGC (Automatic Gain Control) | **24 nn | nn=00: Onnn=01: Off | 00 On | |
| Door Unlock Tone | **25 nn | nn=00: Door Unlock Tone Disablednn=1:Door Unlock Tone Enablednn=2:Door Unlock Tone Enabled, 2-sec Limit | 00 Door Unlock Tone Disabled |
| Door Control | Open Coo, | **31 LL S. | LL = length of string (00 a 04)S… =numeric string (e.g. “31016 – ’61 | Digit 6 |
| Relay Time | **32 nn | nn-00: Y. second nn- 01..30: 1-30 seconds | 3 sec | |
| Cancel with Door Open | **33 nn | nn-00: Nonn -01: Yes (Requires Door Sensor) | 00 No | |
| Latch Open Code | “34 LL S… | LL =length of string (00 to 04)S… =numeric string (e.g. “34017 – -7-) | None | |
| Release Code | **35 U. S… | U. =length of string (00 so 04)S… =numeric string (e.g. “35018 i- “81 | None | |
| End Coll After DTMF | **36 nn | nn=00: Nonn=01: Yes (Disconnect when the door unlocked) | 00 No | |
| Auxiliary I/O | Controller Output | **41 nn | nn=00: In-Use nn-OS: Door Alarmnn=01:Ring nn=06: Follownn=02:Coll Button Press Controller Inputnn=03:Door Control nn=07: Follow Station Inputnn=04:Door Sensor nn-08: Disabled | 00 In-Use |
| Station Output | **42 nn | nn =00: In-Use nn-O5: Door Alarmnn =01: Ring nn-O6: Follow Controllernn=02:Coll Button Press Inputnn=03:Door Control nn 07: Follow Station Inputnn=04:Door Sensor nn=08: Disabled | 02 Call Button Press | |
| Door Relay Output | **43 nn | nn=00: In-Use nn-0S: Door Alarmnn=001: Ring nn-O6: Follow Controller | 03 Door Control | |
| nn=02:Coll Button Press Inputnn=03:Door Control nn-07: Follow Station Inputnn=04:Door Sensor nn-08: Disabled | ||||
| Controller Input | **44 nn | nn=00: Door Sensor, Normally Open Inputnn=01:Door Sensor, Normally Closed Inputnn=02:Monuol Door Release Inputnn=03:Door Control Lockout Inputnn=04:Coll Burton, Normally Open Inputnn=05:Coll Burton, Normally Closed Inputnn=06:Disabled | 01 Door Sensor NC | |
| Station Input | **45 nn | nn=00: Door Sensor, Normally Open Inputnn=01:Door Sensor, Normally Closed Inputnn=02:Coll Button, Normally Open Inputnn=03:Coll Button, Normally Closed Inputnn=04:Disabled | 02 Call Button NO |
| Security | Max Door Open | **51 nn | nn=00: 30 seconds nn=04: 60 minutesnn=1:2 minutes nn=05: 90 minutesnn=2:15 minutes nn=06: 120 minutesnn=3:30 minutes nn=07: None | 07 None |
| Ring Phone Upon Door Alarm | **52 nn | nn=00: Call every 2 minutesnn=1:Coll every 10 minutesnn=2:Coll every 30 minutesnn=3:Coll every hournn=4:None (do not make any calls) | 04 None | |
| Ring this Number Instead | **53 LL S… | LL = length of string (00 to 10) digitsS… = numeric string (e.g. “53041234 = “1234”) | None | |
| Disconnect Options | Disconnect Type | **61 nn | nn=00: Loop Currentnn=1:Polarity Reversalnn=2:Diahone | 00 Loop Curent |
| Loop Disconnect | **62 nn | nn=00: 0.1 seconds nn=03: 0.75 secondsnn=1:0.25 seconds nn=04: 1 secondnn=2:0.5 seconds | 01 0.25seconds | |
| VOX Timeout | **63 nn | nn=00: 5 seconds nn=03: 30 secondsnn=1:10 seconds nn=04: 1 minutenn=2:20 seconds nn=05: Disabled | 05 Disabled | |
| Call Limit | **64 nn | nn=00: 15 seconds nn=05: 5 minutesnn=1:30 seconds nn=06: 10 minutesnn=2:1 minute nn=07: 30 minutesnn=3:2 minutes nn=08: Disablednn=4:3 minutes | 08 Disabled | |
| Allow Call Button to End Call | **65 nn | nn=00: Nonn=01: Yes | 00 No | |
| Restore Default Settings | **55 | Returns all settings to factory default values |
Door or Gate Control Basics
Door control contacts are provided from the Doorphone Controller and are typically used for door strike activation or gate control. For security, the door control relay is located in the Controller to avoid entry by tampering. The Door Station dry contact output (OUT) may be configured for ‘low security’ gate control requiring a low current dry contact.
Door ReleaseDoor release typically involves energizing or de-energizing a door strike that pivots to allow a locked door to open without retraction of the latch bolt. There are two different types of door strikes:
- “Fail Locked” (or “Fail Secure”)
- “Fail Unlocked” (or “Fail-Safe”)
Fail Locked / Fail Secure Electric Strike
These require power to release and remain locked during power failure. The door may still normally be opened from the outside with a key, or from inside without a key.The door control relay is used to apply power to release the door.
Fail Unlocked / Fail-Safe Electric Strike

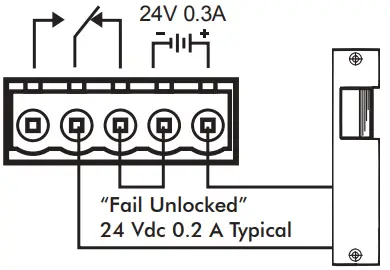

These (as well as magnetic locks), require power to lock and become unlocked during power failure. The door control relay is used to maintain power to the door lock (NC and C contacts) which is interrupted to release the door. Magnetic locks may require override systems to allow safe exit in the event of a fire.
Power Supply
Power SupplyThe Doorphone Controller provides an auxiliary 24 V 0.3 A power supply which is suitable for common types of door strikes. If more current or a different voltage is required, then the customer must provide a matching power supply for the electric strike or magnetic lock. The maximum switching capability of the door control contacts is 1 A 30 V.The Door Control relay may also be configured for alternate functionality including In-Use, Ring, and Call Button Press.
Connections and Lights
Auxiliary Dry Contact Outputs
Both the Doorphone Controller and Door Station provide a dry contact output for connection to auxiliary devices. The maximum switching capacity is 30 V 50 mA.Default operations are as follows:
- Doorphone Controller Output = In-Use (commonly used for camera control)
- Door Station Output = Call Button Press (commonly used to activate a secondary doorbell)
Other options for Doorphone Controller output include Ring and Call Button Press. Other options for Door Station output include In-Use and Door Control.See “Programming & Configuration” on page 10 for more information on options.
Auxiliary Dry Contact Inputs
Both the Doorphone Controller and Door Station can detect a dry contact closure from auxiliary devices. A non-capacitive and non-inductive low voltage and low current is used to detect contact closure.Default operations are as follows:
- Doorphone Controller input = Door Sensor Normally Closed (used to detect door open)
- Door Station input = Call Button Normally Open (used to detect external doorbell switch)
Options for Doorphone Controller input include Door Sensor Normally Closed, Door Sensor Normally Open, Manual Door Release, Door Control Lockout, Call Button Normally Closed, and Call Button Normally Open.Options for Door Station input include Door Sensor Normally Closed, Door Sensor Normally Open, Call Button Normally Closed, and Call Button Normally Open.See “Programming & Configuration” on page 10 for more information on options.
Connection Details
Door Control (5 Position Removable Terminal Block)
| Relay | NO | Normally Open |  |
| C | Common | ||
| NC | Normally Closed | ||
| Auxiliary Power | PWR – | 0.3 A (GND) | |
| PWR + | 0.3 A (24 V) |
Door Station Jack (RJ12 Telephone Jack)
| Center Pair (Red & Green) | Door Station | |
| Middle Pair (Yellow & Black) | Dry Contact Input Max 1 kit | |
| Outside Pair (Blue & White) | Dry Contact Output Max 50 mA 30 V |
Telephone Jack (RJ12 Telephone Jack)
| Center Pair | FXS GatewayPhone System Analog Station Port |  |
Door Station (6 Position Terminal Block)
| CTRL | Connect to Door Station Jack of Doorphone Controller | |
| SW | Dry Contact Input to Door Station (e.g. Door Contact, Doorbell Switch); Max. 1 kit | |
| DATA | Dry Contact Output from Door Station (e.g. Gate Control); Max 50 mA 30 V |
Specifications
Telephone
| Interface | Connect to FXS gateway or telephone system analog station port |
Door Control
| Contact Rating | Maximum 30 V 1 Amp |
| Contact Type | 1 Form C, Normally Open and Normally Closed |
| Duration | Programmable, including latch |
| Activation | DTMF, programmable |
| Auxiliary Power | 24 Vdc, current limited to 300 mA |
| Terminal Block Wiring | 12-26 AWG |
Doorphone Controller
| Power | AC Mains Adapter 95-230 V 50/60 Hz Included |
| Installation | Shelf or wall-mounted |
| Dry Contact Output | Maximum 30 V 50 mA switching (programmable function) |
| Dry Contact Input | Contact detected using 24 Vdc 1 mA (programmable function); Maximum resistance 1 kit |
| Environmental | Dry indoor location |
| Operating Temp. | 0 to 40° C (32 to 104° F) |
| Dimensions | 5.6″ x 6.85″ x 1.57″ (142mm x 174mm x 40mm) |
Door Station
| Power | Provided by Controller link |
| Wiring | Single pair, normally 24 AWG twisted 1,000 Feet (300 m) Maximum |
| Dry Contact Output | Maximum 30 V 50 mA switching (programmable function) |
| Dry Contact Input | Contact detected using 24 Vdc 1 mA (programmable function); Maximum resistance 1k(-2 |
| Operating Temp. | -30 to 60° C (-22 to 140° F) |
| Weather Resistance | CSA/UL NEMA 3R weather-resistant for outdoor locations |
| Call Button | Backlit tactile silicon rubber |
| Installation | Flush or surface mounted using supplied plastic bezel; Fits two-gang electrical box |
| Faceplates | 304 Stainless Steel, Brass; Optional Vandal-Proof (model 3203) |

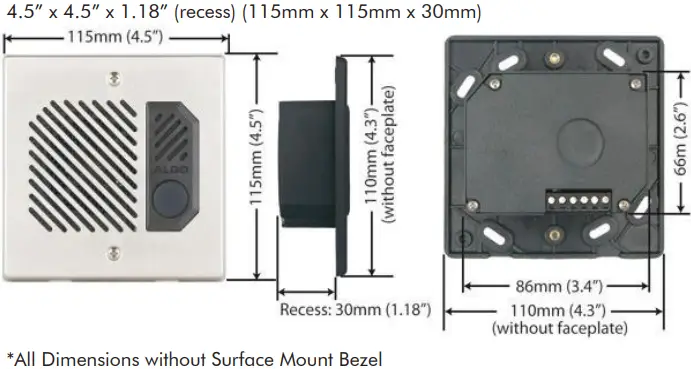

| Dimensions |  |
Programming
| Method | DTMF or USB Port using the configuration software |
Power Requirement
| Typical (idle) | 1 W |
| Maximum* | 10 W |
* Audio Active, door contacts using 24 V 0.3 A auxiliary supply
Specifications are subject to change without notice. Some features may only be available in specific firmware or hardware releases.
Configuration Tool
The USB Configuration Tool is a Windows software alternative to the DTMF programming method described earlier in this Guide. To use the Tool, first, attach the supplied USB cable between the computer and the 3228, then install and run the software from the CD.Note that the USB Configuration Tool can also be downloaded from Algo’s website at www.algosolutions.com/3228 After installation, the program can be accessed by going to Start > All Programs > Algo > 3228 Doorphone > 3228 Configuration Tool
USB Configuration Tool Sample Screen
