ALLEN HEATH LTD AB168 AudioRack User Manual
Technical Datasheet

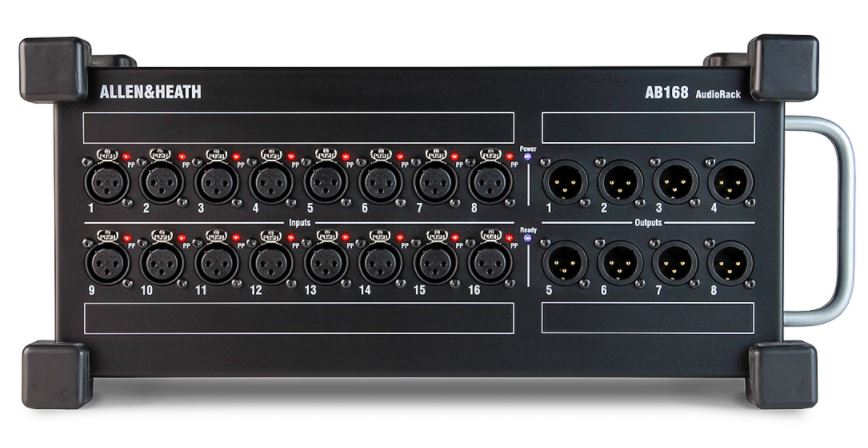

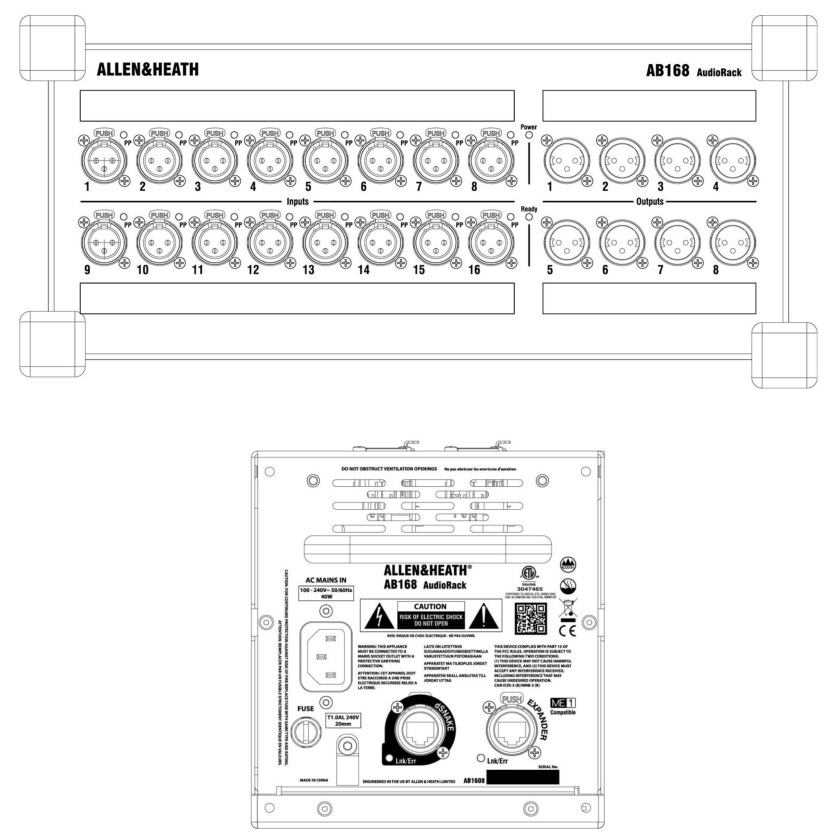

Overview
- Compatible with SQ, Qu, Avantis, AHM-64, GLD
- 16 Mic Preamps on XLR
- Phantom Power LED per Input
- 8 XLR Line Outs
- dSNAKE Connection with locking Ethercon port
- Additional locking Ethercon port for daisy chaining / ME personal mixing system
- Rubber bumpers
- Carry handle
- Optional rack mount kit available

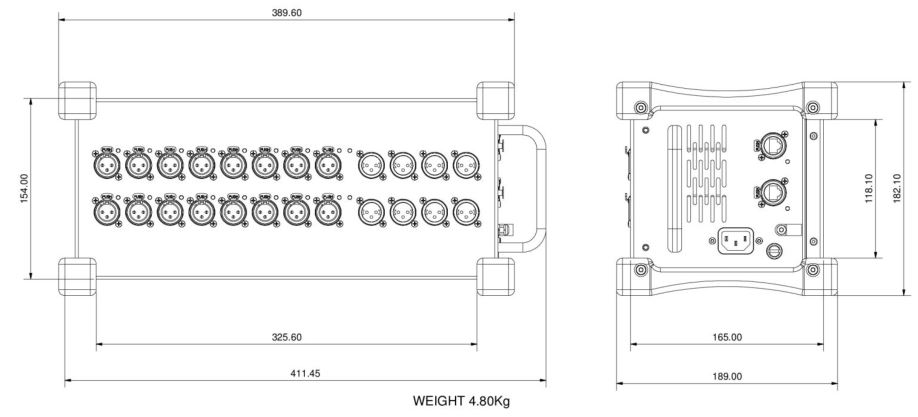

Dimensions
A&E Specifications
The unit shall be a portable remote audio rack for a digital mixing system. The remote audio rack shall provide 16 XLR inputs and 8 XLR outputs and shall be connected to add a further inputs and outputs. The XLR sockets shall be the same or higher quality and specification as those located on the digital mixing system, and shall appear in the digital mixing system soft patch for assignment to channels.
Audio connection shall be over Cat5 cable using Allen & Heath’s dSNAKE Ethernet protocol, allowing the remote audio rack to be positioned up to 100m from the mixer or expanded audio rack. The Ethernet protocol shall provide control to the remote preamp, and all mic preamps are scene recallable by the digital mixing system. Phantom power LED indicators shall be provided per input socket on the remote audio rack. Unit firmware shall automatically be updated when connected to the digital mixing system. The local Ethernet port shall be an RJ45 socket with EtherCon locking ring.
It shall also be possible to connected the remote audio rack to a main AudioRack unit to add a further 16 XLR inputs and 8 XLR outputs from that location. This connection shall be via an `Expander’ connection and shall also be an RJ45 socket with EtherCon locking ring.
The remote audio rack shall provide an `Expander’ port to allow the connection of an additional remote audio rack from that location. This connection shall also be a `dSNAKE’ RJ45 socket with EtherCon locking ring. This port shall also provide 40 channels to Allen&Heath ME personal monitoring solution hardware and the remote audio rack shall be compatible with Allen&Heath digital mixers.
The remote audio rack shall have a robust steel chassis and shall be designed to be portable and to be placed horizontally or vertically on the stage or performance environment. A carrying handle shall be provided to facilitate lifting and holding the device when moving and an optional padded dust cover shall be available. The remote audio rack shall also be mounted in a 19″ equipment rack or case using an optional remote audio rack kit.
The remote audio rack shall have a built in power supply accepting AC mains voltages of 100~240V, 50/60 Hz, 45W max via an earthed 3-pin IEC male connector mounted on the rear chassis.
Recommended operating temperature for the remote audio rack shall be 5 to 35 degrees Celsius. The unit shall be the Allen&Heath AB168 Portable AudioRack.
System Specifications
Inputs
XLR Mic/Line Inputs BalancedMic/Line Preamp Fully recallableInput Sensitivity -60 to +15dBuAnalogue Gain +5 to +60dB, 1dB stepsPad -20dBMaximum Input Level +32dBuInput Impedance >4kΩ (Pad out), >10kΩ (Pad in)
Mic/Line Channel noise 20-20kHz, Direct Out @ unbalanced outMic EIN -127dB with 150Ω sourceUnity gain (Pad in) -90dBuLow gain (5dB, Pad out) -93dBuMid gain (30dB, Pad out) -89dBu
Mic/Line Channel THD+N 20-20kHz, Direct Out @ unbalanced outUnity gain (Pad in) 0.005% -86dBu @ 1kHz, 0dBu outputLow gain (5dB, Pad out) 0.003% -89dBu @ 1kHz, 0dBu outputMid gain (30dB, Pad out) 0.004% -88dBu @ 1kHz, 0dBu output
Outputs
XLR Outputs Balanced, Relay protectedOutput Impedance <75ΩNominal Output +4dBu = 0dB meter readingMaximum Output Level +22dBuResidual Output Noise -91dBu (muted, 20-20kHz)Operating Temperature 0 deg C to 35 deg C (32 deg F to 95 deg F)Mains Power 100-240V, 50/60 Hz, 20W max
