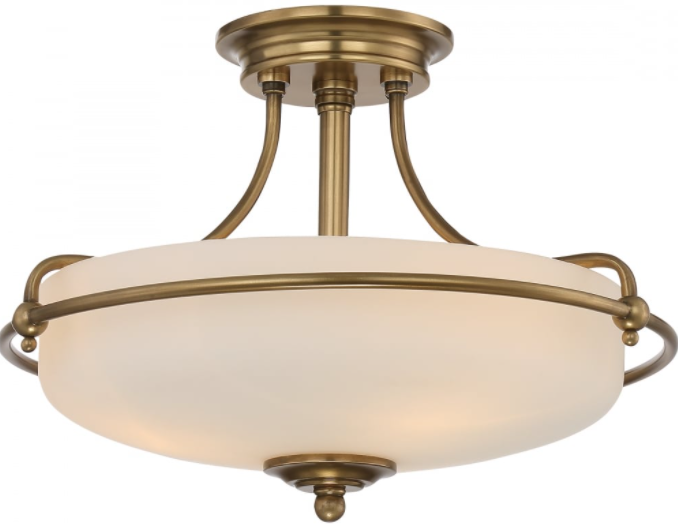

INSTALLATION INSTRUCTIONS

WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.

MOUNTING THE FIXTURE (Fig.1)

1. Shut off power at the fuse box or circuit breaker box and remove the old fixture including the mounting hardware.
2. Carefully unpack your new fixture and lay out all the parts in a clear area. Take care not to misplace any small parts necessary for installation.
3. Attach mounting plate (A) to the outlet box using outlet box screws (C) (Size: #8-32N*L0.5”). Then adjust the length of mounting screws (B) and tighten with hex nuts. The side of the mounting plate (A) marked “GND” must face out.CONNECTING THE WIRES (Fig. 2)Note: Illustration (Fig.1) on this manual is for installation purposes only. It may or may not be identical to the fixture purchased.
4. At this point, connect the electrical wires as shown in Fig. 2, making sure that all wire connectors (W) are secured. If your outlet box has a ground wire (green or bare copper), connect the fixture’s ground wire to it. Otherwise, connect the fixture’s ground wire directly to the mounting plate (A) using the green screw provided. After wires are connected, tuck them carefully inside the outlet box.FINISHING THE INSTALLATION (Fig.1)
5. Align ceiling pan (E) over the mounting plate (A) and then raise it all the way to the ceiling and secure with finials (I).
6. Install (2) two medium base (E26) bulbs (F) up to 60 watts each or CFL or LED equivalent (not included) in accordance with the fixture specification—DO NOT EXCEED THE MAXIMUM WATTAGE RATING! (NE PAS DEPASSER LA PUISSANCE NOMINALE MAXIMALE!)
7. Screw the threaded rod (H) to the connector (G) and tighten with hex nut (N) on the threaded rod (H).
8. Put the glass shape (L), plastic washer (J) and metal washer (K) through the threaded rod (H) in turn, and fix them with a nut (M). Pass the cup (O) through the threaded rod (H) and fix it with finial (P) tightly.

Your installation is now complete. Return power and test the fixture.
