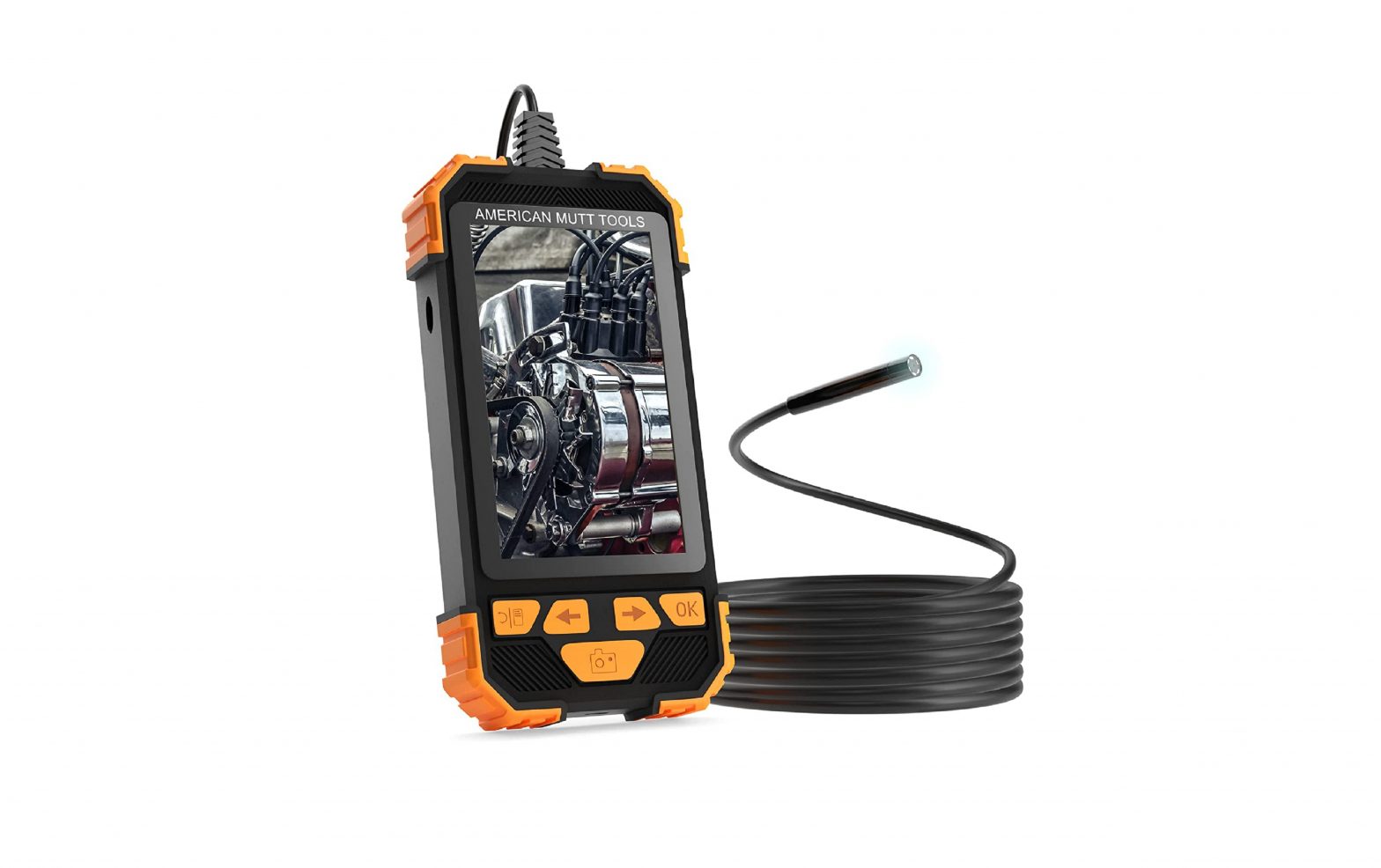

American Mutt Tools IS100 User Manual
Please keep this user manual in a safe place for future reference.
WARNING: This product contains lithium-ion batteries which can expose you to chemicals including cobalt lithium nickel oxide, and nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
WARNINGS
To ensure safe operation and service of this device, follow these instructions. Failure to observe these warnings can result in serious personal injury, fire, or electrical shock
- This product is NOT insulated. Do not use on or near energized circuits.
- Do NOT use near or in moving machinery.
- Do NOT use on people or animals.
- Do NOT use near sources of heat.
- Follow ladder and/or lift safety procedures at all times. Ensure proper footing at all times.
OTHER NOTES
- Do NOT use if the charging port is damaged in any way.
- Do NOT open or attempt to repair.
- Only the camera is waterproof down to 1 meter for 30 minutes. The endoscope body is not waterproof.
- The camera will become hot during use, this is normal.
Failure to follow the above notes and warnings will void product warranty.
PRODUCT SPECIFICATIONS
- Screen: 4.3” Color IPS Display
- Lens Diameter: .216” (5.5mm)
- Resolution: 640*480, 1280*720, 1920*1080
- Camera View Angle: 70°
- Focal Length: 1.5” – 196” (4cm – 500cm)
- Ingress Protection: Camera: IP67Waterproof & Dustproof. Body: Not Rated
- Battery: Li-Ion, 3.7V / 3000mAH (Internal)
- Battery Life: 3-4 Hours
- Weight: 1.06 lbs (.48 kg)
- Operating Temperature: 14°F – 122°F (-10°C – 50°C
- Conformance: CE, RoHS
- Drop Protection: 3.3ft (1 m)
- Camera Light Source: 6 Adjustable LED Lights
Specifications are subject to change.
PRODUCT DETAILS
CHARGING THE BATTERY
Connect the micro-USB cable (included) to the USB charging port. Plug the other end into a USB AC adapter or other USB power supply (not included).Charging time is about 4 hours.
VIEW PHOTOS ON COMPUTER
Plug micro-USB cable (included) into a computer to view or save photos and videos on your computer.
CLEANING
Turn the unit off and wipe with a clean, dry lint-free cloth. Do not use abrasive cleaners or solvents.
WARRANTY
Please visit the following website for warranty information:
http://www.americanmutttool.com/pages/warranty-information
DISPOSAL
Do not place this item or its accessories in the trash. All items must be properly disposed of in accordance with local government regulations. Please visit www.erecycle.org for additional information.
