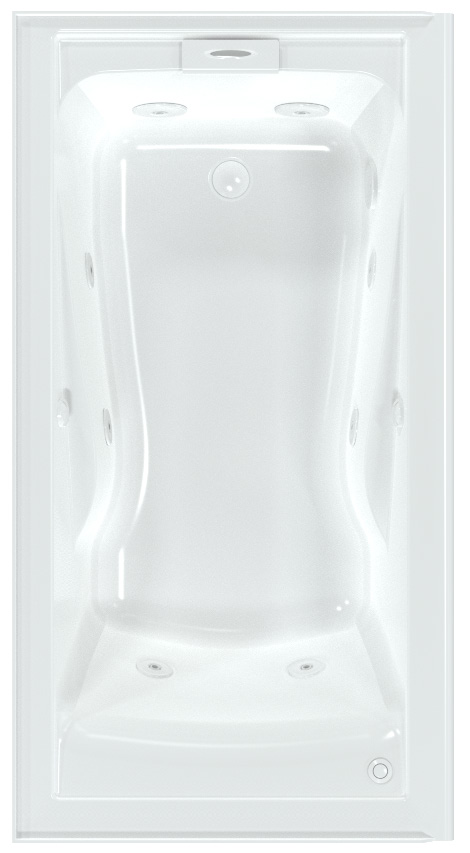

Mainstream ® 60″ x 32″ 8 Jet IntegralApron Whirlpool
Alcove InstallationModel 2948LC-RHO Shown
SEE REVERSE FOR ROUGHING-IN DIMENSIONS AND PRODUCT SPECIFICATIONS
Model 2948LC-RHO Shown
DIMENSIONS OF FIXTURES ARE NOMINAL AND MAY VARY WITHIN THE RANGE OF TOLERANCES ESTABLISHED BY ANSI STANDARDS Z124.1 AND A112.19.7
| GENERAL SPECIFICATIONS FOR 2928LC WHIRLPOOL | |
| INSTALLED SIZE | 60 x 32 x 20-1/2 (1524 x 813 x 521mm) |
| WEIGHT | 92 Lbs. (42 Kg.) |
| WEIGHT w/WATER | 675 Lbs. (306 Kg.) |
| GAL. TO OVERFLOW | 70 Gal. (265 L.) |
| WHIRLPOOL MIN. OPERATING VOL. | 39 Gal. (148 L.) |
| BATHING WELL AT SUMP | 42 x 22 (1067 x 559mm) |
| BATHING WELL AT RIM | 53 x 25-1/2 (1346 x 648mm) |
| WATER DEPTH TO OVERFLOW | 17-1/2 (445mm) |
| FLOOR LOADING | 51 Lbs./Sq.Ft. (247 Kgs./Sq.m) |
| (PROJECTED AREA) | |
| WHIRLPOOL ELECTRICAL SPECIFICATIONS | |
| PUMP | 1.4 HPR, 9.7 AMPS,120V. |
NOTES:BATH CAN BE INSTALLED EITHER ABOVE OR BELOW FLOOR LINE AS PIER, ISLAND, OR PENINSULA TYPE INSTALLATION. SUPPORT OF BATH BY SUMP BEDDING. SUPPORT AND ENCLOSING MATERIAL BY OTHERS.
√ REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH WHIRLPOOL FOR ADDITIONAL INFORMATION.FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL SUPPORTS.
IMPORTANT: Dimensions of fixtures are nominal and may vary within the range of tolerances established by ANSI Standard Z124.1These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided leaflets.
Mainstream® 60″ x 32″ 8 Jet Integral Apron Whirlpool√ 2948LC-RHO.020 Mainstream 60×32 8 Jet Whirlpool, Right-Hand Drain Outlet√ 2948LC-LHO.020 Mainstream 60×32 8 Jet Whirlpool, Left-Hand Drain Outlet
- Acrylic with fiberglass reinforcement
- Features EverClean ® whirlpool system which suppresses the growth of unsightly algae, fungus, mold, and mildew.
- Integral apron with a removable access panel
- Three-sided, tiling/water retention flange
- 1.4 HP self-draining pump/motor with dry run seal
- 8 Fully adjustable clean jets
- Side-mounted On/Off control
- 2 Silent air volume controls
- Textured, slip-resistant tub floor
- Features easy install heater connection system.Safe-T-Heater, model 9075.120.000, sold separately
- 1699500.020 Mainstream Deep Soak Drain Kit required, sold separately
- Limited lifetime warranty
Nominal Dimensions:60″ x 32″ x 21-1/2″(1524 x 813 x 546 mm)Compliance Certifications Meets or Exceeds the Following Specifications:
- Underwriters Laboratories – Hydromassage Bathtubs UL 1795
- ASME A112.19.7M for Whirlpool Appliances
- ANSI Z124.1 for Plastic Bathtubs
- ASTM E162 for Flammability
- NFPA 258 for Smoke Density
| Components Required:Mainstream Whirlpool Drain Kit: 1699500.020Custom Accessories Available:Safe-T-Heater: 9075.120.000 |
NOTE: Whirlpool Heater is designed to maintain water temperature during operation. It will not heat cold water to desired bathing temperature.
