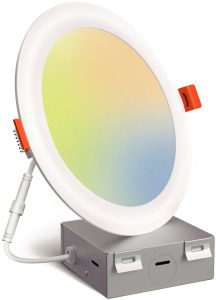

Amico 3 IN 1 Slim Panel LED Recessed Downlight Installation Guide

Amico 3 IN 1 Slim Panel LED Recessed Downlight Installation Guide

WARNING

• DO NOT turn on the switch until the light panel is connected to the junction box. If the switch is turned on without connecting the light panel and the J-BOX, it may cause PRODUCT DAMAGE or ELECTRIC SHOCK.
• RISK OF FIRE OR ELECTRIC SHOCK CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH CI CUIT CONDUCTOR.
• RISK OF FIRE MIN 90°C SUPPLY CONDUCTORS.
• DO NOT make or alter any open holes in an enclosure of wiring or electrical components during kit installation.
• To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other sharp objects.

CAUTION

• Edges may be sharp. Please wear gloves while handing.
• Product designed for dimming with many 120V TRIAC/ELV phase cut control dimmers.Product can be installed directly into a ceiling without requiring separate J-box or recessed housing.
• Connect fixture to a 120V 60Hz power source, any other connection voids the warranty.

SPECIFICATIONS

EASY INSTALLATION

1. After selecting a desired method of cutting, cut a 6.25″ hole in the mounting surface.
2. Install drywall directly over rough-in paper. NOTE: use some method of locating the center of the aperture hole.
3. Select desired method (i.e. hand saw, hole saw) to cut an opening in the ceiling by using the provided template.CAUTION: do not cut hole larger than the paper opening.
4. Make sure the POWER IS TURNED OFF at the source to the location in which you are mounting the luminaire.
5. Open the cover of the provided J-BOX and use wire nuts to make connections with power supply. Place splices in J-BOX before closing cover.
6. Connect the J-BOX to light module.
7. Turn on power and test light.BEFORE PROCEEDING: On back of j-box, slide the CCT Selection Switch  to choose from five color temperatures (3000K, 4000K, 5000K). Try each CCT to determinewhich suits your room.
   • Light will use the preferred setting whenever you turn on switch.
   • Turn off light switch and continue install.
8. Place the J-BOX through the cut-out hole and mount according to local electrical code compliance.
9. Rotate and hold both spring clips upward to allow passage though the cut-out in the ceiling, continue to press the light module through the cut-out hole until securely fixed and flush with ceiling.

NEW CONSTRUCTION INSTALLATION

1. Find a proper location on the ceiling joist and mount driver box onto joist. 3 IN1 Slim Panel LED Recessed Downlight.
2. Open driver box, remove appropriate knock-out and run electrical wires from power supply through knock-out into driver box.

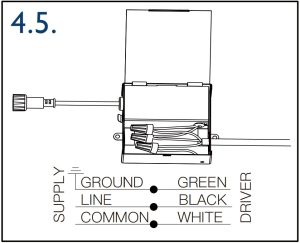

3. Make wiring connection with provided wire nuts. Push all wiring and connections back into driver box and close it.
4. Select the desired CCT (3000K/4000K/5000K) by sliding the switch (with proper strength).
5. Connect light panel to driver box and run test.WARNING: light panel MUST be ALWAYS connected with driver box during test. DO NOT turn on power without light panel well connected to driver box. Fail to do so, you might SHORT CIRCUIT and DAMAGE the product, WARRANTY VOIDS.
6. .ALWAYS keep power SHUT DOWN before light panel is connected.
7. After drywall has been installed, find a proper location on the drywall and make a hole of 6-1/4” diameter (refer to the provided cut-hole template).
8. Connect light panel to driver box and push spring loaded clips on light panel upwards and insert into mounting hole. Release clips and light panel will be pulled flush to ceiling.
9. Once assembly is complete, turn on power to confirm fixture works properly. DO NOT turn on power WITHOUT light panel connected.
