Amroma Diffuser User Manual

Table of Contents

User Manual Amroma Diffuser

This Aroma Diffuser uses Ultrasonic waves to instantly vaporize water and essential oil in the tank, to produce a cool, dry fragrant mist.

Operation

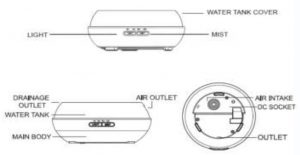

keep product straighten, remove the upper lid and water cap vertical direction. Fig 1
(24V]Please plug the DC plug of AC adapter into DC ad through AC slot.(5V)Please plug the USB plug into computer’s USB port, AC adapter or mobile power. Please plug the DC plug of AC adapter into DC Jack through A slot.
Please use the measure cup( not included in the package) to supply weather (Do Not add high temperature water) from the water pipe, pay attention to the filled water level do not exceed the max line. Please do not add water when the product is working. Drop essential oil into water tank vertically. Fiq 3
Install the cover of the main body with the original channel. To fall to the vertical direction, Rotate the cover to adjust the desired position mouth spray. BTW you must cover the upper cover when you want to use the product. Fig 4.
Plug the AC adapter or USB plug into the home power socket.
Press MIST button choose the time needed. (1H, 3H. 6H OF ON continuous spiry time. MIST button please press MIST button five times (from 1H, 3H. 6H ON to OFF ) Fig5
Press light button to turn on the LED light seven light color option at varying brightness are available Fig6
If you do n use it for a long time, please drain out the weather tank water, dry and then keep it well you want to use it again, please use the neutral detergent to clean the water tank again, then you use it.
When the power is switched on the initial state of Aromatherapy machine in turned off.
If lack of water in the tank even though the MIST switch, Aromatherapy machine will automatically turn off.
MIST and light off automatically when water runs out.

PRECAUTIONS

Product use time:G hours .
The amount and Intensity of mist produced will vary, but this is not unusual and should not be considered as a fault.
Factors that affect this include water type humidity, temperature, air currents
Auto power off when water runs out.
Applies only 100% natural essential oils. If they contain chemical ingredients, flavors or impurities may cause damage to the product
Before replacing another essential oils, follow the maintenance part of the clean-up products.

ACCIDENTAL LEAKAGE

In the event of the unit being knocked over or tipped during use, please follow the steps as below to avoid malfunction:

plug the unit and remove cover
pour out any remaining water from the water tank.
shake the unit garret to drain water and then keep it natural air drying for at best 24 hours.

MAINTENANCE

After using 5-6 times, or 3-5 days, please clean the product as follow:

Unplug the unit from mains supply and remove cover,
Pour out any remaining water from the tank.
Add a small amount of warm kitchen detergent remover and water use swab to wipe it gently and then use cleaning cloth to dry it lightly
Refer to the following pictures, to avoid water flow into the air outlet pour off water abide by the left picture, not the right one.
Do not use other acids or enzymes detergents as this may give off poisonous gas or cause malfunction

Note: Be sure to use a mid detergent.

PRECAUTIONS

Please check below to avoid malfunction of the unit:

Do not fill over 500ML”MAX’ at any time
Do not switch on power when the tank is empty .
Do not touch the Ultrasonic vibration plate
Clean regularly as per Maintenance Instructions to avoid malfunction
Always unplug from power supply before maintenance
For hygiene reasons, after use, pour away remaining water from “DRAIN SIDE” of tank, and wipe with a clean dry cloth.
Essential oils can stain. In the event of spillage of contact, please wipe away with a soft cloth.
Only use the measuring cup (not provided) to add water into the tank, do not fill water directly from the water pipe.
Do not let mist below onto furniture, clothing, wall etc
Keep away from directing sunshine heat sources and air conditioners or fans
Always keep on stable plat surface do not place on carpet, duvet or unstable area.
Keep away from electronic equipment, such as TV and Auto equipment.
Do not tip the product this may cause water to enter the mechanism and cause malfunction
Product use time: 6 hours
Wait 60 minutes before restart to avoid damage to Ultrasonic plate
Use tap water only, does not use mineral water sparkling water etc
Never move product in use
Do not touch any part of the product with wet hands
Keep out of reach of children and pets, Children not being supervised are suggested not play with the product. Appliance is not suitable for children or person with reduced physical, sensory of mental capabilities, or lack of experience and knowledge to be used, unless they have been given supervision or instruction
Keep cord clear of pathways, and do not pull forcefully at any point.
If smoke or burning small is detected unplug immediately.
