ARIES ActionTrac Powered Running Boards Installation Guide
This is the second of two manuals required to complete this installation. The first manual is included with your mounting brackets.
WARNINGImproper electrical installation may result in personal injury. Unless you are familiar with the installation and handling of electrical systems, have this step performed by someone who has that familiarity.
Level of Difficulty
ModerateInstallation difficulty levels are based on time and effort involved and may vary depending on the installer level of expertise, condition of the vehicle and proper tools and equipment.
Product Photo
CAUTIONIf the step fails to actuate completely (open or closed), do not attempt to force the step open or close. Applying force in this condition will damage the product and void your warranty. Refer to the troubleshooting guide on the last page of the instruction manual to resolve potential issues.
NOTICEVisit www.ariesautomotive.com for a full-color copy of this instruction manual, as well as helpful videos, guides and much more!
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
ActionTrac™ Powered Running Boards feature a transportation mode cutoff switch to prevent battery drain. Switch to the off position if your vehicle is sitting idle for longer than one week.
Periodic inspection of your product should be performed to ensure all wiring connections, hardware and / or components remain secure.
To help prevent damage to the product or vehicle, refer to the specified torque specifications when securing hardware during the installation process.
Weight Capacity
650 lbs.Weight capacity is static and limited to bracket weight ratings
Parts List
1x Driver / left ActionTrac™ powered running board1x Passenger / right ActionTrac™ powered running boardAttachment hardware is supplied with the mounting brackets. Hardware quantities will vary depending on the vehicle application.
Tools Required
Ratchet Level : Socket set
Torque Specifications
Maintenance
No maintenance required on waterproof harness or water-resistant motors.
If mud or dirt is built up on the steps, simply spray them off and let them air dry.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Product Registration and Warranty
ARIES stands behind our products with industry-leading warranties. To get copies of the product warranties, register your purchase or provide feedback, visit: warranty.curtgroup.com/surveys
Step 1
With the driver-side brackets installed, take the driver-side running board and insert T-rails into the slot as shown. Position each T-rail as close to the mounting bracket location as possible.
Note: The number of mounting brackets may vary based on application. Use one T-rail per bracket.
Step 2
With help, carefully place the running board onto the mounting brackets.
Align the T-rails with the mounting brackets on the vehicle. Slide the top mounting track on the board over the top flange on each bracket. Adjust the T-rails in the lower track of the board so the studs drop into the slots on the bottom of each mounting bracket.

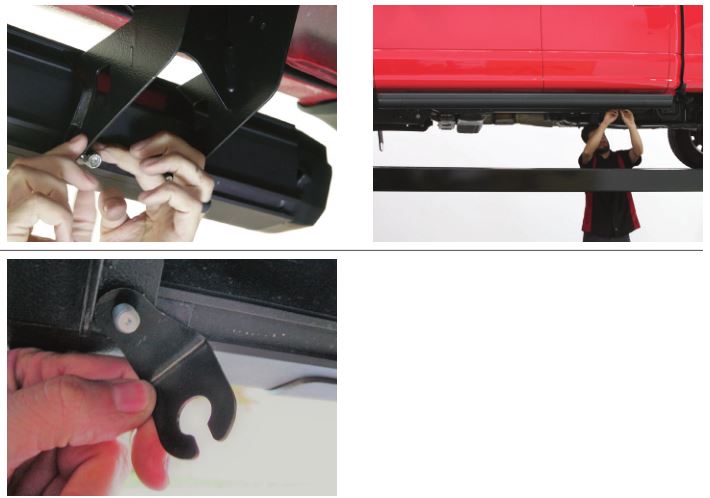

Step 3
Secure the running board to the front mounting bracket using one 5/16″ OR M8 flat washer and one 5/16″ nylock nut on each T-rail stud.
Note: 5/16″ and M8 are interchangeable sizes. Depending on the hardware supplied with your brackets you may use either size.
Repeat for the middle mounting bracket.
Before securing the rear mounting bracket, place an LED light bracket over one of the T-rail studs, as shown in the third image. Secure each T-rail stud with one 5/16″ flat washer and one 5/16″ nylock nut.
Snug the hardware, but do not fully tighten.

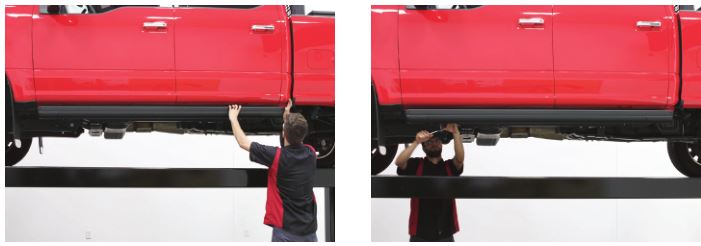

Step 4
At this time, adjust the running board to the desired location.
With the running board in position, it is recommended to tighten all brackets to the boards first, followed by the vehicle connections.vvTighten all hardware to the recommended torque specifications listed in the table on the first page.
Repeat steps 1 through 4 on the passenger side.
Step 5
On the driver side, plug the rear actuator (red / black) into the running board and pull the extra wire back into the vehicle.
Plug the LED light wire (brown / tan) into the LED light and secure it to the mounting bracket tab with the supplied jam nut.
Once all the wiring is installed, cover the wires with slit loom for extra protection. Use the provided cable ties to secure the bases used to route the wires along the running boards and underside of the vehicle.
Repeat for the passenger side of the vehicle. See below for wiring call outs.
Wiring Locations
Step 6
Attach the two wiring harnesses and re-install the fuse removed during initial wiring process.
Step 7
With power connected to the installed wire harness, temporarily position the supplied magnets on the doors to align with the sensors when the doors are closed. Repeat this for the other three doors.
Note: On vehicles with aluminum body panels, non-marking tape may be used to temporarily secure the magnets.
With the magnets in position and the system power switched on, test the boards by opening each door independently to ensure proper step function.
Once all magnet locations are confirmed and the system is operating correctly, mark the magnet positions and permanently install using the 3/4″ x 3/4″ double-sided tape.
Note: If there are any issues with the step function refer to the ‘Troubleshooting’ section on the last page of this installation manual.
Step 8
With the steps functioning properly, re-install all trim panels, carpet and other removed items.
Congratulations on the installation of your new ARIES ActionTrac™ powered running boards.
With the running boards installed, periodic inspections should be performed to ensure all mounting hardware remains tight.
To protect your investment, see the ‘Notes and Maintenance’ section on the first page of this instruction manual.
TROUBLESHOOTING
ARIESAUTOMOTIVE.COMPRODUCT SUPPORT: 877.287.86343025183-INS-RC06/08/2020ECN6766
