ARVOMIC ARMX777 Professional Audio Mixer 14-Channel Owner’s Manual

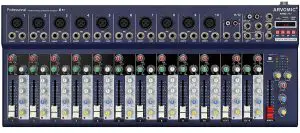

ARVOMIC ARMX777 Professional Audio Mixer 14-Channel

SYSTEM OVERVIEW

The ARMX777 14-Channel Console Controller Mixer with Audio USB Interface allows you to effortlessly achieve excellent quality sound with its 3-band EQ function and provides total dynamic control for the ultimate in punch and clarity. The +48V Phantom Power Switch allows the mixer to connect to laptops, computers, sound equipment, and studio condenser mics. With its USB function, you can stream audio in wirelessly, making it an ideal choice for setting up your own home recording studio.

USING THIS MANUAL

This booklet provides information regarding the use of the ARMX777 audio mixer. It includes a description of features and a step-by-step guide to operate this unit. The manual should answer any questions you may have about the operation and please keep this for future reference.

BOX CONTENT

  • 1 x ARMX777 Audio Mixer
  • 1 x Power Adapter
  • 1 x User Manual

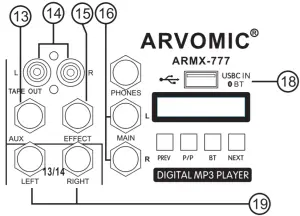

CONTROL ELEMENT AND CONNECTOR

  1. BALANCED INPUT (MIC)Electronically balanced input for XLR connector
  2. INSERTChannel mixed input
  3. LINE INPUTUnbalanced input for mic or unbalanced high impedance input signal
  4. HIGH EQHigh range EQ control for up to 1 SD of boost or cut at 12KHz and above. Use it to add sizzle to cymbals, add an overall sense of transparency or edge to keyboard,vocals,and guitar
  5. GAINAdjust the input signal level
  6. PANThe pan control sends continuously variable amounts of the post fader signal to either the left or right busses, In the center position equal amounts of signal are to the left and right busses.
  7. MID EQMid range EQ control for up to 12 dB of boost or cut centered at 2.SKHz.Midrange EQ is often thought of as the most dynamics because the frequencies that define any particular sound are almost always found in this range. You can create useful EQ changer by using this knob to adjust sound
  8. LOWEQLow range EQ control up to 15dB boost or cut at 80Hz and below This frequency the punch in bass drums and bass guitar
  9. CHANNEL FADERAdjust the volume of signal connection into each channel and adjust the volume of output, together with mater fader. Normal position is at the “O” mark.
  10. AUX OUTPUT CONTROL
  11. EFFReverberation effect control
  12. PEAKA red LED light indicates the signal level and lights up when the signal is above 5dB
  13. AUXSEND
  14. AUDIO OUTPUT
  15. EFFECT SEND
  16. MAIN OUTPUT JACK
  17. HEADPHONE JACKYou can monitor the sound condition 0through headphone
  18. USB PLAYERRefer to next section for detailed description
  19. LEFT/RIGHT STEREO INPUT
  20. PHANTOM POWER SWITCHPress this button when the phantom power supply is switched on. The phantom power supply is necessary for condenser microphones and is activated when using the Mic/Line input jack
  21. OUTPUT LEVEL INDICATORLevel meter to show the output level of left/right channel
  22. DELAYAdjust the time interval of echo repeat. NOTE: The middle position might be most effective
  23. REPEATAdjust the frequency of echo repeat. NOTE: Too much echo repeat might cause a howl, please adjust properly
  24. HEADPHONE VOLUMEAdjust the volume of signal sent to headphone for sound monitoring
  25. AUXSENDAuxiliary output volume adjustment
  26. EFFECTS SENDReverberation level adjustment
  27. OUTPUT MAIN FADERS (LEFT/RIGHT)This is s master fader for adjustment for volume of right left output.
  28. POWER CONNECTIONOnly use the power adapter that comes with the mixer, or a factory-authorized power supply.

CONTROL ELEMENT AND CONNECTOR

  1. LCD DISPLAYLCD display. Menu options: Bluetooth, Recording, Music, PC sound card
  2. USB PORT
  3. FORWARD BUTTONShort press to select previous song or long press to decrease volume
  4. PLAY BUTTONShort press to stop the music.
  5. MODE/BT BUTTONThis is a menu button to select different modes and functions. Short press to select Bluetooth mode and recording mode
  6. FORWARD BUTTONShort press to select next song or long press to increase volume

SPECIFICATIONS

MIC INPUTType: XLR, electe. balancedFrequency response: 10Hz to 60KHzGain range: +12 to +60 dBMax. input level: +15dBuSignal-to-noise ratio:- 90dB A-weightedImpedance approx: 4.8kO balanced

LINE INType:1/4″ TRS connector, electronically balancedImpedance approx, 20kO balanced 1 0kO unbalancedGain range : -10 dB to +40 dBMax. input level: +22dBu

EQHigh : 12KHz ± 15dBMid: 2.5KHz ± 15dBLow : 60KHz ± 15dB

STEREO INPUTSType: 1/4″ TRS connector, electronically balancedImpedance approx, 20kO balanced 1 0kO unbalancedGain range: -10 dB to +40 dBMax. input level: +22dBu

MAIN OUTMax. output level: +18 dBu

TAPE OUTType: RCA connectors, unbalancedImpedance approx.1 koiMax. output level: +18 dBu

PHONESType:1/4″ TRS connectorMax. output level:+18 dBu / 150O(316mW)Distortion (THD+N):0.08%,A-weightedPower consumption : 15watte

TWELVE-MONTH LIMITED WARRANTY

ARVOMIC®warrants to the original consumer purchaser that the above unit if free from any defects in material or workmanship for a period of six months from the date of original retail purchase. If any such defect is discovered within the warranty period, ARVOMIC® will repair or replace the unit free of charge, subject to verification of the defect or malfunction upon return to ARVOMIC®.

To the extent permitted by law, any applicable implied warranties, including warranties of merchantability and fitness are hereby limited to six months from the date of purchase. Consequential or incidental damages resulting from a breach pf any applicable express or implied warranties are hereby excluded. This warranty is in lieu of all other agreements and warranties, general or special, express or implied and no representative or person including an ARVOMIC ®dealer, agent, or employee is authorized to assume for us any other liability in connection with the sale or use of this ARVOMIC® product.

Whereas some states do not allow limitations on how long implied warranties last, and do not allow exclusion of incidental or consequential damages, the above limitations and exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which may vary from state to state.

This warranty is subject to the following conditions:

  1. This system must have been purchased from an authorized ARVOMIC  ®dealer.
  2. Items not covered: physical damage resulting from improper handling of the unit in transit from the factory by the shipper; defects caused by normal wear of the product (expendable parts are typically connectors, cables, potentiometers, switches and similar components); damage or defects caused by abuse, neglect, accident, failure to connect or operate the unit in any way that does not comply with applicable technical or safety regulations, or improper repair, excessive hear or humidity, alteration or unreasonable use of the unit, causing cracks, broken cases/housings or parts; damage caused by leaking batteries; finish or appearance items.

How to obtain service:Please contact us at [email protected] with any questions or concerns about your products or concerns about your product and a ARVOMIC® representative will contact you to provide assistance. If you purchased this system through Amazon, you can also contact customer service through Amazon message center.
