atleisure UMB-957444 10×13 FT Cantilever Umbrella Instruction Manual

3.05×3.98 M / 10×13 FTCantilever Umbrellawith BaseAssembly, Care & Use ManualITM. / ART.1902469Model:#UMB-957444

IMPORTANT: RETAIN FOR FUTURE REFERENCE READ CAREFULLYFor assistance with use, parts, or customer service, please contact:leisure, LLCUS Toll-Free 1-855-880-7205Canada Toll-Free 1-888-692-1033 (French)8:00 am – 5:00 pm, Monday through Friday, Eastern Standard Timewww.atleisure.com · Email: [email protected]Please Contact ATLeisure Customer Service Prior to Returning to Store For outdoor residential household use only. Not for commercial use.Designed in USAMade in China

Preparation

Before beginning product assembly makes sure all contents are present. Layout all parts on a clean, flat surface. Compare parts with package contents list and diagram below.Estimated Assembly Time: 40 minutes

Tools Required for Assembly (not included)

Picture Description Quantity
Adjustable Wrench 1

Hardware Contents

Part  Picture Description Quantity
GG Outer Hex Bolt M10-1.5x20A2-70 4
HH Flat Washer M10A2-70 4

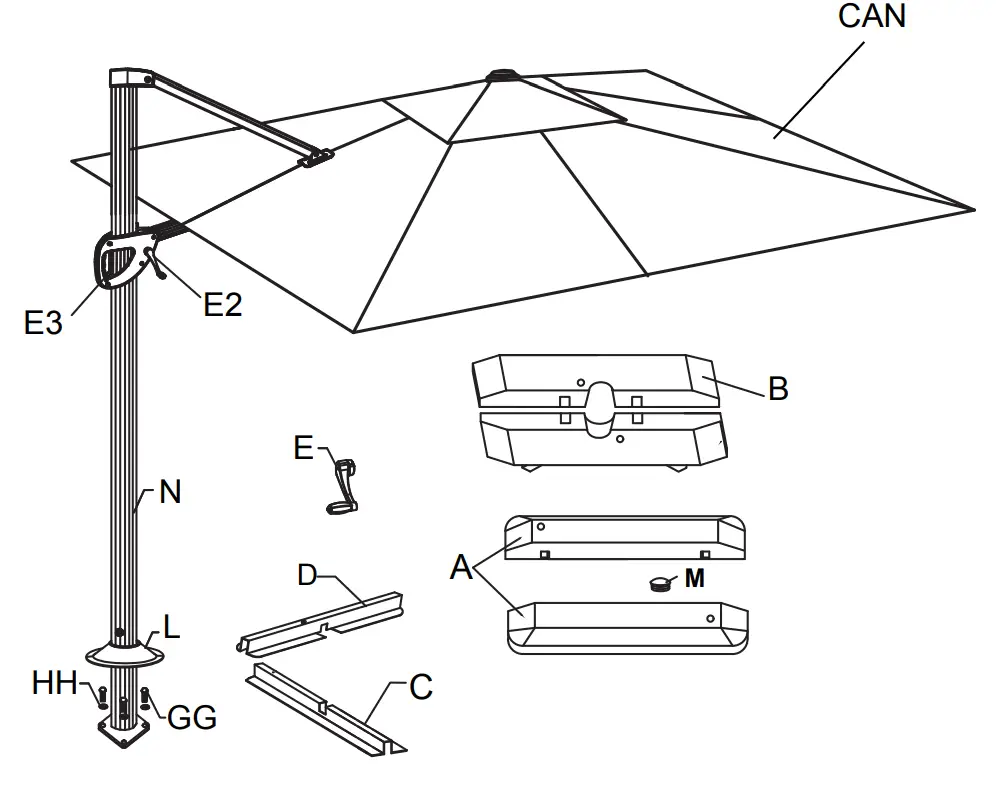

Package Contents

Part Description Quantity
A Blow Molded Base Outside 2
B Blow Molded Base Inside 2
C Lower Cross Leg 1
CAN Canopy (on the umbrella frame) 1
D Upper Cross Leg 1
E 360.Crank Handle 1
E2 Canopy Crank Handle 1
E3 Canopy Glide Handle 1
L Pole Support Cap 1
M Blow Molded Base Cap 4
N Umbrella Frame (with canopy) 1

Assembly Instructions

CAUTION:Do not use sharp tools or equipment such as a knife or scissors when removing the protective material; it may damage the product. Be careful not to throw away small parts such as bolts, washers, etc. that may be wrapped in protective materials.CAUTION: An additional person is suggested to assist with inserting the umbrella frame into the pole holder.

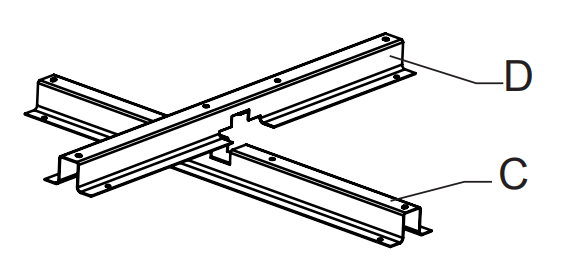

Step 1: Place lower cross leg (C) on the ground, line up notches, and place upper cross leg (D) over lower cross leg (C).

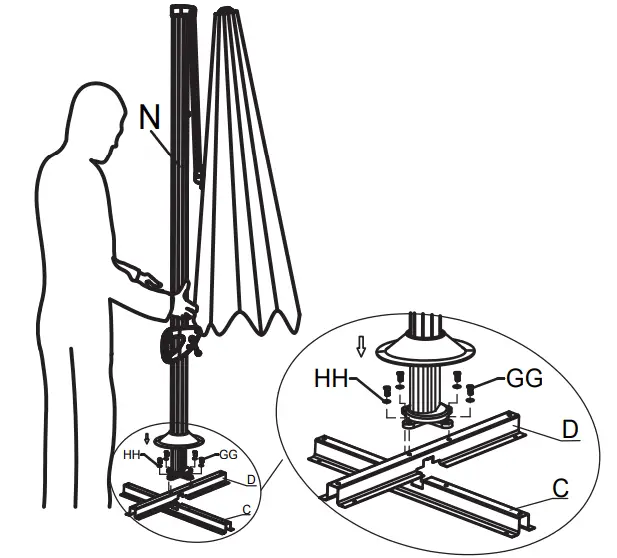

Step 2: Attach the umbrella frame (N) to cross legs by using bolts (GG) and washers (HH) found in a blister pack. Lift the pole support cap (L) up to align holes on the bottom of the umbrella frame with holes on top of cross legs (C,D). Use one washer and one bolt per hole, do not overtighten. Adjust the umbrella frame to be sure it is positioned correctly on base. Finally, tighten bolts with an adjustable wrench or open-end wrench (not included).

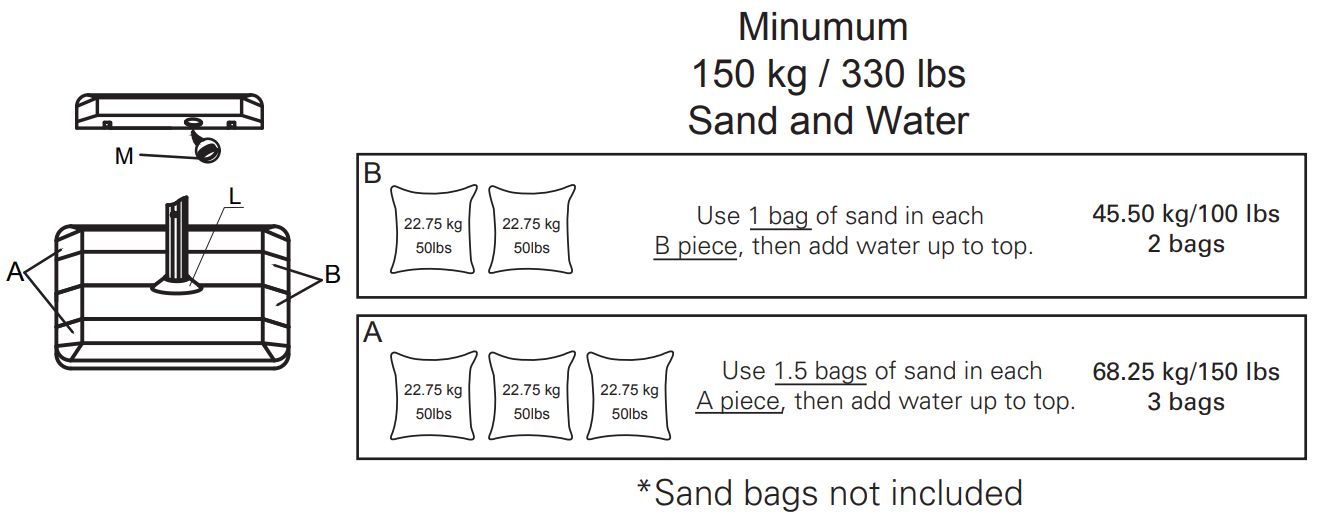

WARNING: Before opening the umbrella, complete assembly as instructed in the manual. Fill each section of the base with sand. Add water to wet the sand and continue to fill each section with water up to the top. Cover hole with cap. It is recommended at least 150 kg (330 lbs) of weight be placed on cross legs to ensure stability. Failure to do so will result in a weight imbalance and cause the umbrella to tip, causing damage and/or personal injury.

Step 3: Fill each base (A & B) with sand and fasten cap (M). Place each base section onto the cross legs as shown in the diagram, lift support cap (L) for the two inside base sections. When finished, slide the pole support cap down to rest on top of the blow-molded base.

Step 4: Attach 360° crank handle (E) to pole and canopy crank handle (E2) onto canopy glide handle (E3). Align pinhole on both cranks handles to corresponding pins to lock.

Operation Instructions

Step 1: Unfasten storage straps around the canopy and pole.Step 2: To open the umbrella, squeeze grip on the canopy glide handle (E3) and slide up or down on the pole to achieve desired canopy angle. Release grip to lock umbrella canopy frame into place. To open the canopy, turn the canopy crank handle (E2) clockwise until the canopy is fully opened.

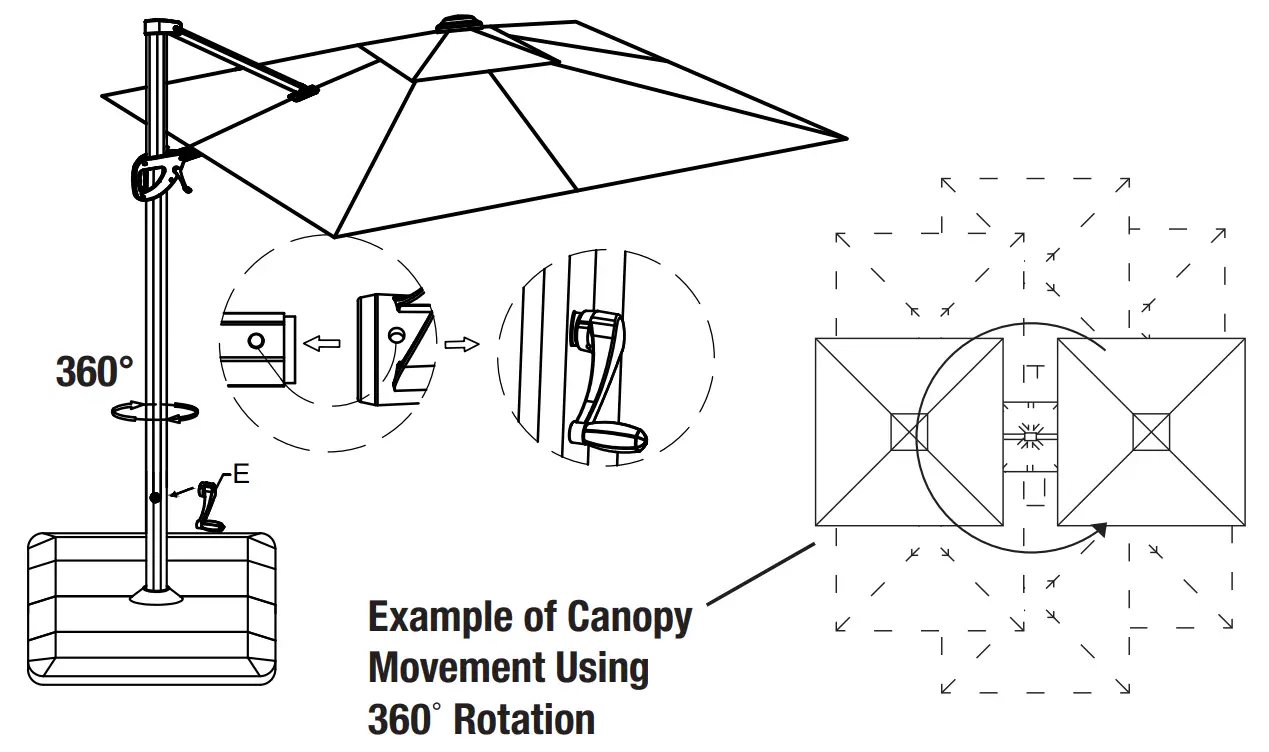

Step 3: The umbrella frame with canopy can be rotated 360°. To rotate the umbrella, turn the 360° crank handle (E) located on the bottom of the pole in either direction to the desired angle.

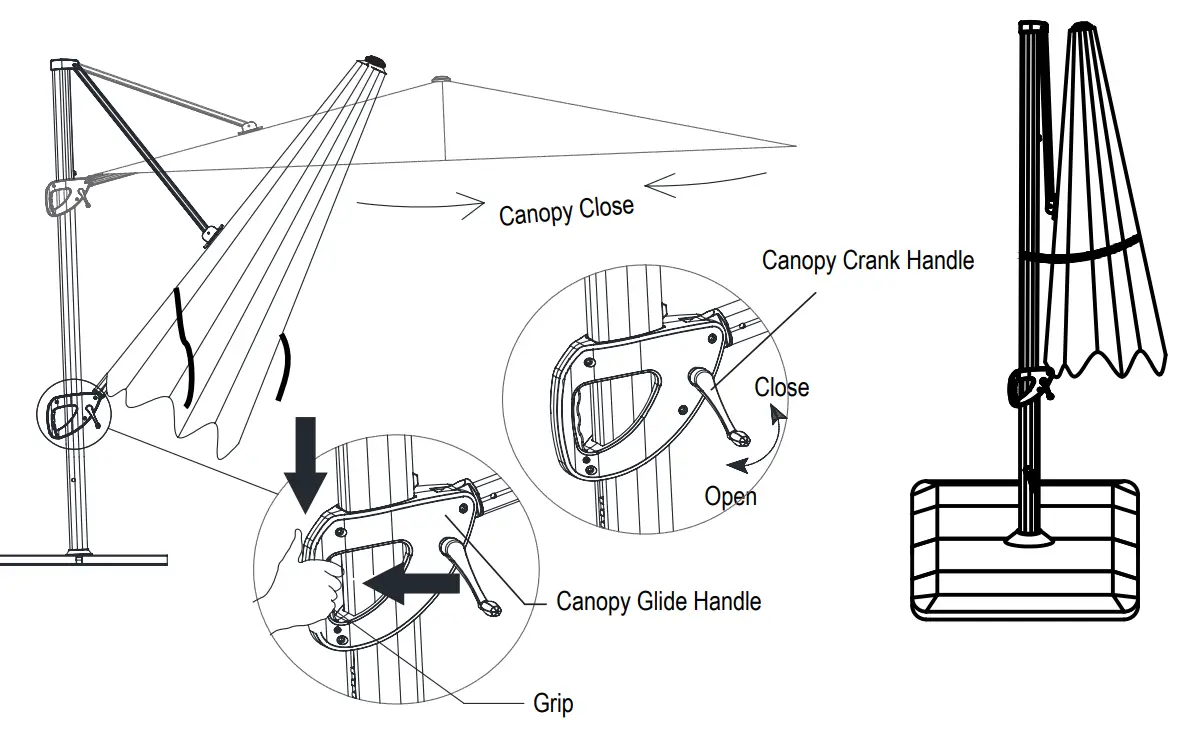

Step 4: To close the umbrella, turn the canopy crank handle (E2) counter-clockwise until the canopy is fully closed. Squeeze grip on canopy glide handle (E3) and slide it down the pole;  release grip to lock it in place. The canopy frame should be vertically upright. Fasten storage straps around the canopy and pole.

Care and Maintenance

See enclosed Sunbrella® care and cleaning label is sewn into the interior seam located on the outer edge of the umbrella canopy.

Warning and Cautions

DANGER: Keep children out of the assembly area during assembly.

WARNING: Read all instructions before beginning and follow the steps outlined. Failure to assemble and install as instructed could result in the umbrella tipping over causing personal injury and/or property damage.

WARNING: Do not open an umbrella in windy conditions, as it could be blown over and cause personal injury or damage. To secure an umbrella properly, either bolt it directly to your deck or patio or use a properly weighted umbrella base. Keep umbrella away from glass tabletops during windy conditions to prevent breakage. Warranty does not cover damage due to neglect, abuse, or poor weather conditions.

CAUTION: Assemble and use an umbrella on flat ground.

CAUTION: Place the base in the desired location for sure before filling . Once the base is full,it will be harder to move.

INFORMATION: Be sure to secure and/or weight the base of the umbrella.

INFORMATION: Close the umbrella and use the canopy storage straps when the umbrella is not in use. If the umbrella is stored off-season in a box, the solar panel and battery pack must be removed to avoid damage.

INFORMATION: Schematics in this manual are for assembly and operation illustration only. They may differ from the umbrella’s actual appearance.

INFORMATION: Placement of the umbrella over or near a swimming pool will cause premature fading not covered under our warranty, especially darker colors. Please contact customer service to purchase a replacement canopy.

INFORMATION: Outdoor umbrella cover (not included) will provide additional protection and durability for your umbrella canopy.

U.S. Patent No. 5,937,882, U.S. Patent No. 8,104,492

Warranty

This product is covered under a manufacturer’s 2-year warranty from date of purchase against defects in materials and workmanship. This warranty does not cover damage due to neglect, abuse or weather-related damage. For full warranty disclosure, email us at [email protected], call toll free at 1-855-880-7205 or 1-888-692-1033 (French) or send mail to:Athleisure, LLCCustomer Service Dept.1040 Boulevard SE Ste. BAtlanta GA 30312.

NOT COVERED UNDER WARRANTY

This warranty excludes the following: acts of nature (i.e. wind, fire or freezing); damage caused by improper assembly, accident, disaster, misuse, abuse, or negligence and discoloration or fading of the finish as a result of exposure to the elements. Product not intended for commercial use. This warranty gives you specific rights, and you may also have other rights which may vary from state to state.AUSTRALIA: Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund – for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Filing a Claim

If you are within your warranty, you may file a claim by sending your receipt and pictures of your damaged umbrella and send to ATLeisure at: [email protected]or by mail to:leisure, LLCCustomer Service Dept.1040 Boulevard SE Ste. BAtlanta GA 30312

Replacement Parts

report this ad

For replacement parts, call our customer service department at at 1-855-880-7205 or 1-888-692-1033 (French) 8:00am-5:00pm., EST, Monday-Friday.

Part Description Quantity Re-order No.
A Blow Molded Base Outside 2 BSE-ABMP-11-BWN-T-C2
B Blow Molded Base Inside 2 BSE-BBMP-11-BWN-T-C2
C Lower Cross Leg 1 CSL-C78RX-BWN-T-C2
CAN Canopy (Mushroom, Cherry, Taupe) 1 CAN -10X1304RBS-T-MU CAN-10X1304RBS-T-C CAN-10X1304RBS-T-TA
D Upper Cross Leg 1 CSL-D78RX-BWN-T-C2
E 360 Crank Handle 1 CRK-E78RHP-BWN-T-C2
E3 Canopy Glide Handle 1 CRK-778RG-BWN-T-NS-C2
L Pole Support Cap 1 PSC-L78R-BWN-T-C2
M Blow Molded Base Cap 4 BSE-CAP-11-BWN-T-C2
KIT Hardware Kit (957444) 1 HDW-957444-KIT

Distributed by:Costco Wholesale CorporationP.O. Box 34535Seattle, WA 98124-1535USA1-800-774-2678www.costco.com

www.atleisure.com ·Email: [email protected]ATLANTA, GEORGIA, USAUS Toll-Free 1-855-880-7205Canada Toll-Free 1-888-692-1033 (French)8:00 am-5:00 pm, Monday to Friday, Eastern Standard Time [email protected]
