August User Manual
EP800
Ultra Portable Lightweight TWS Bluetooth Earphones
Safety
To ensure the safety of you and others, please read the Safety Instructions before using this device. Please do not disassemble the EP800, it can be unsafe and will invalidate the manufacturer’s warranty.
Disposal
Please ensure the product and accessories are dispose of in compliance with the WEEE (Waste Electrical and Electronic Equipment) Directive and any other regulations applicable to your country. Always check with the environment agency and other relevant authorities for current disposal regulations.
Declaration of Conformity
The Declaration of Conformity can be found on our website at http://augustint.com/en/declaration/
Customer Service
You can contact us by phone on: +44 (0)845 250 0586 or by email at: should you require further technical support or customer service.
1. Safety Instruction
Storage and Use

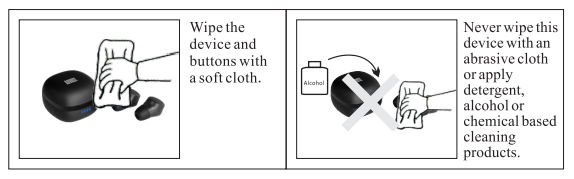

Maintenance
Please unplug all leads before cleaning this device.
2. Main Features
- Sweatproof IPX66 Bluetooth v5.0 Earphones
- In-Ear Design for Enhanced Comfort and Discretion
- Charging Carry Case for up to 30 Hours Play Time
- Integrated Mic for Calls and Voice Assistant
- Automatic Bluetooth Reconnection Compatible with Apple iOS and Android

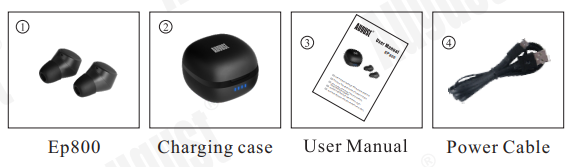

3. Box Contents
4. Part Names and Functions
- Power / Play / Pause / Answer
- Status LED / Microphone
- Power Socket
- Battery Indicator
- Pogo Pins
5.Operation
5.1 First Use
Take out both earphones then re-insert them back into the case to activate the earphones.
If headphones fail to be charged, please charge the charging case (for details, please refer 5.2).
Take out both earphones then re-insert them back into the case to activate the earphones, The EP800 will enter connection mode and the left status LED will flashes white and red.
5.2 Power
Please fully charge the EP800 before first use or if left unused for a long period of time.
To charge earphones, put earphones into the charging case. While charging, two status LED lights red and turns off once fully charged. To charge the charging case, use the power cable to connect the charging case to a powered USB port.
The battery indicator flash one bar and turn to four bars once fully charged. While charging, the battery indicator flash one bar and turn to four bars once fully charged.
5.3 Switch On / Of
5.3.1 Switch On / Off by charging case
To switch on the EP800, take out both 2 earphones from the charging case. The EP800 will enter reconnection mode and the left status LED will flash white.
To switch off the EP800, insert both 2 earphones back into the charging case.
5.3.2 Switch On / Off by earphones (when earphones not in the charging case)
To switch on the EP800, press and hold Power Button for 1 second. The EP800 will enter reconnection mode and the left status LED will flash white.
To switch off the EP800, press and hold Power Button for 5 second.
5.4 Bluetooth Connections
The EP800 will enter reconnection mode after switching on and will connect to any previous known device automatically. For first connection, please refer 5.1 First use. To pair to a new device, insert earphones back into the charging case, then disconnect the EP800 from your old device. Take earphones from the charging case again. The left status LED will flash white for around 30 seconds at first, and the left status LED will flash white and red alternately which indicate EP800 enter pairing mode.
– For mobile phones and tablets
- Scan for available Bluetooth device on your mobile phone or tablets. (Please consult your device’s user manual if necessary)
- Select ‘EP800.L’ from the available devices and confirm the connection.
- Once successfully connected, the status LED will turn off.
– For computers
- Enable the Bluetooth function on your computer.
- Select ‘Device and Printers’ from the Control Panel and click ‘Add a Device’.
- Select ‘EP800.L’ from the available devices, the system will automatically install the driver automatically. If a pin code is requested, please enter the code ‘0000’.
- Once successfully paired and connected, the status LED will turn off.
5.5 Resetting
Please try the following steps if fail to connect with the mobile device
Take out two earphones, press and hold the power button for 5 seconds to turn off the earphones. Two LED turn off. Press two power buttons for 10 seconds, two LED will flash white and red, then both turn off. Put two earphones back to the charging case. And then take them out from the charging case again, The EP800 will enter connection mode. Connect your device with EP800.
5.6 Remote Control
Press the button to answer the phone call.
Press the button again to hang up the phone call.
Press and hold the button for 1 second to decline the phone call.
Under the calling status, press and hold the button for 1 second to switch audio output between device and earphones.
Under the calling status, press the button twice to turn on or off the Mute function.
Press the button to play or pause the music.
Press the button twice to play the next song.
Press the button for 3 times to play the previous song.
Underthe standby status, pressthe button for 3 timesto active the voice assistant.
Under the standby status, press the button for 4 times to dial the last calling number.
6. Charging
To charge earphones, put earphones into the charging case. While charging, two status LED lights red and turns off once fully charged. To charge the charging case, use the power cable to connect the charging case to a powered USB port.
While charging, the battery indicator flash one bar and turn to four bars once fully charged. A full charge takes approximatively 1.5 hours depending on power input.
Note:
- When charging the EP800, ensure that the output voltage from the USB port or charger is 5V. Using a voltage greater than 5V may damage the earphones.
- Please fully charge the EP800 before first use or if left unused for a long period of time.
- If you are using a smart USB charger, use the common USB port, ensuring that the output voltage is 5V.
7. Specification
8. Troubleshooting
