Axible Smart Multipurpose Tracker User Manual

Axible Smart Multipurpose Tracker User Manual

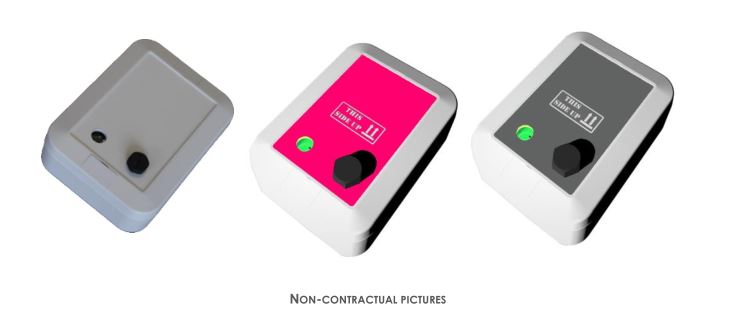

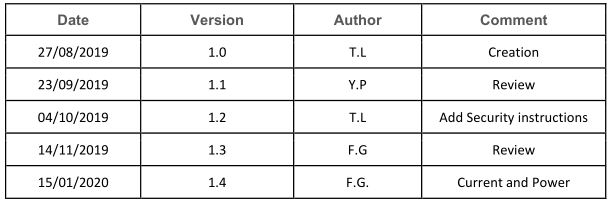

CHANGELOG

FEATURES

  • Worldwide geolocation Sigfox* and Wifi
  • Light sensor (could be used to detect a container opening)
  • Temperature measurement
  • Battery level monitoring
  • Complex motion pattern detection :
    • Crane up / down movements (validation pending)
    • Take off and landing detection
    • Or any other event that can be characterized*depending on Sigfox Network coverage

BEHAVIOR

DATAA frame can be sent :

  • When a motion pattern is detected
  • When a sensor event is detected (temperature, light, pressure, low battery, …)
  • At regular intervals as a “location” frame. (configurable via Downlink)
  • When the device moves and then stops (these settings are configurable via Downlink) etc…

MONARCHMonarch beacon allows to detect Sigfox zone (RCZ) in the world in order to adapt the radiocommunication means. A scan beacon can be done at regular intervals, after a motion pattern or any event detected by the sensors. The listening period can last up to 5 minutes. If the device does not detect a beacon for many days in a row, it stops transmitting frame as it may be in the wrong RCZ.

WIFI LOCATIONA passive wifi scan is performed to detect MAC addresses in the surrounding area. These addresses are sent via Sigfox frames to Axible backend, which requests a location to specialized APIs (Google, Here…).

INSTRUCTION MANUAL

INSTALLATIONThe back of the tracker must be magnetized on a metal surface, at a maximum height of 1.80 meters (no part above 1.80 meters). The orientation of the tracker must always be as shown on the sticker.

BATTERYIf the battery is low, you must not try to replace the battery by yourself, you must send the device back to Axible Technologies for battery replacement. According to the safety instructions do not open the case to try to measure the battery voltage. Storage at high temperature must be avoided to preserve the battery life time.

MAINTENANCETo maintain optimal performance of the tracker, you must ensure that the valve and skylight are clean.

SAFETY INSTRUCTIONSOnly authorized personnel can open the case.

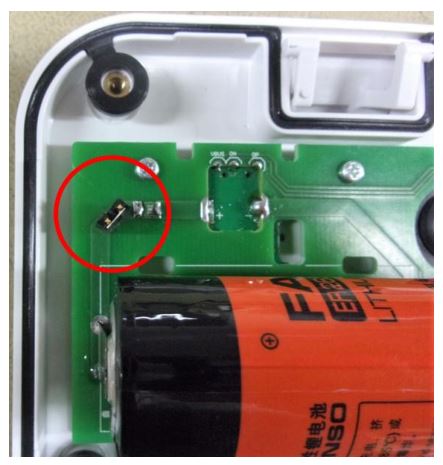

DANGERAny operation performed in the case, in particular any reprogramming operation, requires disconnecting the battery by removing the protective jumper shown in the picture below.

Handle the Sigfox Multipurpose Tracker with care. The Sigfox Multipurpose Tracker can be damaged if it falls, is burned, pierced, crushed.DO NOT use a damaged Sigfox Multipurpose Tracker.DO NOT open the Sigfox Multipurpose Tracker and/or try to repair it.DO NOT try to replace the battery, you may damage the battery and cause overheating and injury.DO NOT pinch an object or your fingers between the magnet and a magnetic surface.KEEP the Sigfox Multipurpose Tracker AWAY from extreme heat.KEEP the Sigfox Multipurpose Tracker OUT of reach of children Sigfox Multipurpose Tracker Datasheet – v1.4AVOID letting the Sigfox Multipurpose Tracker in direct sunlight. Sigfox Multipurpose Tracker Datasheet – v1.4

BATTERY SPECIFIC SECURITY INSTRUCTIONSReminder: only authorized personnel can open the case and access the battery.The battery contains flammable materials such as lithium and organic solvent and performing any of the above actions could cause it to ignite explode or become damaged. DO NOT recharge, short-circuit, disassemble, deform, heat or place the battery near a direct flame. Only personnel authorized, to perform a battery voltage measurement use a high impedance (1M or higher) voltmeter.

OTHER INSTRUCTIONSDispose of Sigfox Multipurpose Tracker and its battery according to local environmental law. When throwing the battery away be sure to cover it with tape. If the battery is contacted with other metal objects, it could cause fire or become damaged.

EXTERNAL STICKER SYMBOL DESCRIPTION

The following symbols are used on the sticker:

  • CE Mark : European certification
  • FCC Mark : United state certification
  • Sigfox ready mark : Sigfox ready certification
  • WEEE : Waste Electronic and Electrical Equipment

FCC CERTIFICATION

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS :

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

NOTE : THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT

THIS DEVICE CONTAINS LICENCE – EXEMPT TRANSMITTER(S)/RECEIVER(S) THAT COMPLY WITH INNOVATION, SCIENCE AND ECONOMIC DEVELOPMENT CANADA’S LICENCE – EXEMPT RSS(S). OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS :

(1) THIS DEVICE MAY NOT CAUSE INTERFERENCE.(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION OF THE DEVICE.

TECHNICAL SPECIFICATIONS

Sigfox Multipurpose Tracker Datasheet – v1.4
