babopro 56148002 Affordable Training Board User Guide

babopro 56148002 Affordable Training Board User Guide

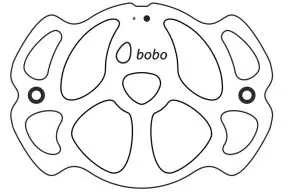

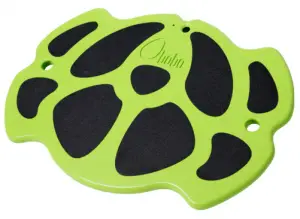

b obo is an affordable training board that mounts on any balance training platform, turning it into a smart training tool. By tilting the board, the user controls games and training programs that are motivating and challenging.

Whats in the box?

  • bobo training board
  • HDMI cable
  • Power cable
  • Mouse
  • Wall mount kit
  • Magnetic charging cable
  • Android TV box

Software

bobo’s software – offers personalized training programs that keep track of user performance, progress and achievement. The Android TV box runs and monitors all the bobo games and training programs – plus hundreds of free 3rd party ‘tilt games’ , allows users to choose their preferred content thus turning exercise and rehabilitation into an enjoyable, rewarding and challenging activity.

Want to use your own smartphone/tablet?Search for bobo pro to download the bobo app!

Power on!

Power on the bobo by a short press on the button.When finished using, power off the bobo by pressing and holding the button:A long beep will sound and the power LED turns off

Operation status light:

  • Device connected / Landscape mode Green blinks
  • Low battery Red blinks
  • Charging Orange blinks
  • Portrait mode Blue blinks
  • Full charge Constant orange

Pairing to app

Pairing the bobo with the bobo TV Box:

Pairing is automatic.Make sure bobo TV box Bluetooth is enabled. bobo will pair automatically with your device. Do not manually pair the bobo with your device. If you do, the bobo will not successfully communicate with the bobo app.

Turn on the bobo, wait 10 seconds and verify that the diagonal line on the bobo-board sign (top-right corner) had disappeared.If the bobo-board sign isn’t visible, try and adjust your screen resolution at: Settings > Display > HDMI > Screen Zoom

Pairing the bobo with smartphones and tablets:

Pairing is automatic.Make sure your smartphone/tablet Bluetooth is enabled.bobo will pair automatically with your device.Do not manually pair the bobo with your device.If you do, the bobo will not successfully communicate with the bobo app.

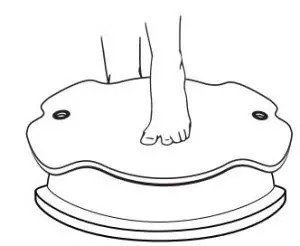

Stand on the bobo

Place the bobo on a cushion or other appropriate balance platform.

When placing the bobo on a low platform :

  • Place one foot on one side of the bobo and apply weight. The bobo will tip toward that foot until the edge of the board rests on the floor. Shift your weight entirely onto that leg, holding onto something sturdy for support if necessary.
  • Place your other foot on the opposite side of the bobo, an equal distance from the center. Note: Do not operate the bobo directly on the floor without use of a balance platform because the bobo will not respond without tilt movements.
  • Shift your weight back and forth until it’s evenly balanced on the bobo. Standing on the bobo can present a major challenge at first. Holding on to something sturdy for balance is helpful at first. Wean yourself of the need for support one finger at a time as your balance improves.

When placing the bobo on a high platform :

  • Place one foot in the middle of the bobo, and slowly shift your weight onto it.
  • Place your free foot just next to your other foot.
  • Slide your feet apart slowly, one foot at a time, without lifting it off the bobo.
  • Shift your weight back and forth until evenly balanced. Just standing on the bobo like this can be a major challenge at first. Holding on to something sturdy for balance is helpful at first. Wean yourself of the need for support one finger at a time as your balance improves.

Now you’re ready to play!

Instructions for use

Please observe the following precautions before each use of your bobo:

  • Select a safe balance platform to be placed underneath the bobo and prior to each use inspect for nicks, tears, punctures, or other defects that may cause the balance platform to fail. Do not use a balance platform in which such defects are found.
  • After placing the bobo at the center of the selected balance platform, make sure that the bobo is properly balanced on the pivot surface. Do not use the bobo if it glides or slips from the pivot surface.
  • Always use the bobo and the balance platform in an open area on a flat stable surface away from furniture, walls and equipment. Do not use on an incline.
  • Inspect the floor surface for objects which could damage the balance platform.
  • During practice, make sure that you have firm support such as a wall or a stable table within an arm’s reach. (not sure how this works with comment above saying away from furniture, walls…)
  • Do not engage in bouncing or jumping exercises while using the bobo.
  • No more than one person should use the bobo at a time.
  • Avoid stepping or standing on the edges of the bobo.
  • Do not use tape, nails, or similar means to attach the bobo to the balance platform.
  • Do not expose the bobo to liquids or extremes of heat or cold.
  • Do not use the bobo if you are under the influence of alcohol or any other substance that could affect your sense of balance or perception which could cause you to slip or fall.
  • An adult must explain all safety information and usage guidelines children or other users with a mental or cognitive problem. Failure to do so may result in bodily injury and/or damage to the system or other property. Observe children during gameplay for proper and safe use of the bobo.
  • An adult should initially assist young children in making sure they understand the correct usage.

Importent safety instructions

  • Do not dismantle, disassemble, open or otherwise alter the bobo. There are no user serviceable parts.
  • The bobo contains a lithium-ion battery which can be combustible. Keep away from heat source such as fire, oven, microwave oven, direct sunlight, heat-generating equipment, etc.
  • Keep the bobo dry. Do not use with wet hands or in a wet environment. Moisture can cause electric shock.
  • The bobo may heat up during use. This is normal.
  • If the battery emits a liquid, stop using the bobo immediately and contact qualified service.
  • Ensure that bobo usage is in accordance with the manufacturer instructions.
  • Do not leave the unit in charge mode for a long time. Overcharging can damage the bobo.
  • Use only the charger included with the bobo. Using an incorrect charger may result in overheating, fire or explosion of the battery.
  • Extended recharge without discharging the battery may cause overheating. A fully charged bobo should be used for 12 hours before recharging.
  • Do not store the bobo in a hot or humid environment such as car parked in sunshine, etc

BO&BO LTD. ASSUMES NO LIABILITY FOR INJURY OR DAMAGES THAT MAY OCCUR WITH THE USE OF THIS PRODUCT. THE CONSUMER ASSUMES ALL LIABILITY AND USES THIS PRODUCT AT THEIR OWN RISK.

COPYRIGHT All Rights Reserved BO&BO Ltd. 2020. Manufacturer details: Company: BO&BO Ltd. / O.C ID: 515218261 /Address: 11 Ha’avoda st Rosh-Ha’ain, Israel /Phone: +972 35731198. / E.A.R. – Obelis S.A. Boulevard Général_Wahis 53, B-1030Brussels, BELGIUM.For technical support please write us at: [email protected] / For any other issues, please contact us at: bobo-balance.shop

Maintenance instructions

  • Avoid the unit being dropped.
  • Avoid contact with water.
  • Do not disassemble or insert foreign objects into the unit.
  • Do not wipe the surface of the unit with alcohol or abrasives.

Troubleshooting

What to do if the BOBO does not connect to the TV box?

  • Turn on the bobo, wait 10-20 seconds and verify that the diagonal line on the bobo board sign on the top-right corner had disappeared.
  • If the diagonal line does not disappear, wait another minute.
  • Verify that Bluetooth is enabled on the TV box.
  • Turn off the TV box Bluetooth, wait 10 seconds and turn it on again. Wait 10-15 seconds.
  • bobo may be connected to a different device nearby. If this is the case, close the bobo app from the background of that device before trying to connect to the desired device.
  • Bluetooth pairing is automatic. Make sure you do not pair bobo using the Bluetooth Settings on your TV box. If bobo was paired this way, on your TV box, go to settings > Bluetooth and press on bobo. Choose the forget option.
  • Turn off the bobo and reset the TV box. Wait until the home screen re-appears. Now, power on the bobo again and wait for a minute.
  • Make sure that the bobo’s battery is charged by connecting the charger cable to the bobo and checking the charging status.

What should I do if the status light is off?

  • Try to Power on the bobo by pressing the power button.
  • Charge the bobo, ensuring the cable is properly connected to the USB port.
  • The bobo status light will blink orange while charging.
  • The bobo will not operate properly while charging.
  • The bobo does not work while charging!

Attention! Read before use

Children must have adult supervision!

Caution! Slippery when wet!!!

Use a support device if required!

Clear the exercise area from foreign objects

Please read the detailed safety instructions

The TV Box

Getting started

  1. Screw in the Antenna to the Antenna port on the back of the TV box.
  2. Insert the power cable into the DC socket, and then insert the other end into the power socket.
  3. Insert the HDMI cable into the HDMI socket, and then insert the other end into the display screen.
  4. Turn on the TV box by holding the power button for 3 seconds.
  5. The loading logo will appear on the screen after a few seconds.

Power On/Off

  1. Power on the TV box by holding the power button for 3 seconds.
  2. Power off the TV box by holding the power button for 3 seconds, and click ‘power off’ on the screen.
  3. Turn the product into sleep mode and wake it back by a short press on the power button.
