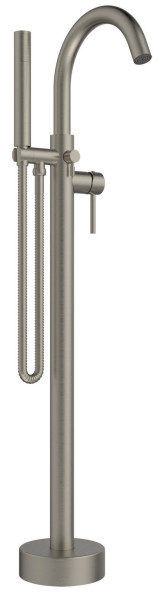

FLOOR MOUNT BATHTUB FILLERROBINET AUTOPORTANT POUR BAIGNOIREDEL45CBNFor warranty and to register your productbelangerH2O.com

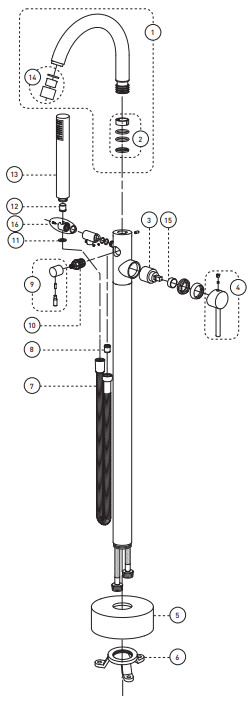

| No | DescriptionPart | Piece |
| 1 | Spout assembly | FCSPSA013BN |
| 2 | Spout repair kit | FCKTS9057 |
| 3 | Cartridge (35mm) | FC9M6-00 |
| 4 | Handle | FCKTS2049BN |
| 5 | Base flange cover | FCDEC7044BN |
| 6 | Base flange | FCOTH9019 |
| 7 | Hose | 96179BN |
| 8 | Check valve (14mm) | FC98244CV |
| 9 | Diverter handle | FCKTS2050BN |
| 10 | Diverter | FCDCARD003 |
| 11 | Washer(19mm x 9.5mm x 2.5mm) | FCWAA1007 |
| 12 | Check valve (15mm) | FCVAL1001 |
| 13 | Hand shower | FCSPS2001 BN |
| 14 | Aerator assembly | FCAERA038BN |
| 15 | Temperature limiting device | FCCARL9M6 |
| 16 | Hand shower support | FCKTS5009BN |
IMPORTANT
Bélanger recommends using a professional plumber for all installation and repair. Please inform yourself about the Canadian Plumbing Code’s regulations and your local municipality plumbing codes before installation. The Canadian Plumbing Code requires the installation of surge arresting devices to eliminate water hammering. ALLOW AN ADEQUATE OPENING IN ORDER TO EASILY ACCESS CONNECTIONS OR OTHER PLUMBING DEVICES FOR MAINTENANCE OR REPAIR.

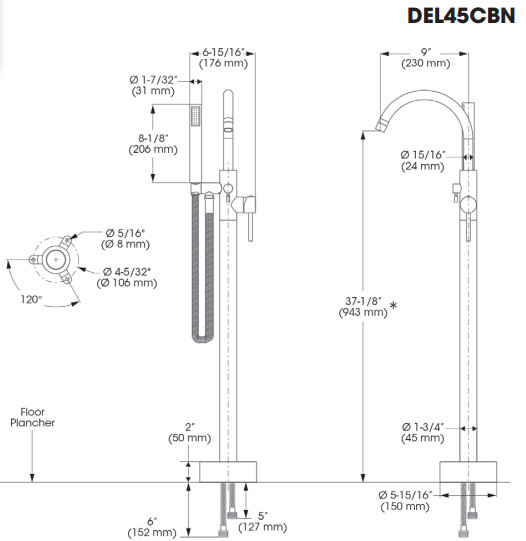

Technical drawing – Dessin technique
1* The height can vary depending of the installation
RECOMMENDED TOOLS
* Apply thread seal tape on threaded connections.
The model shown in the installation steps may differ from the one in box however connection type and installation steps are the same.

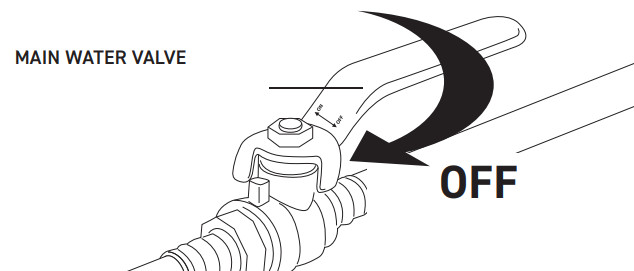

Before you begin
Installation steps

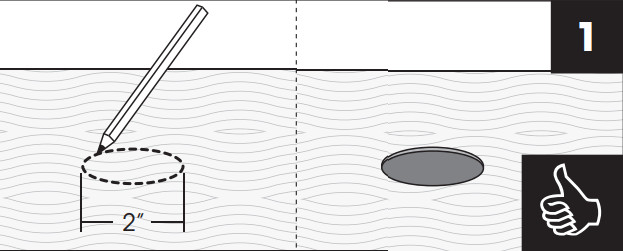

TRACE A 2” DIAMETER CIRCLE ON THE FLOOR ABOVE THE ALREADY INSTALLED WATER SUPPLIES AND CUT ON THE DIE LINE TO MAKE A HOLE
INSTALL THE FLOORING AROUND THE HOLE LEAVING A 5” DIAMETER CIRCLE OF SPACE TO INSTALL ROUGH-IN (TRIPOD)
Customer ServiceMonday to Friday:8 a.m. – 4:30 p.m. E.S.T.Tel: 1-800-361-5960[email protected]Replacement parts are available on orderCARE INSTRUCTIONSRinse the product with clear water.Dry the product with a soft cloth.
DO NOT:Use abrasive cleaners, cloths, or paper towels. Use any cleaning agents containing acid, polish, wax, alcohol, ammonia, bleach, solvent or any other corrosive or harsh chemical cleansers.IBDEL45CBN_v210713
