BEZGAR IPX5 Waterproof RC Car User Manual

  Caution

1. Small parts. Keep out of reach of small children.
2. Please operate in an open field without any wave interference.
3. When a transmitter is low in power, please stop and change batteries immediately.
4. On backout after the removal, please do not place discarded to avoid contamination sanitation.
5. Please store the car and the transmitter in a dry and coo} environment.
6. Keep away from fire, hot or humid environment.
7. If car battery is wet, be sure to wipe and dry it completely to avoid any damage,

Product Configuration

1. Remove The Truck BodyPull out the pins and remove the bodyMake sure all accessories are properly attached, remove the protection film from the body before turning on the truck.
2. Install LED wire(1) Make the LED wire pass through the body bracket.(2) Lock the LED Into the front bumper with the screws, then connect the wire to the socket on the right side of the vehicle.
3. Install Transmitter Batteries1. Remove the battery cover on the bottom of the transmitter(figure 1)2.Install 2*1.5V AA batteries( not included) incorrect polarities (Figure 2)3.Close the battery cover (Figure 3)Notice:1. When installing batteries, please be sure to match the polarities labeled on the battery holder.2. Do not mix old and new batteries.3. Do not mix different types of batteries.
4. Charge and Install Rechargeable Battery Pack(1) a) Insert the USB charger into the outlet ( figure 4 ) note the power light turns red.b) Connect the battery pack to the USB charger (figure 5) note the green light flashes,c) When charging is completed, the green light turns solid.2) Loosen the latch of the battery cover on the chassis then open it (Figure 6).(3). Place your fully charged battery in the battery lot, connect the battery connector, Don’t force it only goes one way! (Figure 7)(4). Replace the battery cover, tighten the latch (Figure 8).
5. USB Charger Precautions(1). The USB charger does not apply the input current bigger than 4A(2). When the input current is bigger than 4A, the USB charger will start up protection mode, all the lights will turn off.

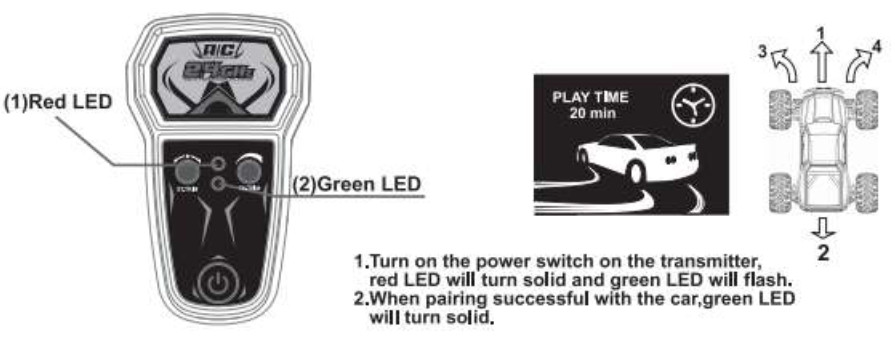

6. Transmitter instructions Green LEO wif flash when power is Jow on the transmitter, please replace the batteries before continuing

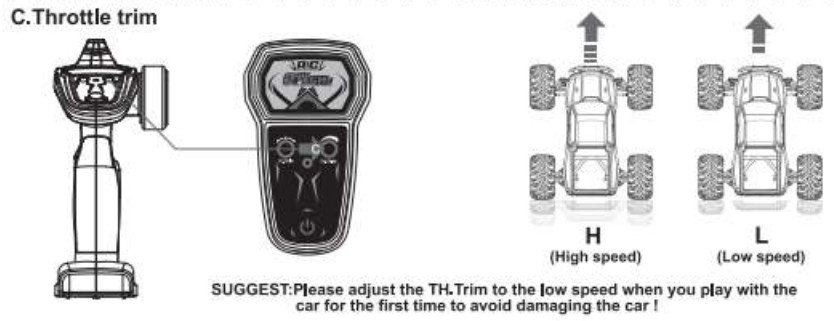

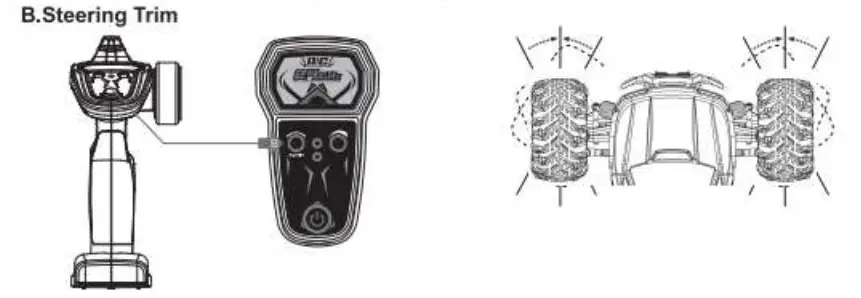

7. Transmitter switch instructionsWhen pairing for the first time,both the car and the transmitter have to be turned on within 3 seconds to pair the frequency, Green LED on the transmitter will turn normal on when pairing successful,al the same time LED on the car will turn normal on,When the chassis switch is turned on and the front tires are not straight.use the ST,TRIM to adjust the position,• when the car oversteers to the left , ST.TRIM should be adjusted clockwise,• when the car oversteers to the right , ST.TRIM should be adjusted anticlockwise,

OPERATION

1. ALWAYS tum on your transmitter before you tum on the receiver in the vehicle, Always power off the receiver before turning your transmitter off,
2. ALWAYS operate your vehicle in a wide-open area, Operating the vehicle on a slippery floor or indoors may crash because of the high speed.

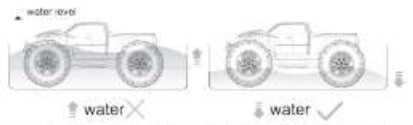

3. WARNING: M201 waterproof feature, please be cautious that the water level should be lower than the bottom of the truck. If an excessive amount of water gets inte the body of the truck and cause damage or other related problems, We will nol be responsible far such damages.Customers will be responsible for any replacements and additional accessories 4 needed.
4. ALWAYS start with low speed, ort the vehicle may slip or run on curves, (ag shown on Pic 1 y NEVER operate your a vehicle in max speed. Operating the vehicle in highest speed may hurt yourself and damage your vehicle.

MOTOR CARE

• Seat the motor brushes by driving smoothly on a flat surface during use of the first battery charge. Failing to do so can greatly reduce motor performance and functional life.
• Prolong motor life by preventing overheating conditions, Undue motor wear results from frequent turns. stops and starts, pushing objects. driving in deep water and tall grass, and driving continuously uphill.
