User Guide
billow Bluetooth Wireless Portable Speaker
Introduction and Product Description

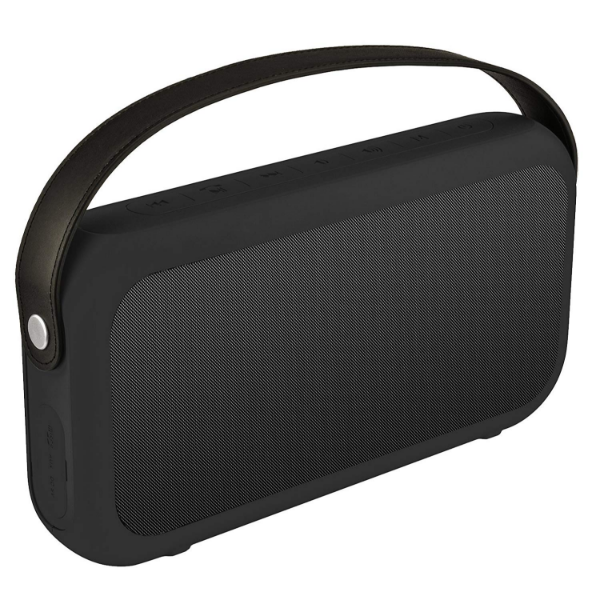

Thank you for choosing the ZX9 Portable Bluetooth Speaker.
The ZX9 speaker is a Bluetooth multimedia speaker that connects to any Bluetooth phone, iPad,tablet or laptop. It is portable with an ideal size, elegant and 10W RMS power, the ZX9 is designed for indoor and outdoor use.
The ZX9 allows you to receive calls, including a rubber handle for easy transport. In addition to its portability, the ZX9 can play music from its Micro SD slot or through its Auxiliary input. With an autonomy of 7 hours you can enjoy your music for a very long time, the battery is recharged with a standard USB charger, so that it can be charged from a USB port of the car, through a laptop or using an outlet Electric, making it the perfect solution to take you to a barbecue or to the beach, to go out camping during the weekend or just enjoy your favorite music for hours outdoors.
Discover the new way to enjoy your Music!
Package Contents
- ZX9
- Quick installation guide.
- USB to Micro USB cable
Note: Make sure that your packaging contains the items described above. If you find that something is missing or damaged, please contact your dealer.

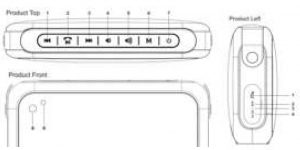

Parts Description
Basic Operations. Charging the device
- Use the supplied USB cable, connect it between the device’s Micro USB port and a 5VDC / 1A UBS charger (not included)
- The battery will charge fully in 2.5 hours (charging time will be longer if you play music during charging)
- The LED indicator will turn red during charging, it will turn off once charging is complete.
Play by Auxiliary input
- Use a 3.5mm Jack to 3.5mm Jack and connect it between the ZX9’s 3.5mm Jack Plug and your device (Smartphone, Tablet, etc.)
- Press the M button, the ZX9 will indicate a tone to show that it is in AUX playback mode, and the LED will light purple.
- Turn on your audio device and play music.
- Adjust the volume of your audio device to the desired level.
Bluetooth playback mode
If you want to play music over Bluetooth, make sure the distance between ZX9 and your device is less than 10m.
- Press the M button, a tone will sound to show that the unit is in Bluetooth mode, the blue LED light will blink rapidly
- Activate Bluetooth on your audio device and perform a Bluetooth device search.
- ZX9 will appear, establish the connection, if the device requires the password, enter “0000”
- Adjust the volume of the audio device to the desired level.
- Press the Volume + or Volume – button to adjust the volume of the ZX9.
- Press the ZX9 button to move to next or previous song.
- Press the button to pause / play the volume of the ZX9
NOTE: The speaker is powered by a rechargeable lithium battery, if it begins to notice sound distortion or the LED blinks, the battery is low and must be charged.
Micro SD card playback mode
- Insert your Micro SD card into the Micro SD slot of the ZX9.
- Press the M button until a tone appears to show that the unit is in playback mode by Micro SD card, the LED will turn red.
- Press the Volume + or Volume – button to adjust the volume of the ZX9.
- Press the ZX9 button to move to the next or previous song.
- Press the button to pause / play the volume of the ZX9.NOTE: MP3 and WMA files are compatible, please copy the music to the root of the Micro SD card directly, be sure to insert the Micro SD Card in the correct direction.
Make Calls
Before making a call with the ZX9, you must pair and pair your phone with Bluetooth with the ZX9, if in doubt consult the procedure explained above.
- To answer a call, press the button, Now you can use the ZX9 as a hands-free.
- To end the call, press the button.
- Press and hold the button to reject the call
NOTE: The microphone is in the upper left corner (near the LED light) on the front panel, to keep the call quality as good as possible, when answering the call, try to speak at the microphone position, Safety warnings
- Use only the supplied USB cable.
- Use a 5VDC / 1A USB charger to charge.
- Disconnect the USB cable after fully charging the unit.
- Do not charge the unit for a long time after the unit is fully charged.
- Do not immerse the product in water. Risk of short circuit.
- Do not use the product near a heat source such as a fire or a heater, a fire hazard.
- Do not knock or throw the product.
Precautions
- Do not use or leave the product in high temperature (for example, in direct sunlight or a vehicle in hot conditions), otherwise it may overheat or catch fire.
- Do not use it in a place where static electricity is large, otherwise, the electronic safety components may be damaged, which will cause problems in the device.
- The device should be stored at room temperature, please avoid completely discharging thebattery, make periodic charges.
Technical Support.
Please visit our website www.billowtechnology.com for more information on installation andconfiguration of this product.
EU DECLARATION OF CONFORMITY SIMPLIFIED
Hereby, Billow Technology declares that the radio equipment type ZX9 is in compliance with Directives 2014/53/EU and 2011/65/EU.
The full text of the EU declaration of conformity is available at the following internet address:
Billow Technology: C/ Tecnología 5, 412120 Gelves, Sevilla (Spain)
Imported by:APPROX IBERIA S. L.CIF: B-91202499
Technical support: www.billowtechnology.com
MADE IN PRC
The content of this guide is subject to typographical errors.
