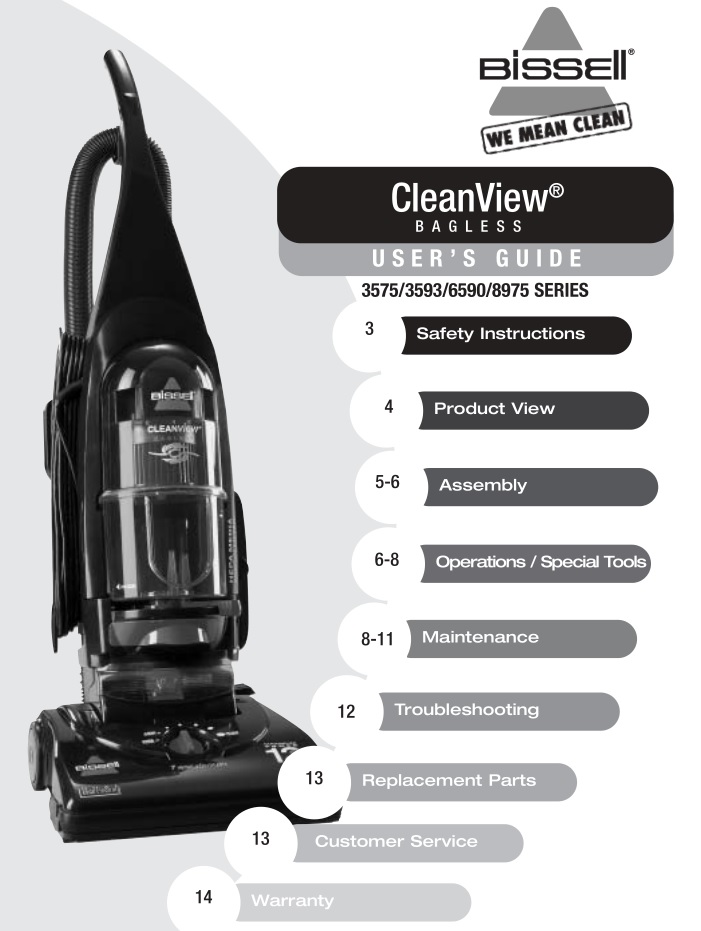

Bissell 3575/ 3593/ 6590/ 8975 Series Cleanview Bagless User’s Guide

Bissell 3575/ 3593/ 6590/ 8975 Series
Cleanview Bagless User's Guide

Thanks for buying a BISSELL CleanView ®

We’re glad you purchased a BISSELL CleanView Vacuum. Everything we know about floor care went into the design and construction of this powerful, high-tech home vacuuming system.

Your BISSELL CleanView is well made, and we back it with a limited comprehensive one-year warranty.We also stand behind it with a knowledgeable, dedicated Customer Service department, so, should you ever have a problem, you’ll receive fast, considerate assistance.

My great-grandfather invented the floor sweeper in 1876.Today, BISSELL is a global leader in the design,manufacture, and service of high quality homecare products like your BISSELL CleanView.

Thanks again, from all of us at BISSELL.

Mark J. BissellPresident and Chief Executive Officer

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should be observed, including the following:

READ ALL INSTRUCTIONS BEFORE USING YOUR UPRIGHT VACUUM.

Always connect to a polarized outlet (left slot is wider than right). Unplug from outlet when not in use and before conducting maintenance.

WARNING:To reduce the risk of fire, electric shock, or injury:

Do not modify the polarized plug to fit a non-polarized outlet or extension cord.
Do not leave vacuum cleaner unattended when it is plugged in.
Unplug from outlet when not in use and before servicing.
Do not use outdoors or on wet surfaces.
Do not allow children to operate vacuum cleaner or use as a toy.
Close attention is necessary when used by or near children.
Do not use for any purpose other than described in this User’s Guide.
Use only manufacturer’s recommended attachments.
Do not use with damaged cord or plug.
If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, have it repaired at an authorized service centre.
Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
Do not handle vacuum cleaner or plug with wet hands.
Do not put any object into openings. Do not use with any opening blocked; keep openings free of dust, lint, hair, and anything that may reduce air flow.
Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
Turn off all controls before plugging or unplugging vacuum cleaner.
Use extra care when cleaning stairs.
Do not pick up flammable materials (lighter fluid, gasoline, kerosene, etc.) or use in the presence of explosive liquids or vapours.
Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).
Do not use vacuum cleaner in an enclosed space filled with vapours given off by oil base paint, paint thinner, some moth proofing substances, flammable dust, or other explosive or toxic vapours.
Do not pick up hard or sharp objects such as glass, nails, screws, coins, etc.
Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
Do not use without filters in place.
Use only on dry, indoor surfaces.
Keep appliance on a level surface.
Do not carry the vacuum cleaner while it is running.

SAVE THESE INSTRUCTIONS FOR FUTURE USE.

THIS APPLIANCE HAS A POLARIZED PLUG.To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other).This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a proper outlet. Do not change the plug in any way.

This model is for household use only.

C A U T I O N :Do not plug in your vacuum cleaner until you are familiar with all instructions and operating procedures.

How To Use This Guide

This User’s Guide has been designed to help you get the most satisfaction from your BISSELL CleanView. You’ll find assembly and operating instructions, safety precautions, as well as maintenance and troubleshooting instructions. Please read this Guide thoroughly before assembling your vacuum cleaner. Pay particular attention to the product diagram, assembly instructions, and part names. Locate and organize all parts before assembly. Familiarize yourself with the parts and where they fit. Following this User’s Guide will greatly enhance your ability to get the most performance from your BISSELL Clean-View for many years.

W A R N I N G :Plastic film can be dangerous. Toavoid danger of suffocation, keep away from babies and children.

How To Put It Together

The only tool you’ll need to assemble your vacuum cleaner is a screwdriver.

Attach Handle To Vacuum

Locate the vacuum Handle and remove the screw packet taped to the base of the Handle.
Stand the vacuum upright and slide the base of the Handle firmly into the grooves at the top of the vacuum body.
Check to be sure the Handle is fitted to the vacuum body. If there is a gap in front, continue to push firmly until the Handle is flush.
Insert one screw provided from the screw packet into the existing hole. Tighten securely with a screwdriver.

Attach Vacuum Hose and Tools

Position the Hose Assembly on the back of the vacuum as shown.
Attach the Hose with the remaining two screws from the packet. Tighten securely with a screwdriver.
Grasping the Quick Reach Handle, slide the end of the Hose Wand onto the suction intake opening. Snap the Hose into the Hose Clip.NOTE: The Powerfoot will not operate effectively unless the hose wand is firmly attached to the suction intake opening.
Slide the Extension Wand and the Crevice Tool together into the storage clip as shown.
Slide the Dusting Brush Tool into the storage clip as shown.

How To Use Your BISSELL CleanView ®

Note:The Floor Brush will continue to rotate while you use your vacuum for above floor cleaning. To prevent carpet damage, do not lean on the vacuum or let the Powerfoot tilt forward.

Handle Positions

CAUTION:Before using your vacuum, make sure that the Dirt Container and Upper Tank are in locked position and that all filters (Pre-Motor and Post-Motor) are in place. Do not operate your vacuum without these filters.

Press the Handle Release Pedal with your foot to place your CleanView into one of three cleaning positions.

Upright– For storage and above floor cleaning with tools.
Normal Cleaning– Press Handle Release Pedal once. Use for most household floor cleaning tasks.
Low Cleaning– With the vacuum in normal cleaning position, press Handle Release Pedal again. Use for reaching under low furniture such as tables, chairs or beds.

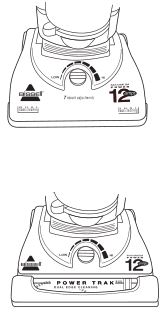

Power Height Adjustment

The Powerfoot/Rotating Floor Brush on your BISSELL CleanView can be adjusted to clean several floor surfaces.

NOTE: For optimal cleaning performance, adjust to the lowest practical setting. If your cleaner is difficult to push, adjust to the next higher setting.

Place Handle in Upright Position.
Turn Height Adjustment knob to desired setting.Lowest Setting -For bare floors.Medium Settings-For short and medium pile carpets.Highest Setting -For plush pile carpet.
Place the Handle into the Normal Cleaning Position and the Powerfoot will adjust to the setting chosen.NOTE: You may also adjust the setting while in the Normal Cleaning Position.

Tip:Before cleaning under low furniture, check area first for objects that might harm the unit or block the Vacuum Hose.

Tip:Your BISSELL CleanView features a Quick-Release Cord Wrap. To remove the Power Cord quickly and easily, rotate the Upper Cord Wrap towards floor, and slip Power Cord from Upper and Lower Cord Wraps.

Transporting Cleaner

To move your cleaner from room to room, put the Handle in the upright position, tilt the cleaner back on its rear wheels and push forward.
The cleaner can also be moved by using the Carrying Handle.

Special On-Board Tools

Your BISSELL CleanView is not only a powerful carpet and rug vacuum cleaner,it’s also a versatile above floor vacuum cleaner when you select one of the special tools.

Note:The Floor Brush will continue to rotate while you use your vacuum for above floor cleaning. To prevent carpet damage, do not lean on the vacuum or let the Powerfoot tilt forward.

Raise Handle to Upright Position.
Grasp the Quick Reach Handle and lift Hose Wand to separate from suction intake opening.
Attach tools by firmly pushing onto Vacuum Hose or Extension Wand.

Dusting Brush Tool:Use to dust furniture, blinds, books, lamps, shelves, draperies, cushions.

Crevice Tool:Use in tight narrow spaces.

Extension Wand:Use with desired attachment for a longer reach.

CAUTION:The Rotating Floor Brush continues to rotate while tools are in use. To reduce the risk of injury from moving parts, always move the cleaner with the Carrying Handle at the back of the cleaner. Always place vacuum cleaner on floor with Handle in Upright position when using tools. Never place your fingers under the cleaner when it is running. Never place Powerfoot on furniture or uneven surfaces. Do not place vacuum cleaner close enough to objects to pull them into rotating brush.

Tip:Hair, string and small objects can block the Vacuum Hose or Tools. Check them occasionally for obstructions.

Power Cord Storage

When you are done using your BISSELL CleanView, return it to the Upright position and store the Power Cord.

Turn vacuum cleaner off.
Unplug Power Cord by grasping the polarized plug (NOT the cord) and disconnect from outlet.
Loop Power Cord around Cord Wraps on side of vacuum cleaner.
Clip molded plug to Power Cord to secure.

NOTICE:While vacuuming, certain carpets and low humidity conditions may generate small static discharges. The discharges are entirely harmless and are not associated in any way with the main power supply.

How to Maintain Your BISSELL CleanView ®

To maintain maximum cleaning performance, the following maintenance steps must be performed:

WARNING: To reduce the risk of electric shock, turn Power Switch OFF and disconnect polarized plug from electrical outlet before performing maintenance or troubleshooting checks.

Empty the Dirt Container when the dirt reaches the “Full” line on the side.
Check the Upper Tank and Pre-Motor Filters monthly and clean or replace as needed.
Clean or replace the Post-Motor Filter every three months.

Note: More frequent filter cleaning may be necessary if you are vacuuming new carpet, fine dust, or have allergy concerns. Follow the instructions on the following pages to perform these simple maintenance steps.

Tip:For maximum cleaning performance, Check and clean or replace all filters as suggested.

Empty Dirt Container

The Dirt Container needs to be emptied when the dirt reaches the Full line on the side of the Container.

Unplug cleaner from electrical outlet.
Slide the Lock ‘n Seal Lever to the “Unlock” position.
Grasp handle and pull the Dirt Container straight out to remove from vacuum.
Empty dirt into garbage container.
Put the Dirt Container back in the vacuum and slide the lever to the “Lock” position.

Note: The Dirt Container may be washed in warm water with a mild detergent. Make sure it is completely dry before using again.

Cleaning The Upper Tank & Louvers

Use only BISSELL Replacement Filters in your BISSELL Cleanview. Upper Tank Filter 203-1085

Unplug the cleaner from electrical outlet.
The Upper Tank Filter can be reached by removing the Dirt Container, reaching underneath the Upper Tank and turning the rim of the Filter Frame to unlock. Pull straight down to remove. Brush the dirt off the Louvers and Upper Tank Filter.
The foam Upper Tank Filter may be removed and hand washed in cold water with mild detergent. Rinse well then air dry thoroughly before replacing.
The Upper Tank and Louvers may also be wiped clean with a damp cloth.Note: For easier access, the entire Upper Tank may be removed by turning the knob on the back of the cleaner to unlock and pulling the entire tank straight out.

Cleaning The Pre-Motor and Post-Motor Filters

Use only BISSELL Replacement Filters in your BISSELL CleanView.Pre-Motor Filter ______________________203-1073Post-Motor Filter _____________________203-1009HEPA Media Post-Motor Filter __________ 3207C (Select Models Only)

WARNING:Do Not operate cleaner with damp or wet filters or without all filters in place.

Unplug the cleaner from electrical outlet.
The Pre-Motor Filter protects the motor from dirt particles. It is located in the slide out tray underneath the Dirt Container. If the filter becomes dirty, pull out the tray, lift out the filter and clean.
The Post-Motor Filter assists in the filtration process to return clean air to the room. It is located behind the door on the side of the cleaner. If the filter becomes dirty, open the door, remove the filter and clean.Note: Select Models come with a white, pleated HEPA Media Filter. This filter is not washable and must be replaced.The standard filters may be hand washed in cold water with mild detergent. Rinse well and air dry thoroughly before replacing.

WARNING:Toreduce the risk of injury from moving parts, turn off vacuum cleaner and disconnect Power Plug from electrical outlet.

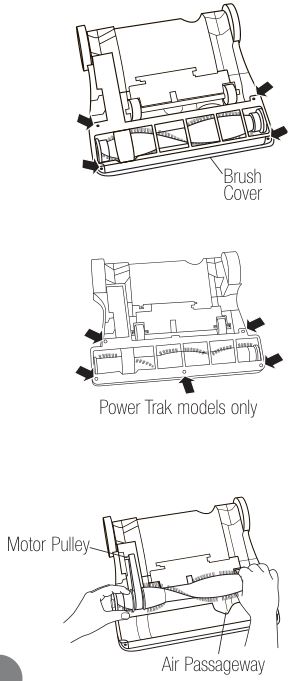

Check Rotating Floor Brush and Drive Belt

You should check your vacuum cleaner’s Rotating Floor Brush and Drive Belt regularly for wear or damage. You should also clean the brush and brush ends of strings, hair, and carpet fibres. These can wrap around the brush and hamper its ability to effectively clean your carpet. Also remove any debris that has accumulated under the brush cover.

Unplug cleaner from electrical outlet.
Place handle in Low position and turn vacuum cleaner over so bottom side is up.
Remove the four screws as shown with a Phillips head screwdriver. Lift the Brush Cover off.Note: The Power Trak models have an additional screw which needs to be removed. See the 2nd illustration.
Grasp Rotating Floor Brush at both ends and lift.
Clean strings, hair and other debris from Rotating Floor Brush, paying particular attention to brush ends.
Clean strings, hair and other debris from Motor Pulley and Drive Belt areas.
Check Drive Belt carefully for wear, cuts or stressed areas.
Check Air Passageway for obstructions. Remove debris from this area.

Replace Drive Belt

Use only BISSELL Style 7 Replacement Belts (#32074) in your BISSELL CleanView.

Unplug cleaner from electrical outlet.
With Rotating Floor Brush removed from vacuum cleaner (Steps 1-4 of check Rotating Floor Brush and Drive Belt), grasp old Drive Belt and remove from Motor Pulley. Discard old Drive Belt.
Place new Drive Belt over Motor Pulley and stretch other end over Rotating Floor Brush in the space between the bristles.
Place ends of Rotating Floor Brush down into slots on sides as shown.
Turn Rotating Floor Brush by hand several times in the direction of Motor Pulley. If properly installed, Drive Belt will centre itself on Rotating Brush crown.
Reposition Brush Cover and screws. Tighten screws securely.

Replace Lightbulb

Use only BISSELL Replacement Bulb (#203-1007) in your BISSELL CleanView.

Unplug cleaner from electrical outlet
Using a screwdriver, remove the two screws as shown and lift off the lens.
Remove the bulb from the socket by pushing in gently and turning it counterclockwise. Install the new bulb by pushing it gently into the socket and turning clockwise.
Reposition lens and secure with the two screws.

Clearing Clogs

Low suction or poor pickup may be due to a clog in the vacuum cleaner. If you notice a change in the sound of the motor or a reduction in the spinning action, check for clogs.

Unplug cleaner from electrical outlet.
Empty Dirt Container.
Check Upper Tank for build up or clogs.
Remove the Upper Tank and check the suction inlet for a clog.
Grasp the Quick Reach Handle and lift Hose Wand to separate from the suction opening. Check for a clog in the Base, the Wand or the Hose.
Remove the screw attaching the Hose Wand Base to the vacuum. Straighten the Hose Wand Base and unclog with long,narrow object.
If the clog persists, follow the instructions for Checking the Rotating Floor Brush on page 10 and inspect the Air Passageway for obstructions.

Troubleshooting

WARNING:To reduce the risk of injury from moving parts and/ or electrical shock, turn Power Switch OFF and disconnect polarized plug from electrical outlet before performing troubleshooting checks.

If suggested solutions do not correct the problem, call:BISSELL Customer Service 1-800-263-2535Monday – Friday 8 a.m. — 10 p.m. ETSaturday 9 a.m. — 8 p.m. ET

or visit the BISSELL website – www.bissell.com

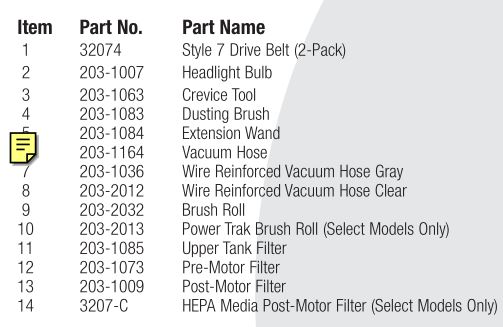

Replacement Parts – BISSELL CleanView ® Series

You may purchase replacement parts from your retailer, by using the order form in this User’s Guide, by calling BISSELL Customer Service or by visiting our website. To locate a retailer near you, or to place an order using Visa or MasterCard, call

BISSELL Customer Service 1-800-263-2535Monday – Friday 8 a.m. — 10 p.m. ETSaturday 9 a.m. — 8 p.m. ETOr visit our Website – www.bissell.com

BISSELL Consumer Services

For information about repairs or replacement parts, or questions about your warranty, call:

BISSELL Customer Service 1-800-263-2535Monday – Friday 8 a.m. — 10 p.m. ETSaturday 9 a.m. — 8 p.m. ET

Or write info to:BISSELL LTD.Box 1003,Niagara Falls, ON., L2E 6W2Attn: Customer Service

Or visit the BISSELL website – www.bissell.com

When contacting BISSELL, have model number of unit available.Please record your Model Number: ___________________Please record your Purchase Date: ___________________

NOTE: Please keep your original sales receipt. It is your warranty.

Warranty

If you need additional instruction regarding this warranty or have questions regarding what it may cover, please contact BISSELL Customer Service by e-mail, telephone, or regular mail as described below.

Limited One Year WarrantySubject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon receipt of the product BISSELL Ltd. will repair or replace (with new or remanufactured components or products), at BISSELL’s option, free of charge from the date of purchase by the original purchaser, for one year any defective or malfunctioning part.

See information below on “If your BISSELL product should require service”.

This warranty applies to product used for personal, and not commercial or rental service. This warranty does not apply to fans or routine maintenance components such as filters, bags, belts, or brushes. Damage or malfunction caused by negligence, abuse, or use not in accordance with the User’s Guide is not covered.

If your BISSELL product should require service:Call BISSELL Customer Service at the number below or www.bissell.com to locate a BISSELL Authorized Service Centre in your area. If there are no authorized BISSELL Service Centres in your area, a BISSELL Representative at [email protected] or at the phone number below will issue you a Return Authorization Number and a pre-paid mailing label to return the unit to BISSELL for warranty repair.

— The machine should be returned with a photocopy of your proof of purchase. (Your dated sales receipt is your warranty – do not send original.) If you need information about repairs or replacement parts, or if you have questions about your warranty, contact Bissell Customer Service:

E-mail: [email protected].

Or call: BISSELL Customer Service 1-800-263-2535Monday – Friday 8 a.m. – 10 p.m. ETSaturday 9 a.m.-8 p.m. ET

Or write: BISSELL Ltd.,ATTN: Customer Service,Box 1003,Niagara Falls, Ontario, L2E 6W2

*EXCEPTIONS AND EXCLUSIONS FROM THE TERMS OF THE LIMITED WARRANTY.

BISSELL LTD. IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE ASSOCIATED WITH THE USE OF THIS PRODUCT. BISSELL’S LIABILITY WILL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT.

THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES EITHER ORAL OR WRITTEN.ANY IMPLIED WARRANTIES WHICH MAY ARISE BY OPERATION OF LAW, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE ONE YEAR DURATION FROM THE DATE OF PURCHASE AS DESCRIBED ABOVE.
