Bissell 47B2 Series Power Force Power Brush User Guide

Power Force Power Brush

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING YOUR DEEP CLEANER.When using an electrical appliance, basic precautions should be observed, including the following:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:
  • Connect to a properly grounded outlet only. See grounding instructions. Do not modify the 3-prong grounded plug.
  • Do not leave appliance when it is plugged in. Unplug from outlet when not in use and before servicing.
  • Use indoors only.
  • Do not allow to be used as a toy. Close attention is necessary when used by or near children.
  • Do not use for any purpose other than described in this User’s Guide. Use only manufacturer’s recommended attachments.
  • Do not use with damaged cord or plug. If appliance is not working as it should, or has been dropped, damaged, left outdoors, or dropped into water, have it repaired at an authorized service center.
  • Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
  • Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
  • Do not handle plug or appliance with wet hands.
  • Do not put any object into openings. Do not use with any opening blocked; keep openings free of dust, lint, hair, and anything that may reduce air flow.
  • Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
  • Turn off all controls before plug-ging or unplugging appliance.
  • Use extra care when cleaning on stairs.
  • Do not use to pick up flammable or combustible materials (lighter fluid, gasoline, kerosene, etc.) or use in areas where they may be present.
  • Do not use appliance in an enclosed space filled with vapors given off by oil base paint, paint thinner, some moth proofing substances, flammable dust, or other explosive or toxic vapors.
  • Do not use to pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).
  • Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
  • Use only BISSELL cleaning products intended for use with this appliance to prevent internal component damage. See the Cleaning Fluid section of this guide.
  • Do not immerse. Use only on surfaces moistened by the cleaning process.
  • Keep appliance on a level surface.
  • Do not carry the appliance while in use.

SAVE THESE INSTRUCTIONS FOR FUTURE USE

This model is for household use only. Commercial use of this unit voids the manufacturer’s warranty.

WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electrical shock. Check with a qualified electrician or service person if you aren’t sure if the outlet is properly grounded. DO NOT MODIFY THE PLUG. If it will not fit the outlet, have a proper outlet installed by a qualified electrician. This appliance is designed for use on a nominal 120-volt circuit, and has a grounding attachment plug that looks like the plug in the illustration. Make certain that the appliance is connected to an outlet having the same configuration as the plug. No plug adapter should be used with this appliance.

GROUNDING INSTRUCTIONS:

This appliance must be connected to a grounded wiring system. If it should malfunction or break down, grounding provides a safe path of least resistance for electrical current, reducing the risk of electrical shock. The cord for this appliance has an equipment-grounding conductor and a grounding plug. It must only be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Thanks for buying a BISSELL deep cleaner

We’re glad you purchased a BISSELL deep cleaner. Everything we know about floor care went into the design and construction of this complete, high-tech home cleaning system.Your BISSELL deep cleaner is well made, and we back it with a limited one-year warranty. We also stand behind it with a knowledgeable, dedicated Consumer Care department, so, should you ever have a problem, you’ll receive fast, considerate assistance.My great-grandfather invented the floor sweeper in 1876. Today, BISSELL is a global leader in the design, manufacture, and serviceof high quality homecare products like your BISSELL deep cleaner.Thanks again, from all of us at BISSELL.

Tips:

  • Deep cleaning stairs and high-traffic areas on a regular basis helps prolong carpet life.
  • Check upholstery stuffing before cleaning. Colored stuffing may bleed through the fabric when it becomes wet.
  • Before turning off the machine, suction up clean water to thoroughly rinse out the interior of the flex hose. Then, lift the cleaning tool and point it upwards to drain any remaining water into the dirty water/collection tank.

Product View

  1. Spray Trigger
  2. Upper Handle
  3. Retractable Handle Lock
  4. Power Cord
  5. Upper Body
  6. Solution Tank
  7. Vent Cover ( Foam Filter)
  8. Collection Tank Latch
  9. Removable Nozzle

Cleaning fluid

Keep plenty of genuine BISSELL 2X formula on hand so you can clean and protect whenever it fits your schedule. Always use genuine BISSELL deep cleaning formulas. Non-BISSELL cleaning solutions may harm the machine and will void the warranty.

WARNING: To reduce the risk of fire and electric shock due to internal component damage, use only BISSELL cleaning fluids intended for use with the deep cleaner.

Assembly

Your deep cleaner assembles quickly and easily. The only tool you will need for assembly is a Phillips head screwdriver.

  1. Slide upper body onto lower body.
  2. Secure with screws.
  3. Slide upper handle into upper body by aligning the pin and sliding into place.NOTE: Be sure to secure upper handle before lifting. Rotate handle lock clockwise to secure.
  4. Place solution tank on back of unit.
  5. Wrap power cord. Assembly is now complete.

WARNING: Do not plug in your deep cleaner until you are familiar with all instructions and operating procedures.

Operations

Before you clean
  1. Move furniture to another area if cleaning an entire room. (Optional)
  2. Vacuum carpet thoroughly.
  3. Plan your cleaning route to leave an exit path. It is best to begin cleaning in the corner farthest from your exit.
  4. Pre-Treating (optional) Pre-treat stubborn stains and highly soiled carpet in hallways and other high-traffic areas.a. Generously spray BISSELL Pretreat evenly over soiled area. Caution: DO NOT OVER WET CARPETb. Wait 3-5 minutes before deep cleaning.
Fill the tank
  1. Remove the solution tank by lifting it straight up, then away from the lower body.
  2. Unscrew the black cap at the bottom of the solution tank.
  3. Fill with hot (not boiling) tap water (140°F/60°C MAX) to the WATER line. Fill the rest of the tank with BISSELL 2X Formula to the FORMULA line. Replace and tighten the black cap.Caution: Do not microwave or boil water before filling.
  4. Place solution tank on lower body.
Carpet cleaning
  1. Plug into proper outlet.
  2. Extend the retractable handle by turning the collar counterclockwise and lifting the handle up. Turn the collar clockwise to secure.NOTE: Handle must be fully extended before cleaning.
  3. With foot, press the grey recline lever. located next to power button.
  4. With foot, press the red power button, located on the back of the machine.
  5. Cleaning Strokes. While pressing the trigger, make one slow forward wet pass and another one back. Caution: Do not overwet.
  6. Release the trigger and make one slow forward and backward pass over the same area.
  7. Repeat steps 5 and 6 until solution being pulled up appears clean.
  8. Empty the collection tank when dirty water reaches the full line, or when the solution tank is empty.
Empty the collection tank
  1. With foot, press the red power button, to turn off unit and then unplug.
  2. Remove the collection tank from base of unit.a. Release collection tank latches (on each side) by pulling up from the bottom of latch and then out.b. Carefully remove tank by lifting up on the tank handle.

  3. Carry collection tank to a toilet or sink. To empty, pour out contents using opening at back of tank.

  4. Rinse collection tank thoroughly and replace on unit.
  5. Refill solution tank and continue cleaning.

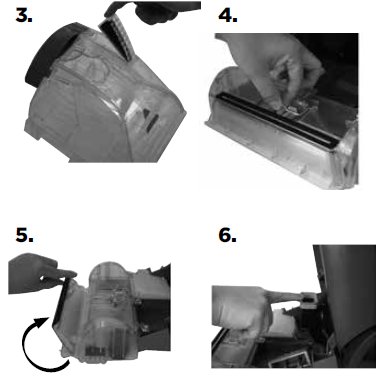

Cleaning after use
  1. Unplug the unit.
  2. Remove and rinse collection tank thoroughly.
  3. Remove tank vent & foam filter (located on top of the collection tank) and rinse.
  4. Clean nozzle window by lifting latch and removing nozzle from machine. Rinse under running water.
  5. When finished replace nozzle and secure with latch.NOTE: For best results, it is recommended that the nozzle is cleaned after each use
  6. Remove lint and hair from red gasket in base of unit. (Do not remove gasket)
  7. Replace the collection tank on the base of the machine and secure with latches.

Maintenance & Care

Machine storage

For best results, a few simple steps can assure your machine is well maintained after your cleaning is complete.

  1. Wrap power cord around Quick Release Cord Wrap™ on side of the machine.
  2. Wipe all surfaces with a soft cloth. Store cleaner upright in a protected, dry area.

WARNING: To reduce the risk of electric shock, turn power switch off and disconnect plug from electrical outlet before performing maintenance or troubleshooting checks.CAUTION:  Do not store unit where freezing may occur. Damage to internal components may result.

NOTE: You may have cleaning solution remain-ing in the solution tank. You may store your machine this way for the next cleaning task, but never keep dirty water in the collection tank.

Install the replacement brush belt
  1. Turn the machine off and unplug from wall outlet.
  2. Remove solution and collection tanks.
  3. Lay machine down to access the bottom of the machine.
  4. With a Phillips head screwdriver, unscrew the belt cover and remove.
  5. Remove the brush end cap and remove belt from brush.
  6. Brush can now be removed.
  7. Belt can be removed by sliding off the motor pulley.
  8. Clean or replace belt. Attach belt to motor pulley and brush, insert brush into right side end cap.
  9. Reattach the left end cap and slide brush back into place.
  10. Replace the belt cover and screw into place.
  11. Manually rotate brush to make sure it rotates freely and that the belt is aligned properly.

Troubleshooting

Problem

Possible causes

Remedies

Reduced spray OR no spray

Solution tank empty

Refill tank with water and formula

Lint screen on solution tank cap clogged

Soak solution tank cap in warm water and then rinse under running water

Spray Nozzle Clogged

Clean Spray nozzle by rinsing under water

Upper handle is not in the upright and locked position

Rotate the retractable handle lock, pull handle up and return the handle lock to the locked position.

Deep cleaner not picking up cleaning solution

Collection tank not aligned/ secured

Check tank alignment and secure with side latches

Collection tank full

Empty tank

Removable nozzle installed improperly

Unplug unit. Align two “hooks” into bottom first, then snap into place on top

Removable nozzle full of debris

Unplug unit. Remove nozzle and rinse under running water

Red lint screen under collection tank clogged

Remove debris from lint screen

WARNING: To reduce the risk of electric shock, turn power switch off and disconnect plug from electrical outlet before performing maintenance or troubleshooting checks.

Replacement Parts

Accessories

Warranty

This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state. If you need additional instruction regarding this warranty or have questions regarding what it may cover, please contact BISSELL Consumer Care by E-mail, telephone, or regular mail as described below.

Limited One-Year Warranty

Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon receipt of the product BISSELL will repair or replace (with new or remanufactured components or products), at BISSELL’s option, free of charge from the date of purchase by the original purchaser, for one year any defective or malfunctioning part.

See information below on “If your BISSELL product should require service”.

This warranty applies to product used for personal, and not commercial or rental service. This warranty does not apply to fans or routine maintenance components such as filters, belts, or brushes. Damage or malfunction caused by negligence, abuse, neglect, unauthorized repair, or any other use not in accordance with the User’s Guide is not covered.

BISSELL IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE ASSOCIATED WITH THE USE OF THIS PRODUCT. BISSELL’S LIABILITY WILL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT.Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

*EXCEPTIONS AND EXCLUSIONS FROM THE TERMS OF THE LIMITED WARRANTY

THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES EITHER ORAL OR WRITTEN. ANY IMPLIED WARRANTIES WHICH MAY ARISE BY OPERATION OF LAW, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE ONE YEAR DURATION FROM THE DATE OF PURCHASE AS DESCRIBED ABOVE.Some states do not allow limitations on how long an implied warranty last so the above limitation may not apply to you.NOTE: Please keep your original sales receipt. It provides proof of date of purchase in the event of a warranty claim.

Service

If your BISSELL product should require service:Contact BISSELL Consumer Care to locate a BISSELL Authorized Service Center in your area.If you need information about repairs or replacement parts, or if you have questions about your warranty, contact BISSELL Consumer Care.Website or E-mail: www.BISSELL.comOr Call: BISSELL Consumer Care1-800-237-7691Monday – Friday 8am – 10pm ET Saturday 9am – 8pm ETSunday 10am – 7pm ET
