Bissell 5207, 9749 Series Spotclean Proheat User Guide

Bissell 5207, 9749 Series Spotclean Proheat User Guide

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING YOUR PORTABLE DEEP CLEANER.When using an electrical appliance, basic precautions should be observed, including the following:

WARNING

TO REDUCE THE RISK OF FIRE,ELECTRIC SHOCK, OR INJURY:

» Connect to a properly grounded outlet only. See grounding instructions. Do not modify the 3-prong grounded plug.» Do not leave appliance when it is plugged in. Unplug from outlet when not in use and before servicing.» Do not expose to rain. Store indoors.» Do not allow to be used as a toy. Close attention is necessary when used by or near children.» Do not use for any purpose other than described in this User’s Guide. Use only manufacturer’s recommended attachments.» Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, have it repaired at an authorized service center.» Always install float before any wet pick-up operation.» Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.» Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.» Do not handle plug or appliance with wet hands.» Do not put any object into openings. Do not use with any opening blocked; keep openings free of dust, lint, hair, and anything that may reduce air flow.» Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.» Turn off all controls before plugging or unplugging appliance.» Use extra care when cleaning on stairs.» Do not use to pick up flammable or combustible materials (lighter fluid, gasoline, kerosine, etc.) or use in areas where they may be present.» Do not use appliance in an enclosed space filled with vapors given off by oil base paint, paint thinner, some moth proofing substances, flammable dust, orother explosive or toxic vapors.» Do not use to pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).» Do not pick up anything thatis burning or smoking, such as cigarettes, matches, or hot ashes.» Use only BISSELL cleaning products intended for use with this appliance to prevent internal component damage. See the Cleaning Fluid section of this guide.» Keep appliance on a level surface.» Do not carry the appliance while in use.

SAVE THESE INSTRUCTIONS FOR FUTURE USE

This model is for household use only. Commercial use of this unit voids the manufacturer’s warranty.

WARNING

Improper connection of the equipment-grounding conductor can result in a risk of electrical shock. Check with a qualified electrician or service person if you aren’t sure if the outlet is properly grounded.DO NOT MODIFY THE PLUG. If it will not fit the outlet, have a proper outlet installed by a qualified electrician. This appliance is designed for use on a nominal 120-volt circuit, and has a grounding attachment plug that looks like the plug in the illustration. Make certain that the appliance is connected to an outlet having the same configuration as the plug. No plug adapter should be used with this appliance.

GROUNDING INSTRUCTIONS

This appliance must be connected to a grounded wiring system. If itshould malfunction or break down, grounding provides a safe pathof least resistance for electrical current, reducing the risk of electricalshock. The cord for this appliance has an equipment-grounding conductorand a grounding plug. It must only beplugged into an outlet that is properlyinstalled and grounded in accordancewith all local codes and ordinances.

Tips

» Deep cleaning stairs and high-traffic areas on a regular basis helps prolong carpet life.» Check upholstery stuffing before cleaning. Colored stuffing may bleed through the fabric when it becomes wet.» Before turning off the machine, suction up clean water to thoroughly rinse out the interior of the flex hose. Then, lift the cleaning tool and point it upwards to drain any remaining water into the dirty water collection tank.

Product View

1. Clean Water/Solution Tank                             6 Power Cord
2. Power Button                                                  7 Quick Release™ Cord Wrap
3. Dirty Water Tank                                             8 Deep Stain Tool
4. Flex Hose Clip                                                 9 3” Tough Stain Tool
5. Flex Hose                                                        10 Hose Grip

Cleaning fluid

Keep plenty of genuine BISSELL Cleaning Solution on hand so you can clean whenever it fits your schedule. Always use genuine BISSELL deep cleaning formulas. Non-BISSELLcleaning solutions may harm the machine and will void the warranty.

WARNING

To reduce the risk of fire and electric shock due to internal component damage, useonly BISSELL cleaning fluids intended for usewith the deep cleaner.

WARNING

Use only BISSELL portable machine formula (with boost if desired) in your cleaner. Use of cleaning formulas which contain lemon or pine oil may damage this appliance andvoid the warranty. Chemical spot cleaners or solvent-based soil removers also should not be used. These products may react with the plastic materials used in your cleaner, causing cracking or pitting.

Assembly

Assembling your portable machine is a simple process.

1. Slide the flex hose clip into the opening on the front of the machine. You will hear a “snap”when it is locked into place.
2. Snap the hose grip bracket into the back of the machine on the clean tank side. Wrap the flex hose around the unit and snap hose grip into bracket.
3. Attach the cord wrap by snapping it into place on the collection tank side of the machine. Wrap the power cord around the cord wrap. Snap the second tool storage (select models)into the back of the machine between the cord wrap and hose grip bracket.

Operations

Getting ready

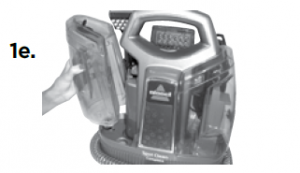

1. To fill the clean water/solution tanka. Remove the tank by lifting it straight up and away from the unit.b. Pull on the black tab to reveal tank opening. The plug rotates out of the way for easy filling.c. FOR LARGE MESS: Follow the fill lines on your clean tank to add the correct amount of hot tap water (140°F/60°C MAX), portable machine formula, and 1oz of BISSELL Boost.FOR SMALL MESS: Follow the fill lines on your clean tank to add the correct amount of hot tap water (140°F/60°C MAX), and portable machine formula. DO NOT BOIL OR MICROWAVE WATER.d. Replace the plug by rotating into place and pressing gently onto tank.e. Replace the tank by lining up tank bottom with indentations on machine. Press down firmly on tank to secure in position.
2. Release the flex hose from the hose grip bracket. Unwrap flex hose completely from around the unit.

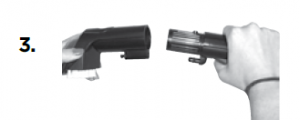

3. Select desired tool for spot cleaning. Insert tool on end of hose until it clicks into place.
4. Twist the Quick Release™ cord wrap clockwise to unwrap the power cord completely.

Operations

Pre-treating

Cleaning effectiveness will be enhanced if you pre-treat heavily stained or highly soiled areas. Here’s how to do it:

1. Hold the 3” Tough Stain Tool just above the carpet or upholstery to be cleaned. Press the trigger to mist solution over the soiled area. For Deep Stain & 3-N-1 Stair Tool, follow instructions on page 6 & 7
2. Wait 3-5 minutes before cleaning.

Cleaning with the Tough Stain Tool

1. Attach the 3” Tough Stain Tool to the handheldcleaning hose.
2. Plug in the unit and press the power button beneath the handle to turn it on.
3. Hold the tool 1 inch above soiled surface.
4. Press the spray trigger to mist solution over and onto the soiled area.
5. Release the spray trigger and gently scrub the stain.
6. To lift the stain away, apply downward pressure on the tool and slowly pull it toward you. Watch as powerful suction removes the dirt and cleaning solution. Continue until no more dirt can be removed.
7. As a final step, use “drying strokes” (by not pressing the spray trigger) to remove as much moisture as possible. Repeat this step as often as necessary.

IMPORTANT

Check the manufacturer’s tag before cleaning upholstery. “W” or “WS” on the tag means you can use your SpotClean. If tag is coded with an “S” (with diagonal strikethrough), or says “Dry Clean Only,” do not proceed. If manufacturer’s tag is missing ornot coded, check with your furniture dealer.

NOTE: Oxy Boost formula will continue to clean oxidizable stains for 6-8 hours.

Operations

Cleaning with the Deep Stain Tool (select models)

1. Attach the Deep Stain Tool to the handheld cleaning hose.
2. Plug in the unit and press the power button beneath the handle to turn it on.
3. Set the tool directly on top of the carpet before pulling the spray trigger to inject formula deep into your carpet fibers. Always keep the Deep Stain Tool in direct contact with carpeting to avoid over-spraying.
4. Release the spray trigger and gently scrub the stain.
5. To lift the stain away, apply downward pressure on the tool and slowly pull it toward you. Watch as powerful suction removes the dirt and cleaning solution. Continue until no more dirt can be removed.
6. As a final step, use “drying strokes” (by not pressing the spray trigger) to remove as much moisture as possible. Repeat this step as often as necessary.

NOTE: Oxy Boost formula will continue to clean oxidizable stains for 6-8 hours.

Cleaning with the 3-in-1 Stair Tool (select models)

This versatile 3-way tool sprays, scrubs, and suctions up dirt and stains from the outer curves, corner, and tread of carpet staircase.

1. Twist the tool head to desired setting to clean carpeted stair. The downward facing edge is the active cleaning mode.a. Use the flat area to clean top of stairsb. Use pointed edge to clean inside crevicec. Use indented area to clean outer corner (nose) of stairs
2. Ensure the tool spray tip is pointing downward. Pressing trigger, slowly move the tool back and forth over the soiled surface keeping the tool in contact with the carpet.
3. Release trigger and move tool slowly over the soiled area to suction up water and dirt.
4. Continue to clean the area until no more dirt can be removed.

After cleaning

1. Unplug power cord from outlet.

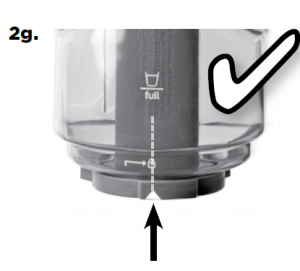

2. Empty and rinse the dirty water tank after each use, OR when dirty water reaches the indicated maximum fill line.a. To remove the dirty water collection tank, simply lift up on the tank from the base of the machine.b. Pull tab to remove plug from tankc. Rinse out dirty tank with clean water after emptying.d. Disconnect the cleaning tool from the hose grip by pushing down on button lock and pulling straight off. (Do NOT twist tool to remove it).e. The front of the Tough Stain Tool, Deep Stain Tool & 3-N-1 Stair Tool can be removedn for easy cleaning. Push the button at the top of the tool and slide the front of the tool off the base. Rinse both under water and replace the front of the tool.f. Check spray nozzle for accumulated dirt or debris. If necessary, clean with soft bristle brush.g. The float stack can be removed from the dirty tank for cleaning. Turn it counter-clockwise to remove it. Rinse with water until all debris is removed. Replace the float stack in the dirty tank and turn clockwise to lock.

Machine storage

1. Wipe all surfaces with a soft cloth.
2. Wrap power cord around the cord wrap on the back of the machine.
3. Wrap flex hose around the base of the unit and secure the spray trigger.
4. Store unit in protected, dry area, at room temperature (40° to 110°F).

Thermal protector

An internal thermal protector has been designed into your cleaner to protect it from overheating. When the thermal protector activates, the suction motor will stop operating. If this happens, proceed as follows:

1. Turn the cleaner OFF (O) and unplug from electrical outlet.
2. Check the end of the hose and tool for blockages and remove if necessary.
3. Check the float stack for clogs. Refer to cleaning instructions above.
4. When the motor cools for approximately 30 minutes, the thermal protector automatically resets and cleaning may continue. If the thermal protector continues to activate after following the above steps, your cleaner may need servicing. Call BISSELL Consumer Care or visit the website.

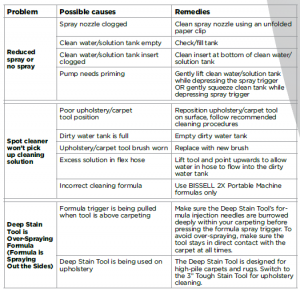

Troubleshooting

Please do not return this product to the store.

Other maintenance or service not included in the manual should be performed by an authorized service representative.Thank you for selecting a BISSELL product.

For any questions or concerns, BISSELL is happy to be of service. Contact us directly at 1-800-237-7691.

Accessories

These* items are available for your BISSELL SpotClean portable deep cleaner.Call 1-800-237-7691 or visit www.BISSELL.com

Warranty

This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state. If you need additional instruction regarding this warranty or have questions regarding what it may cover, please contact BISSELL Consumer Care by E-mail, telephone, or regular mail as described below.

Limited Two-Year Warranty

Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon receipt of the product BISSELL will repair or replace (with new or remanufactured components or products), at BISSELL’s option, free of charge from the date of purchase by the original purchaser, for two years any defective or malfunctioning part.See information below on “If your BISSELL product should require service”. This warranty applies to product used for personal, and not commercial or rental service. This warranty does not apply to fans or routine maintenance components such as filters, belts, or brushes. Damage or malfunction caused by negligence, abuse, neglect, unauthorized repair, or any other use not in accordance with the User’s Guide is not covered.BISSELL IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE ASSOCIATED WITH THE USE OF THIS PRODUCT. BISSELL’S LIABILITY WILL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusionmay not apply to you.

*EXCEPTIONS AND EXCLUSIONS FROM THE TERMS OF THE LIMITED WARRANTY

THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES EITHER ORAL OR WRITTEN. ANY IMPLIED WARRANTIES WHICH MAY ARISE BY OPERATION OF LAW, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE two YEAR DURATION FROM THE DATE OF PURCHASE AS DESCRIBED ABOVE.Some states do not allow limitations on how long an implied warranty last so the above limitation may not apply to you.

NOTE: Please keep your original sales receipt. It provides proof of date of purchase in the event of a warranty claim.

Register your product today!

Registering is quick, easy and offers you benefits over the lifetime of your product.You’ll receive:

BISSELL Rewards Points

Automatically earn points for discounts and free shipping on future purchases.

Faster Service

Supplying your information now saves you time should you need to contact us with questions regarding your product.

Product Support Reminders and Alerts

We’ll contact you with any important product maintenance reminders and alerts.

Special Promotions

Optional: Register your email to receive notice of offers, contests, cleaning tips and more!

Visit the BISSELL website: www.BISSELL.comWhen contacting BISSELL, have model number of cleaner available.Please record your Model Number: ___________________Please record your Purchase Date: ___________________NOTE: Please keep your original sales receipt. It provides proof of purchasedate in the event of a warranty claim. See Warranty on page 11 for details.
