Thanks for buying a BISSELL Rewind SmartCleanlM/Rewind PowerClean™

We’re glad you purchased a BISSELL vacuum. Everything we know about floor care went into the design and construction of this complete, high-tech homecleaning system. By purchasing this product you are helping BISSELL with our commitment to reducing our impact on the environment through an expanding range of sustainable design efforts. Your carpet cleaner is well made, and we back it with a limited three year warranty.We also stand behind it with a knowledgeable, dedicated Consumer SeNices department, so, should you ever have a problem, you’ll receive fast, considerate assistance.My great-grandfather invented the floor sweeper in 1876. TodaY, BISSELL is a global leader in the design, manufacture, and service of high quality homecareproducts like your carpet cleaner.Thanks again, from all of us at BISSELL.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should be observed, including the following:

READ ALL INSTRUCTIONS BEFORE USING YOUR UPRIGHT VACUUM.

l’wvdys connect to a polarized outlet (lett slot is wider than right). Unplug from outlet when not in use and before conducting maintenance.

WARNING:

1he risk of fire, electric shock, or injury:

■ Do not modify the polarized plug to ftt a non-polarized outlet or extension cord.■ Do not leave vacuum cleaner unattended when it is plugged in.■ Unplug from outlet when not in use and before servicing.■ Unplug before attaching the TurboBrush.■ Do not use outdoors or on wet surfaces.■ Do not allow children to operate vacuum cleaner or use as a toy.■ Close attention is necessary when used by or near children.■ Do not use for any purpose other than described in this user’s guKJe.■ Use only manufacturer’s recommended attachments.■ Do rot tre Wl!1 dara;ia:l O’.lld or ~-■ If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, have it repaired at an authorized service center.■ Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.■ Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.■ Do not handle varuum cleaner or plug with wet hands.■ Do not put any object into openings. Do not use with any opening blocked; keep openings free of dust, lint, hair, and anything that may reduce air flow.■ Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.■ Turn off all controls before plugging or unplugging vacuum cleaner.■ Use extra care when cleaning stairs.■ Do not pick up flammable materials (lighter fluid, gasoline, kerosene, etc.) or use in the presence of explosive liquids or vapors.■ Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).■ Do not use vacuum cleaner in an enclosed space filled with vapors given off by oil base paint, paint thinner, some moth proofing substances, flammable dust, or other explosive or toxic vapors.■ Do not pick up hard or sharp objects such as glass. nails, screws, coins, etc.■ Do not pick up cflYlhir;J tat s bumng or smoking, sum as cigarettes, matches, or hot ashes.■ Do not use without filters i1 place.■ Use only on dry, indoor surfaces.■ Keep appliance on a level surface.■ Do not carry the vacuum cleaner while it is running.■ Hold plug when rewinding onto cord reel. Do not allow plug to whip when rewinding.

SAVETHESE INSlRUCTIONS FOR RRUREUSE THIS APPLIANCE HAS A POLARIZED PLUG.

To reduce the risk o1 electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. II the plug doesnot fit fully in the outlet, reverse the plug. If tt still does not fit, contact a qualified electrician to install a proper outlet. Do not change the plug in any way.This model is 1or household use only

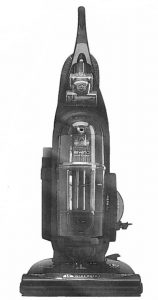

PRODUCT VIEW

CAUTION:Do not plug in your vacuum cleaner until you are familiar with all instructions and operating procedures.

Assembly

The only tool you’ll need to assemble your vacuum cleaner is a Philips head screwdriver.

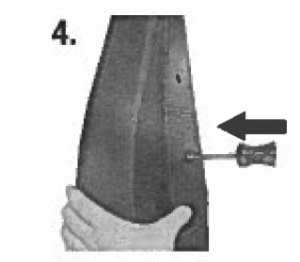

Attach handle to vacuum1. Locate the vacuum handle and remove the screw packet taped to the base of the handle.2. Stand the vacuum upright and slide the base of the handle firmly into the grooves at the top of the vacuum body.                  Figure 13. Check to be sure the handle is fitted to the vacuum body. If there is a gap in front, continue to push firmly until the handle is flush.4. Insert the screw provided from the screw packet into the existing hole. Tighten securely with a screwdriver.                    Figure 2

Attach vacuum hose and tools

  1. Attach the Twist ‘n Snap™ hose by lining up the tabs on the base with the corresponding notches on the back of the vacuum.
  2. Turn the Twist ‘n Snap hose to the right to lock the hose into place.             Figure 3
  3. Grasping the Quick Reach handle, slide the end of the hose wand onto the hose wand base. Snap the hose into the hose clip.NOTE: The Powerfoot will not suction properly unless the hose wand is firmly attached.                   Figure 4
  4. Slide the extension wand and the crevice tool together into the storage holder.
  5. Snap the combination tool into the storage clip.
  6. Attach the TurboBrush by aligning the small holes near the brush roll with the tabs at the bottom of TurboBrush housing. Snap TurboBrush into place.                Figure 5

Operation

Handle positionPress the handle release pedal with your foot  to place your BISSELL vacuum into one of three cleaning positions.

  1. Upright For storage and above floor cleaning with tools.
  2. Normal cleaning Press handle release pedal once. Use for most household floor cleaning tasks.                             Figure 6
  3. Low cleaning With the vacuum in normal cleaning position, press handle release pedal again, use for reaching under low furniture such as tables, chairs or beds.

CAUTION:Before using your vacuum, make sure that the dirt container is in locked position and that all filters (inner circular, outer circular, pre-motor andpost-motor) are in place. Do not operate your vacuum without these filters.

Height adjustmentThere are five height settings available for various floor surfaces. Tum the dial on the foot of the cleaner to the desired setting. Lowest setting – For low pile carpet or barefloors. To pick up debris it may be necessary to move up one setting. Medium setting – For medium pile carpet. Highest setting – For llgh pile aid most shag carpetNote: For optimal carpet cleanlng performance, adjust to the lowest practical setting. If your cleaner Is difficult to push, adjust to the next higher setting. If the dial is difficult to tum, tilt the cleaner back s6ghlly to take the weight off the foot while turning.                                        Figure 7

Transporting cleaner

  1. To move your cleaner from room to room, put the handle in the upright position, tilt the cleaner back on its rear wheels and push forward.
  2. The cleaner can also be moved by using the carrying handle.                                  Figure 8

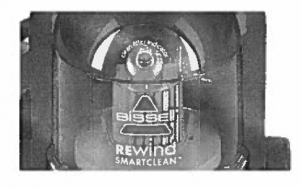

Clean carpet sensor (select models only)The Clean Carpet Sensor detects dirt being picked up while the vacuum is in use. When the vacuum is picking up dirt, the red light will come on. Occasionally, the lights may                                         Figure 9alternate quickly back and forth if the area is only lightly soiled or the dirt is spread out. For the best cleaning, continue to vacuum until the green light remains constantly illuminated.

Operation

Clean filter indicator (select models only) The Clean Filter Indicator tells you when airflow in the vacuum is reduced due to dirty filters ora clog in the hose. The Clean Riter Indicator will remain green until the airflow is reduced. At that time, it begins to change to red. When it is fully red, the airflow is                            Figure 10

significantly reduced or blocked. Follow the steps on page 9 to clean your filters. All filters in the vacuum should be cleaned or replaced when the Clean FilterIndicator turns red. If the indicator remains red after all filters have been cleaned, follow the steps on page 12 to check for and clear clogs.

Special tools

Your BISSELL vacuum is not only a powerful carpet and rug vacuum cleaner, it’s also a versatile above floor vacuum cleaner when you select one of the special tools.

  1. Raise handle to upright position.                Figure 11
  2. Grasp the Quick Reach handle and lift hose wand to separate from suction intake opening.                      Figure 12
  3. Attach tools by firmly pushing onto vacuum hose or extension wand. Crevice tool Use in tight narrow spaces. Combination dusting brush/upholstery toolTwo types of cleaning tools are included in one attachment. Rotate for desired tool. Use brush side to dust furniture, blinds, books, lamps, shelves and baseboards.Extension wand Use with desired attachment for a longer reach.

CAUTION:NOTICE: The floor brush will continue to rotate while you use your vacuum for above floor cleaning. To prevent carpet damage, do not lean on the vacuum or let thepowerfoot tilt fo1Ward.Tip: Hair, string and small objects The rotating floor brush continues to rotate while tools are in use. To reduce the risk of injury from moving parts, always move the cleaner with the carrying handle at the back of the cleaner. Always place vacuum cleaner on floor with handle in upright position when using tools. Never place your fingers under the cleaner when it is running. Never place powerfoot on furniture or uneven surfaces. Do not place vacuum cleaner close enough to objects to pull them into rotating brush.

Operation

Power cordThe power cord is located on the right of the vacuum. Gently pull out the power cord, watching for the yellow line. Stop pulling the power cord once the yellow line is visible.There is also a red line, which indicates the end of the usable cord. Do not pull the power cord out beyond the red line.

Automatic cord rewindYour vacuum is equipped with an automatic cord rewind. When cleaning is finished, press the power button OFF and grasp the plug to disconnect from the electrical outlet. Hold the plug and press the automatic cord rewind button to rewind the cord automatically.

Maintenance and care

To maintain maximum cleaning performance, the following maintenance steps must be pertormed:

  1. Empty the dirt container when the dirt reaches the “Full” line on the side.
  2. Check the inner and outer circular filters and the pre-motor filter at least once a month and clean or replace as needed.
  3. Check and replace the HEPA media post-motor filter as needed.Note: More frequent filter cleaning or replacing may be necessary if you are vacuuming new carpet, fine dust, or have allergy concerns. Follow the instructions onthe following pages to perform these simple maintenance steps.

Empty Dirt ContainerThe dirt container needs to be emptied when the dirt reaches the “Full” line on the side of the container.

  1. Turn power off. Unplug cleaner from electrical outlet.

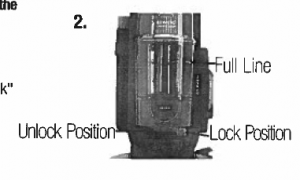

  2.  Slide the Lock ‘n Seal lever to the “Unlock” position.Empty Dirt Container continue

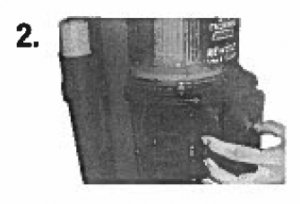

  3. Grasp dirt cup portion handle and pull straight out to remove from vacuum.
  4. Empty dirt into garbage container.
  5. Put the dirt container back in the vacuum and slide the lever to the “Lock” position.Note: The dirt container may be washed in warm water with a mild detergent. Make sure it is completely dry before replacing. DO NOT PUT IN DISHWASHER.

Cleaning the inner & outer circular filter

Use only genuine BISSELL style 16 replacement filters in your BISSELL vacuum.

  1. Turn power off. Unplug the cleaner from electrical outlet.
  2. Remove the dirt container as described in the previous section. Grasp the filter cup located at the bottom of the dirt container, lift up and out. DO NOT TRY TO PULLCIRCULAR FOAM FILTER OUT OF THE FILTER CUP WHILE IT IS STILL IN THE VACUUM.
  3. Grasp the plastic tab on the top of the circular foam filters. Twist to unlock and pull out.
  4. Separate the outer foam and inner pleated circular filters. Wash each individually by hand in warm water. Mild detergent may be used n desired. Rinse well, then air dry thoroughly before putting them back together and replacing in filter cup.
  5. The filter cup may be washed in warm water with a mild detergent. Make sure it is completely dry before reassembling with filters. DO NOT PUT IN DISHWASHER.
  6. The upper tank and louvers may also be wiped clean with a damp cloth. Reach underneath the upper tank and turn the rim of the louvers to left to unlock. Pull straight down to remove. Make sure all parts are dry before replacing.
  7.  To replace louvers lift back into upper tank. Place top of louvers inside clear center cavity and turn toward the right to unlock until tabs fit into notch. Continue to turn to right until tight.



Maintenance and care

Cleaning the pre-motor filter

  1. Unplug the cleaner from electrical outlet.
  2. Toe pre-motor filter protects the motor from debris. It is located underneath the filter cup in the center of the round part of the Lock ‘n Seal lever.
  3. Remove the small round filter and any debris on top of it. Rinse well under warm water, then air dry thoroughly before replacing.

Replacing the post-motor filterUse only genuine BISSELL style 16 (#32076) replacement filters in your BISSELL vacuum.

  1. Unplug the cleaner from electrical outlet.
  2. The post-motor filter assists in the filtration process to return clean air to the room. It is ocated behind the door on the side of the vacuum. When the filter becomes dirty, open the door, remove the filter and replace. The white, pleated HEPA media filter is not washable.Note: A basic washable post-motor  filter with reduced filtration is available if desired.

Checking rotating floor brush and drive belt

You should check your vacuum cleaner’s rotating floor brush and drive belt regulady for wear or damage. You should also dean 1he brush and brushends of sbings, hair, and carpet fibers. These can wrap around 1he brush and alter ils alir.ty to effectively dean your carpet Also remove any debris that has accunualed under 1he brush cover.

  1. Turn power off. Unplug cleaner from electrical outlet.
  2. Place handle in low position and turn vacuum cleaner over so bottom side is up.

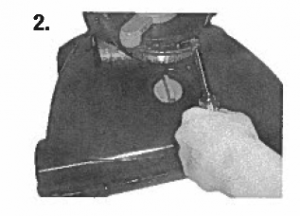

  3. Remove the five screws with a Phillips head screwdriver. Lift the brush cover off.
  4. Grasp rotating floor brush at both ends and lift.
  5. Clean strings, hair and other debris from rotating floor brush, paying particular attention to brush ends.Maintenance and careChecking rotating floor brush and drive belt continued
  6. Clean strings, hair and other debris from motor pulley and drive belt areas.
  7. Check drive belt carefully for wear, cuts or stressed areas.
  8. Check air passageway for obstructions. Remove debris from this area.

Replace drive belt

Use only genuine BISSELL style 9 replacement belts (#32074) in your BISSELL vacuum.1. Turn power off. Unplug cleaner from electrical outlet.2. With rotating floor brush removed from vacuum cleaner (steps 1-4 of Check rotating floor brush and drive belt), grasp old drive belt and remove from motor pulley. Discardold drive belt.3. Place new drive belt over motor pulley and stretch other end over rotating floor brush in the space between the bristles.4. Place ends of rotating floor brush down into slots on sides as shown.5. Turn rotating floor brush by hand several times in the direction of motor pulley. If properly installed, drive belt will center itself on rotating brush.6. Reposition brush cover and screw back into place.

Cleaning a clog

Low suction or poor pickup may be due to a clog in the vacuum cleaner. If you notice a change in the sound of the motor or a reduction in thespinning action, check for clogs.

  1. Unplug cleaner from electrical outlet.
  2. Empty dirt container.
  3. Check upper tank for build up or clogs.
  4. Check the suction inlet for a clog.
  5. Grasp the quick reach handle and lift hose wand to separate from the suction opening. Check for a clog in the base, the wand or the hose.
  6. Remove the screw attaching the hose wand base to the vacuum. Straighten the hose wand base and unclog with long, narrow object such as a broom stick.
  7. If the clog persists, follow the instructions for checking the rotating floor brush on page 11 and inspect the air passageway for obstructions.

Replace light bulb Use only BISSELL Replacement Bulbs in yourBISSELL vacuum.

  1. Unplug cleaner from electrical outlet
  2. Using a flat screwdriver, table knife or coin, insert into the slot on the right of the lens and gently push inner latch to the left as shown to remove the lens.
  3. Reposition lens by inserting the tab on left side and then pushing the right side back into place.

Troubleshooting

Vacuum cleaner won’t tum on Possible causes

  1. Power cord not plugged in
  2. Blown fuse/tripped breaker
  3. Damaged cord

Vacuum cleaner won’t pick up dirt Possible causes

  1. Incorrect height adjustment
  2. Hose not attached to suction opening
  3.  Crack or hole in hose
  4. Broken or worn drive belt
  5. Rotating floor brush bristles worn
  6. Rotating floor brush jammed
  7. Clog in vacuum
  8. Dirt container full
  9. Dirt container or upper tank not installed properly
  10. Filters are dirty

Tools won’t pick up dirt Possible causes

  1. Crack or hole in hose
  2. Clog in vacuum
  3.  Dirt container full
  4. Dirt container or upper tank not installed properly
  5. Filters are dirty

Remedies

  1. Check electrical plug
  2. Check/replace fuse or reset breaker
  3. Refer to a BISSELL authorize service center for repair or replacement

Remedies

  1. Adjust powerfoot to correct height setting
  2. Grasp quick reach handle and firmly push hose wand onto the suction opening
  3. Check hose and replace if needed
  4. Replace drive belt, see page 11
  5. Replace brush
  6. Remove brush aicl dean debris from brush ends
  7. Follow ilstructions on page 12 for clearing dogs
  8. Empty dirt container
  9. Position correctly and lock in place
  10. Check and clean pre-motor and HEPA media post-motor filters, see page 9

Remedies

  1. Check hose and replace if needed
  2. Fo0ow ireruclions oo page 12 fer dealing dogs
  3. Empty dirt container
  4. Position correctly and lock in place
  5. Check and clean pre-motor and post-motor filters

TroubleshootingVisible dirt escaping from cleanerPossible causes

  1. Dirt container full
  2. Filters missing or installed incorrectly

Cord will not retract

  1. Possible causes

Remedies

  1.  Empty dirt container
  2. aieck pre-motor and post-motor filters for correct installation

Remedies

  1. Follow instructions on page 8

Or visit the BISSELL website – www.bissell.caWhen contacting BISSELL, have model number of unit available.Please record your Model Number: _______ _Please record your Purchase Date: _______ _

NOTE: Please keep your original sales receipt. It provides proof of date of purchase in the eventof a warranty claim. See Warranty on page 16 for details.

Replacement parts

Replacement parts are available through BISSELL Consumer Services, an authorized BISSELL Service Centre or by visiting our website. To locate an authorized Service Centre or to place an order using Visa or MasterCard call:

BISSELL Consumer Services1-800-263-2535Monday – Friday 8 a.m. -10 p.m. ETSaturday 9 a.m. – 8 p.m. ETOr visit our Website – www.bissell.ca

Item                                     Part No.                           Part Name

1                                                       32074                                        Style 9 Drive Belt (2-Pack)2                                                       203-1297                                  Standard Headlight Bulb3                                                        203-2450                                  Hose Assembly (Rewind PowerClean)4                                                       203-2468                                  Hose Assembly (Rewind SmartClean)5                                                        203-2449                                 Brush Dowel (15″)6                                                        32R9                                       Style 16 Inner and Outer Circular Pre-Motor Filter Set7                                                        73K1                                       Style 16 Inner Circular Pre-Motor Filter8                                                        69B1                                       Style 16 Outer Circular Pre-Motor Filter9                                                        32076                                      Style 7 /9/16 Post-Motor HEPA Media Filter10                                                      203-1215                                Style 7 /9/16 Pre-Motor Filter

Accessories

These items are available for purchase as accessories for your BISSELL Rewind Smartelean/Rewind PowerClean:To purchase call 1-800-263-2535 or visit www.bissell.ca.I                                        tem Part No.                      Part Name1                                        203-2447                            TurboBrush2                                        203-1063                            Crevice Tool3                                        203-1099                            Combination Dusting/4                                         203-1084                          Upholstery Brush

Warranty – BISSELL Rewind SmartClean & Rewind PowerClean

If you need additional instruction regarding this warranty or have questions regarding what it may cover, please contact BISSELL Consumer Services by E-mail, telephone, or regular mail as described below. Limited Three Year Warranty Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon receipt of the product, BISSELL Canada Corporation will repair or replace (with new or remanufactured components or products). at BISSELL’s option, free of charge from the date of purchase by the original purchaser, for one year any defective or malfunctioning part.See information below on “If your BISSELL product should require service”. This warranty applies to product used for personal, and not commercial or rental service. This warranty does not apply to routine maintenance components such as belts or brushes. Damage or malfunction caused by negligence, abuse, or use not in accordance with the User’s Guide is not covered. If your BISSELL product should require service Call BISSELL Consumer Services at the number listed below or visit the BISSELL website – www.bissell.ca to locate a BISSELL Authorized Service Centre in your area. If there are no authorized BISSELL Service Centres in your area, a BISSELL Representative at or at the phone number below will issue you a Return Authorization Number and a pre-paid mailing label to return the unit to BISSELL for warranty repair. The machine should be returned with a photocopy of your proof of purchase. (Your dated sales receipt is your warranty – do not send original.) If you need information about repairs or replacement parts, or if you have questions about your warranty, contact BISSELL Consumer Services.

BISSELL CANADA CORPORATION IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANYNATURE ASSOCIATED WITH THE USE OF THIS PRODUCT. BISSELL’S LIABILITY Will NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT. *EXCEPTIONS AND EXCLUSIONS FROM THE TERMS OF THE LIMITED WARRANTY THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES EITHER ORAL OR WRITTEN. ANY IMPLIED WARRANTIES WHICH MAY ARISE BY OPERATION OF LAW, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY ANO FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE THREE YEAR DURATION FROM THE DATE OF PURCHASE AS DESCRIBED ABOVE.NOTE: Please keep your original sales receipt, it is your warranty.
