Thanks for buying a BISSELL PurePro™

We’re glad you purchased a PurePro vacuum. Everything we know about floor care went into the design and construction of this complete, high-tech home cleaning system.

Your PurePro vacuum is well made, and we back it with a limited three year warranty. We also stand behind it with a knowledgeable, dedicated Consumer Services department, so, should you ever have a problem, you’ll receive fast, considerate assistance.

My great-grandfather invented the floor sweeper in 1876. Today, BISSELL is a global leader in the design, manufacture, and service of high quality homecare products like your PurePro vacuum.

Thanks again, from all of us at BISSELL.

Mark J. Bissell

President and Chief Executive Officer

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should be observed, including  the following:

READ All INSTRUCTIONS bEFORE USING YOUR  UPRIGhT VACUUM.

Always connect to a polarized outlet (left slot is wider than right). Unplug from outlet when not in use and before conducting maintenance.

WARNING: To reduce the risk of fire, electric shock,  or injury:

  • Do not modify the polarized plug to fit a non-polarized outlet or extension cord.
  • Do not leave vacuum cleaner unattended when it is plugged in.
  • Unplug from outlet when not in use and before servicing.
  • Do not use outdoors or on wet surfaces.
  • Do not allow children to operate vacuum cleaner or use as a toy.
  • Close attention is necessary when used near children.
  • Do not use for any purpose other than described in this User’s Guide.
  • Use only manufacturer’s recommended attachments.
  • Do not use with damaged cord or plug
  • If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, have it repaired at an authorized service center.
  • Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
  • Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
  • Do not handle vacuum cleaner or plug with wet hands.
  • Do not put any object into openings. Do not use with any opening blocked; keep openings free of dust, lint, hair, and anything that may reduce air flow.
  • Keep hair, loose clothing, fingers, and all parts of body away from opening and moving parts.
  • Turn off all controls before plugging or unplugging vacuum cleaner.
  • Use extra care when cleaning stairs.
  • Unplug before attaching the TurboBrush.
  • Do not pick up flammable materials (lighter fluid, gasoline, kerosene, etc.) or use in the presence of explosive liquids or vapors.
  • Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.)
  • Do not use vacuum cleaner in an enclosed space filled with vapors given off by oil base paint, paint thinner, some moth proofing substances, flammable dust, or other explosive or toxic vapors.
  • Do not pick up hard or sharp objects such as glass, nails, screws, coins, etc.
  • Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
  • Do not use without filters in place.
  • Use only on dry, indoor surfaces.
  • Keep appliance on a level surface.
  • Do not carry the vacuum cleaner while it is running
  • Brush may unexpectedly restart. Unplug from outlet when cleaning or servicing

SAVE THESE  INSTRUCTIONS FOR FUTURE USE

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a proper outlet. Do not change the plug in any way.

This model is for household use only.

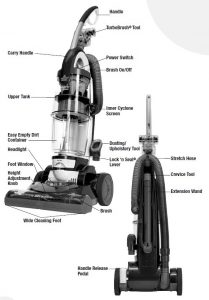

Product View

Assembly

The only tool you’ll need to assemble your  vacuum cleaner is a Phillips screwdriver.

Caution: Do not plug in your vacuum cleaner until you are familiar with all instructions and  operating procedures.

Attach handle to vacuum
  1. Locate the bag that contains the extension wand support, lower cord wrap, and screws. Remove the screw packet from the bag.
  2. Stand the vacuum upright and from the rear of the unit, slide the base of the handle firmly into the grooves at the top of the vacuum body.
  3. Ensure that the handle is firmly attached to the vacuum body. The front of the handle should be flush with the front of the vacuum body. If there are any gaps, continue to push the handle until it is secure.
  4. Remove two of the four screws from the screw packet. Insert one screw, into each of the existing holes in the handle. With a screwdriver, tighten each screw completely.
Attach storage clips, tools, and vacuum hose
  1. Locate the bag that contains the extension wand support, lower cord wrap, and remaining two screws.
  2. Attach the extension wand support to the rear of the unit. Extension wand support should be placed about half way down the vacuum body. Using one of the two remaining screws, insert one screw into the existing hole. With a screwdriver, tighten screw completely.
  3. Attach the lower cord wrap to the rear of the unit. Lower cord wrap should be placed toward the bottom of the vacuum body. Using the last screw, insert screw into the existing hole. With a screwdriver, tighten completely.
  4. Attach Twist ‘n Snap™ hose by placing the tabbed end of the hose into the opening of the unit, located on the left side of the vacuum (when viewing from the back.)
  5. Turn the hose to the right to lock into place. Place the working end of the hose into the hole on the right side of the unit, near the wheel.

NOTE: The vacuum will not operate effectively unless the hose is firmly attached.

  1. Make sure that crevice tool is inside the extension wand. Store the extension wand and crevice tool on the back of the unit. Place tools on the extension wand support and push toward the back of the unit until clip holds tools in place.
  2. Slide the dusting brush into the storage clip on the left side of the unit (when viewing from back.)
  3. Place the TurboBrush tool in the hole marked “tool” on the top of the handle arch.

NOTE: The vacuum will not operate effectively unless the hose is firmly attached.

Caution: Before using your vacuum, Make sure both filters (premotor and post-motor) are in place. Do not operate your vacuum without these filters.

Operation

Handle Positions

Using your foot, press the handle release pedal, located on the lower left side of the vacuum, to recline the vacuum.

Transporting your cleaner
  1. To move your cleaner from room to room put the handle in the upright position, tilt the cleaner back on its rear wheels and push forward.
  2. The cleaner can also be moved by using the carry handle on the front.
Power Cord

To store power cord, wrap cord around the upper cord wrap and lower extension wand support. Once wound tightly use the clip on the end of the plug to attach the plug to the cord. To release the power cord, rotate the upper cord wrap down and gently pull the power cord off of the upper cord wrap.

Power switch

The power button is located on the left side (when viewing from back) of the vacuum.  Push the rocker switch “ON” (I) to vacuum, and “OFF” (O) when cleaning is complete.

Note: The rotating brush will not turn on Power Switch unless the unit is in the reclined position and the brush switch is on.

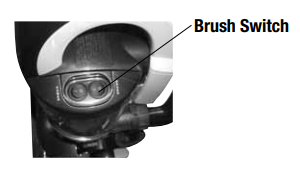

Brush Switchbrush Switch

The rotating brush is turned on or off using the switch located next to the power switch on the top of the tank.  When the brush switch is on, the brush will start rotating when the unit is reclined. The brush should be on for most carpeted floors.  You may want to turn the brush off for bare floor cleaning or other delicate surfaces. Push the rocker switch “ON” (I) to turn the brush on, and “OFF” (O) to turn brush off.

Tip: Check under furniture for objects that could damage or block the hose.

Height Adjustments

There are seven height settings available for various floor surfaces. Turn the dial on the foot of the cleaner to the desired setting.

Lowest setting – for low pile carpet or bare floors. To pick up debris it may be necessary to move up one setting.Medium settings – for medium pile carpet.High setting – for high pile and most shag carpet.

Note: For optimal carpet cleaning  performance, adjust to the lowest practical setting. If your cleaner is difficult to push, adjust to the next higher setting.

If the dial is difficult to turn, tilt the cleaner back slightly to take the weight off of the foot while turning.*Some berber carpets have a tendency to fuzz with wear. Repeated strokes in the same area may aggravate this condition. Consider setting your cleaner on a higher than normal setting for this type of carpet.NOTICE: While vacuuming, certain carpets and low humidity conditions may generate small static discharges. The discharges are entirely harmless and are not associated in any way with the main power supply.

Brush Auto Shut Off Feature

When your cleaner is in the upright position, the brush will not rotate.  The brush will rotate only when the cleaner is in the relined position and the brush switch is on.

Microban®

Microban antimicrobial product protection fights the growth of odor causing bacteria, mold, and mildew in your vacuum. It is built-in to key components during the manufacturing process and won’t wash off or wear away. Microban provides continuous antimicrobial product protection for the useful lifetime of the product thereby keeping your vacuum cleaner and fresher.

Note: This should not replace normal cleaning and maintenance procedures.

CAUTION: To avoid personal injury and to prevent the cleaner from falling when cleaning stairs, always place it at the bottom of the stairs.Microban is a registered trademark of Microban Products Company.

Using the Tools
  1. Make sure the cleaner is in the upright position.
  2. Remove the hose from the wand base. This automatically diverts the suction to the hose.
  3. Use the hose alone or attach any of the tools to the end of the hose wand.

Always place the vacuum cleaner on the floor in its fully upright position when using tools. Placing the vacuum in this position automatically stops the rotating brush.

TurboBrush

Use rotating brush action for small areas such as stairs and upholstery.

Note: press gently when using the Turbobrush to gain maximum cleaning.  Too much pressure could cause the brush to stop rotating.

Dusting Brush

Use on furniture or upholstery.

Crevice Tool

Use in tight narrow spaces

Extension Wand

Use with desired attachment for a longer reach

Empty dirty container

Empty the dirt container as soon as the dirt reaches the “full” line on the side of the container.

  1. Unplug the vacuum from electrical outlet.
  2. Slide the Lock ‘n Seal to the “Unlock” position.
  3. Grasp the handle and pull the dirt container straight out to remove from the vacuum.
  4. Empty dirt into garbage container.

NOTE: Emptying the dirt container after every use will help prevent over filling and ensure that the vacuum is ready to go the next time you clean.

Cleaning the dirt container

Additional steps can be taken to clean the dirt container as necessary.

  1. Ensure dirt container has been emptied.
  2. While the dirt container is still out of the unit, grasp the inner cyclone screen and twist to the right until the locking tabs stop the rotation. Pull down the inner cyclone screen to remove it.
  3. Clean the inner cyclone with a cloth or soft brush to remove dust or debris.
  4. Wipe out the inside of the upper tank and the inner cyclone with a damp cloth moistened with water or a mild cleaning solution. Let completely dry before next use.
  5. If desired, the lower dirt container may be washed in warm water. Make sure it is completely dry before reassembling. Do not put in the dishwasher.
  6. To reassemble, replace the inner cyclone screen by sliding it into the upper tank and rotating it to the left until the locking tabs stop the rotation. The inner cyclone screen is labeled front and back. When properly assembled the front graphic should face out

WARNING: To reduce the risk of  electric shock, turn  power switch OFF and disconnect polarized plug from electrical outlet before performing  maintenance or  troubleshooting checks.

Maintenance and care

The pre-motor filter should be checked often and washed as needed to maintain performance.  More or less frequent  cleaning may be required based on  individual vacuuming habits and types of debris picked up.

  1. Unplug the vacuum from electrical outlet.
  2. The pre-motor filter protects the motor from dirt particles. It is located in the slide out tray underneath the dirt container. If the filter becomes dirty, pull out the tray, lift out the foam filter pad and clean it.

Note: The pre-motor filter may be hand washed in cold water with mild detergent. Rinse well and air dry thoroughly before replacing.

Replacing the HEPA media filter cartridge

The post-motor HEPA media filter assists in the filtration process to return clean air to the room. It is located under the pre-motor filter tray. Unit must be detented to locate the post-motor HEPA media filter.

The HEPA media filter cartridge should be replaced if machine performance is noticeably declining. More or less frequent replacing may be required based on  individual vacuuming habits and types of debris picked up.

  1. Detent the vacuum.
  2. While holding the handle at a 60° angle, push the button on the top of the HEPA media filter door to unlatch. Remove the door. HEPA media filter door is located.
  3. directly below the pre-motor filter drawer.
  4. If the filter is dirty, remove it and replace with a new filter.
  5. Replace the HEPA media filter door

Note: The post-motor HEPA media filter is a white, pleated filter. This filter is not washable and must be replaced when it becomes dirty.

CAUTION: To reduce the risk of injury from moving parts, turn off vacuum cleaner and disconnect power plug from electrical outlet.

Clearing Clogs

Low suction or poor pickup may be due to a clog in the vacuum cleaner. If you notice a change in the sound of the motor or a reduction in the spinning action in the dirt container, check for a clog.

If there is no suction or if suction is reduced at the hose, follow these steps to check for and clear the clog.

  1. Turn power switch off.
  2. Unplug cleaner from electrical outlet.
  3. Check the pre-motor filter and clean as necessary (see cleaning your pre-motor filter ).
  4. Check the HEPA media filter cartridge and replace if necessary (see cleaning your post-motor HEPA media filter). Check to see if dirt container is full. Empty if needed.
  5. Check upper tank for build up or clogs. If you notice a clog in the upper tank, remove the nner cyclone (see cleaning the dirt container)
  6. Grasp the hose wand and separate it from the hose wand base. Check for a clog in the base, the wand, or in the hose.
  7. Remove the Twist ‘n Snap hose from the vacuum by turning to the left. straighten the hose and unclog with a long, narrow object such as a broom handle.
  8. If the clog persists, follow the instructions for checking the rotating floor brush and drive belt  and inspect the air passageway for obstructions

If suction is normal in the hose, check for and clear the clog for floor cleaning:

  1. Check the foot hose for clogs.
  2. If you are not able to tell from the outside if a clog is present, remove the screw at the top left of the foot hose. Lay the foot hose flat and unclog with a long, narrow object such as a broom handle.

Remove any clogs found and fully  reassemble the cleaner before attempting to check suction again or using the cleaner.

Thermal motor protection

An internal thermal protector has been designed into your cleaner to protect it from overheating.  When the thermal protector activates, the main vacuum motor will stop operating. If this happens, proceed as follows.

  1. Turn the cleaner OFF and unplug from electrical outlet.
  2. Check the cleaner for the source of overheating problem (i.e. full dirt cup, dirty filters or clog).
  3. Fix the problem by following the steps in the maintenance section of the user guide.
  4. When the motor cools for approximately 30 minutes, the thermal protector automatically resets and cleaning may continue. If the cleaner will not turn on or the thermal protector continues to activate, your cleaner may need servicing. Call BISSELL Consumer Services or visit the website to locate an authorized Service Center

Note: The thermal protector controls the main vacuum motor only, not the brush motor.  If the thermal protector activates, the brush will continue to operate normally; however, there will be no suction.

Check rotating floor brush and drive belt

You should check your vacuum cleaner’s rotating floor brush and drive belt regularly for wear and damage. You should also clean the brush and brush ends of strings, hair, and carpet fibers. This type of debris can wrap around the brush and hamper its  ability to effectively clean your carpet. Also remove any debris that has accumulated under the brush cover.

  1. Unplug the vacuum from electrical outlet.
  2. Place handle in low position and turn vacuum cleaner over so bottom side is facing up.
  3. Remove the six screws on the sole plate with a Phillips head screwdriver. Lift the brush cover off.
  4. Grasp rotating floor brush at both ends and lift.
  5. Clean string, hair, and other debris from rotating floor brush, paying particular attention to brush ends.
  6. Check air passageway for obstructions. Remove any debris from this area.
  7. Clean debris from the motor pulley and drive belt areas.
  8. Check drive belt carefully for wear, cuts, or stressed areas. If any damage is present, discard old drive belt and replace.
Replace drive belt
  1. Unplug the vacuum from electrical outlet.
  2. With rotating floor brush removed from vacuum cleaner (steps 1 – 4 of check rotating floor brush and drive belt pg. 13), grasp old drive belt and remove from motor pulley. Discard the old drive belt.
  3. Place one end of the new drive belt over motor pulley and the other end over the brush in the space between the bristles.
  4. Note: It is important that you use only genuine BISSELL replacement parts. Generic belts may not meet the exact specifications required to keep your vacuum operating at its peak performance. The use of unbranded belts could lead to early failure of the vacuum and could void your warranty.
  5. Pull the brush firmly to stretch the drive belt and place ends of brush down into slots on sides. Turn brush several times by hand to center the drive belt.
  6. Reposition brush cover and screws. Tighten screws securely
Brush reset

If something becomes lodged in the  foot and the brush shuts off, turn the cleaner off and unplug from the outlet. Remove the obstruction. The brush will automatically reset when the cleaner is plugged in and turned back on.

Changing the light bulb
  1. Turn power switch off.
  2. Unplug cleaner from electrical outlet.
  3. Recline handle for easier access to light bulb. Using a screwdriver or coin, gently pry lens cover from foot.
  4. Remove the bulb from the socket by grasping the bulb and pulling gently. Install the new bulb by pushing it gently into the socket until the bulb snaps into place.
  5. Reposition the lens over headlight by first inserting tab on lower portion of the cover into the vacuum foot. Push gently on cover to lock tabs into place.
TurboBrush Maintenance

The Turbobrush should be checked  regularly for clogs or debris wrapping around the brush.

  1. Remove tool from hose or from vacuum.
  2. Twist collar so opening is at the top and lift top cover to remove.
  3. Remove the brush from the belt and clean debris.
  4. Replace the brush inside the belt and place ends into slots on sides.
  5. Reposition top cover making sure to line up inside tab at the front with the opening on the cover. Twist collar until opening is at the bottom to lock into place

Tip: TurboBrush may not be turning due to loss of suction. Refer to pg. 12 for checking and cleaning clogs.

Troubleshooting

WARNING: To reduce the risk of electric shock, turn power OFF and disconnect polarized plug from electrical outlet before performing maintenance or Vacuum cleaner won’t turn on troubleshooting.

Possible causes Remedies
Power cord not plugged in Check electrical plug
Blown fuse/tripped breaker in home Check/replace fuse or reset breaker
Damaged power cord Unplug, check for damage, have cord replaced at an authorized service center  if necessary
Thermal protector activated Allow cleaner to cool for 30 minutes
Vacuum cleaner and tools won’t pick up dirt
Possible causes Remedies
Incorrect height adjustment Adjust powerfoot to correct height
Hose not attached to suction opening Firmly push hose wand into hose wand base
Twist ‘n Snap hose not securely attached Make sure Twist ‘n Snap hose is snapped into locked position
Crack or hole in hose Check hose and replace if needed
Broken or worn drive belt Replace drive belt
Rotating floor brush bristles worn Replace brush
Rotating floor brush jammed Remove brush and clean debris from brush ends
Clog in vacuum Clear clogs
Dirt container full Empty dirt container
Dirt container not installed properly Position correctly and lock in place
Filters are dirty Check pre-motor and post-motor filters,
TurboBrush is clogged or debris is wrapped around the brush roll See Maintaining TurboBrush
 Brush not rotating
Possible causes Remedies
Brush switch turned to “Off” Make sure brush switch is in “On” position
Vacuum is in upright position Recline vacuum to operate brush
Brush is jammed Remove obstruction or debris unplug cleaner to reset brush
Brush needs to be reset Unplug cleaner to reset brush
Vacuum cleaner is difficult to push
Possible causes Remedies
Incorrect height setting Adjust powerfoot to correct height setting
 Visible dirt escaping from cleaner
Possible causes Remedies
Dirt container full Empty dirt container
Filters missing or installed incorrectly Check pre-motor and post-motor filters for correct installation
Dirt container installed incorrectly Pull out and re-insert dirt container correctly

Other maintenance or service not included in the manual should be performed by an authorized service representative

Thank you for selecting a BISSELL product.

Please do not return this product to the store.

For any questions or concerns, BISSELL is happy to be of service. Contact us directly at 1-800-237-7691.

BISSELL Consumer Services

For information about repairs or replacement parts, or questions about your warranty,Call: Bissell Consumer Services  1-800-237-7691Monday – Friday           8 a.m. — 10 p.m. ETSaturday                        9 a.m. —   8 p.m. ETOr write: BISSELL Homecare, Inc. PO Box 3606 Grand Rapids  MI 49501ATTN: Consumer Services Or visit the BISSELL website – www.bissell.com

When contacting BISSELL, have model number of cleaner available.

Please record your Model Number: ___________________Please record your Purchase Date:  ___________________

NOTE: Please keep your original sales receipt. It provides proof of purchase date in the event of a warranty claim. See Warranty  for details.

Please register your new BISSELL product at

Replacement parts – BISSELL vacuum www.bissell.com/product registration

Item Part No.     Part Name

1       203-1520    Drive Belt

2       203-1522    Headlight Bulb

3       203-1512    Foot Brush Roll

4       203-1509    Pre-Motor Foam Filter

5       203-1510    HEPA Media POST-Motor Filter

Additional accessories

These items are available for purchase as accessories for your Bissell PurePro: To purchase call 1-800-237-7691 or visit www.bissell.com

Item Part No.     Part Name

1       203-1056    Crevice Tool

2       203-1527    Dusting Brush/Upholstery Tool

3       203-1429    TurboBrush

4       203-1068    Extension Wand

5       203-1507    Twist ‘n Snap Vacuum Hose

Warranty – BISSELL PurePro

This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state. If you need additional instruction regarding this warranty or have questions regarding what it may cover, please contact BISSELL Consumer Services by E-mail, telephone, or regular mail as described below. Keep your original sales receipt — it is your proof of warranty.

Limited Three Year Warranty

Subject to the *EXCEPTIONS AND EXClUSIONS identified below, upon receipt of the product BISSELL Homecare, Inc. will repair or replace (with new or remanufactured components or products), at BISSELL’s  option, free of charge from the date of purchase by the original purchaser, for three years any defective or  malfunctioning part.

See information below on “If your BISSELL product should require service”.

This warranty applies to product used for personal, and not commercial or rental service. This warranty does not apply to fans or routine maintenance components such as filters, belts, or brushes. Damage or malfunction caused by negligence, abuse, neglect, unauthorized repair, or any other use not in accordance with the User’s guide is not covered.

If your BISSELL product should require service:

Contact BISSELL Consumer Services to locate a BISSELL Authorized Service Center in your area. If you need information about repairs or replacement parts, or if you have questions about your warranty, Contact BISSELL Consumer Services.

Website or E-mail: www.bissell.com  Use the “Customer Service” tab.Or Call: BISSELL Consumer Services 1-800-237-7691Monday – Friday 8 a.m. – 10 p.m. ETSaturday              9 a.m. – 8 p.m. ET

Or Write: BISSELL Homecare, Inc. PO Box 3606 Grand Rapids MI 49501ATTN: Consumer Services

BISSELL HOMECARE, INC. IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE ASSOCIATED WITH THE USE OF THIS PRODUCT. BISSELL’S LIABILITY WILL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

*EXCEPTIONS AND EXCLUSIONS FROM THE TERMS OF THE LIMITED WARRANTY THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES EITHER ORAL OR WRITTEN. ANY IMPLIED WARRANTIES WHICH MAY ARISE BY OPERATION OF LAW, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY  AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE THREE YEAR  DURATION FROM THE DATE OF PURCHASE AS DESCRIBED ABOVE.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

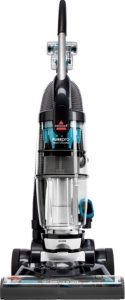

Bissell 59G9 Series PUREpro Multi Cyclonic User’s Guide – Bissell 59G9 Series PUREpro Multi Cyclonic User’s Guide –

[xyz-ips snippet=”download-snippet”]

Posted

in

by

admin

Tags:

, ,
