Bissell 80Q2 Series Powergroom Multi Cyclonic User’s Guide

Thanks for buying a BISSELL Vacuum

We’re glad you purchased a BISSELL PowerGroom Multi-Cyclonic vacuum. Everything we know about floor care went into the design and construction of this complete, high-tech home cleaning system. Your BISSELL PowerGroom Multi-Cyclonic canister vacuum is well made, and we back it with a limited one-year warranty. We also stand behind it with a knowledgeable, dedicated Consumer Services department, so, should you ever have a problem, you’ll receive fast,  considerate assistance. My great-grandfather invented the floor sweeper in 1876. Today, BISSELL is a global leader in the design, manufacture, and service of high-quality homecare products like your BISSELL PowerGroom Multi-Cyclonic canister vacuum.Thanks again, from all of us at BISSELL.

Mark J. BissellChairman & CEO

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should be observed, including the following:REAd ALL INSTRUCTIONS BEFORE USINg YOUR CANISTER VACUUM.WARNING: To reduce the risk of fire, electric shock, or injury:■ Unplug from outlet when not in use.■ Do not use it outdoors or on wet surfaces.■ Use indoors only.■ For dry pick up only.■ Do not leave the machine when it is plugged in.■ Do not use with damaged cord or plug.■ If the appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service agent.■ Do not pull or carry by cord, use cord as a handle, close door on cord, pull cord around sharp corners or edges, or run appliance over cord. Keep the cord away from heated surfaces.■ Do not unplug by pulling on the cord. Unplug by grasping the plug.■ Do not run appliance over cord.■ Keep the cord away from heated surfaces.■ Do not handle plug or appliance with wet hands.■ Hold the plug when rewinding onto the cord reel.■ Do not allow the plug to whip when rewinding.■ Do not expose hair, loose clothing, fingers, or body parts to openings or moving parts.■ Do not pick up hot or burning objects such as cigarettes, matches, or hot ashes.■ Do not pick up flammable or combustible materials (lighter fluid, gasoline, kerosene, etc.) or use them in the presence of explosive liquids or vapor.■ Not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.■ Young children should be supervised to ensure that they do not play with the appliance.■ Remove plug from the electrical outlet before cleaning or maintaining the appliance.■ If the supply cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.■ Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, petrol, etc.).■ Do not use for any purpose other than described in this User’s Guide.■ Use only the manufacturer’s recommended attachments.■ Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow. Do not put any object into the opening.■ Keep appliance on a level surface.■ Turn off all controls before unplugging.■ Be extra careful when cleaning stairs.■ Do not use without the dirt cup or a dust bag and filters in place.■ Do not allow it to be used as a toy.

SAVE THESE INSTRUCTIONSFOR FUTURE USEThis model is for household use only.THIS APPLIANCE HAS A POLARIZED PLUG.To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a proper outlet. Do not change the plugin anyway.

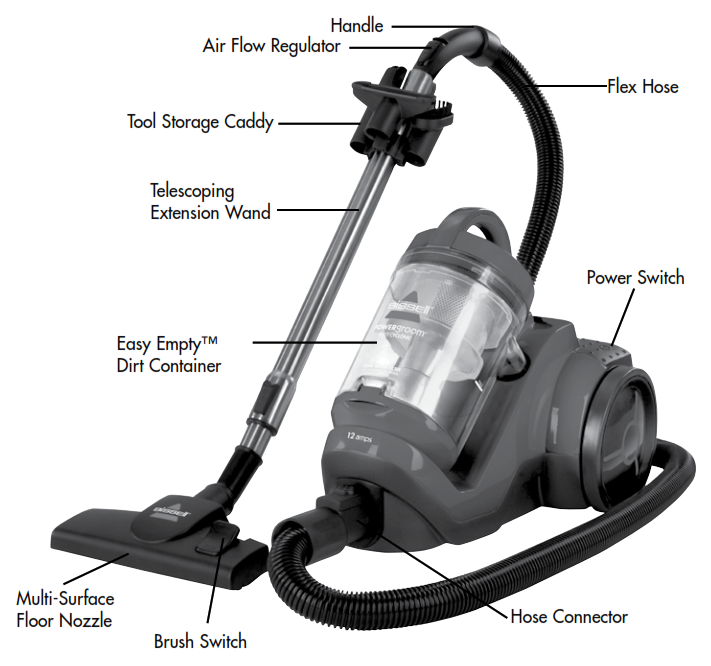

Product view

CAUTION: Do not plug in your vacuum until you are familiar with all instructions and operating procedures.

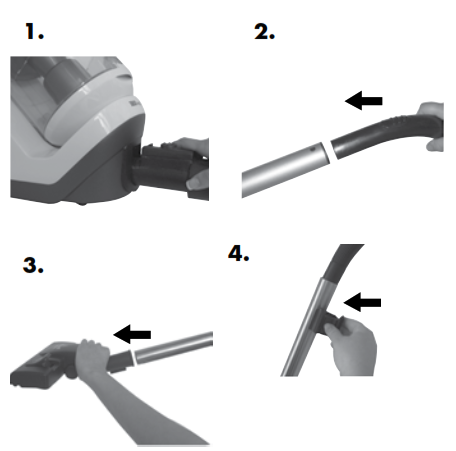

Assembly

  1. Connect the hose to the vacuum by inserting the hose connector into the suction opening on the bottom front of the vacuum. Push in until it clicks into the locked position.
  2. Connect the telescoping extension wand to the handle end of the hose.
  3. Connect the floor nozzle foot onto the telescoping extension wand.
  4. Attach the tool holder onto the top portion of the extension wand. Place the tools onto the tool holder for storage.
  5. To extend the telescoping extension wand, push the black release button and then pull the bottom of the wand to the desired length.
  6. Once assembled, you can store your vacuum by inserting the storage clip (located on the back of the floor nozzle) into the storage slot on the rear of the vacuum.NOTE: Shorten the length of the telescoping extension wand for storage.

WARNING: Plastic film can be dangerous. To avoid the danger of suffocation, keep away from babies and children.

Operations

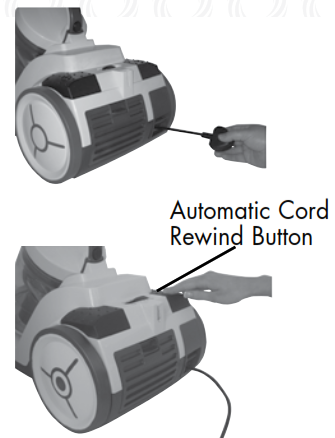

Power cordThe power cord is located at the rear of the vacuum. Gently pull out the power cord, watching for the yellow line. Stop pulling the power cord once the yellow line is visible. There is also a red line, which indicates the end of the usable cord. Do not pull the power cord out beyond the red line.Automatic cord rewindYour vacuum is equipped with an automatic cord rewind. When cleaning is finished, press the power button OFF ( )and grasp the plug to disconnect from the electrical outlet. Hold the plug and press the automatic cord rewind button to rewind the cord automatically.

CAUTION: Be careful to avoid injury as the cord retracts very quickly.

Power buttonTurn the power ON or OFF by pressing lightly down on the power button ( ).Variable suction power controlThe variable suction power control is located on the back of the vacuum. Turn the control toward the larger dots for maximum suction. Turn the control toward the smaller dots to minimize suction for lightly soiled areas or delicate fabrics.Airflow regulatorOpen the airflow regulator by sliding the regulator back towards the handle to an open position. This will reduce the suction power for vacuuming delicate fabrics.For full suction power, close the airflow regulator by sliding the regulator forward to the closed position.

Tip: Use the variable suction power control and the airflow regulator to reduce airflow as needed when using the tools.CAUTION: Before using your vacuum, make sure that the dirt container and all filters (pre-motor and post-motor) are in place. Do not operate your vacuum without the dirt container and filters.

Special toolsYour BISSELL PowerGroom Multi-Cyclonic is not only a powerful carpet and rug vacuum cleaner, but it’s also a versatile bare floor and above floor vacuum cleaner when you select one of the special tools. Floor nozzle: Use to vacuum carpets, rugs, and bare floors. Swivel head turns to get into tight spaces and fits under cabinets.1. To vacuum carpets and rugs, push the brush switch to the carpet position. This will pull the brushes up into the floor nozzle.2. To vacuum bare floors, push the brush switch to the bare floor position. This will extend the brushes down from the floor nozzle.Upholstery tool:Use the upholstery tool to clean curtains, draperies, cushions, and fabrics.Crevice tool:Use the crevice tool in tight, narrow spaces.Dusting brush:Use the dusting brush to dust furniture, blinds, books, lamps, shelves, and baseboards.

Maintenance and care

Emptying the dirt containerEmpty the dirt container as soon as the dirt reached the “FULL” lines on the sides of the dirt container.1. Unplug the vacuum from the electrical outlet.2. Press the dirt container release button located on the back of the carry handle and lift up to remove.3. Choose an emptying method. Method #2 is recommended for allergy sufferers.Method #1 – Hold the dirt container over a trash can and push the emptying button located on the back bottom of the dirt container to open the bottom. Close the bottom after the dirt empties and make sure it clicks back into the locked position.Method #2 – Place a plastic bag over the bottom of the dirt container. Push the emptying button, located on the back bottom of the dirt container, through the plastic to open the bottom. After the dust settles, remove the plastic bag to discard. Close the bottom and make sure it clicks back into the locked position.

WARNING: To reduce the risk of electric shock, turn the power switch OFF and disconnect the plug from the electrical outlet before performing maintenance or troubleshooting checks.

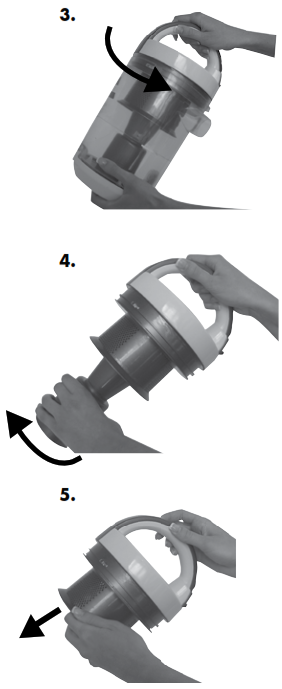

Cleaning the inner cyclone & screenFilters protect the motor from dirt and dust particles. Use only BISSELL replacement filters in your PowerGroom Multi-Cyclonic1. Unplug the vacuum from the electrical outlet.2. Remove the dirt container from the vacuum and make sure it is empty.3. Remove the top portion of the dirt container by grasping the carry handle and turning counterclockwise and pulling up and out of the dirt container.4. Remove the inner cyclone by grasping the bottom of the cyclone and turning counterclockwise to unlock. Pull straight down to remove. Clean with a cloth to  remove dust and debris5. Remove the screen by pulling straight down. Clean with a cloth or a soft brush to remove dust and debris.6. The tank may also be wiped clean with a damp cloth. Make sure the tank is completely dry before reassembling.7. To reassemble, hold the carry handle and place the screen back onto the top portion of the dirt container. Be sure to align the notch on the top with the insert on the flat edge of the screen. Then place the inner cyclone back into the screen by aligning the notches at the top of the inner cyclone with the inserts inside the screen and turning clockwise to lock into place.8. Place the top portion back onto the dirt container by grasping the carry handle and turning clockwise to lock it into place. Be sure that the dirt container release button is aligned with the emptying button when locked into place.

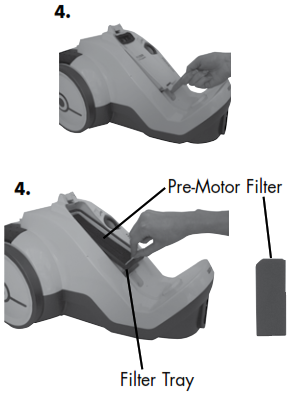

Cleaning the pre-motor filterThe pre-motor filter protects the motor from dirt and dust particles. Use only BISSELL replacement filters in your PowerGroom Multi-Cyclonic.

  1. Turn the power OFF. Unplug the vacuum from the electrical outlet.
  2. Remove the dirt container from the vacuum.
  3. The pre-motor filter is located behind the door labeled “FILTER” on the main body of the vacuum. Open the door by pushing up on the tab at the bottom of the door and pulling it out to remove it.
  4. Remove the filter tray by pulling it up on the tab of the tray. Remove the pre-motor filter and set it aside. Tap the tray gently over a trash can to remove any dirt or debris.
  5.  The pre-motor filter can be washed in cold water with a mild detergent. Rinse well and air dry thoroughly before placing back into the tray.
  6. Place the tray back into the vacuum and replace the filter door by inserting the tabs at the top of the door and pushing down until it clicks into the locked position.

NOTICE: This product is intended for household use only and not for commercial or industrial use. Vacuuming dust from products like plaster, concrete, or ashes will damage the motor and void the warranty.Tip: For maximum cleaning performance, check the filters often and clean or replace them if necessary.WARNING: Do not operate cleaner with damp or wet filters or without all filters in place.

Replacing the Post-motor HEPA Media Filter*The post-motor HEPA Media Filter* assists in the filtration process to return clean air to the room. Use only BISSELL replacement filters in your PowerGroom Multi-Cyclonic.

  1. Turn the power OFF. Unplug the vacuum from the electrical outlet.
  2. The post-motor filter is located behind the door labeled “FILTER” on the rear of the vacuum. Open the door by pushing down on the tab of the door and pulling out to remove it.
  3. Remove the post-motor HEPA Media Filter* by grasping the handle on the filter and pulling it out to remove it.
  4. Replace the post-motor HEPA Media Filter* with a new filter.NOTE: The post-motor filter is a white, pleated HEPA Media Filter*. This filter is NOT washable and must be replaced when it becomes dirty.
  5. Replace the filter door by inserting the two tabs at the bottom of the filter door. Then push down on the tab on the door and push it back into the vacuum.  Release the tab on the door to lock it into place.* The filter media, not the vacuum as a whole, complies with the IEST-RP-CC001.5 or the EN-1822-1:2009 HEPA standard.

Thermal protectorAn internal thermal protector has been designed into your vacuum to protect it from overheating. When the thermal protector activates, the vacuum motor will stop operating. If this happens:1. Turn the cleaner OFF (O) and unplug from the electrical outlet.2. Empty dirt container, check filters and air passages for dirt accumulation.3. The thermal protector automatically resets after approximately 2 hours.If the thermal protector does not reset, call BISSELL Consumer Services or visit the website.

Troubleshooting

The vacuum cleaner won’t runPossible causes1. Vacuum cleaner is not plugged in2. Power button is not pressed down3. Thermal protector activatedRemedies1. Check electrical plug2. Press the power button down3. Allow the cleaner to cool for 2 hours. See page 12.

Vacuum cleaner won’t pick up or low suctionPossible causes1. Tools, hose, and/or telescoping extension wands are blocked2. Filters are dirty3. Dirt container is full4. hose not securely attached to the suction opening5. Crack or hole in flex hose6. Airflow regulator or variable suction power control is set to open or minimum settingRemedies1. Remove each part and check for blockages2. Check and clean or replace pre-motor and post-motor filters3. Empty dirt container4. Make sure hose connector is locked into suction opening5. Check hose and replace if needed6. Change to the closed or maximum setting

Visible dust escaping from vacuumPossible causes1. Dirt container is full2. Filters missing or installed incorrectly3. Filters are dirty4. Flex hose is blocked5. hose not securely attached to the suction opening6. Crack or hole in flex hoseRemedies1. Empty dirt container2. Check pre-motor and post-motor filter for correct installation3. Check and clean or replace pre-motor and post-motor filters4. Remove hose and check for blockages5. Make sure the hose connector is locked into the suction opening6. Check hose and replace if needed

Other maintenance or service not included in the manual should be performed by an authorized service representative.Thank you for selecting a BISSELL product.Please do not return this product to the store.For any questions or concerns, BISSELL is happy to be of service. Contact us directly at 1-800-237-7691.

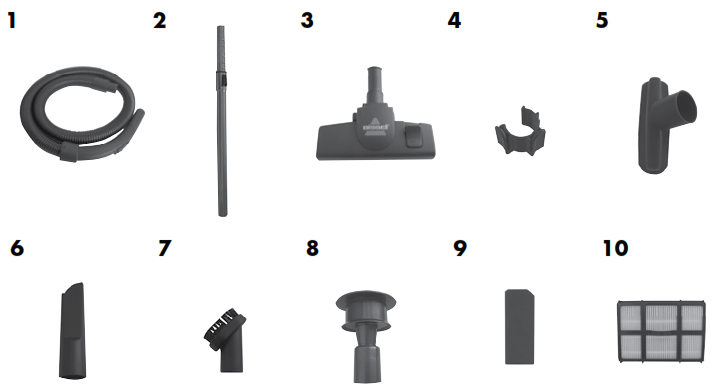

Replacement parts – BISSELL vacuum

Item Part No. Part Name
1 203-1578 Hose
2 203-1579 Telescoping Extension Wand
3 203-1536 Multi-Surface Floor Nozzle
4 203-1583 Tool Holder
5 203-1581 Upholstery Tool
6 203-1580 Crevice Tool
7 203-1582 Dusting Brush
8 203-1575 Inner Cyclonic Assembly
9 203-1569 Pre-Motor Filter
10 203-1557 Post-Motor HEPA Media Filter*

* The filter media, not the vacuum as a whole, complies with the IEST-RP-CC001.5 or the EN-1822-1:2009 HEPA standard.

Warranty – BISSELL Powergroom® Multi Cyclonic Vacuum

This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state. If you need additional instruction regarding this warranty or have questions regarding what it may cover, please contact BISSELL Consumer Services by E-mail, telephone, or regular mail as described below.Limited One Year WarrantySubject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon receipt of the product BISSELL will repair or replace (with new or remanufactured components or products), at BISSELL’s option, free of charge from the date of purchase by the original purchaser, for one year any defective or malfunctioning part. See information below on “If your BISSELL product should require service”. This warranty applies to products used for personal, and not commercial or rental service. This warranty does not apply to fans or routine maintenance components such as filters, belts, or brushes. Damage or malfunction caused by negligence, abuse, neglect, unauthorized repair, or any other use not in accordance with the User’s Guide is not covered.If your BISSELL product should require service:Contact BISSELL Consumer Services to locate a BISSELL Authorized Service Center in your area.If you need information about repairs or replacement parts, or if you have questions about your warranty, contact BISSELL Consumer Services.Website or E-mail: www.bissell.comUse the “Customer Support” tab.Or Call:BISSELL Consumer Services1-800-237-7691Monday – Friday 8 am -10 pm ETSaturday 9 am – 8 pm ETOr Write:BISSELL Homecare, Inc.PO Box 3606Grand Rapids, MI 49501ATTN: Consumer ServicesBISSELL IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE ASSOCIATED WITH THE USE OF THIS  PRODUCT. BISSELL’S LIABILITY WILL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT.Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.*EXCEPTIONS AND EXCLUSIONS FROM THE TERMS OF THE LIMITED WARRANTY THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF  ANY OTHER WARRANTIES EITHER ORAL OR WRITTEN. ANY IMPLIED WARRANTIES WHICH MAY ARISE BY OPERATION OF LAW, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE  ONE YEAR DURATION FROM THE DATE OF PURCHASE AS DESCRIBED ABOVE.Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

don’t forget to register your product!

Registering is quick, easy and offers you benefits over the lifetime of your product. You’ll receive:BISSELL Rewards PointsAutomatically earn points for discounts and free shipping on future purchases.Faster ServiceSupplying your information now saves you time should you need to contact us with questions regarding your product.Product Support Reminders and AlertsWe’ll contact you with any important product maintenance reminders and alerts.Special PromotionsOptional: Register your email to receive notice of offers, contests, cleaning tips and more!Visit www.bissell.com/registration now!

BISSELL consumer services

For information about repairs or replacement parts, or questions about your warranty, call:BISSELL Consumer Services1-800-237-7691Monday – Friday 8 am – 10 pm ETSaturday 9 am – 8 pm ETOr write:BISSELL Homecare, Inc.PO Box 3606Grand Rapids MI 49501ATTN: Consumer Services

Or visit the BISSELL website – www.bissell.comWhen contacting BISSELL, have model number of cleaner available.Please record your Model Number: ___________________Please record your Purchase Date: ___________________NOTE: Please keep your original sales receipt. It provides proof of purchase date in the event of a warranty claim. See Warranty on page 15 for details.

©2012 BISSELL Homecare, IncGrand Rapids, MichiganAll rights reserved. Printed in ChinaPart Number 110-4382Rev 12/11Visit our website at:www.bissell.com
