Portal Quick Guide
Front-Back View
Remove Internal Case Body
Warning:

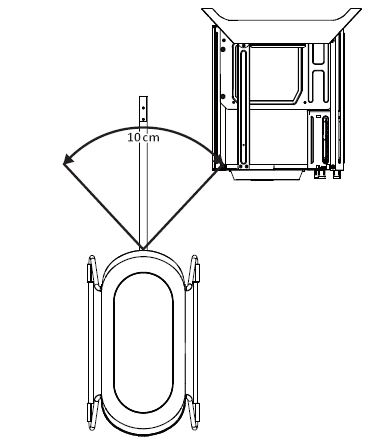

When connecting front 1/0 cables, please make sure the internal case body is not away from the external housing for more than 10 cm to prevent possible loose connection.

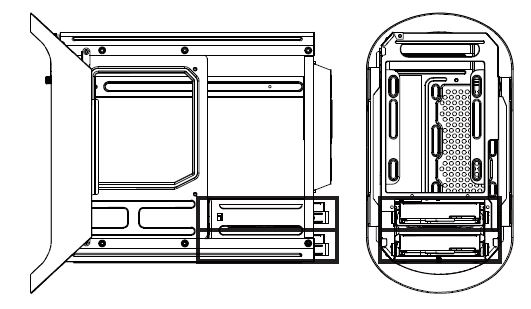

3.5″ Drives Location
Installing 3.5″ Drives

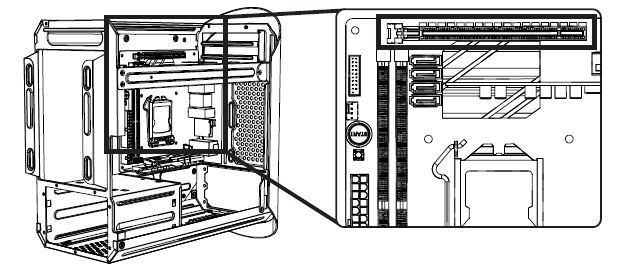

MotherBoard Installation
PCI-E Card Installation
Step1
Step2
Step3
Step4
PSU Installation
Back Fan Installation (8mm)

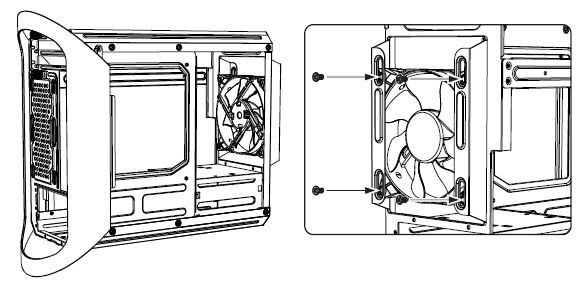

Front Fan Installation (12mm)

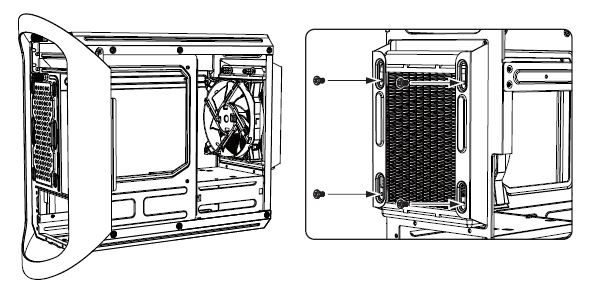

Water Cooling Installation

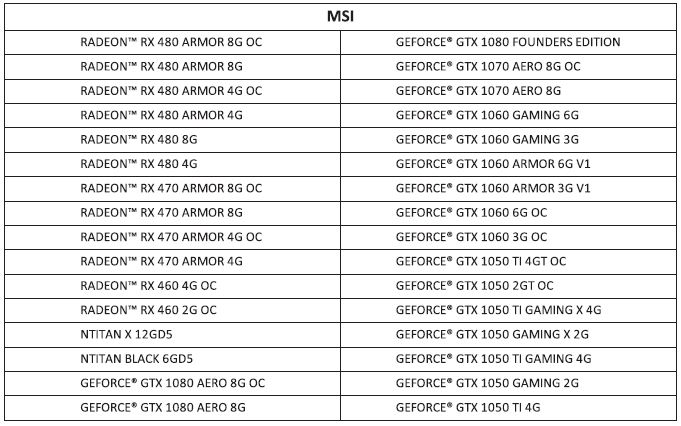

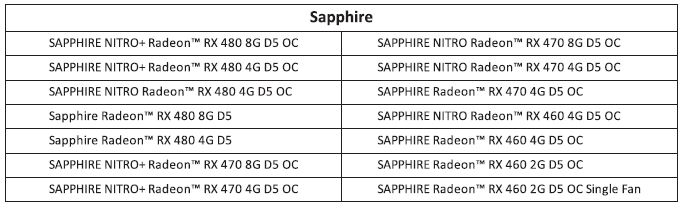

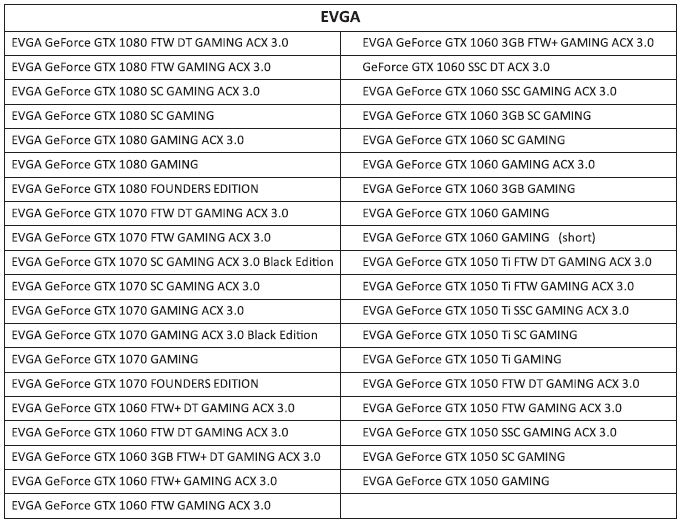

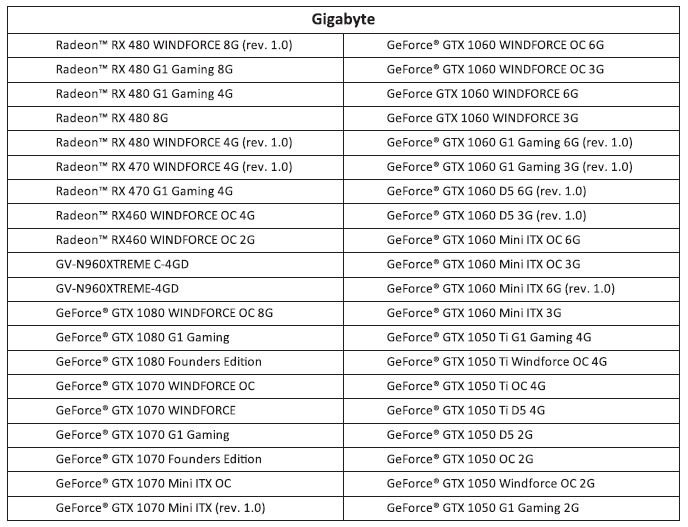

Graphic Card Compatible ListDimension (D x W x H): 310mm x 138mm x 45mm
Water Cooler Compatible ListDimension (D x W x H) : 75mm x 123mm x 155mm
SFX Power Supply Compatible ListDimension (D x W x H): 130mm x 125mm x 63.5mm
