User Guide
BLACKVUE External Connectivity Module (CM100LTE)
For manuals, customer support and FAQs go to www.blackvue.com

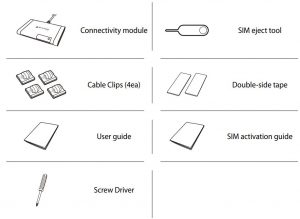

In the box
Check the box for each of the following items before installing the BlackVue device.
At a glance
The following diagram explains details of the external connectivity module.
Install and power up
Install the connectivity module at top corner of the windshield. Remove any foreign matterand clean and dry the windshield before installation.
Warning: Do not install the product in a location where it can obstruct the driver’s field of vision.
- Turn off the engine.

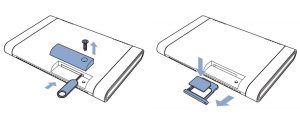

- Unscrew the bolt that locks the SIM slot cover on connectivity module. Remove the cover, and unmount the SIM slot using the SIM eject tool. Insert the SIM card into the slot.
- Peel off the protective film from the double-sided tape and attach the connectivity module to the top corner of the windshield.
- Connect the front camera (USB port) and the connectivity module cable (USB).
- Use the pry tool to lift the edges of the windshield trim/molding and tuck in the connectivity module cable.
- Turn on the engine. The BlackVue dashcam and connectivity module will power up.
Note
- For full details on installing the dashcam on your vehicle, refer to the “Quick Start Guide” that is included in the BlackVue dashcam package.
- SIM card must be activated to use LTE service. For details, refer to the SIM Activation Guide.

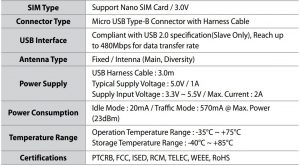

Product specifications
CM100LTE

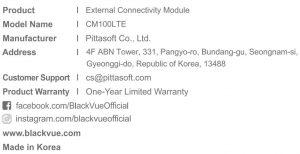

APPENDIX – PRODUCT SPECIFICATION
CM100LTE
Product Warranty
- The term of this product warranty is 1 year from the purchase date. (Accessories such as an External Battery/microSD Card: 6 Months)
- We, PittaSoft Co., Ltd., provide the product warranty according to the Consumer Dispute Settlement Regulations (drawn up by the Fair Trade Commission). PittaSoft or designated partners will provide the warranty service upon request.
This warranty is only valid in the country where you purchased the product.
FCC ID: YCK-CM100LTE / Contains FCC ID: XMR201605EC25A / Contains IC ID: 10224A-201611EC25A
Declaration of ConformityPittasoft declares that this device complies with the essential requirements and relevant provisions of Directive 2014/53/EU
Go to www.blackvue.com/doc to view the Declaration of Conformity.
COPYRIGHT©2020 Pittasoft Co., Ltd. All right reserved.
