BOSS® MC625BA USER’S MANUAL
BLUETOOTH® | 3″ (76 mm)WEATHERPROOF 2SPEAKER SYSTEMFEATURING BUILT-IN AMPLIFIER
BOSS Audio Systems3451 Lunar Court • Oxnard, CA 93030www.bossaudio.com805-751-4853 Customer ServiceTech Support: www.bossaudio.coin/support
Congratulations on your purchase of a BOSS Audio Systems amplified speaker system. It has been designed, engineered and manufactured to bring you the highest level of performance and quality, for years of listening pleasure.
Thank you for making BOSS AUDIO SYSTEMS your choice for entertainment!
Features:
Aux-In (3.5 mm)Speaker Clamp MountsWeatherproof Media ControlHigh-Impact, High Temp Speaker EnclosuresWeatherproof SpeakersBluetooth® Audio Streaming
Installation
- Unscrew the brackets from the bottom of the speakers.
- Find a safe, ideal mounting location and fit the brackets over the chosen mounting bars.
- Fasten the mounting screws after you review the safety of the mounting location.
Wiring
- Remove the seat.
- Route the fused power leads to the battery, (keep away from moving parts and/or hot exhaust)
- Connect the RED ring terminal to the +12V post of the battery.
- Connect the BLACK ring terminal to ground post of the battery.
- Connect the power connector to the white mating connecter leading to the speaker
Bluetooth
To pair and connect your Bluetooth device to the MC625BA” Enter Settings > Bluetooth Menu > Search > “ Boss Audio MC625BA” > If Prompted to enter a passcode enter: “0000”

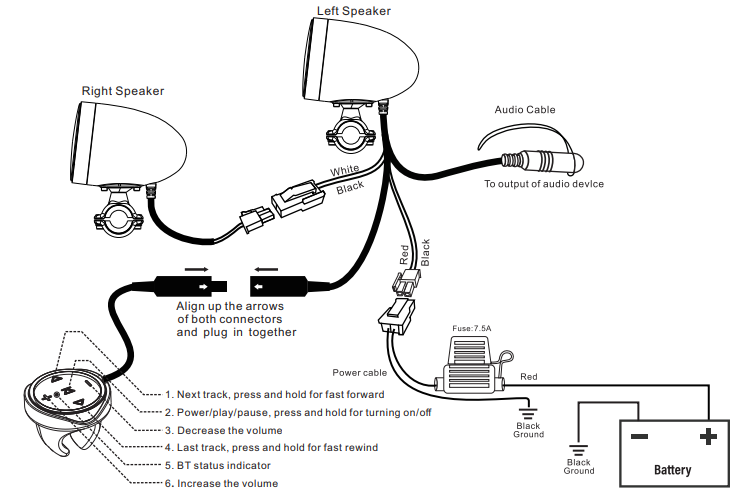

Connections
Amplifier and Loudspeaker Mounting
Install Reminder
The components and wiring should not be installed around any moving parts, keep away from ignition parts, fuel lines, or any hot exhaust
Speakers should not be installed where they might inhibit safety features on the vehicle (i.e. lights, horns, brake levers, etc…)
Specifications
Operation Voltage: 10~16VTHD: <0.1%S/N: >75 dBChannel Separation: >50 dBFrequency Response: 50Hz-15KHzSpeaker Wires: 5.5′Volume Control Wire: 4.9′Audio Input Cable: 0.8′Power Cable: 5.5′In-Line Fuse/Power Cable: 4.9′Bracket Size Range: 0.75″ ~1.25″Fuse Rating: 7.5A
