User ManualModel: OFPG CO2-BORD

Introduction

Thank you for purchasing the OFPG CO2 meter board XL! This board detects the amount of CO2 particles and measures temperature and relative humidity. In order to use the product correctly, it is necessary to thoroughly read all safety instructions and considerations mentioned in this manual.

Product overview

This product is multifunctional and detects the amount of CO2 particles (in parts per million, PPM), measures the temperature (in degrees Celsius) and the relative humidity (in percentage). The CO2 board is used in areas where detection of air quality is important, such as in industrial production halls, hotels, shops, offices, department stores, laboratories, schools, hospitals, etc.Product features:

Unique design with a sturdy plastic housing with long service life
The high degree of precision, high measurement resolution
Operates on 220-230V AC mains (with supplied adapter) for continuous use
Large numerical displays with digital LED: clear and intuitive
Freely adjustable limits for CO2 alarm
High-quality European SenseAir sensor for precise measurements

Product characteristics

Measurement range	CO2 concentration	0 – 9999 PM
Temperature	-10°C – 100°C
Relative humidity	0 – 99,9%
Precision	CO2 concentration	± 70 PPM en ± 3%
Temperature	± 0,6°C (max. ± 1,5°C)
Relative humidity	± 3%
Resolution	CO2 concentration	1 PPM
Temperature	0,1°C
Relative humidity	0,1%
Repeatability	≤ ± 0,5%
Response time	10 seconden
Operating limits	0°C – 50°C, 0% – 90% non-condensing humidity
Storage limits	-30°C – 70°C, 0% – 90% non-condensing humidity
Power supply	AC 220-230V converted to DC 9V 2A power adapter
Maximum power consumption	9V * 350mA
Dimensions (W x H x D)	388mm x 288mm x 43mm
Weight	2420g

Board overview and description of buttons

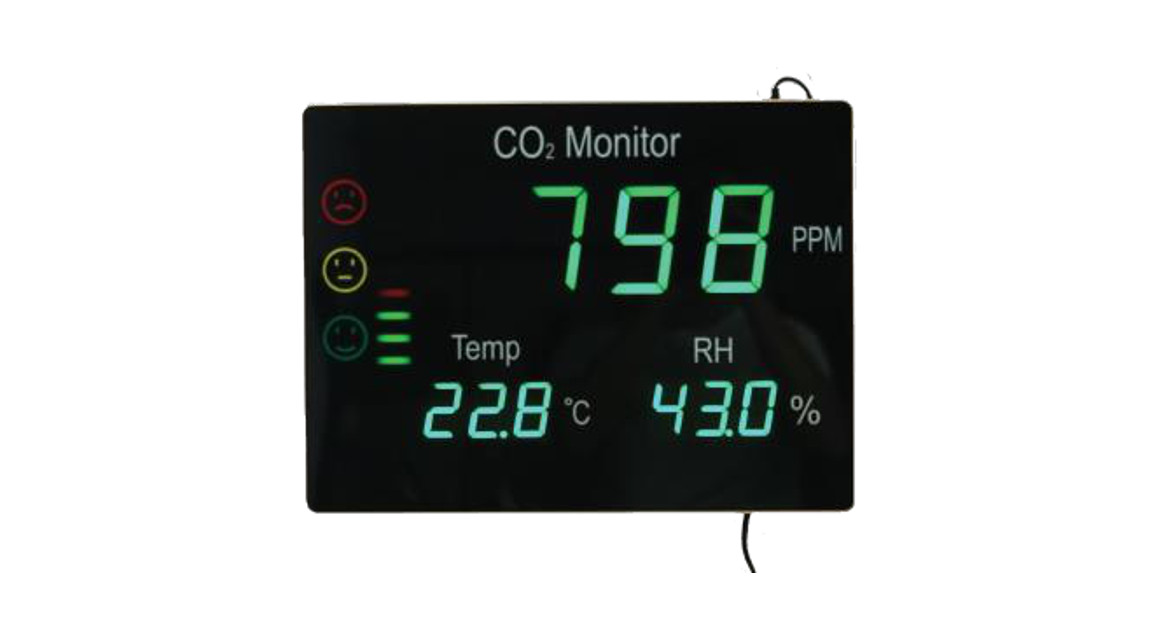

Front panel:

CO2 value in parts per million (PPM)
Temperature value in degrees Celsius (°C).
Relative humidity in %.
Air quality indicator gauge:• Excellent – green: 0 PPM – 599 PPM• Normal – yellow: 600 PPM – 1199 PPM• Weak – red: 1200 PPM – 9999 PPM

Back panel:

MODE Set CO2 alarm value
▲ Increase alarm value
▼ Decrease alarm value
The alarm on/off
°C/°F Change between temperature unit
Power adapter connection

Usage instructions

Starting up

To activate the board, connect the power adapter supplied to the power adapter socket on the board (see section 4). Preferably activate the device in an already well-ventilated room so that the calibration can proceed correctly. The board will then light up and initialize and calibrate for 7 seconds. After these 7 seconds, the board will display the current ambient values in the appropriate fields.

Installation

The board can be installed on the wall using the plugs and screws provided.

Setting the alarm

Press the “MODE” button on the back of the board to enter the setting mode. The initial alarm value is set to 1200PPM. Use the ▲ and ▼ buttons to set the desired alarm value. Then press the “MODE” button again to complete the setting of the alarm value. Use the key to activate or deactivate the alarm.

Calibration and calibration period

The unit will calibrate for 7 seconds on activation. Preferably activate the device in an already well-ventilated room so that the calibration can proceed correctly.The board will continue to calibrate itself in the background. The most correct values are reached after a few hours.

Important considerations and warning

The electronic sensors and components in this unit are precision electronics. The product should at all times be kept away from water, fire, flammable oil, gas and locations with strong electromagnetic fields in order to avoid influence on and damage to the product.
Avoid shocks and sudden impacts to the device.
Only use the original power adapter supplied.
Do not use strong detergents to clean the device. Corrosive liquids can seriously damage the device and its components. Only use a damp cloth with clean water for cleaning.
Never try to repair the product yourself.
Never try to open the device.

Environment

This product should be recycled according to the applicable local regulations for the disposal of electronic and electrical equipment. At the end of the product’s life cycle, this product must not be disposed of in the normal household waste. Do not incinerate.

Declaration of conformity

This product complies with the applicable CE and RoHS standards.

EMC 2014/30/EU ; EN 61326-1:2013

RoHS 2.0 2011/65EU Annex II (EU) 2015/863 + 2017/2102IEC 62321-1:2013IEC 62321-2:2013IEC 62321-3-1:2013IEC 62321-3-2:2013IEC 62321-4:2013IEC 62321-5:2013IEC 62321-6:2015IEC 62321-7-1:2015IEC 62321-7-2:2017IEC 62321-8:2017RBT201116017EC-1RTB201116017RC-1HT-2008Made in China
