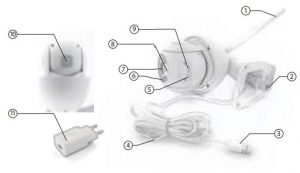

BUTTONS AND CONNECTI0N

  1. Wifi antenna If reception is weak, please consider using wired LAN (2)
  2.  LAN connector RJ45 connector for optional wired connection
  3.  USB DC input 5V/1A input
  4.  2,5m Wire
  5.  Reset button To reset to factory settings (open cover)
  6.  IR LED lights IR LED lights for night vision
  7.  Camera len
  8. Smart motion sensor + Mic Motion sensor for following movement. Microphone for talkback
  9.  Micro SD Supports up to 64GB card (open cover)
  10. Speaker Talkback function + alarm sound
  11. Adapter 5V 1A outputMounting instructions Use the provided screws and plugs to mount the camera on a wall. Make sure that the wire comes out from underneath the backplate using the recesses hole.

INSTALLATION INSTRUCTIONS

Warning:Make sure the camera to be within range of the Wi-Fi network to ensure a successful connection between the camera and router.

Wi-Fi Configuration Instructions

  1.  Scan QR code to download and install “Caliber Smart Home”

Instructions de configuration Wi-Fi

  1. Scannez le code QR pour telecharger at installer « Caliber Smart Home »

Wi-Fi-configuratie instructies

  1.  Scan QR-code om “Caliber Smart Home”

  • sign in with cell phone number or email
  • Make sure the device on which the app is installed is connected to the wi-fi network on which you want the camera to be too.

Once the camera is plugged in it will be powered ON and the indicate LED will flash rapidly or a sound will be heard.

  • Click “+” at the up right corner to select and add the device
  • The app will ask if the indication LED is flashing and if the startup tone was heard then click “next step” if this is not the case please reset the camera holding the reset-button for approx 10 second
  • check if the wifi network is correct fill inn  the corresponding password and confirm Note the the password can only contain letter and number no special characters.

  •  The APP the will show an QR code on screen.
    • hold this screen approx 20 cm in front of the camera lens maybe move it around a little till the LED burns solid for a few seconds
    • then confirm br clicking “I heard the beep”
  • The APP will connect the camera please wait patiently till the action is completed.
  • When the camera is successfully added you can give it a personal identification name and can chose which group you’d like it to be in.

  • Through the APP the camera can be viewed and controlled remotely. Some of the functions are e.g.:
    • Live View (real time view)
    • Playback (only if an SD card is installed and the camera is set to record)
    •  Record and screenshot (record the live feed or make a screenshot and save it to your mobile device)

Note: controls and functions can vary according to camera type/version and set settings.

Remove device To remove the camera from the APP and Wi-Fi network:

  1. Open the APP
  2. Click the icon in the upper right corner, and then click “”Remove Device”” button in the list
  3. When remove the device is successful, the LEO will start to blink rapidly.

Note: The ‘remove procedure ‘ will clear the camera’s connection which means: erasing all information about the Wi-Fi network. The camera name and the footage on the SD card should be removed manually.

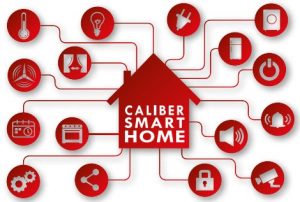

CLIBER SMART HOME LIVING IN COMFORT

With ‘Caliber smart home’ products you can be sure everything is controllable with ONE APP. We chose to partner with Tuya, a platform for smart home products which allows great control:not just camera view but a whole range of possibilities

  • Scheduler
  • Scenario·s (E.G:lights ON when camera detects movements
  • Combine product
  • Share settings with the whole familY
  • See calibersmarthome.com for more info & demo·s

SPECIFICATIONS

Image sensor: 1/2.7 inch 1080p CMOS sensorMinimum illumination: 0.01Lux/F1.2 (B&W mode)Lens/viewing angle: f:3.6mm. F:2.0Night vision: “IR LED lights + IR Cut filter, 30m IR distance”Compression Format: “H.264 Main ProfileMax.Framerate: 1-25fpsNetwork Protocol: HTTP,DHCP,DNSWIFI: WiFi802.11b/g/n”Freq range: 2402-2480 MhzMax e.r.p: <100mW/20dBmStorage mode: Local storage (64GB max.)Motion detection: Support motion detectionSmart Follow: Support smart motion followingPower: DC5V/1APower consumption: Rated power: SW Max.Working environment: Working Temperature 0°- 55°CCamera size: 140mm(L)x1OOmm (H)x 1OOmm (H)Installation: Wall or ceiling mounting (screwed)Waterresistance: IP66 (camera unit only – connectors and adapter for indoor use only)

  1. PRODUCT DESCRIPTIONThe camera is a Wi-Fi based item that can \York with e.g. Amazon Alexa“by voice control. You can either control it with Android and iOS based APP by phone, anywhere, at any lime.”The latest information on this topic you can find online: calibersmarthome.com
  2. FEATURES
    • Works with Amazon Alexa byvoice control
    •  Remote view and conttol via APP anywhe’e anytime
    • Scene control: works with other smart products
    • Motion detection alarm
    • Smart Follo\v function
    • OTA upgrade supported

We are continuously improving/updating our products and product information. It’s therefore possible that there is a slight difference between the description in this manual to the operation of the product.If something ls different or not clear;always check our website for the most current version.The (app) Images and Illustrations used are indicative and may vary per device and version

Caliber herby declares that the item HWC403PT is in compliance with the essential requirements and other relevant provisions of Directive 2011/65/EU (RoHS) and 2014/53/EU (RED)
