Campart Charcoal Barbecue Albufeira
PARTS DESCRIPTION
Instruction manual
- Warning! Do not use spirit , petrol or comparable fluids for lighting or re-lighting! Use only firelighters complying to EN 1860-3!
- The barbecue has to be installed on a secure and level surface.
- Before the first cooking the barbecue shall be heated up for at least 30 minutes until the fuel is red hot.
- Do not cook before the fuel has a coating of ash.
- Attention! This barbecue will become very hot, do not move it during operation.
- Do not use indoors.
- Warning! Keep children and pets away.
- Do not use water to cool off the hot barbecue, this can result in burns.
- Never leave the barbecue unattended.
- Inaccurate use could cause injuries or damage to material.

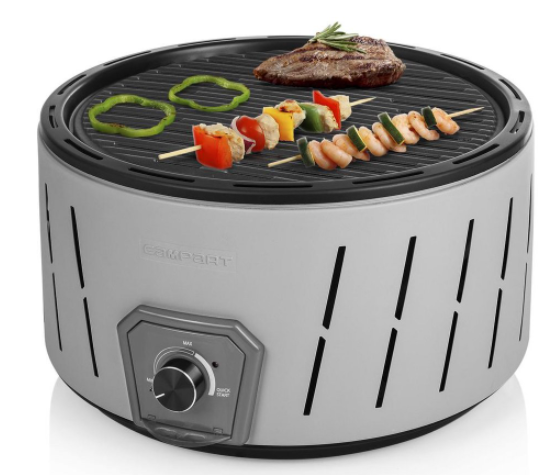

PARTS DESCRIPTION
- Grill plate
- Water tray
- Charcoal rack
- Vent pipe
- Base
- Battery fan box
- Air vents
BEFORE THE FIRST USE
- Clean the grill plate with standard washing-up liquid to remove the protective wax.
- Rinse with hot water and dry with a soft cloth.
- Use cooking oil on the grill plate to prevent rust and sticking.
- Note that the surface of the barbecue will change its color as a result of being heated.
USE
- Place 4 AA batteries inside the battery fan box. (Pic. 1)
- Set up the vent pipe with the charcoal rack. (Pic. 2)
- Pour fire starter gel on the charcoal rack in a circle. (Pic. 3)
- Light the fire starter gel. (Pic. 4)
- Put the water tray into the base. (Pic. 5)
- Fill the charcoal rack with enough charcoal. (Pic. 6)
- Insert the battery fan box into the plastic slot on the base and turn on the knob to maximum position. (Pic. 7)
- Place the grill plate on top of the base. (Pic. 8)
- Control the temperature by turning the fan knob into the desired position. (Pic. 9)
- Use the handle (included) to lift the grill plate when this is hot.
CLEANING AND MAINTENANCE
- Never use abrasive cleaners, metal brushes or paint thinner to clean the base, otherwise the barbecue will be damaged.
- The grill plate can be cleaned with a metal brush and abrasive cleaners, please make sure the rack will be rinsed and dried after cleaning. After cleaning apply a thin layer of cooking oil to the rack.
- Do not burn off the food residue immediately after use, but rather leave on to form a protected layer. It is better to burn it off the next time you use the barbecue again.
- Remove the batteries during a longer period of storage.
GUARANTEE
- This product is guaranteed for 24 months granted. Your warranty is valid if the product is used in accordance to the instructions and for the purpose for which it was created. In addition, the original purchase (invoice, sales slip or receipt) is to be submitted with the date of purchase, the name of the retailer and the item number of the product.
- For the detailed warranty conditions, please refer to our service website: www.service.tristar.eu
ENVIRONMENT
This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.
SupportYou can find all available information and spare parts atservice.tristar.eu!
