INSTRUCTIONS FOR USE

NOTE: Unless otherwise specified, the following generic terms “appliance / grill / product / equipment / device” stated in this instruction manual, all refer to the product “Attitude 2go CV”.Rate: 175 g/h (2.4 kW) – injector N°75

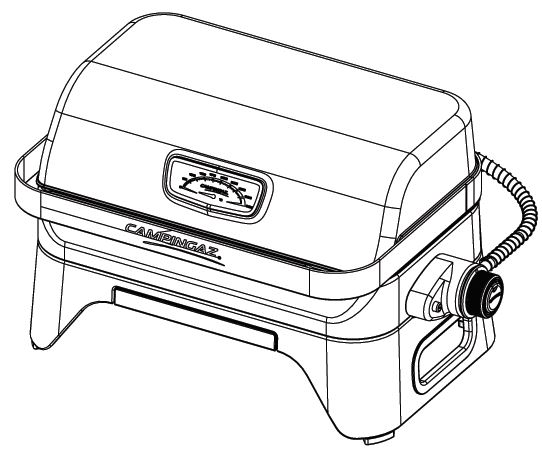

Category: butane direct pressureThank you for choosing the Campingaz® Attitude 2go CV barbecue.The product shown in this manual may look different from yours. It is for illustration purpose only.

  • Please read the instructions carefully before use.
  • Use outdoors only.
  • It is best to wear gloves to assemble the product.
  • Do not use charcoal on this product.
  • To ensure safe operation of your device, never use two full griddles side by side.
  • Regularly clean the parts at the frame bottom to avoid risk of inflammation from excess grease.

Follow these instructions carefully to avoid serious damage to your barbecue.This product is designed for a normal private use, not intended for commercial purposes.



A. SAFETY PRECAUTIONS

  • This operation manual will help you use your Campingaz® grill properly and safely. Before connecting the Campingaz® CV 470 PLUS cartridge, first read this manual to familiarise yourself with the grill.
  • Follow and abide by the instructions given in this manual.
  • Failure to do so may be dangerous for the user and anyone else close by.
  • Always keep this manual in a safe place, readily available for reference if necessary.
  • This grill must be used exclusively with Campingaz® CV 470 PLUS cartridges and with the supplied hose and regulator. Using other gas cartridges may be dangerous.
  • This grill should only be used outdoors, and away from inflammable materials.
  • Never use a device that is leaking, that is not operating properly or that is damaged. Return it to your dealer, who will indicate the nearest servicing agent.
  • Never modify this grill, or use it for applications for which it was not intended.
  • Do not use this product in caravans, cars, tents, huts, sheds or any small enclosed areas.
  • The product should not be used while sleeping or left unattended.
  • This product consumes fuel through combustion or consumption of oxygen and gives off certain substances and gas, which could be dangerous such as carbon monoxide (CO).
  • Carbon monoxide is an odorless, clear gas that can cause flu-like symptoms, sickness, illness, and possibly death if produced inside aforesaid enclosed areas through use of the product without proper ventilation.
  • Do not use your grill at a distance closer than 20cm to a wall or flammable object, nor closer than 1 metre to a ceiling.
  • WARNING: Accessible parts may be very hot. Keep your device out of reach of children. Wear gloves for your protection.
  • Position the equipment on a stable, horizontal surface. Do not move the device when it is in operation.
  • Do not use the device if the gas cartridge is not in a vertical position (Fig. 9).
  • Avoid twisting the flexible hose. Check that the hose is in an appropriate position without any twisting or pulling and without being in contact with the hot walls of the appliance (Fig. 7).



B. CONNECTING THE CAMPINGAZ® CV 470 PLUS CARTRIDGE

If replacing an empty cartridge, read Section J :

REMOVING OR CHANGING THE CAMPINGAZ® CV 470 PLUS CARTRIDGE.

When installing or removing the Campingaz® CV470 Plus cartridge, always operate in an open, very well-ventilated place, never in the presence of a flame, spark or any other source of heat (cigarette, electrical appliance, etc.), and away from other persons or inflammable materials.

  • Place the cartridge on the ground next to the barbecue.
  • Close the barbecue valve by turning the control knob (1) clockwise from + to – (Fig. 8).
  • Push the regulator (2) onto the cartridge and then screw it tight until you hear a click (approximately one-sixth of a turn) (Fig. 4A). Do not force the cartridge to turn further than this or you may risk damaging the Easy Clic® Plus System.
  • Assemble the cartridge casing at the back of the product (Fig. 5).
  • Place the cartridge in its casing (Fig. 6).
  • Check that the hose is properly installed, not twisted, tangled, squashed or overstretched. Keep it away from heated parts (Fig. 7).
  • Open the regulator valve (1) by turning counterclockwise from – to + (Fig. 8).

Campingaz® CV 470 PLUS cartridge:AS CAMPINGAZ® CV 470 PLUS CARTRIDGES ARE VALVE OPERATED, THEY CAN BE DETACHED FROM THE APPLIANCE, EASILY TRANSPORTED (EVEN WHEN NOT EMPTY) AND FITTED TO OTHER CAMPINGAZ® APPLIANCE IN THE 470 PLUS RANGE DESIGNED TO OPERATE EXCLUSIVELY WITH THESE CARTRIDGES.



C. Hose

Do not pull or pierce the hose. Keep away from any parts of the appliance that get hot. Check that the flexible hose stretches out normally, without twisting or pulling (Fig. 7).



D. Lid

Handle the lid carefully, especially when the grill is on. Do not lean over the fire box or cooking surface as this area can get very hot.



E. Checking for gas leaks

Important: Never use a flame to detect a gas leak; use a gas leak detecting fluid.

  1. In the event of a leak (smell of gas before opening the valve), immediately take the appliance outside to a wellventilated area with no combustion source to locate and stop the leak. Even if you just wish to check the sealing of your appliance, always do so outside.
  2. Keep away from flammable materials; no smoking near the appliance.
  3. Make sure the control knob is in the “OFF” position (O) (Fig. 12).
  4. Fit the regulator on the gas cartridge (see section B).
  5. Use a gas leak solution to test for leaks.
  6. Apply the solution to the connections between cartridge/ regulator/ hose / appliance (Fig. 10).
  7. Open the regulator valve (1) by turning counterclockwise from – to + (Fig. 8) (The control knob should remain in the “OFF” (O) position). Bubbles in the gas leak solution indicate if there is a gas leak.
  8. Close the valve at the gas cartridge.
  9. The grill must not be used until all leaks have been eliminated.
  10. Disconnect the regulator from cartridge and contact the local after sales service for assistance.

Important:Check for leaks at least once per year and each time the gas cartridge is replaced.



F. prior to use

Never use the appliance until the instructions have been read carefully and understood. Additionally, ensure that:

  • There are no leaks.
  • Make sure the burner tube is not obstructed (by spider webs, etc.).
  • The hose does not touch any components which may get hot (Fig. 7).
  • The ventilation openings in the cylinder storing compartment (if present) are not obstructed.
  • Make sure the grease evacuation tray fits correctly and that it is inserted as far as it will go (Fig. 1).

Put the cooking grids in place correctly (Fig. 2).



G. Lighting the barbecue burners

Never light the appliance with the lid closed, only with the lid opened.

  1. Open the cooking lid.
  2. Make sure the control knob is in the “OFF” position (O) (Fig. 12).
  3. Press the control knob and then turn it counterclockwise to the full flow position ( ) (Fig. 11) .
  4. Wait 2 to 3 seconds and push the piezo switch ( ) several times(Fig. 11).
  5. If the piezo ignition doesn’t work, ignite the grill manually (see below).



H. Lighting the barbecue manually

  1. Open the cooking lid and remove the grates.
  2. Make sure the control knob is in the “OFF” position (O).
  3. Light a match and hold it up to the burner.
  4. Push the control knob and turn it counterclockwise until it is in the full flow position ( ) (Fig. 11).
  5. Put the grids back in place



I. Extinguishing the barbecue

Turn the control knobs back in the “OFF” position (O) (Fig. 12) and close the gas cartridge valve (Fig. 8).



J. REMOVING OR CHANGING THE CAMPINGAZ® CV 470 PLUS CARTRIDGE

The cartridge may be removed even if it is not empty.Replace the cartridge outside and away from other people.

  • Wait for the barbecue to cool down.
  • Make sure the barbecue valve is completely closed by turning the control knob clockwise as far as it will go (Fig. 12).
  • Detach the regulator (2) from the cartridge by unscrewing the regulator, then lift it up (Fig.4B).
  • Push the regulator (2) onto a new cartridge and screw it tight until you hear a click (approximately one-sixth of a turn) (Fig. 4A). Do not force the cartridge to turn further than this or you may risk damaging the Easy Clic® Plus System.



K. Operation

It is recommended that protective gloves be worn to handle components which may be very hot.

When in use for the first time, heat up the barbecue with its burners in full flow position ( ) (with the lid closed), for approximately 30 minutes in order to eliminate any odors resulting from the paint on the new parts.

It is good practice to pre-heat your grill for a few minutes (10-15min) before you start placing food on it. Similarly, to when you cook in a pan or in an oven, it helps you to reach an appropriate grilling temperature and prevents food from sticking, ensuring a crisp, brown crust. To reduce the risk of food sticking to grates further, you can lightly brush cooking oil on the grids, prior to use.

Cooking speed can be regulated by the control knob position: from full flow position ( ) to reduced flow position ( ). In order to reduce the amount of possible flare ups while grilling, remove any excess grease or fat from the meat prior to placing it on the grates.

If grease does catch fire during cooking, it may be necessary to reduce the flow by moving the control knob to the ( ) position. Clean the barbecue after each use to prevent grease build up and reduce the risk of inflammation.

Important: If the burner turns off while using the appliance, immediately turn the control knob to the “OFF” position (O). Wait five minutes to allow the unburned gas to escape. Only repeat the ignition steps after this time.

Your appliance works with a CV470+ gas cartridge containing 80% liquid butane. The vaporization of this liquid, which is necessary to power the burner, depends on the outdoor temperature and the quantity of liquid inside the cartridge. In conditions of low outdoor temperature, the vaporization is limited and the operation of the burner may be affected. Avoid using your appliance at an outdoor temperature below 15°C. In this case, use the appliance with a full cartridge.



L. Cleaning and maintenance

Never modify the appliance: any modification may prove dangerous.

  • In order to maintain your appliance in perfect working condition, it is recommended that you clean it after each use.
  • Wait until the appliance has cooled down before cleaning.
  • Close the gas cartridge and remove the regulator. Burner:
  • Clean the burner using a damp sponge (soaked in water and dishwashing soap).
  • Make sure all burner openings are unclogged and dry before using the burner again. If necessary, unclog the burner using a wire brush.
  • If necessary, clean the burner openings.

NOTE: Regular cleaning extends the lifetime of the burner and prevents premature oxidation that may result from cooking acid residue. Oxidation of the grill burner is, however, normal.

Control panel:Clean the control panel from time to time using a damp sponge and a little dishwashing liquid.. Do not use abrasive products.

Firebox:Clean the bottom of the grill after each use with a damp sponge.

Grease evacuation tray:Your barbecue is equipped with a grease evacuation tray (Fig.

  1. It is recommendable to clean it after each use.

To facilitate cleaning, some sand can be placed at the bottom of the grease evacuation tray to absorb the cooking grease. Discard the sand after each use.

Cooking grates:The cooking grates are enamelled.

Wait for them to cool before any cleaning operation. Campingaz® recommends using the Campingaz® BBQ Cleaner Spray and appropriate barbecue brushes for cleaning. You may clean your grates in the dishwasher. Before putting them into the dishwasher, it is often necessary to scrape them with a sponge or a metallic brush to remove residue that may stick to the cooking surface.

To remove the grates, slide a finger into the holes indicated (Fig. 3), lift and hold up with the other hand.

To keep your barbecue looking new, we recommend you cover it with a Campingaz® protective cover available as an accessory.

Important: Wait for the barbecue to cool down completely before putting on its protective cover.



M. storage

  • Close the gas cartridge valve after use.
  • If you store your barbecue indoors, disconnect the gas cartridge and store the cartridge outdoors.
  • If you store your barbecue outdoors, it is recommended that a protective cover be used.
  • When not used for a long period of time, it is recommended that the barbecue be stored in a dry, sheltered place (e.g.: garage).
  • Environment conducive to corrosion: particular care must be taken with the product if used by the sea; it must not be stored outside without protection, and must be kept sheltered in a dry environment.



N. Accessories

ADG (Campingaz) advises that its gas barbecues should systematically be used with accessories and replacement parts from Campingaz®. ADG (Campingaz) accepts no responsibility for any damage or malfunction due to the use of accessories and/or replacement parts from other brands.



O. Protecting the environment

Think about protecting the environment! Your equipment contains materials which can be recovered or recycled. Hand them in to the waste collection service in your municipality and sort the packing materials



P. Troubleshooting
