Carrera Crosscity-E Rear Motor Drive System Instruction Manual

Carrera Crosscity-ERear Motor Drive SystemOwner’s Manual

Safety information

WARNINGThere is an increased risk of injury – evenfatal – if you do not follow instructions.

•  Please ensure that all carrier screws are fastened before riding；
•  Please note that the maximum load on the carrier is 25 kg, cargo weight must not exceed 25 kg；
•  Please do not replace or modify the carrier；
•  To prevent an accident，please check and replace the screws of carrier periodically；
•  When fitting loads on the carrier, please ensure that the bike is balanced to avoid accidents；
• Do not carry children on the luggage carrier；
•  Please note that the carrier is not designed to pull a trailer;
•  Please note that the bicycle may have different performance (especially the steering and braking) when the carrier is loaded;
• Do not remove the reflectors;
•  The tightening torque of the screws between the carrier and the frame should be 14N.M;
• Please note that carrier is not designed for the attachment of a child seat;
•  Please ensure that all the luggage on the carrier is securely fixed and there are no loose straps that could get caught in the wheels;
•  Please distribute loads evenly on the carrier.

Riding the E-Bike

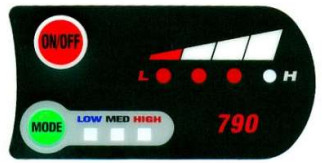

Note:If the battery is not used for 24 hours or longer, it will automatically go into sleep mode. Press the power button on the battery for three secondsThe handlebar display goes through a self-check routine, where all LEDs flash. The number of permanently lit red LEDs indicates the state of charge of the battery. The MODE defaults to ‘LOW’.

Product characteristics

Product specification

Operating temperature range during discharge	-20°C to 60°C
Operating temperature range during charge	0°C to 45°C
Storage temperature (battery)	-20°C to 45°C
Humidity (storage)	up to 80%
Charging voltage	100V to 240VAC
Charging time	approx. 6 hours
Battery type	Lithium-ion battery
Capacity	313Wh
Nominal voltage	36VDC
Motor type	Rear-wheel drive
Motor type	Brushless DC Motor
Nominal motor power	250W
Maximum motor power	400W
Torque	32Nm

Display

Battery

Important!Your bike is supplied with two battery lock keys; please keep the spare key safely. We can order you a replacement if you can provide the key number.Please note your key number here

•  If the E-Bike is not in use, remove the battery and store it at a temperature between 0°C and 40°C in a dry environment.
•  Do not store the battery with low capacity for a longer period.
• For storage, the battery should have a capacity of at least 40%.
•  It is recommended to discharge the battery completely and then fully recharge it.

Battery charger

WARNING

•  Use only batteries and chargers from HALFORDS with your bike. The use of other battery packs could cause injury and involve the risk of fire. If you use other battery packs, it will invalidate your warranty
•  The battery must not be exposed to direct sunlight, or charged or stored at high temperatures.
• Avoid contact with metal objects (paper clips, coins, keys, nails, screws, or other small metal objects) as these may cause a short- circuit. Short circuits caused in this way will invalidate any warranty claims.
•  Do not open the battery pack. This could cause a short circuit.
• Opening the battery package will invalidate any warranty claims.
•  Do not connect, or disconnect the battery pack/charger with wet hands.
•  Keep the battery/charger out of reach of children and animals.

Charging the battery

The charger LED changes from red to green when the battery is fully charged

WARNING

•  Do not subject the battery or the charger to physical shocks, e.g., by dropping. Rinse in the event of accidental contact with water. If fluid gets in your eyes, seek medical advice. The fluid that leaks from the battery pack may cause skin irritation or burns.
• Do not bend the cable. The cable must not be coiled up while charging.
•  The charger can get warm. Do not wrap or cover the charger or place it on soft floor coverings such as carpets, etc.
• If the battery is not fully charged after six hours, disconnect it immediately from the mains to stop the charging process and contact your place of purchase. This can lead to overheating, bursting, or ignition of the battery.

Note – If you store your e-bike in an unheated shed or garage, low temperatures in winter can affect charging efficiency and the range during discharge.For best charging performance, remove the battery from the bike and bring it indoors to charge. Once charged the electrochemical reactions inside the battery will also be more efficient with the battery at room temperature, so fitting the battery at room temperature will improve the range of the e-bike.

Battery power remaining indication

Press the ‘Power’ button for 2 seconds; the LED will indicate the amount of charge remaining in the battery

Remaining total capacity
	< 20%
	20% & <40%
	>40% & <60%
	>80%

Fitting the battery

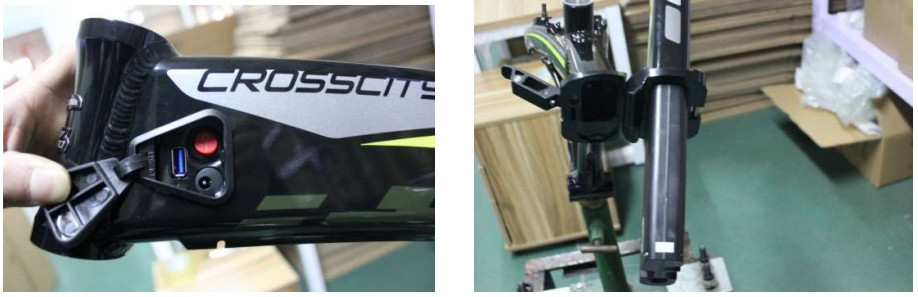

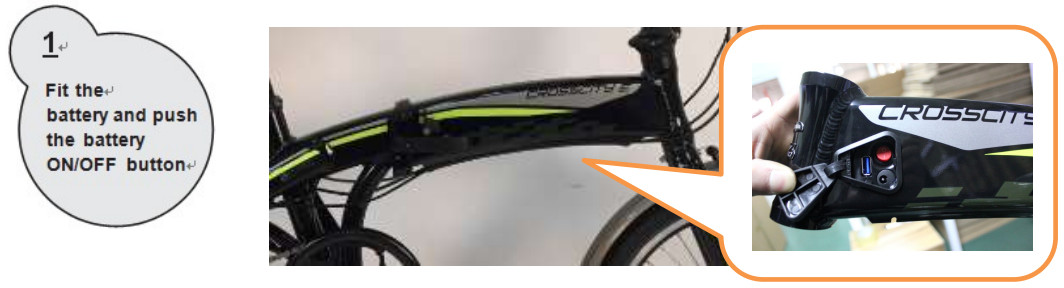

1.  Push the battery into the end of the frame with the charging port on the left side
2. Turn the key 180°

Removing the battery

Unlock with the key & slide out the battery

Assistance levels and speed

Range

Factors that affect the range

The above figures are based on a speed of 20 km/h on a level road at 15°C–20°C. The range is influenced by many factors:

•  Weight of the rider
•  Weight of the luggage
•  Selection of path
•  Experience and the concentration of the rider
•  State of maintenance of the E-Bike
•  Type, condition, and air pressure in the tires
• Nature of the route
•  Speed, average speed and changes in speed
•  Traffic flow, for example, stop and go
•  Wind direction and wind speed



Battery contact protection

When the Cross city-e is folded there are two-bladed battery contacts exposed at the front of the rear section of the main frame tube.

Stored inside the central frame folding catch is a plastic battery contact protector.

When the bike is folded always slide this protector over the two-bladed contacts.This will prevent the contact blades from getting bent by accidental pressure during transport or storage.

Removing the rear wheel (to repair a puncture)

•  Unplug the two parts of the cable connector.You will need to ‘wiggle’ these parts to overcome the grip of the waterproof seal of this connector.

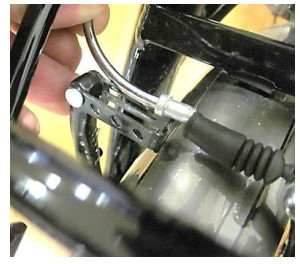

•  Release the two ‘arms’ of the rear V brake by pulling on the rear brake cable ‘noodle’ & releasing it from the ‘cage’ on the top of the arm

•  Remove the rubber caps from both rear-wheel nuts & loosen the nuts (19 mm spanner). You may need to remove the nuts to release the wheel.



• Having repaired the puncture, refit the rear wheel. Take care to ensure the motor cable is pointing directly downwards to align the anti-rotation toothed washers on the wheel axle with the dropout slots.
•  Firmly tighten both wheel nuts to 40 +/-5 Nm
•  Push the two parts of the motor cable connector together, making sure that the molded arrows are aligned
•  Replace the rubber wheel nut caps & clip the motor cable back under the chainstay.
•  Reconnect the rear V brake.

EC Declaration of Conformity

The equipment which accompanies this declaration is in conformity with the following EU Directives:-83/37/EC Machinery Directive2006/95/EC Low Voltage Directive2004/108/EEC Electromagnetic Compatibility Directive2001/95/EC General Product Safety Directive2012/19/EU Waste Electrical and Electronic Equipment Directive2006/66/EC Batteries Directive

Manufacturer:- TIANJIN FUJI-TA BICYCLE CO., LTD. Dongjin Road, Junliangcheng Town, Dongli District, Tianjin, China

Represented in the EU by:- Halfords Plc, Redditch, B98 0DE.A copy of the Technical file for this equipment is available from:- the EU address above.

Description of EquipmentBattle E-Bike Halfords Carrera Crosscity 250 W Rear Motor Drive System, 8.7Ah Li-Ion Battery & Battery Charger

The following harmonized standards have been used:-EN 15194:2009 + A1:2011 Cycles – Electrically power-assisted cycles –EPAC BicyclesEN ISO 4210-2:2014 Safety requirements for bicycles. Requirements for city and trekking, young adult, mountain and racing bicycles

Other key standards used:-UN/DOT 38.3 UN Manual of Tests and Criteria Transportation Testing of Lithium Batteries.

Authorized signatures of manufacturer and EU representative

Manufacturer	EU representative
Signature:
Name of signatory:	Bill Lee	Chris Hall
Position in company:	QC Manager	Head of Quality
Place and Date:	Tianjin China Dec 2016	Redditch UK Dec 2016

Halford’s e-bike specific warranty conditions

Your Carrera Crosscity e-bike is guaranteed against manufacturing defects arising from faulty workmanship or materials for 2 years from the original date of sale.

Providing that the cycle:

•  Has been properly cared for, regularly serviced, and maintained.
•  Has not been ridden as part of commercial use (e.g. hire, courier or delivery service, etc.).
• Has only been fitted with parts recommended by Halfords.
•  Has not been modified or altered in any way, in particular no modifications to the motor
• Has not been damaged by accident or misuse.

Any failure caused by normal wear and tear or a lack of servicing and maintenance is excluded.Under the terms of this guarantee, Halfords will bear the cost of the replacement parts and labor to carry out the repair.Important: This guarantee applies only to cycles used under normal riding conditions.This guarantee does not affect your statutory rights.Battery pack specific warranty conditionsThe battery pack is guaranteed over the warranty period to provide a minimum of 500 charging cycles and to hold at least 60% of its nominal battery capacity.This is dependent upon the correct use, regular re-charging, correct preparation for storage and storage (as detailed in the HALFORDS Owner’s Manual).Halfords will be able to confirm the exact number of charge cycles and whether the battery has been correctly charged/stored from the information that is recorded in the battery pack monitoring and control electronic circuit.

Information on Waste Disposal for Consumers of Electrical & Electronic EquipmentThis mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment (WEEE).Any WEEE marked waste products must not be mixed with general household waste, but kept separate for the treatment, recovery, and recycling of the materials used.For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.If all consumers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.

Please recycle your spent batteries.

Batteries should not be disposed of in unsorted municipal waste, but separately collected to facilitate the correct treatment and recycling of the substances they contain. The recycling of batteries ensures the recovery of these valuable materials and prevents any potentially harmful effects upon both the environment and human health.Please contribute to battery recycling by segregating all spent batteries and actively participating in their collection and recycling. Various battery collection schemes will be in operation in different areas of the country. However, battery collection bins will be available at retail stores that sell batteries as well as at schools, libraries, and other public buildings.
