castle COPPERHEAD10 Scale RC Hobby Vehicles Weighing Up to 7.5lbs User Guide

COPPERHEAD10 Scale RC Hobby Vehicles Weighing Up to 7.5lbs

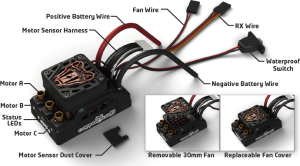

ABOUT THE COPPERHEAD 10

ABOUT THE COPPERHEAD 10

Motors

Please note that while the Copperhead 10 is capable of handling significant power, your motor must also be up for the task. Always run your motor within  the manufacturer’s specs. Monitor motor, battery, and controller temps carefully and never let the motor get above 100° C (212° F). Excessive heat in the motor can damage the motor, the Copperhead 10, and the batteries.

Gearing

Always start with stock gearing. If you wish to change the gearing, motor, or battery, check your motor temperature often on the first run. If the motor gets too hot, increase the spur size, reduce the pinion size, or reduce the pack voltage.

Programming

The Copperhead 10 is programmable via transmitter (see Driver’s Ed Guide) or  settings may be programmed via computer with a Castle Link USB adapter (coupon  for free adapter included in package). Program with a mobile device using a Castle  B•Link Bluetooth® Adapter (sold separately) or using a Castle Field Link Portable  Programmer (sold separately). See the Drivers’ Ed Guide for more instructions  on transmitter programming and the Castle Link system (“Tuning with Castle  Link” and “Transmitter Programming”).

Data Log Lite

The Copperhead 10 features Data Log Lite. You will be able to measure and record  important power system information during your race, turn-by-turn. After your  run, you can download and analyze this log using Castle Link. You will be able to  inspect many parameters including battery voltage, motor RPM, ESC temperature  and more. Data Log Lite maximizes use of memory space by providing access to  the most important data available. Additional information about using the data  logging features can be found in the Driver’s Ed Guide (“Data Logging”).

COPPERHEAD 10 SPECIFICATIONS

Application Guidelines

1/10th scale RC Hobby vehicles weighing up to 7.5lbs.

Input Voltage Range

Min: 2S LiPo, Max: 4S LiPo, 16.8V (Do not use 4S LiHV)

BEC Specifications

Selectable, 5.5V or 7.5V (6A peak), default 5.5V.

Sensors

Yes, with pre-installed Motor Sensor Harness (dust cover  included in package).

Product Use Statement
  • Applying voltages higher than 16.8V will cause irreparable  damage to your controller.
  • The Copperhead 10 is a high-performance controller; you must  use high-discharge cells in your high-performance application  to ensure vehicle performance (see Driver’s Ed Guide, “A Word  About Batteries”).
  • The Copperhead 10 requires the use of connectors designed for  50+ amps continuous. Ex. Castle 4.0mm Polarized Connectors  (Driver’s Ed Guide, “Connectors and Power Wiring”).
  • The Copperhead 10 is not intended for human or animal  propulsion.
  • Failure to adhere to the Product Use Statement constitutes  a violation of the warranty agreement, and will result in non warranty service fees to repair or replace damaged products.

Please note that while the Copperhead 10 is capable of handling significant power, your motor must also be up for the task. Always run your motor within the manufacturer’s specs. Monitor motor, battery, and controller temps carefully and never let the motor get above 100° C (212° F). Excessive heat in the motor can damage the motor, the Copperhead 10, and the batteries.Always start with stock gearing. If you wish to change the gearing, motor, or battery, check your motor temperature often on the first run. If the motor gets too hot, increase the spur size, reduce the pinion size, or reduce the pack voltage.The Copperhead 10 is programmable via transmitter (see Driver’s Ed Guide) or settings may be programmed via computer with a Castle Link USB adapter (coupon for free adapter included in package). Program with a mobile device using a Castle B·Link Bluetooth® Adapter (sold separately) or using a Castle Field Link Portable Programmer (sold separately). See the Drivers’ Ed Guide for more instructions on transmitter programming and the Castle Link system (“Tuning with Castle Link” and “Transmitter Programming”).The Copperhead 10 features Data Log Lite. You will be able to measure and record important power system information during your race, turn-by-turn. After your run, you can download and analyze this log using Castle Link. You will be able to inspect many parameters including battery voltage, motor RPM, ESC temperature and more. Data Log Lite maximizes use of memory space by providing access to the most important data available. Additional information about using the data logging features can be found in the Driver’s Ed Guide (“Data Logging”).

Data Log Lite

Revised 02/2021

540 North Rogers Road, Olathe, KS 66062 (913) 390-6939 (ext. #1 Support, #2 Service)Product Support: castlecreations.com/contact-support Service: castlecreations.com/contact-service Website: www.castlecreations.comCopyright 2021 © Castle Creations

P/N:095-0412-00

GETTING STARTED

  1. Solder a high quality battery connector to the ESC (see Driver’s Ed Guide “Connectors and Power Wiring” ).
  2. Mount the ESC and motor into the vehicle.
  3. Connect motor to the ESC (see Driver’s Ed Guide, “Motor Wiring” ).
  4. Install the sensor dust cover or connect the motor sensor harness and wire (necessary to retain the RX wire).
  5. Plug in the RX wire into throttle (#2) and fan wire into auxiliary (#3/#4).
  6. Calibrate your ESC to your radio. (See below).YOU ARE NOW READY TO GO!

THROTTLE CALIBRATION

  1. Radio on, battery plugged in, ESC off.
  2. Hold full throttle, turn ESC on (green LED).
  3. When red LED flashes, go to full reverse.
  4. When yellow LED flashes, go to neutral.
  5. Armed and ready!

DRIVER’S ED GUIDE

For more detailed information regarding Getting Started, Throttle Calibration, using Castle Link, or Transmitter Programming, please read the Driver’s Ed Guide by visiting: www.castlecreations.com/CH10DEG Or scan this QR code with your smart device to open the link.

TRANSMITTER PROGRAMMING REFERENCE

1. Brake/Reverse Type· With Reverse*· Without Reverse· Crawler Reverse2. Voltage Cutoff· Auto-Lipo*· None3. Brake Amount· 25%· 50%*· 75%· 100%4. Drag Brake· Disabled*· 10%· 20%· 30%· Crawler Full On5. Motor Type· Brushless*· Brushed Reversing6. Motor Direction· Normal*· Reversing*Default Setting

AUDIBLE ALERT REFERENCE

• •

Start Fail

• –

Low Voltage Cutoff

• • •

Sensors Lost

• • –

Radio Glitch

• – •

Over-Temperature

– • –

BEC Over-Temperature

• • • •

Data Log Full Warning

– – •

Motor Over-Temperature
report this ad

NOTE: Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit. Fan is not water resistant. Remove the fan from the ESC before exposure to liquids.
