cellularline PBSTYLE20000K Power Bank Shade 20000 Portable Battery Charger User Guide

cellularline PBSTYLE20000K Power Bank
Shade 20000 Portable Battery
Charger User Guide

Package includes:

FREEPMANTAHD USB-C charging cable USB-C to USB-C charging cable Instruction manual

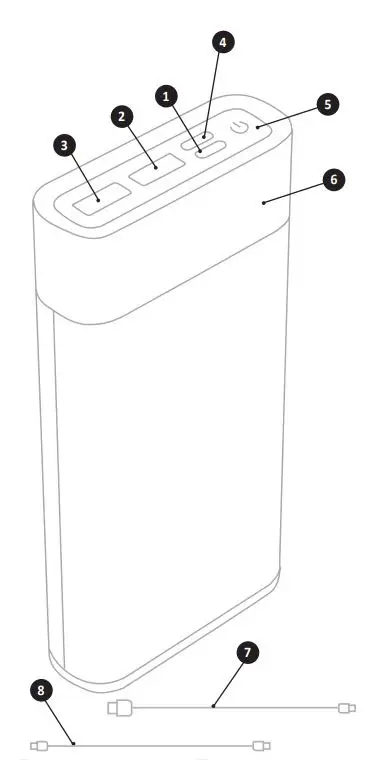

Product description:

  1. USB-C port
  2. USB port
  3. USB port
  4. Micro-USB port
  5. Power ON Button
  6. Display
  7. USB-C charging cable
  8. USB-C to USB-C charging cable



FREEPMANTA HD is charged using the USB-C mains battery charger or with the USB-C charging cable supplied (7), inserting the connector into the USB-C port (1). FREEPMANTA HD can be charged using a mains battery charger with Micro-USB port by connecting it to the Micro-USB port (4). Use a charger with a 5 V-2 A output, such as the chargers provided with most next-gen smartphones, or use a Cellularline Fast Charge USB charger. The charge level is shown on the display (6). Charging is finished when the display reads 100%; the last portion, from 99% to 100%, is performed more slowly to protect and prolong the life of the power bank’s battery. If necessary, FREEPMANTA HD can be used at 99% charge without encountering any limitations in the number of charges that can be performed on the phone.


FREEPMANTAHD recognises and adapts to the type of charging required by the device to be charged. To use the FREEPMANTA HD quick charging function, it is necessary to charge one device at a time. When charging multiple devices at the same time, FREEPMANTA HD will operate in standard mode. To charge a device with a Lightning, Dock or Micro-USB connector, use a compatible cable or the cable supplied with your device. To charge a device with a USB-C port, use the cable supplied with your device. Connect the cable to the USB port (2-3) on the FREEPMANTA HD and insert the connector into the power port on the device you wish to charge. The charge level will be shown on the display. To stop charging, disconnect the cable from your device.


Press the Power On button (5) to display the amount of residual charge on the display (6).


When charging FREEPMANTA HD and your device, FREEPMANTA HD will charge more slowly in order to give priority to the phone charging. FREEPMANTA HD will complete its charging after the phone is charged.


Battery capacity: 20000mAh 74WhMicro-USB input: DC 5V, 2AUSB-C input: DC 5V, 3A – DC 9V, 2AUSB output: DC 5V, 3A ­ DC 9V, 2A ­ DC 12V, 1.5AUSB output: DC 5V, 3A ­ DC 9V, 2A ­ DC 12V, 1.5AUSB-C output: DC 5V, 3A ­ DC 9V, 2A ­ DC 12V, 1.5A TOTAL OUTPUT (USB + USB-C): DC 5V, 3ADimensions: 145 × 67 × 23.5mm (L×W×H) Weight: 373g

This product carries the CE mark in compliance with the provisions of EU directives on electromagnetic compatibility (2014/30/EU), low voltage (2014/35/ EU), and RoHS (2011/65/EU) updated by 2015/863/EU.

INFORMATION ON THE STATUTORY WARRANTYOur products are covered by a statutory warranty against conformity defects in accordance with applicable national consumer protection laws.

For more information, please see the following page www.cellularline.com/it-it/garanzia-legale

INSTRUCTIONS FOR THE DISPOSAL OF DEVICES FOR DOMESTIC USE (Applicable in countries in the European Union and those with separate waste collection systems) This mark on the product or documentation indicates that this product must not be disposed of with other household waste at the end of its life. To avoid any damage to health or the environment due to improper disposal of waste, the user must separate this product from other types of waste and recycle it in a responsible manner to promote the sustainable re-use of the material resources. Domestic users should contact the dealer where they purchased the product or the local government office for all information regarding separate waste collection and recycling for this type of product. Corporate users should contact the supplier and verify the terms and conditions in the purchase contract. This product must not be disposed of along with other commercial waste. This product has a battery than cannot be replaced by the user. Do not attempt to open the device to remove the battery as this could cause malfunctions and seriously damage the product. When disposing of the product, please contact the local waste disposal authority to remove the battery. The battery inside the device was designed to be able to be used during the entire life cycle of the product. For more information, visit the website http://www.cellularline.com

Use the battery charger only as instructed in the packaging. Only charge using suitable battery chargers. Do not connect to damaged or unsafe power outlets. If the product is not used for long periods of time it must be recharged (at least once every 3 months). Protect the product from dirt, humidity, overheating and use only in dry environments, avoiding all contact with liquids.

Do not expose to the sun, high temperatures or flames. If the cable is dropped, ensure it is not damaged before using it again. Keep far from the reach of children. Do not twist or crush the cable. Never tug on the cable, but rather pull on the plug to extract the connectors.

Do not use if the cable or connectors are torn or damaged. A possible swelling of the battery is not hazardous, but is a sign that the product is at the end of its life cycle.

Do not continue to use it and dispose of it in compliance with local laws. Replacement of a battery with an incorrect type that can defeat a safeguard( for example, in the case of some lithium battery types). Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion. Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas. A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
