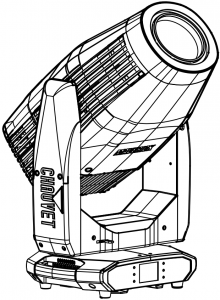

CHAUVET Professional Maverick Silens 2 Profile
About This Guide
The Maverick Silens 2 Profile Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.
Safety Notes
These Safety Notes include important information about installation, use, and maintenance.
- Do not supply power to fixture until you have removed internal packing foam. Remove head cover, carefully remove internal packing foam and replace cover.
- DO NOT open this product. It contains no user-serviceable parts.
- DO NOT look at the light source when the product is on.
- CAUTION: Flashing light is known to trigger epileptic seizures. User must comply with local laws regarding notification of strobe use.
- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
- CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm, humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
- CAUTION: This product’s housing may be hot when lights are operating.
- Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
- DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
- USE a safety cable when mounting this product overhead.
- DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it. (IP20)
- DO NOT operate this product if the housing, lenses, or cables appear damaged.
- DO NOT connect this product to a dimmer or rheostat.
- ONLY connect this product to a grounded and protected circuit.
- ONLY use the hanging/mounting bracket or the handles to carry this product.
- The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 3.5 m is not expected.
- If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
- The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
- The luminaire is intended for professional use only.
- The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
- In the event of a serious operating problem, stop using immediately.
What is Included
- Maverick Silens 2 Profile
- Seetronic Powerkon IP65 power cord
- Gel frame holder and gel frame
- 2 spare gobo holders
- 2 Omega brackets with mounting hardware
- Quick Reference Guide
CAUTION: Do not supply power to fixture until you have removed internal packing foam. Remove head cover, carefully remove internal packing foam and replace cover.
AC PowerThis product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.
Power linkingIt is possible to link up to 2 Maverick Silens 2 Profile products at 100/120 V, 4 products at 208 V, or 4 products at 230/240 V. Never exceed this number. Power-linking cords can be purchased separately from Chauvet.
AC plug
|
Connection |
Wire (U.S.) | Wire (Europe) | Screw Color |
| AC Live | Black | Brown |
Yellow/Brass |
|
AC Neutral |
White | Blue | Silver |
| AC Ground | Green/Yellow | Green/Yellow |
Green |
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
Replacing the fuse
- Disconnect the product from power.
- Using a flathead screwdriver, unscrew the fuse holder cap from the housing.
- Remove blown fuse and replace with a good fuse of the same type and rating.
- Screw the fuse holder cap back in place and reconnect power.
DMX LinkingThe Maverick Silens 2 Profile will work with a DMX controller using a 3- or 5 pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.
DMX connectionThe Maverick Silens 2 Profile uses a 3- or 5-pin DMX data connection for its DMX personalities: 32Ch and 41Ch. See the User Manual for information about connecting and configuring the product for DMX operation.
RDM (Remote Device Management)Remote Device Management, or RDM, is a standard for allowing DMX enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller’s User Manual or with the manufacturer, as not all DMX controllers have this capability. The Maverick Silens 2 Profile supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.
Signal ConnectionThe Maverick Silens 2 Profile can link to controller software using an Ethernet connection. If using other Art-Net™ or sACN -compatible products with the Maverick Silens 2 Profile, you can control each individually on a single network. See the User Manual for information about how to connect and configure the product for these signals.
Art-Net™ connectionArt-Net™ is an Ethernet protocol that uses TCP/IP, which transfers a large amount of DMX512 data using a Neutrik® etherCON® RJ45 connection over a large network. An Art-Net™ protocol document is available from www.chauvetprofessional.com. Chauvet Professional recommends using unicast Art-Net™ for best results.Art-Net™ designed by and copyright Artistic License Holdings Ltd.
sACN connectionStreaming-ACN, also known as ANSI E1.31, is an Ethernet protocol that uses the layering and formatting of Architecture for Control Networks to transport DMX512 data over IP or any other ACN compatible network.
Wireless OperationIn optimal conditions, the Maverick Silens 2 Profile can operate up to 300 m (900 ft) away from the CRMX transmitter.The CRMX receiver in the Maverick Silens 2 Profile must be paired with the CRMX transmitter for wireless operation. Download the User Manual from www.chauvetprofessional.com for more details.
USB Software Update
The Maverick Silens 2 Profile allows for software update through USB using the built-in USB port. To update the software using USB flash drive, do the following:
- Power on the fixture and plug the flash drive into the USB port.
- Once the flash drive has been detected, the message “Upgrade Firmware” will be displayed. Press ENTER. If a different message appears on the display, search for the updated software in the Menu (Updated Firmware). A list of the updated software files will be displayed.
- Select the file that needs to be uploaded. The message “Are you sure?” will be displayed. Press ENTER.
- If the selected file is correct, the upgrade will be completed. Restart the fixture. If the selected file is incorrect, the upgrade will fail, and the display will go back to the main interface. Repeat steps 1-3 using the correct file.
The .chl format file needs to be placed in the MAVERICK folder in the USB flash drive.
Mounting
Before mounting this product, read the Safety Notes. Use at least two mounting points per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go tohttp://trusst.com/productcategory/truss-clamps/.
Mounting diagram
Battery-powered Display
Press and hold until menu screen appears (approximately 15 seconds). Pressing the left center button also activates the battery backup display.
Followspot Mode
The followspot mode disables the pan and tilt motors, allowing the output of the product to be aimed by hand. To enable the followspot mode of the Maverick Silens 2 Profile, hold<UP> and <LEFT> while the product is powering on. When the product is turned off and back on, the pan and tilt will return to normal function.
Control Panel Description
| Button | Name | Function |
 |
<UP> | Navigates upwards through the menu list or increases the numeric value when in a function |
 |
<MENU> | Exits from the current menu or function |
 |
<DOWN> | Navigates downwards through the menu list or decreases the numeric value when in a function |
 |
<LEFT> | Navigates leftwards through the menu list |
 |
<ENTER> | Enables the currently displayed menu or sets the currently selected value into the selected function |
 |
<RIGHT> | Navigates rightwards through the menu list |
Refer to the Maverick Silens 2 Profile product page on www.chauvetprofessional.com for the latest menu map.
| Main Level | Programming Levels | Description | ||
| Address | 001–512 | Sets the starting address | ||
|
Network Setup |
IP Mode |
Manual | Manually set IP address | |
| DHCP | Network sets IP address | |||
| Static | Product sets IP address | |||
| Universe | 000–255 (Art-Net™)
001–256 (sACN) |
Sets the universe | ||
| IP | 002._ _ _._ _ _._ _ _ | Sets the IP address in Manual mode | ||
| SubMask | _ _ _._ _ _._ _ _._ _ _ | Sets the Subnet Mask in Manual mode | ||
| Personality | Dmx Mode 32CH | Selects the 32-channel mode | ||
| Dmx Mode 41CH | Selects the 41-channel mode | |||
| Settings | Control Mode | DMX | Sets the control protocol | |
| CRMX | ||||
| ArtNet | ||||
| sACN | ||||
| Absolute Silence | No | Enables/disables Absolute Silence mode | ||
| Yes | ||||
|
Steady |
Off | Disables Steady mode | ||
| Steady Mode 1 | Environment temperature 26 °C | |||
| Steady Mode 2 | Environment temperature 35 °C | |||
| Red Shift | No | Mimics halogen lamp dimming | ||
| Yes | ||||
| Pan Reverse | No | Normal pan | ||
| Yes | Reversed pan | |||
| Tilt Reverse | No | Normal tilt | ||
| Yes | Reversed tilt | |||
|
Screen Reverse |
No | Normal display | ||
| Yes | Inverted display | |||
| Auto | Automatic display orientation | |||
|
Pan Angle |
540 | 540° pan range | ||
| 360 | 360° pan range | |||
| 180 | 180° pan range | |||
| 90 | 90° pan range | |||
|
Tilt Angle |
270 | 270° tilt range | ||
| 180 | 180° tilt range | |||
| 90 | 90° tilt range | |||
| BL. O. P/T Move | No | Do not black out while panning/tilting | ||
| Yes | Blackout while panning/tilting | |||
| BL. O. Color Move | No | Do not black out while color wheel moving | ||
| Yes | Blackout while color wheel moving | |||
| BL. O. Gobo Move | No | Do not black out while gobo wheels moving | ||
| Yes | Blackout while gobo wheels moving | |||
| Touch Calibration | No | Calibration disabled | ||
| Yes | Calibration enabled | |||
| Touch Lock | No | Touchscreen enabled | ||
| Yes | Touchscreen disabled | |||
| Lock Screen | Off | Lock the buttons and touch screen Passcode: 0920 | ||
| On | ||||
| Swap XY | No | Do not swap pan and tilt | ||
| Yes | Pan controls tilt, tilt controls pan | |||
| CRMX Reset | No | Do not reset CRMX | ||
| Yes | Reset CRMX | |||
| Display Timeout | 30S | Display turns off after 30 seconds | ||
| 1M | Display turns off after 1 minute | |||
| 2M | Display turns off after 2 minutes | |||
| On | Display remains on | |||
| Loss of Data | Hold | Holds last signal received | ||
| Close | Blacks out fixture | |||
| Dimmer Curve | Linear | Set the dimmer curve | ||
| Square | ||||
| I Square | ||||
| SCurve | ||||
| Dimmer Speed | Fast | Set the dimmer speed | ||
| Smooth | ||||
| LED Frequency | 20000Hz | Sets the LED frequency | ||
| 40000Hz | ||||
|
Preset Select |
Preset A |
Recorded preset menu options |
||
| Preset B | ||||
| Preset C | ||||
| Preset Sync | No | Allows recorded preset menu options to be transferred to other Maverick Silens 2 Profile fixtures in the DMX daisy chain | ||
| Yes | ||||
| Reset | Pan/Tilt | Yes/No | Reset individual functions or all functions from start-up | |
| Iris/Prism | ||||
| Color/CMY | ||||
| Shutters | ||||
| Gobo/Gobo Rotate | ||||
| Frost | ||||
| Animation | ||||
| Zoom | ||||
| Entire Fixture | ||||
| Factory Reset | No | Reset to factory default settings | ||
| Upgrade Firmware | No such file! | USB software upgrade | ||
| xxx.EKL | ||||
| … | ||||
| Test | Auto Test | No | Auto test all functions | |
| Yes | ||||
| Manual Test | Pan | 000–255 | Manually control and test all settings through the control panel | |
| Pan Fine | ||||
| Tilt | ||||
| Tilt Fine | ||||
| P/T Speed | ||||
| Dimmer | ||||
| Dimmer Fine | ||||
| Shutter/Strobe | ||||
| Virtual Strobe | ||||
| Cyan | ||||
| Magenta | ||||
| Yellow | ||||
| CTO | ||||
| Color | ||||
| Hue Adjustment | ||||
| Red Shift | ||||
| RGobo Wheel | ||||
| Gobo Rotation | ||||
| RGobo Wheel Index Fine | ||||
| Static Gobo Wheel | ||||
| Animation Wheel | ||||
| Shutter Rotate | ||||
| Shutter 1 | ||||
| Shutter 1-1 | ||||
| Shutter 2 | ||||
| Shutter 2-1 | ||||
| Shutter 3 | ||||
| Shutter 3-1 | ||||
| Shutter 4 | ||||
| Shutter 4-1 | ||||
| Focus | ||||
| Focus Fine | ||||
| Auto Focus | ||||
| Zoom | ||||
| Zoom Fine | ||||
| Prism | ||||
| Prism Rotation | ||||
| Iris | ||||
| Frost | ||||
| Frost Fine | ||||
| Information | Fixture Information | Ver | V_ | Shows firmware version |
| DMX Address | _ _ _ | Shows current starting address | ||
| Personality | _ _ _ | Shows current personality | ||
| Temperature | _ _°C/ _ _°F | Shows current product temperature in °C and °F | ||
| Fixture Hours | _ _ _ _ _ | Shows number of hours product has been powered on | ||
| IP Address | _ _ _ _ _ _ _ _ | Shows current IP address | ||
| Subnet Mask | _ _ _ _ _ _ _ _ | Shows current Subnet Mask | ||
| MAC | _ _ _ _ _ _ _ _ | Shows current MAC address | ||
| Error Information | No Error! | Shows any errors, or No Error! | ||
| DMX Values | Pan | 000–255 | Shows current DMX value of each setting | |
| Pan Fine | ||||
| Tilt | ||||
| Tilt Fine | ||||
| P/T Speed | ||||
| Dimmer | ||||
| Dimmer Fine | ||||
| Shutter/Strobe | ||||
| Cyan | ||||
| Magenta | ||||
| Yellow | ||||
| CTO | ||||
| Color | ||||
| Hue Adjustment | ||||
| Red Shift | ||||
| Gobo 1 | ||||
| Gobo1 Rotation | ||||
| Gobo1 Rotation Fine | ||||
| DMX Values (continuation) | Static Gobo Wheel | 000–255 | Shows current DMX value of each setting |
DMX Values
41CH
| Channel | Function | Value | Percent/Setting |
| 1 | Pan | 000 ⇔ 255 | 0–100% |
| 2 | Pan fine | 000 ⇔ 255 | Fine control (16-bit) |
| 3 | Tilt | 000 ⇔ 255 | 0–100% |
| 4 | Tilt fine | 000 ⇔ 255 | Fine control (16-bit) |
| 5 | Pan/tilt speed | 000 ⇔ 255 | Fast to slow |
| 6 | Dimmer | 000 ⇔ 255 | 0–100% |
| 7 | Dimmer fine | 000 ⇔ 255 | Fine control (16-bit) |
| 8 | Shutter/Strobe | 000 ⇔ 010011 ⇔ 082083 ⇔ 093094 ⇔ 163164 ⇔ 174175 ⇔ 223224 ⇔ 255 | No function (shutter open)Shutter effect, slow to fast No function (shutter open) Pulse effect in sequences No function (shutter open) Random effect, slow to fast No function (shutter open) |
| 9 | Virtual strobe | 000 ⇔ 004005 ⇔ 010011 ⇔ 015016 ⇔ 020021 ⇔ 025026 ⇔ 030031 ⇔ 070071 ⇔ 075076 ⇔ 116117 ⇔ 121122 ⇔ 162163 ⇔ 167168 ⇔ 208209 ⇔ 255 | No functionSection 1 onSection 2 onSection 3 onSection 4 onSection 5 onStop between sections 1–5 clockwise, fast to slow StopStop between sections 1–5 counterclockwise, slow to fast StopFade between sections 1–5 clockwise, fast to slow StopFade between sections 1–5 counterclockwise, slow to fast No function |
| 10 | Cyan | 000 ⇔ 255 | 0–100% |
| 11 | Magenta | 000 ⇔ 255 | 0–100% |
| 12 | Yellow | 000 ⇔ 255 | 0–100% |
| 13 | CTO | 000 ⇔ 255 | 0–100% |
| 14 | Color wheel | 000 ⇔ 004005 ⇔ 009010 ⇔ 013014 ⇔ 018019 ⇔ 022023 ⇔ 027028 ⇔ 031032 ⇔ 187188 ⇔ 219220 ⇔ 223224 ⇔ 255 | OpenRed Orange Dark green Cyan Congo blue UVSplit colorColor scroll, fast to slow StopReverse color scroll, slow to fast |
| 15 | Hue adjustment | 000 ⇔ 127128 ⇔ 255 | -25 to 0 green0 to +25 green |
| 16 | Red shift | 000 ⇔ 010011 ⇔ 127128⇔ 255 | No functionRed shift off Red shift on |
| 17 | Rotating gobo wheel | 000 ⇔ 005006 ⇔ 010011 ⇔ 015016 ⇔ 020021 ⇔ 025026 ⇔ 030031 ⇔ 035036 ⇔ 040041 ⇔ 055056 ⇔ 070071 ⇔ 085086 ⇔ 100101 ⇔ 115116 ⇔ 130131 ⇔ 145146 ⇔ 200201 ⇔ 255 | OpenGobo 1 (Barking up a flaming river) Gobo 2 (Floyd)Gobo 3 (Sparse branches) Gobo 4 (Something linear) Gobo 5 (Super max)Gobo 6 (Windowpane) Gobo 7 (Shower glass) Gobo 1 shaking, slow to fast Gobo 2 shaking, slow to fast Gobo 3 shaking, slow to fast Gobo 4 shaking, slow to fast Gobo 5 shaking, slow to fast Gobo 6 shaking, slow to fast Gobo 7 shaking, slow to fast Gobo scroll, static to fastReverse gobo scroll, static to fast |
|
18 |
Gobo 1 rotation |
000 ⇔ 191192 ⇔ 221222 ⇔ 225226 ⇔ 255 | IndexingGobo rotation, fast to slow StopReverse gobo rotation, slow to fast |
| 19 | Gobo wheel 1indexing fine | 000 ⇔ 255 | Fine control (16-bit) |
| 20 | Static gobo wheel | 000 ⇔ 005006 ⇔ 010011 ⇔ 015016 ⇔ 020021 ⇔ 025026 ⇔ 030031 ⇔ 035036 ⇔ 040041 ⇔ 045046 ⇔ 060061 ⇔ 075076 ⇔ 090091 ⇔ 105106 ⇔ 120121 ⇔ 135136 ⇔ 150151 ⇔ 165166 ⇔ 210211 ⇔ 255 | OpenGobo 1 (Dotty)Gobo 2 (Stones)Gobo 3 (Leafiness) Gobo 4 (Busted burlap) Gobo 5 (EVH)Gobo 6 (Basketcase)Gobo 7 (CaChow) Gobo 8 (Grass vignette)Gobo 1 shaking, slow to fast Gobo 2 shaking, slow to fast Gobo 3 shaking, slow to fast Gobo 4 shaking, slow to fast Gobo 5 shaking, slow to fast Gobo 6 shaking, slow to fast Gobo 7 shaking, slow to fast Gobo 8 shaking, slow to fast Gobo scroll, static to fast Reverse gobo scroll, static to fast |
| 21 | Animation wheel | 000 ⇔ 003004 ⇔ 127128 ⇔ 131132 ⇔ 255 | Open / No functionClockwise rotation, fast to slow StopCounterclockwise rotation, slow to fast |
| 22 | Framing shutter rotation | 000 ⇔ 127128129 ⇔ 255 | Rotation, left to centerStopRotation, center to right |
| 23 | Framing shutter 1 movement | 000 ⇔ 255 | Movement, outward to inward |
| 24 | Framing shutter 1 swiveling | 000 ⇔ 127128129 ⇔ 255 | Swiveling from -25° to 0°0°Swiveling from 0° to +25° |
| 25 | Framing shutter 2 movement | 000 ⇔ 255 | Movement, outward to inward |
| 26 | Framing shutter 2 swiveling | 000 ⇔ 127128129 ⇔ 255 | Swiveling from -25° to 0°0°Swiveling from 0° to +25° |
| 27 | Framing shutter 3 movement | 000 ⇔ 255 | Movement, outward to inward |
| 28 | Framing shutter 3 swiveling | 000 ⇔ 127128129 ⇔ 255 | Swiveling from -25° to 0°0°Swiveling from 0° to +25° |
| 29 | Framing shutter 4 movement | 000 ⇔ 255 | Movement, outward to inward |
| 30 | Framing shutter 4 swiveling | 000 ⇔ 127128129 ⇔ 255 | Swiveling from -25° to 0°0°Swiveling from 0° to +25° |
| 31 | Focus | 000 ⇔ 255 | 0–100% |
| 32 | Focus fine | 000 ⇔ 255 | Fine control (16-bit) |
| 33 | Auto focus | 000
001 ⇔ 007008 ⇔ 015016 ⇔ 023024 ⇔ 031032 ⇔ 039040 ⇔ 047048 ⇔ 055056 ⇔ 063064 ⇔ 071072 ⇔ 079080 ⇔ 087088 ⇔ 095096 ⇔ 103104 ⇔ 111112 ⇔ 119120 ⇔ 127 |
Auto focus off4 m6 m8 m10 m12 m14 m16 m18 m4 m6 m8 m10 m12 m14 m16 m18 mReserved |
| 34 | Zoom | 000 ⇔ 255 | 0–100% |
| 35 | Zoom fine | 000 ⇔ 255 | Fine control (16-bit) |
| 36 | Prism | 000 ⇔ 127128 ⇔ 255 | No functionPrism effect |
| 37 | Prism rotation | 000 127128 189190 193194 255 | Prism indexingClockwise rotation, fast to slow StopCounterclockwise rotation, slow to fast |
| 38 | Iris | 000 ⇔ 192193 ⇔ 213214 ⇔ 234235 ⇔ 255 | Large to smallAuto change, slow to fast Open, slow to fastClose, slow to fast |
| 39 | Frost | 000 ⇔ 255 | 0–100% |
| 40 | Frost fine | 000 ⇔ 255 | Fine control (16-bit) |
| 41 | Control (hold for 3 seconds) | 000 ⇔ 007008 ⇔ 015016 ⇔ 023024 ⇔ 031032 ⇔ 039040 ⇔ 047048 ⇔ 055056 ⇔ 063064 ⇔ 071072 ⇔ 079080 ⇔ 087088 ⇔ 095096 ⇔ 103104 ⇔ 111112 ⇔ 119120 ⇔ 127128 ⇔ 135136 ⇔ 143144 ⇔ 151152 ⇔ 255 | No functionReset allPan & tilt resetEffects reset (prism, iris, frost)Gobo resetShutter module resetOther reset (zoom, focus reset)Color reset (CMY + CTO + color)Absolute silence offAbsolute silence onSteady offSteady mode 1 (environment temperature 26 °C)Steady mode 2 (environment temperature 35 °C)Linear dimmerSquare dimmer curveInverse square dimmer curveS-curve dimmerFast dimmer modeSmooth dimmer modeNo function |
32CH
| Channel | Function | Value | Percent/Setting |
| 1 | Pan | 000 ⇔ 255 | 0–100% |
| 2 | Pan fine | 000 ⇔ 255 | Fine control (16-bit) |
| 3 | Tilt | 000 ⇔ 255 | 0–100% |
| 4 | Tilt fine | 000 ⇔ 255 | Fine control (16-bit) |
| 5 | Dimmer | 000 ⇔ 255 | 0–100% |
| 6 | Shutter/Strobe | 000 ⇔ 010011 ⇔ 082083 ⇔ 093094 ⇔ 163164 ⇔ 174175 ⇔ 223224 ⇔ 255 | No function (shutter open)Shutter effect, slow to fast No function (shutter open) Pulse effect in sequences No function (shutter open) Random effect, slow to fast No function (shutter open) |
| 7 | Cyan | 000 ⇔ 255 | 0–100% |
| 8 | Magenta | 000 ⇔ 255 | 0–100% |
| 9 | Yellow | 000 ⇔ 255 | 0–100% |
| 10 | CTO | 000 ⇔ 255 | 0–100% |
| 11 | Color wheel | 000 ⇔ 004005 ⇔ 009010 ⇔ 013014 ⇔ 018019 ⇔ 022023 ⇔ 027028 ⇔ 031032 ⇔ 187188 ⇔ 219220 ⇔ 223224 ⇔ 255 | OpenRed Orange Dark green Cyan Congo blue UVSplit colorColor scroll, fast to slow StopReverse color scroll, slow to fast |
| 12 | Rotating gobo wheel | 000 ⇔ 005006 ⇔ 010011 ⇔ 015016 ⇔ 020021 ⇔ 025026 ⇔ 030031 ⇔ 035036 ⇔ 040041 ⇔ 055056 ⇔ 070071 ⇔ 085086 ⇔ 100101 ⇔ 115116 ⇔ 130131 ⇔ 145146 ⇔ 200201 ⇔ 255 | OpenGobo 1 (Barking up a flaming river)Gobo 2 (Floyd)Gobo 3 (Sparse branches)Gobo 4 (Something linear)Gobo 5 (Super max)Gobo 6 (Windowpane)Gobo 7 (Shower glass)Gobo 1 shaking, slow to fastGobo 2 shaking, slow to fastGobo 3 shaking, slow to fastGobo 4 shaking, slow to fastGobo 5 shaking, slow to fastGobo 6 shaking, slow to fastGobo 7 shaking, slow to fastGobo scroll, static to fastReverse gobo scroll, static to fast |
| 13 | Gobo 1 rotation | 000 ⇔ 191192 ⇔ 223224 ⇔ 255 | Gobo rotation, slow to fastStopReverse gobo rotation, slow to fast |
| 14 | Static gobo wheel | 000 ⇔ 005006 ⇔ 010011 ⇔ 015016 ⇔ 020021 ⇔ 025026 ⇔ 030031 ⇔ 035036 ⇔ 040041 ⇔ 045046 ⇔ 060061 ⇔ 075076 ⇔ 090091 ⇔ 105106 ⇔ 120121 ⇔ 135136 ⇔ 150151 ⇔ 165166 ⇔ 210211 ⇔ 255 | OpenGobo 1 (Dotty)Gobo 2 (Stones)Gobo 3 (Leafiness)Gobo 4 (Busted burlap)Gobo 5 (EVH)Gobo 6 (Basketcase)Gobo 7 (CaChow)Gobo 8 (Grass vignette)Gobo 1 shaking, slow to fastGobo 2 shaking, slow to fastGobo 3 shaking, slow to fastGobo 4 shaking, slow to fastGobo 5 shaking, slow to fastGobo 6 shaking, slow to fastGobo 7 shaking, slow to fastGobo 8 shaking, slow to fastGobo scroll, static to fastReverse gobo scroll, static to fast |
| 15 | Animation wheel | 000 ⇔ 003004 ⇔ 127128 ⇔ 131132 ⇔ 255 | Open / No functionClockwise rotation, fast to slowStopCounterclockwise rotation, slow to fast |
| 16 | Framing shutter rotation | 000 ⇔ 127128129 ⇔ 255 | Rotation, left to centerStopRotation, center to right |
| 17 | Framing shutter 1movement | 000 ⇔ 255 | Movement, outward to inward |
| 18 | Framing shutter 1 swiveling | 000 ⇔ 127128129 ⇔ 255 | Swiveling from -25° to 0°0°Swiveling from 0° to +25° |
| 19 | Framing shutter 2 movement | 000 ⇔ 255 | Movement, outward to inward |
| 20 | Framing shutter 2 swiveling | 000 ⇔ 127128129 ⇔ 255 | Swiveling from -25° to 0°0°Swiveling from 0° to +25° |
| 21 | Framing shutter 3 movement | 000 ⇔ 255 | Movement, outward to inward |
| 22 | Framing shutter 3 swiveling | 000 ⇔ 127128129 ⇔ 255 | Swiveling from -25° to 0°0°Swiveling from 0° to +25° |
| 23 | Framing shutter 4 movement | 000 ⇔ 255 | Movement, outward to inward |
| 24 | Framing shutter 4 swiveling | 000 ⇔ 127128129 ⇔ 255 | Swiveling from -25° to 0°0°Swiveling from 0° to +25° |
| 25 | Focus | 000 ⇔ 255 | 0–100% |
| 26 | Zoom | 000 ⇔ 255 | 0–100% |
| 27 | Prism | 000 ⇔ 127128 ⇔ 255 | No functionPrism effect |
| 28 | Prism rotation | 000 ⇔ 127128 ⇔ 189190 ⇔ 193194 ⇔ 255 | Prism indexingClockwise rotation, fast to slow StopCounterclockwise rotation, slow to fast |
| 29 | Iris | 000 ⇔ 192193 ⇔ 213214 ⇔ 234235 ⇔ 255 | Large to smallAuto change, slow to fast Open, slow to fastClose, slow to fast |
| 30 | Frost | 000 ⇔ 255 | 0–100% |
| 31 | Frost fine | 000 ⇔ 255 | Fine control (16-bit) |
| 32 | Control (hold for 3 seconds) | 000 ⇔ 007008 ⇔ 015016 ⇔ 023024 ⇔ 031032 ⇔ 039040 ⇔ 047048 ⇔ 055056 ⇔ 063064 ⇔ 071072 ⇔ 079080 ⇔ 087088 ⇔ 095096 ⇔ 103104 ⇔ 111112 ⇔ 119120 ⇔ 127128 ⇔ 135136 ⇔ 143144 ⇔ 151152 ⇔ 255 | No functionReset allPan & tilt resetEffects reset (prism, iris, frost) Gobo resetShutter module resetOther reset (zoom, focus reset) Color reset (CMY + CTO + color) Absolute silence offAbsolute silence on Steady offSteady mode 1 (environment temperature 26 °C) Steady mode 2 (environment temperature 35 °C) Linear dimmerSquare dimmer curve Inverse square dimmer curve S-curve dimmerFast dimmer mode Smooth dimmer mode No function |
LIMITED WARRANTY
FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
FCC Compliance
This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
RF Exposure Warning for North America, and AustraliaWarning! This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Contact
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.
References
[xyz-ips snippet=”download-snippet”]
