ClassicFlame 26EF022GRA 26 Inch Electric Fireplace Insert with Safer Plug
| ATTENTION | ||
|
IF YOU HAVE ANY PROBLEMS OR QUESTIONS, EMAIL OR CALL CUSTOMER SERVICE BEFORE YOU RETURN THIS PRODUCT TO THE STORE WHERE IT WAS PURCHASED. For Customer Service: email: [email protected]in English Call: 866-661-1218in Spanish Call: 866-661-1218in French Call: 866-374-9203 |
| CONSUMER SAFETY INFORMATION
PLEASE READ THIS MANUAL BEFORE INSTALLING AND OPERATING THIS APPLIANCE WARNING!!IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, AN ELECTRIC SHOCK OR FIRE MAY RESULT CAUSINGP ROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. |
| Thank you and congratulations on your purchase of a Twin-Star International, Inc. fireplace. Please read the Installation & Operating Instructions before using this appliance.
IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible electric shock, fire hazard and/or injury and will void the warranty. Installation of Electric Fireplace Insert, should take 15 minutes. The only tool required is a Phillips head screwdriver, not supplied with this unit. |
IMPORTANT INSTRUCTION
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons including the following:
- Read all instructions before using this appliance.
- This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this appliance. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet (0.9 m) from the front of this appliance.WARNING: In order to avoid overheating, do not cover the heater. It cannot be used in a wardrobe.
- CAUTION: Whenever the heater is left operating and unattended, extreme caution is necessary if children or invalids are nearby.
- The appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
- Children being supervised not to play with the appliance.
- If possible, always unplug this appliance when not in use.
- Do not operate any heater with a damaged cord or plug or after the appliance malfunctions, or if it has been dropped or damaged in any manner.
- If the supply cord is damages, it must be replaced by the manufacture, its service agent or similarly qualified persons in order to avoid a hazard.
- Any repairs to this fireplace should be carried out by a qualified service person.
- Under no circumstances should this fireplace be modified. Parts having to be removed for servicing must be replaced prior to operating this fireplace again.
- Do not use outdoors.
- This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate this appliance where it may fall into a bathtub or other water container.
- Do not run cord under carpeting. Do not cover cord with throw rugs, runners or the like. Arrange cord away from traffic areas and where it will not be tripped over.
- To disconnect this appliance, turn controls to the off position, then remove plug from outlet.
- Connect to properly grounded outlets only.
- This appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the current CSA C22.1 Canadian Electrical Code or for U.S.A. installations, follow local codes and the National Electrical Code, ANSI/NFPA NO.70.
- There is a thermostat limiter inside the heater. When the inner temperature over heating or occurs abnormal heating, the thermostat protective device would cut off power supply to avoid the fireplace damaged or risk of fire.
- The heaters must not be located immediately below a socket-outlet.
- Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the appliance.
- To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where opening may become blocked.
- This appliance has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint or flammable liquids are used or stored. This fireplace should not be used as a drying rack for clothing. Christmas stockings or decorations should not be hung in the area of it.
- Use this appliance only as described in the manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons.
- Avoid the use of an extension cord because the extension cord may overheat and cause risk of fire. However, if you have to use an extension cord, the cord must be No.14 AWG minimum size and rated not less than 1875 Watts. The extension cord must be a three wire cord with grounding type plug and cord connection. The extension cord shall not be more than 20 feet (6 m) in length.
- See directions in Figure 1. This heater is for use on 120 volts. The cord has a plug as shown in figure 1. See Figure 1 for grounding instruction. An adapter as shown at C is available for connecting three-blade grounding type plugs to two-slot receptacles. The green grounding plug extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box. The adapter should not be used if a three-slot grounded receptacle is available.
SAVE THESE INSTRUCTIONS
INSTALLATION INSTRUCTION
Position your completed mantel close to its final location. Make sure you can access the back of the mantel as your Electric Fireplace Insert will be installed from the back.

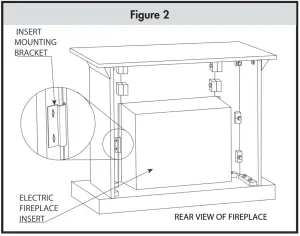

Using a Phillips head screwdriver, remove the screws and the metal mounting brackets attached on either side of the fireplaces center opening. Next unpack the Electric Fireplace Insert carefully. Position the insert behind the fireplace with front facing the wood mantel. With the help of an adult assistant, lift the Insert and gently slide it into the opening in the mantel until the flange is flush against the inside of the mantel. Make sure insert is centered left and right in the opening. Be careful when placing insert and adjusting, bottom of insert could scratch the finish of the base/hearth of your fireplace. Re-attach the mounting brackets with the Phillips head screwdriver, and supplied screws. DO NOT OVER TIGHTEN. With the help of an assistant, carefully lift completed unit and place it with the front facing out in the final location you have chosen for your fireplace.
Make sure to secure the electrical cord before lifting or moving completed fireplace. When choosing a final location, make sure you will have clear access to a grounded electrical outlet.
Read and follow all instructions in this manual before operating your new fireplace.
PARTS LIST
|
Part Name |
23EF022 | 26EF022 | 28EF022 |
33EF022 |
| Emberbed | ✓ | ✓ | ✓ |
✓ |
| Heater/Blower Assembly |
✓ |
✓ | ✓ |
✓ |
| Control Panel – 4 Buttons |
✓ |
✓ |
||
| Control Panel – 5 Buttons |
✓ |
✓ |
✓ |
|
| Main PCBA |
✓ |
✓ |
||
| Control Panel Circuit Board |
✓ |
✓ | ✓ |
✓ |
| Front Projection Screen |
✓ |
✓ | ✓ |
✓ |
| Flame Generator Drive Motor | ✓ | ✓ | ✓ |
✓ |
| Flame Generator/Spinner |
✓ |
✓ | ✓ |
✓ |
| Decorative Brick Panels |
✓ |
✓ |
✓ |
|
| Remote Control – 4 Buttons |
✓ |
✓ |
||
| Remote Control – 5 Buttons |
✓ |
✓ |
MANTEL LOCATION
When choosing a location for your new fireplace, ensure that the general instructions are followed. Also, for best effect, install the fireplace out of direct sunlight.
 |
Cold climate installation recommendation: when installing this unit against a non-insulated exterior wall or chase, it is mandatory that the outer walls be insulated to conform to applicable insulation codes. |
ELECTRICAL CONNECTION
A 15 AMP, 120 Volt, 60 Hz circuit with a properly grounded outlet is required. Preferably, the fireplace will be on a dedicated circuit as other appliances on the same circuit may cause the circuit breaker to trip or the fuse to blow when the heater is in operation. The unit comes standard with 6 feet (1.8 m) three wire cord, exiting from the rear of the fireplace. Plan the installation to avoid the use of an extension cord. If an extension cord must be used, it must be a minimum 14 AWG , three wires with grounding type plug connector and rated not less than 1875 Watts. The cord shall not be more than 20 feet (6 m) in length.
ELECTRICAL SPECIFICATIONS
Voltage: 120 V~, 60HzAmps: 11.7 Amps (with heater)Amps: < 0.1 Amps (without heater)Watts: 1400 Watts (with heater)Watts: < 10 Watts (without heater)
CLEARANCE TO COMBUSTIBLES
Keep electrical cords, drapery, furniture and other combustibles at least 3 feet (0.9 m) from the front of the heater and away from the sides.
CLEANING TRIM
Clean the metal trim using a soft cloth, slightly dampened with citrus oil based product and buff with a clean soft cloth. DO NOT use brass polish or household cleaners as these products will damage the metal trim. Citrus oil based products can be obtained at supermarkets or hardware stores.
MAINTENANCE
The motors used on the fan and the flame generator assembly are pre-lubricated for extended bearing life and require no further lubrication. However, periodic cleaning/vacuuming of the fan/heater unit is recommended. Make sure the unit is turned OFF and unplugged whenever you are cleaning the heater or fireplace.
|
WARNING: Make sure the power is turned off before proceeding. Any electrical repairs or rewiring of this unit should be carried out by a licensed electrician in accordance with national and local codes |
If repairing or replacing any electrical component or wiring, the original wire routing, color coding and securing locations must be followed
|
WARNING: Electrical outlet wiring must comply with local building codes and other applicable regulations to reduce the risk of fire, electrical shock and injury to persons. |
|
WARNING: Do not use this fireplace if any part of it has been under water. Immediately call a qualified service technician to inspect the fireplace and replace any part of the electrical system. |
|
Warning: Disconnect power before attempting any maintenance or cleaning to reduce the risk of fire, electrical shock or personal injury. |
|
Warning: During any service of this appliance, the power to the unit must be turned off. First turn the main power switch to the “OFF” position. Then remove the electrical plug from the wall outlet. |
OPERATING INSTRUCTIONS CONTROL FUNCTIONS
TO ACCESS CONTROL PANEL
TO ACCESS CONTROL PANELControl panel can be accessed at upper-right corner of insert.
– POWERThe power button supplies power to all of the functions of the fireplace. The power button will put the insert in a standby mode. This will turn off all functions at once but will hold the settings in the memory. By pressing the Power button again the unit will turn on at the same settings.NOTE: Holding the POWER button on the control panel for 10 second will disable the heater function.
– FLAMEEach time the flame button is pressed, the intensity of the flame decreases. There are 5 brightness levels you can cycle through and the OFF setting.
– HEATERYour fireplace consists of a fan forced wire element type heater. There are 11 thermostat levels you can cycle through and the OFF or ON settings. This button on the remote control only turns ON and OFF heater function. NOTE: To change between °F and °C press and hold the HEATER button on the control panel for 10 seconds.
– TIMERPress the TIMER button will cycle through the 10 timer settings (30 minutes, 1 Hour, 2H, 3H, 4H, 5H, 6H, 7H, 8H and 9H) and the OFF setting.
– DOWNLIGHTThe downlight button turns on and off the downlight that illuminate inside of the firebox.
Note: When a function is changed from the control panel or remote control there will be a corresponding indicator (see Figure 6) on the upper-right of the projection screen. The indicator shows the function changed and the level selected by the control panel or remote control. When the function is turned off, the corresponding indicator will flash 5 times and then fade off.
REPLACING THE REMOTE CONTROL BATTERY
When the remote control stops operating or its range seems reduced, it is time to replace the battery with a new one.
- The battery compartment is located on the back end of the remote.
- Press the small tab inwards as you slide the battery door open and remove the old battery.
- Insert a CR2032 battery (2pcs AAA batteries for 23EF022/26EF022), checking that the “+” and “-” terminals of the battery matches the inside of the battery compartment.
- Replace the battery compartment door.
DISPOSAL OF USED BATTERIES
Battery may contain hazardous substances which could endanger the environment and human health.
This symbol marked on the battery and/ or packaging indicates that used battery shall not be treated as municipal waste. Batteries should be disposed of at an appropriate collection point for recycling.
By ensuring the used batteries are disposed of correctly, you will help preventing potential negative consequences for the environment and human health. The recycling of materials will help to converse natural resources.
For more information about recycling of used batteries, please contact your local municipality waste disposal service.
NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Modifications not approved by the party responsible for compliance could void user’s authority to operate the equipment.
This Class B digital apparatus complies with Canadian ICES-003.
TROUBLE SHOOTING GUIDE
| MODELS: 23EF022, 26EF022, 28EF022 & 33EF022 | |
| PROBLEM | SOLUTION |
| 1. No power, logs do not glow. | 1a. Check that unit is plugged into a standard 120V outlet.1b. Press power button several times, make sure power is set at “ON” position. |
| 2. Logs glow, but no flame effect. | 2a. Press flame button several times. |
| 3. Down lights (28EF022 & 33EF022 only) do not light up. | 3a. Try to turn on/off downlight switch several times to make sure downlight is at “ON” position.. |
| 4. Heater does not blow warm air. | 4a. Adjust the temperature settings to ensure that the thermostat is set higher than the current room temperature. |
| 5. Heater doesn’t work, but Power and Heater settings are “ON” and thermostat is set (see solution 4a.) | 5a.Turn the POWER to “OFF” and unplug the unit from the wall outlet for 5 minutes. After 5 minutes plug the unit back into wall outlet, and operate as normal. |
| 6. Flame effect works but heater function does not and the emberbed flashes when the heater button is pressed. | 6a. Heater function is locked. Press and hold the POWER button to unlock the heater function. |
1 YEAR LIMITED WARRANTY
Twin-Star TM Electric Fireplace Models
BASIC WARRANTY
Twin-Star International, Inc. (hereinafter referred to collectively as the (“Company”) warrants that your new Twin-Star Electric Fireplace is free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations.
- This electric fireplace must be installed and operated at all times in accordance with the installation and operating instructions furnished with the product. Any unauthorized repair, alteration, willful abuse, accident, or misuse of the product shall nullify this warranty.
- This warranty is non-transferable, and is made to the original owner, provided that the purchase was made through an authorized supplier of the company.
- The warranty is limited to the repair or replacement of part(s) found to be defective in material or workmanship, provided that such part(s) have been subjected to normal conditions of use and service, after said defect is confirmed by the Company’s inspection.
- The Company may, at its discretion, fully discharge all obligations with respect to this warranty by refunding the wholesale price of the defective part(s).
- Any installation, labor, construction, transportation, or other related costs/expenses arising from defective part(s), repair, replacement, or otherwise of same, will not be covered by this warranty, nor shall the Company assume responsibility for same.
- The owner/user assumes all other risks, if any, including the risk of any direct, indirect or consequential loss or damage arising out of the use, or inability to use the product, except as provided by law.
- All other warranties expressed of implied with respect to the product, its components and accessories, or any obligations/liabilities on the part of the Company are hereby expressly excluded.
- The Company neither assumes, nor authorizes any third party to assume, on its behalf, any other liabilities with respect to the sale of the Twin-Star product.
- The warranties as outlined within this document do not apply to non Twin-Star accessories used in conjunction with the installation of this product.
- This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
This warranty is void if:
a. The fireplace is subjected to prolonged periods of dampness or condensation.b. Any unauthorized alteration, willful abuse, accident, or misuse of the product.c. You do not have the original receipt of purchase.
IF WARRANTY SERVICE IS NEEDED
report this adContact the company, at [email protected], or call 866-661-1218 in English, 866-374-9203 in French, 866-661-1218 in Spanish. Make sure you have your warranty, your sales receipt, location of purchase and the model/serialnumber of your Twin-Star products.
For Customer Service:E-mail: [email protected]In English Call: 866-661-1218In French Call: 866-374-9203In Spanish Call: 866-661-1218
For update and revisions to this manual please see our websitewww.twinstarhome.com/instructions
Twin-Star International, Inc. Delray Beach, FL 33445 U.S.A.
