Clean Air Optima Intelligent Air Purifier User Manual

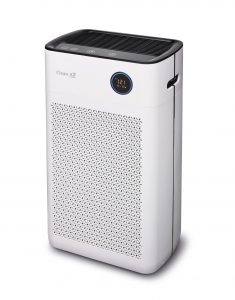

Clean Air Optima Intelligent Air Purifier

CA-510Pro Parts / Main unit

Airflow System

Dual Airflowsystem – Dual Filtersystem – Dual Ionizer for double air purification!

  1. Dual Fan
  2. Intelligent Particle Sensor™
  3. Pre-filter
  4. Nano-Zilver True HEPA Filter
  5. Activated Carbon Filter
  6. Dual Ionizer

Thank You!

Thank you for purchasing the Clean Air Optima Intelligent Air Purifier CA 510Pro.We wish you many years of healthy indoor air with this efficient and effective product.

Ensure that all safety precautions are followed when using this electrical appliance for the proper operation of the device. These instructions describe the safety precautions to be observed during operation. They are meant to prevent injuries and to avoid damaging the device.

Before using your new Clean Air Optima Intelligent Air Purifier CA-510Pro.Remove the sealing from the filters first, Check down below. How to use.

Description of the appliance

The appliance consists of the following main components:

  1. Control panel
  2. Digital monitor indoor air quality-PM2.5 Particle measurement-Relative air humidity in %-Temperature in °C
  3. Composite filter: TRUE HEPA and Activated carbon filter
  4. Front panel
  5. Pre-filter
  6. Main part of the air purifier
  7. Rear panel

Safety warnings

This device may only be used in accordance with this safety instructions. Take the following steps to minimize the risk of personal injury caused by for example electric shocks or fire.

  1. Only for indoor use. Do not use or store outdoors.
  2. The appliance is not intended to be used by children or persons with reduced physical, sensory or mental capabilities, unless they are supervised by a person responsible for their safety.
  3. Do not use the device when there is visible damage on the electrical cord or on the device itself. Do not repair the device yourself in case of damage. Never pull the device by its cord.If the power cord is damaged, then it must be replaced by an authorized service person to prevent electric shock or fire.
  4. Repairs may only performed by authorized service personal. Do not try to repair the device yourself to prevent electric shock or fire.
  5. Always remove the plug from the cord when the device is not being used.
  6. Only use power cords provided.
  7. Pull the plug when you do not use the device or when you clean internal or external parts of it.
  8. For safety use put the device in a steady, horizontal position. Do not move while using.
  9. Do not use the device in rooms where inflammable liquids or gases are stored, close to heat sources or in particularly humid rooms like the bathroom.
  10. Never insert any other object into the body to avoid breakdown.
  11. Never cover the air inlet and air outlet grid.
  12. Never dissemble or replace the device’s inner parts.
  13. When the device is running, do not touch the air inlet and outlet grilles, and do not insert the handle or any object into the air outlet to avoid injury or damage to the air purifier.
  14. To keep the inlet and outlet air grille of the air purifier unimpeded, do not place objects above or near the front cover of the air purifier.
  15. Do not put heavy objects on the unit.
  16. Please avoid places with direct sunlight. There is a risk that the device discolors.
  17. Never immerse the unit in water or other liquids.
  18. Do not touch the power cord with wet hands.
  19. Clean the Pre-filter regularly, if the Pre-filter is saturated with dust, it will lead to poor purifying effect. The power consumption will increase, it can cause failure.
  20. The normal operating environment of the device is 0 °C to 40 °C degrees.
  21. Use, maintain and clean the device as described in this manual.

How to use

(Filter installation for the front and the back)

  1. Disassemble the panelPress on the red indicated icon on the left and right side on the air purifier with both fingers, see figure. Pull the panel towards you like indicated by the blue arrows.
  2. Install the composite filterRemove the sealing from the filters. Place the filters back into the device. The tap on the bottom and the top must be visible at the front (The HEPA side from the filter is visible).
  3. Install the Pre-filterInstall the Pre-filter with the black bulge outward. Put its lower part into the bottom slot and push the top (with the arrows on it) gently into the upper slot
  4. Install the panelPush the front panel parallel along the upper and lower edges in the direction shown in blue, see figure.When you are hearing a click, then the panel is installed.

The device needs to be positioned at least 30 cm from walls and furniture to obtain a good air flow. Make sure that the air in-and outlets are not blocked.

Control Panel / Operation Instruction

  1. Power ButtonPressing the Power button you turn the device on and off.(Default is Auto mode after turning on the device).
  2. ModePressing the Mode button for Auto and Sleep function.In the setting Auto the integrated smart sensor (Intelligent Particle Sensor™) measures and regulates air quality automatically. The fan, controlled by a sensor anticipates automatically to what extent indoor air is polluted by particles size PM2.5 and adapting to the 3 different speeds accordingly.In the setting Sleep the indicator light is bright. The indicator light including the digital display will go off after 5 seconds. Press any key to restart the indicator light and the digital display.The indicator light and digital monitor will goes out again after 5 seconds. (The fan is running in the lowest speed level).
  3. SpeedBy pressing the Speed button, you can change the speed level. The 3 fan speeds offer individual air flow. (1-2-3 means the wind speed increases).
  4. TimerPress on the Timer button to set the timer to “switch of automatically” in a range between 1, 4 and 8 hours. The number of hours selected can be read on the display of the timer.
  5. FilterIf the indicator light flashes, the composite filter (HEPA and Activated Carbon Filter) must be replaced. The composite filter has a lifespan of 2.000 hours.

2 + 3 Child LockChild lock protects from unwanted use of the device.The child lock is switched on / off by pressing simultaneously both Mode and Speed buttons.The indicator light child lock will be bright.

3 + 4 Filter ResetReset the timer for the composite filter by pressing and holding the button Speed and Timer (for about 3 seconds). If the indicator light goes out, the timer has been successfully reset.

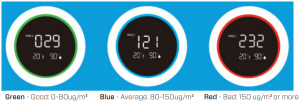

Digital Monitor

The digital monitor on the front side of the air purifier CA-510Pro indicates automatically and exactly current air quality by measuring the level of Particle measurement PM2.5, indoor humidity and temperature.

Particulate matter of 10um (PM10) and smaller 2,5 um (PM2.5) can get into the lungs and belongs to the top 10 threats for human health. These small particles develop through typical indoor processes such as cooking, baking, frying, smoking, as well as heating or are also transported in big quantities into indoor air because of transportation, industry, construction, biological material (pollen, bacteria, mites, and viruses), imported particles from other regains such as (airplane) exhaust gases and volcano eruptions.

Allergens such as pollen and dust cause serious and long-term health threats to millions of persons each spring: the numbers are increasing constantly.

Measurement of relative humidity and temperatureImportant aspects for effective air purification: relative humidity between 45 – 60% and room temperature of about 20 – 23 °C

Power Cord

  1. Remove the power cord glue from the bottom of the device and insert the end of the power cord into the socket at the bottom of the device (as shown in figure 1).
  2. Put the power line into the wire slot and fix it with the wire pressing adhesive (as shown in figure 2).

Remote Control

Battery Replacement
  1. Open the remote control battery cover (figure 1)
  2. Remove the old battery (figure 2)
  3. Replace one button battery (specification CR2032.3V) (figure 3)
  4. Close the remote control battery cover (figure 4)
Precautions
  1. If you do not use the remote control for a long time, please take out the battery to prevent it from leaking and damaging the remote control.
  2. Operate the remote control within the scope of the air purifier
  3. If the remote control does not work properly, please remove the battery and place it back after 30 seconds. If it still doesn’t work properly, replace the battery

Maintenance

Cleaning the outside of the air purifier

  1. Switch off the device and pull the plug.
  2. Use a soft and humid piece of cloth to clean the device from dust and dirt.
  3. Make sure that no water gets into the device.

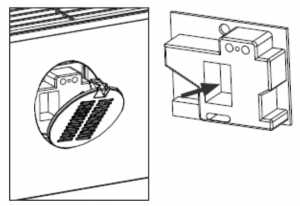

Cleaning of the Intelligent Particle Sensor™Clean the air quality sensor every 6 to 8 weeks.When the value of PM 2.5 is displayed incorrectly, a cotton swab can be used to clean the sensor lens.

  1. Remove the cover of sensor.
  2. Clean the sensor lens with a cotton swab and water as indicated by the arrow.Then dry the lens with a clean cotton swab.
  3. Install the cover of sensor.
  4. Do not wipe the sensor lens with alcohol or other organic solvent

Attention! If the humidity in the room is very high, there is a risk of condensation on the air quality sensor. This may cause the air quality indicator (Digital Display – Particle Measurement) to indicate that the air quality is poor, while this should not be the case. In this case, we recommend that you clean the air quality sensor or do not use the air purifier in automatic mode.

Replacing of filters

The Clean Air Optima Intelligent Air Purifier CA-510Pro is equipped with a filter lifespan surveillance mechanism that signals that the filters have to be replaced after 2.000 working hours. To show that the composite filters (HEPA + Activated Carbon Filter) need to be replaced, the air purifier emits a flashing indicator light. Reset the timer for the composite filter by pressing and holding the button Speed and Timer (for about 3 seconds). If the indicator light goes out, the timer has been successfully reset.

Depending on the use, the composite filters (HEPA + Activated Carbon Filter) has a lifespan of approx. 6-8 months.

Filter cleaningThe best effect is reached by cleaning the filters once a month. If indoor air is extremely polluted, more cleaning can be required.

Clean the Pre-filter and the HEPA filter with a brush or your vacuum cleaner. That way bigger dust particles like lint, hair and dander of pets can be removed from the filter.

Warning! Do never wet or rinse the composite filters (HEPA + Activated Carbon Filter) with water.

Signs for used up filtersIncreased sound, reduced air flow, congested filters, rising presence of smells. The filter needs to be replaced by a new one when the HEPA filter changes its color from white to grey or black.If the HEPA filter remains white, there is NO need to replace the filter.

How to order filters:Contact Clean Air Optima Customer Service tel. + 31 (0) 742670145 or visit our webshop: https://www.cleanairoptima.com/accessoires/mg/44/

Troubleshooting

The following is a troubling shooting guide to help you solve any issues that you may have using the Clean Air Optima Intelligent Air Purifier CA-510Pro.

Problem

 Possible Cause

Solution
Device does not switch on The power cord does not connect correctlyThe power cord is brokenThe front or back panel is not installed correctly Connect the power plug and power socket correctlyReplace the power cordInstall the panel correctly. See chapter: How to use
The air outlet smells foul The filter traps too much odor or dust

The lifetime of the filters has expired

 Replace the composite filtersReplace the composite filters
Poor purification effect Check if the humidity in the room is too dryThe device is placed in an unventilated room or surrounded by obstacles Increase the humidityRemove the obstacles
No air is blowing out of the device The air inlet or air outlet is being blocked Remove the obstacles
The remote control does not work Check if the battery is installedCheck if the battery is in- stalled correctlyCheck the capacity of the batteryCheck the remote control distance exceeds the range Install the batteryInstall the battery correctlyReplace the batteryRange is within 5 meters from the front-side of the device

WARNING!If the above recommended solutions do not work, please contact Clean Air Optima technical support at the telephone number for your region. Do not attempt to disassemble, reassemble, or repair the device as this may void the warranty.

Specifications

Model CA-510Pro
For rooms up to 110m² / 275m³ / 1180ft²
Rated voltage 220V – 240V, 50Hz/60Hz
Rated power Max. 45W
Fan capacity (CADR) 468 m³/h (solid particles) – 100 m³/h (formaldehyde
Filter performance 99,97%
Sterilization rate 99.9%
Negative ion 2.000.000 ions/cm²
Sound level Silent fan < 20dB(A) Low 1 / 35dB(A) Middle 2 / 55dB(A) Turbo 3
Dimensions 560 x 320 x 210mm
Weight 7.5kg
Colour Living white
Complies with EU regulations CE / WEEE / RoHS

Ask your retailer or your municipality for updated information regarding the disposal of the packaging and of the device.

Service

Date of purchase: …………………………………………………Customers name: ………………………………………………….Address: ……………………………………………………………….Telephone: ……………………………………………………………Email: …………………………………………………………………..Seller’s name: ………………………………………………………..Address: ………………………………………………………………..
  1. Please fill in completely this Warranty Certificate. Send it with the invoice and the unit, postage pre-paid and using the original packing box, to your distributor. Make sure to include the appropriate return postage for the package.
  2. Please enclose a short description of the damage, fault or malfunction, and the circumstances under which these problems arose.

The Clean Air Optima Intelligent Air Purifier CA-510Pro is subjected to strict testing procedures before leaving the factory. If within 2 years from the date of purchase the product does not perform according to the specifications, because of factory defects, the purchaser is entitled to free repairs or replacement of parts upon presentation of this warranty (provided that the malfunction or damage to the device and/or parts occurred under normal operating conditions). What is covered: All parts defective in material and workmanship. For how long: two years from purchase date. What we will do: Repair or replace any defective parts.Exclusions: Regular replacement filters.

Other ConditionsThe provisions of this warranty are in lieu of any other written warranty whether express or implied, written or oral, including any warranty of merchantability or fitness for a particular purpose. The manufacturer’s maximum liability shall not exceed the actual purchase price paid by you for the product. In no event shall the manufacturer be liable for special, incidental, consequential, or indirect damages. This warranty does not cover a defect that has resulted from improper or unreasonable use or maintenance, faulty assembly, accident, natural catastrophes, improper packing, or unauthorized tampering, alteration, or modification as determined solely by us. This warranty is void if the label bearing the serial number has been removed or defaced.

Thank you for reading!

Share your feedback about the Clean Air OptimaIntelligent Air Purifier CA-510Pro on:www.cleanairoptima.com

For frequently asked questions about the CA-510Pro go to:www.cleanairoptima.com and search for the CA-510Pro.

Download PDF instruction manual on:www.cleanairoptima.com/info/manuals

Watch all Clean Air Optima Product animation video’s on:www.youtube.com

Clean Air Optima International B.V. | David Ricardostraat 9-7 / 9-9 | 7559 SH Hengelo (ov)The Netherlands | Phone: +31 (0) 74 – 2670145

Clean Air Optima Germany GmbH | Enschedestraße 14 | 48529 Nordhorn | GermanyPhone: +49 (0) 5921 879-121E-mail: [email protected]           Internet: www.cleanairoptima.com
