USB Condenser Cardioid Microphone

Foreword

Thanks for purchasing COMICA STM-USB Condenser Cardioid Microphone. To ensure bring you a good using experience, please read this manual book carefully before using and correctly install and operate.

Notice

This product is designed with USB-C output interface, and only suits for USB interface devices of Windows, Android and iOS system, phone or other recording devices with 3.5mm audio input are not supportedDo not use this equipment in the vicinity of heat source or interference source, such as radiator, oven, refrigerator or air conditioner, smartphone or next to the WIFIThis product belongs to high-precision instruments, please avoid falling, collision or poundingDo not use the equipment in rain or in a damp environment to avoid short-circuit dangerPlease keep the product in a dry environment

Main Features

• 16mm Gold-Plating Condenser Mic, Professional Studio Quality
• Cardioid/Bi-directional Multiple Pattern Selection
• Gain Control, Muting, Real-time Monitor Functions
• Adjustable Audio Recording Direction
• 20Hz-20KHz Frequency Response and Widely Used for Various Situations
• USB-C Interface Design, Universal for Computer and Phone
• Detachable Pop-Shield Design to Effciently Filter Airflow
• Metal Housing for Excellent Shielding

Packing List

   Microphone                Pop-Shield                              Tripod Table Stand

USB-C/USB-C Cable        USB-C/USB-A Cable        3/8 Ring Mount

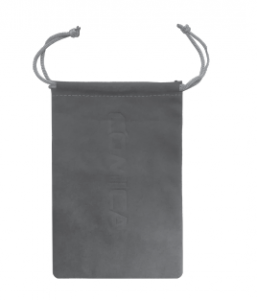

Carry Bag                          User Manual                          Warranty Card

Components Instruction

1. Pop-Shield
2. Gain Control Knob
3. Working Indicator light
4. Monitor Knob
5. Lock Ring of Mic
6. Tripod Table Stand
7. Mic
8. Directional Switch
9. 3.5mm Monitor Interface
10. Microphone Mute Button
11. 3/8 Adjustable Lock Ring
12. Lock Ring on Tripod Table Stand
13. Lock Knob
14. 3/8 Ring Mount
15. Microphone Fixed Base
16. USB-C Output Interface

Product Installation and Use

1. Install the Pop-Shield and 3/8 Ring Mount on the microphone stud in turn, and tighten it with the Lock Ring of Mic
2. Install the 3/8 Adjustable Lock Ring and 3/8 Ring Mount on the Tripod Table Stand stud, then adjust the 3/8 Adjustable Lock Ring to tighten it
3. Install the Tripod Table Stand to the microphone and lock it with the Lock Knob
4. Insert the USB-C plug of audio cable into the microphone USB-C output jack
5. Connect the another side of audio cable to the recording device
6. Plug the headphone into the 3.5mm interface to monitor and it supports real-time and playback listening

Function Introduction

1. Gain Control knob, rotate to adjust microphone gain
2. Monitor Adjustable Knob, rotate the monitor volume
3. 3.5mm Monitor Interface, insert earphone to monitor
4. Microphone Mute Button, short press can realize microphone mute and the indicator light is red

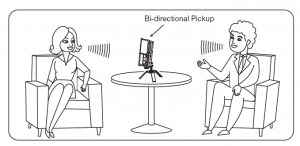

5. Directional Switch can be selected according to the situation

Specification

1. Polar Pattern
2. Frequency Response
3. Technology Parameters


   Acoustic Principle	Condenser
   Polar Pattern	Cardioid
   Frequency Response	20Hz ~ 20kHz
   Sample Rate	48kHz/44.1kHz
   Resolution Ratio	16-bit
   Dynamic Range	96dB
   Maximum SPL	110dB
   Power	USB 5VDC/100mA
   Output	USB-C
   Dimension	157x134x257mm
   Net Weight	370g
   Working Temperature	0~50℃
