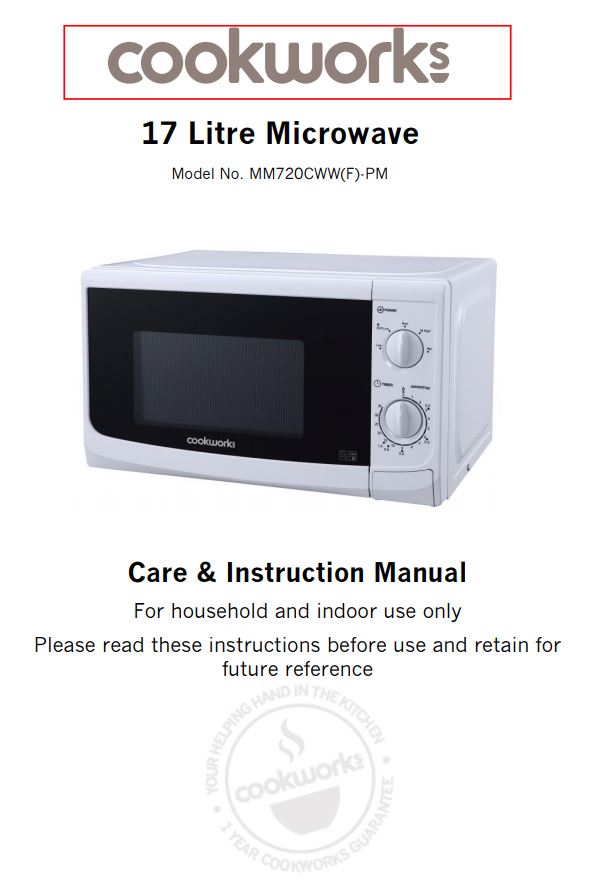

cookworks 17 Litre Microwave Instruction Manual

Table of Contents

cook works 17 Liter Microwave Instruction Manual

Electrical safety

You should only plug the appliance into a 230V-240V AC, 50Hz supply. Connecting it to other power sources may damage the appliance and will invalidate the guarantee.
WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover that gives protection against exposure to microwave energy. Servicing of this appliance must only be carried out by a qualified electrician.
WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person. Do not operate this appliance if damaged or modified in any way.
Keep the appliance and its cord out of reach of children less than 8 years.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
Switch off and unplug before cleaning or servicing the appliance.
Keep microwave, cable and plug dry and away from areas where it is likely to get splashed. Never immerse in water. Never clean with a steam cleaner.
Do not pull on the cable to disconnect from the mains supply.
This oven must be positioned so that the plug is accessible and the plug socket is within easy reach of the power cord.
Do not operate the microwave if damaged or after it malfunctions. In the event the supply cord is damaged, it must only be replaced by a qualified service engineer, with a suitably approved part.
Do not place items with naked flames or containers with liquids on this appliance.
The mains plug shall be connected to a mains socket outlet with a protective earth connection.
All microwaves are tested and approved in accordance with current electromagnetic safety and compatibility regulations and standards. As a precautionary measure, pacemaker manufacturers recommend wearers to keep a minimum distance of 20-30 cm between an operating microwave oven and the pacemaker in order to avoid possible interference with the pacemaker. If you suspect there may be interference, turn the microwave off immediately and contact the manufacturer of the pacemaker.

Warning!

This appliance is not intended to be used in: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
Liquids and other foods must not be heated in sealed containers since they are liable to explode.
Microwave heating of beverages can result in delayed eruptive boiling; therefore care must be taken when handling the container.
If you are preparing food or liquid for a baby stir or shake the contents and check the temperature before consumption in order to avoid burns.
Never cook or heat eggs in their shell or whole hard boiled eggs, as they may explode even after cooking in the microwave has been completed.
The oven should be cleaned regularly and any food deposits removed see page 9 for details. Failure to maintain the oven and seals in a clean condition could lead to deterioration of the surface or seals, adversely affect the life of the oven and possibly result in a hazardous situation.
Never operate the oven when empty and avoid leaving unattended during use.
Do not cover and allow adequate ventilation see page 5 for clearance required.
The surfaces of the oven and the containers inside will become hot during and immediately after use; wear oven gloves when handling.
Check regularly during cooking cycle especially when using plastic or paper containers to ensure food and containers do not ignite.
If smoke is emitted, switch off the appliance and keep the door closed in order to stifle any flames.
Do not use oven on, near or under flammable or heat sensitive items.
Do not place foil wrapped food, metal containers or containers with metal parts or trim when using the microwave oven.
Do not use with a cracked or missing turntable or without the turntable roller.
The microwave oven is intended for heating food and beverages. Drying of clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
Always check for container and utensil suitability before using in the microwave oven – see page 9 for advice.

Food safety

Do not cook raw meat or raw shellfish in a microwave, due to the possibility for uneven heating.
Do not use microwave for home canning or bottling. Improperly canned or bottled foods may spoil and be dangerous to eat.
Always check the temperature of food before serving.
Food cooking times will vary with microwave wattage (MAFF rating). When following recipes and on pack cooking instructions always check the MAFF rating / wattage of the appliance being used (marked on the front of the microwave) and follow the corresponding cooking advice.

Installation

This microwave is designed to be free standing and is not intended to be used `built in’ or in a cabinet.
Select a level surface away from televisions, cookers and other heat producing appliances.
Ensure adequate ventilation and allow a clearance of
- 20cm at each side of the oven
- 30cm clearance above the oven
- 10cm at the rear of the oven
- The minimum installation height is 85cm
Ensure that the cable is not close to any or sharp or hot surfaces and or where it is likely to cause a trip hazard.

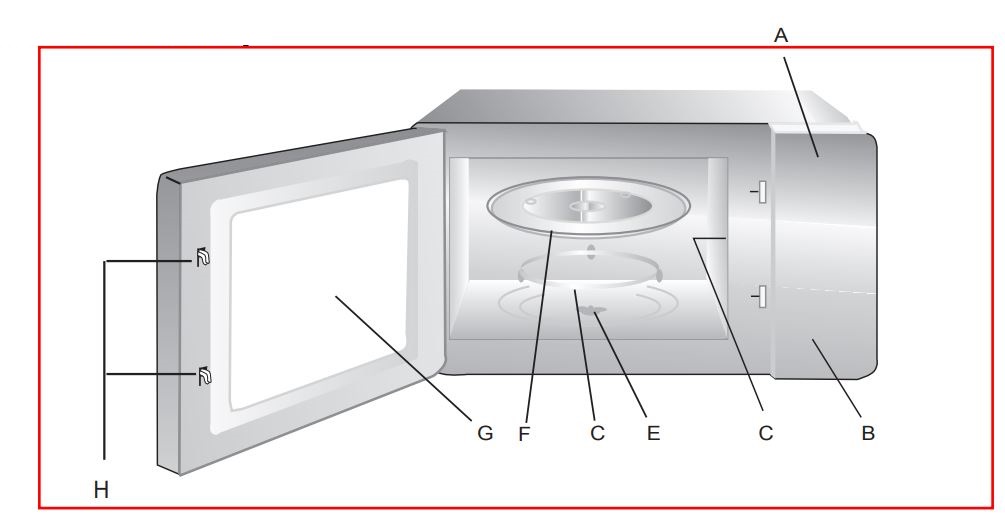

Parts & assembly

A. Control panelB. Door release buttonC. Waveguide coverD. Turntable shaftE. Turntable rollerF. Glass turntableG. Door with viewing panelH. Interlocking catches

Ensure all packaging materials, protective film and adhesive tape are removed and check the oven and door for any damage. Do not remove the wave guide cover.
Assemble as shown above and ensure that the glass turntable is correctly positioned on the shaft and roller.

Control panel

Using the oven

Fully unwind the cable, plug in and switch on.
Place the food to be cooked or defrosted in a suitable microwavesafe container and cover. Press the door button to open the microwave door and place the container in the center of the glass turntable.
Securely close the microwave door and turn the power knob to select the power level of choice.
Select the cooking time (minutes) required for the food type or recipe. Follow the `on pack’ guidelines. If selecting a time below 2 minutes, turn the timer past 2 minutes and then back to the correct time.
If defrosting, select the `M. Low’ power level and then using the timer dial, select the defrost time or the corresponding weight (e.g. 0.2, 0.4, 0.6, 0.8, 1kg) of the item to be defrosted.
The microwave will start automatically once the timer has been set.
Cooking / defrosting can be interrupted to stir the food or check progress by opening the door. Settings will be retained and cooking will restart when the door is closed.
After the cooking time has finished, a bell will sound and the microwave will turn off automatically.
Allow food to stand for 30 seconds to one minute before stirring or serving.
The microwave can be stopped at any time by turning the timer to `0′ or by opening the door.

Note: When not in use, always ensure that the timer is set to `0′.

Cleaning

Clean the oven and seals to remove food debris on a weekly basis and more often if required. Failure to maintain the oven and seals in a clean condition could lead to deterioration of the surface or seals, adversely affect the life of the oven and possibly result in a hazardous situation (possible release of microwave energy).

Switch off, unplug the oven and allow the oven to cool completely.
Wipe surfaces and seals with a soft damp cloth (not wet). Do not use abrasive cleaning products or metal scrapers to clean the glass door of the oven as this could damage the surface and cause breakage. Do not immerse in water. Do not use a steam cleaner.
The glass turntable and turntable roller can be washed in hot water with a little washing up liquid. NOT SUITABLE FOR DISHWASHERS.
Always allow surfaces to fully dry before using the oven again.

Guide for materials suitable for use in a microwave

DO NOT use metallic containers for food and beverages, aluminum foil, or any other metal trimmed packaging in the oven.

General microwave cooking advice

Food cooking times will vary with microwave wattage (MAFF rating). When following recipes and on pack cooking instructions always check the MAFF rating / wattage of the appliance being used (marked on the front of the microwave) and follow the corresponding cooking advice.
Beverages can result in delayed eruptive boiling; therefore care must be taken when handling the container.
Remove lids from containers before placing in the microwave, pierce plastic films and do not use vessels with sealed or restricted openings since they are liable to explode.
Pierce the skin or membranes of food (e.g. potatoes, apples, fish, chicken, eggs) in several places before cooking. Never cook or heat eggs in their shell or whole hard boiled eggs, as they may explode even after cooking has been completed.
Ensure food is similar size and density. Large dense items take longer to cook than small ones e.g. potatoes take longer to cook than peas.
Food quantity will affect the cooking time, e.g. two potatoes take longer than one.
The shape of food will affect the cooking time; place the thickest part of food on the outside of the plate.
Leave food to stand for a short period after cooking or defrosting to allow the temperature to become uniform.

Troubleshooting

Technical specification

This appliance complies with European regulation no. 1935/2004 of 27/10/2004 on food contact materials. The product is classified as a Group 2, Class B, ISM appliance. Group 2 includes all ISM (Industrial, Scientific or Medical) appliances in which radio frequencies are generated intentionally and/or used in the form of electromagnetic radiation to treat materials, together with electro erosion equipment. Class B includes equipment for domestic use or on premises directly connected to low voltage electricity supply for supplying buildings for residential use.

Recycling electrical products

You should now recycle your waste electrical goods and in doing so help the environment. This symbol means an electrical product should not be disposed of with normal household waste. Please ensure it is taken to a suitable facility for disposal when finished with. Visit www.recycle-more.co.uk, click on “bank locator” and enter your postcode to find your nearest recycling site.

Plug / Wiring advice

The wires in this mains lead are cultured in accordance with the following UK electrical code:BLUE = NEUTRALBROWN = LIVEGREEN + YELLOW = EARTH

Non-rewireable plugThis appliance may be fitted with a “non-rewireable” plug. If you need to change the fuse in a “non-rewireable” plug, the fuse cover must be refitted. If the fuse cover is lost or damaged, the appliance must not be used.

Rewireable plugThe colors of the wires in the mains lead of this appliance may not correspond with the cultured markings identifying the terminals in a rewireable plug. Rewireable plugs should only be replaced by a suitably competent person. If in doubt, consult a qualified electrician.

The BLUE wire must be connected to the terminal marked with the letter NThe BROWN wire must be connected to the terminal marked with the letter LThe GREEN & YELLOW wire must be connecting to the terminal marked with the letter E or the earth symbol .
