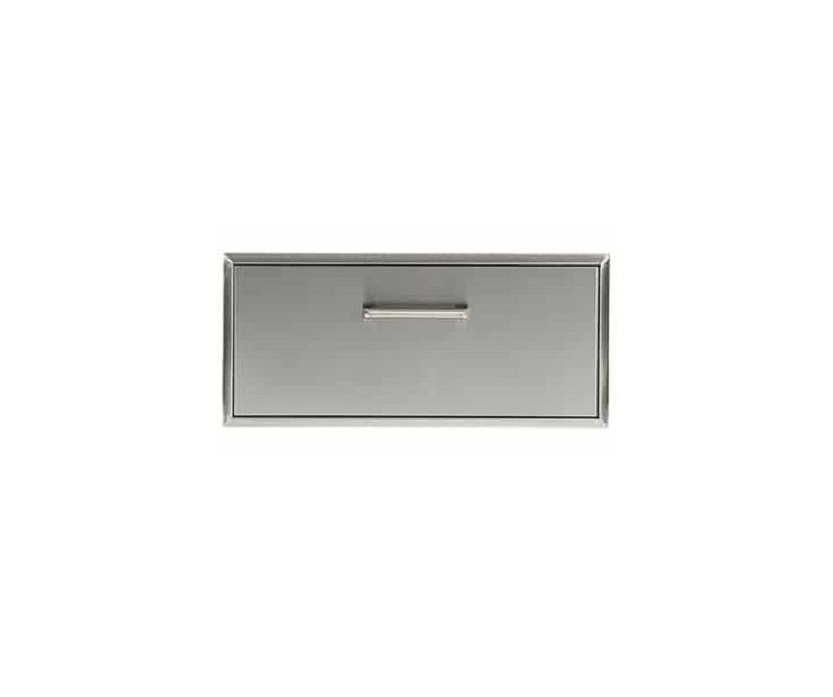

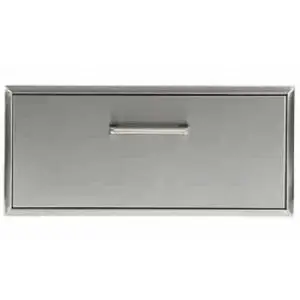

COYOTE Dimensional Renderings CSSD36

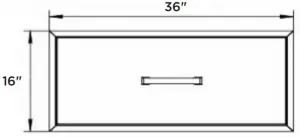

Overall Product Dimensions
|
Model No. |
Height | Width |
Depth |
|
CSSD36 |
16″ | 36″ |
26 1/2″ |
Cutout Dimensions for Island
| Model No | Height | Width |
Depth |
|
CSSD36 |
12 1/4″ | 33 1/4″ |
25 1/2″ |
Install Notes
- The drawer has a gasket to keep moisture out and is capable of holding 120 lbs
- 2 anchor points are located on each side of the doors interior frame (top, bottom, left and right)
- Due to wide variance of possible building materials, anchors are not included
- When inserting your anchors be sure to use a framing square to ensure the door is not pulled out of square
- Additional framing and/or support underneath the rear (hanging portion) of the cabinet is recommended
- These specs are accurate but we always suggest having the product physically on site to ensure full understanding of how this product will coordinate with your build
