CUBETEK Bluetooth Transmitter & Receiver User Manual
Product Overview

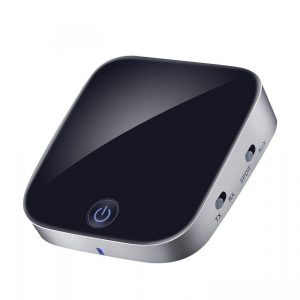

MFB (Multi Function Button), Selection Switch TX/RX (TX: transmitter; RX: receiver), Mode Selection Switch SPDIF/AUX, AUX Audio Port, SPDIF input, SPDIF output, Micro USB Charging Port, LED Indicator
Package Contents:
- A Bluetooth Transmitter & Receiver
- B 3.5mm Audio Cable *1
- C. Micro USB Charging Cable *1
- D. User Manual *1
- E. Fiber Optic Cable *1For Support Contact us on: www.melodymedia.in
For Support Contact us on: Basic Operation
| Button | Function | Operation |
| MFB (Multi Function Button) | Power on / off | Long press MFB 3 seconds to power on or off |
| Play / pause | RX Mode, short press MFB to play or pause music during playing. Not work in TX mode | |
| Enter Pairing mode | Double press MFB to enter into pairing mode. (not work in Multi Point Connections) (RX: Red & Blue LED flash alternately; TX: Blue LED flash quickly) | |

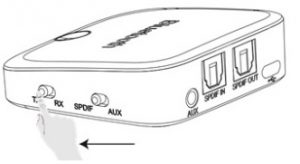

| TX/RX mode selection | Slide to TX side or RX side to select the TX or RX mode. *The paired records of the last mode will be delete when switch to another mode. *Switch to another mode after item turn off at least 3 seconds. | |

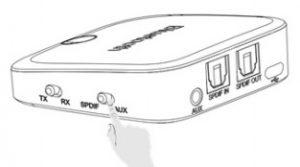

| SPDIF/AUX mode selection | Power off or on status, slide to SPDIF side or AUX side to select the SPDIF or AUX mode |
How to use as a Bluetooth Transmitter (TX)
Bluetooth Pairing and Connection
- A Off mode, turn to TX switch and long press MFB 3 seconds to power on.

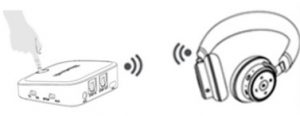

- B Double press MFB to enter into pairing mode with Blue LED flash.
- C Turn on the Bluetooth function of your device (Bluetooth Headphone, Speaker or receiver etc.) to pairing mode, with Red & Blue LED flash alternately or Blue LED flash.

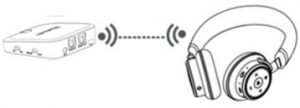

- D Place the BTI-029 and your device close and wait in 5-30 seconds for connection, LED turns to low Blue LED flash after connected.
- E Connect BTI-029 and your phone with 3.5 mm audio cable, and could play music from your phone to the headphone or speaker.
- Off mode, slide to TX side
- Long press MFB 3 seconds to power on , and double press MFB to enter into pairing mode with Blue LED flash. Turn on the Bluetooth function of headphone or speaker to enter into pairing mode.
- Place the BTI-029 and your device close and wait in 5-30 seconds for connection, Blue LED turns to slow flash after connected.

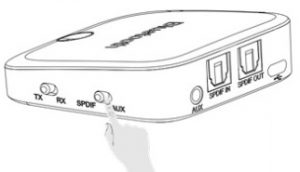

- Slide to SPDIF side or AUX side to select the SPDIF or AUX mode (SPDIF port in TX mode is SPDIF IN).
Multi Point Connection
- A Follow 3.1 to connect with the first device, double press MFB to enter into pairing mode again with Blue LED flash.
- B Turn on the Bluetooth function of the second device (Bluetooth headphone, speaker or receiver etc) to enter into pairing mode. Place the BTI-029 and your device close and wait in 5-30 seconds for connection. BTI-029 solid Green LED after connected with two devices.NotesPls turn off BTI-029 and turn on again, and try to reconnect or repair with two devices, when it could not connected with two devices at the first time.Multi point connection could compatible with most of the chipset solution at the market, except less of them.Single connection priority support aptXTM low latency (connected device also support aptXTM low latency). Two connections priority support aptXTM low latency (connected devices also support aptXTM low latency). Two connections priority support aptXTM (connected devices also support aptXTM). Two connections turn to SBC automatically if the CODEC are different.
NotesPls turn off BTI-029 and turn on again, and try to reconnect or repair with two devices, when it could not connected with two devices at the first time.Multi point connection could compatible with most of the chipset solution at the market, except less of them.Single connection priority support aptXTM low latency (connected device also support aptXTM low latency). Two connections priority support aptXTM low latency (connected devices also support aptXTM low latency). Two connections priority support aptXTM (connected devices also support aptXTM). Two connections turn to SBC automatically if the CODEC are different.TV Connection
Connect BTI-029 and the TV with 3.5mm audio cable or fiber optic cable, and Bluetooth connect BTI-029 with devices ( Bluetooth headphone or speaker ), and could transmit the audio from TV to the devices
NotesPls test the TV with wired headphone or check the TV’s audio settings (Select 3.5mm output ) to make sure the devices connect in the right way and play audio from the TV Pls connect the TV and SPDIF IN port with fiber optic cable when select the Toslink connection mode
How to use as a Bluetooth Receiver (RX)
Bluetooth Pairing and Connection
- A. Off mode, turn to RX switch, long press MFB 3 seconds to power on.
- B. Double press MFB to enter into pairing mode with Red & Blue LED flash alternately.
- C. Turn on Bluetooth function of Phone, search and click to connect BTI-029 on Bluetooth device lists.
- D. LED turns to solid Blue after connected, connect BTI-029 and headphone or speaker with 3.5mm audio cable, play music from phone to the headphone or speaker.
- Off mode , slide to RX side.
- Long press MFB 3 seconds to power on , and short press pairing button to enter into pairing mode with Red & Blue LED flash alternately.
- Turn on Bluetooth function of phone (PC, laptop), search and click to connect BTI029.
- Slide to SPDIF side or AUX side to select the SPDIF or AUX mode (SPDIF port in RX mode is SPDIF OUT).
Multi Point Connections
- A. Follow 4.1 to connect with the first device (phone, PC, laptop), double press MFB to enter into pairing mode again, red and blue lights flash alternately. (The first connected device is not affected and can be used normally)
- Double press BTI-029 pairing button to enter into pairing mode again with Red & Blue LED flash alternately.
- Turn on Bluetooth function of the second phone, search and click to connect BTI029 on phone Bluetooth lists. Multi point connection with solid green LED.Notes
- (1) Only could play music from one phone when with two connections.
- (2) Priority support aptXTM low latency for one connection(Connection device support aptXTM low latency), support CODEC according to the phone which playing music for two connections.
NotesSpeaker Connection

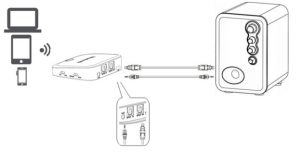

Connect BTI-029 and Speaker with 3.5 mm audio cable, and Bluetooth connect with phone (PC, laptop), play music from your phone to speaker.
NotesPls test the speaker with 3.5 mm audio cable (connect phone) to see if workable, if could not play when connect with BTI-029.Pls insert to SPDIF OUT port for Toslink connection.
Charging

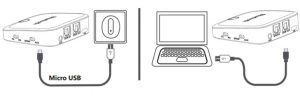

Pls charging BTI-029 when low battery with Red LED flash. LED turn off when full charged (about 2 hours ).Connection for charge Connect BTI-029 and power supply (charger , car charger , computer USB etc) with Micro USB cable.
Charging with Micro USB / Charging with PCNotes:Pls charge the BTI-029 at least once every 2 months if without use.Pls press “MFB” and connect with power supply to reset the item , when it dead during use.It is normal for charging LED indicator to cover the bluetooth status LED indicator when power on.
LED Indicator
| Status | LED Indicator |
| Power on | Blue LED flash twice |
| Power off` | Red LED flash twice |
| Pairing mode | Blue LED flash（TX mode） |
| Red & Blue LED flash alternately（RX mode） | |
| Unconnect standby mode | Blue LED flash once every second (TX mode ) |
| Blue LED flash twice every 3 seconds (RX mode ) | |
| Connected standby mode | Solid Blue LED |
| Low battery | Red LED flash |
| Charging | Solid Red LED |
| Full charged | Red LED turn off |
Product Specification
| Bluetooth Version | V5.0 | ||
| Chipset Solution | CSR 8670 | ||
| Operation Range | Class Ⅱ，10 meters | ||
| Bluetooth Profile | A2DP、AVRCP | ||
| CODEC | RX：aptX™ low latency、aptX™ 、AAC、SBC TX：aptX™ low latency、aptX™ 、SBC | ||
| Battery Capacity | 350mAh/3.7V | ||
| Charging Time | About 2 hours | ||
| Standby Time | RX mode：About 50 hours | ||
| Working Time | AUX | RX | About 15 hours |
| TX | About 15 hours | ||
| SPDIF | RX | About 12 hours | |
| TX A | About 12 hours | ||
| Operating Temperature | -10—55℃ | ||
| Net Weight | About 38.6 g | ||
| Size | 60*60*18.4mm |
Notes:
- Working time will be different depend on different working environment and CODEC
- Standby time will be same as working time on TX mode, as it will be working once connected
- CODEC code depend on the connected devices and follow the turns as mention
Attention and Q & A
- Q. Power off automatically?Ans: Without connect with any devices for more than 5 minutes the item will power off automatically in RX mode (6 minutes if have pairing record), except in TX mode.
- Q. How to reconnect?Ans: BTI-029 will reconnect with paired devices when power on. If not , pls follow the 3.1 or 4.1 to pair & connect again.
- Q. How to delete the paired records?Ans: Switch to another mode （TX or RX）and power on, will delete the paired records of the last mode. (Pls switch to another mode after 3 seconds from power off in last mode.)
- Q. Password for connect?Ans: Pls enter “0000” (four zero), “8888” (four eight), ”1111” (four one), or “1234” (one, two, three, four) for some devices which need password to connect .
- Q. Could not power on or dead when connect?Ans: Press MFB and connect with power supply to reset the item, and repower for use.
- Q. Charging power supply?Ans: Charging power supply: 5V, ≥500 mA. (Charger, car charger , computer USB etc)
Support
For any support contact us on :Email: [email protected]Visit:www.melodymedia.in
