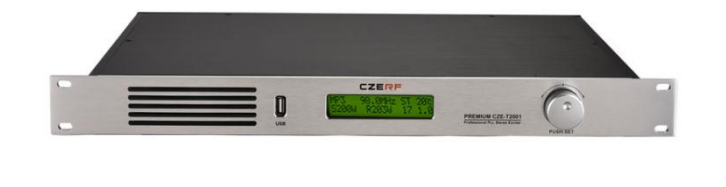

CZERF CZE-T2001 200w FM transmitter User Manual

CZERF CZE-T2001 200w FM Transmitter User Manual

Attention before use:

  1. Make sure the supplied voltage is within the acceptable range.
  2. Only professionals can do the maintenance.
  3. Please make sure the antenna has lightening protection.
  4. Please don’t touch the antenna when the machine is connected with power supply.
  5. Please don’t power on the machine without connecting antenna.
  6. Please don’t use the transmitter in explosive environment(e.g. gas station, places with gas or steam)
  7. Please don’t use the transmitter in extreme dusty, damp, hot environment.
  8. Please use the transmitter under the regulations by local wireless administration institutions.

Menu

  1. Product features
  2. Product configuration
  3. Product user guide
  4. Product specification
  5. Troubleshoot

Functional support:

  1. the frequency range of 87.5 ~ 108MHz
  2. power adjustable 0 ~ 200W
  3. the volume adjustable 0 ~ 30
  4. external source function
  5. MP3 player function
  6. MP3 playback pause control
  7. MP3 on the song playback control
  8. stereo / mono switch
  9. Chinese/English language switch

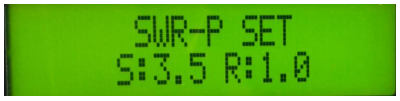

  10. SWR protection. When antenna is not well connected, the transmitter will turn to protection mode automatically.
  11. Temperature protection. When the temperature of transmitter is too high, it willturn to protection mode automatically.
  12. External encoder input interface (available for SCA or RDS encoder )

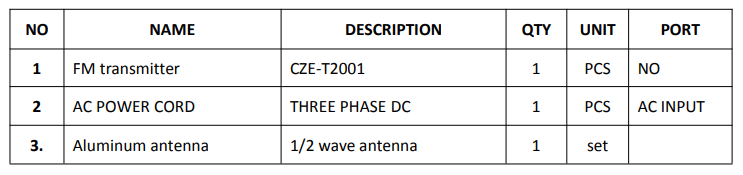

Product configuration

User Guide

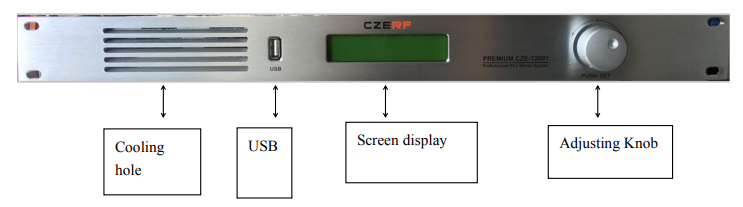

  1. Front and Back Panel description

    Back Panel

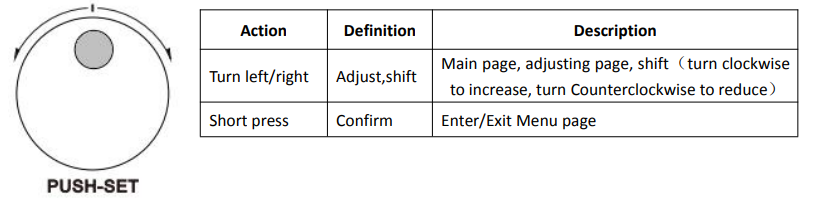

  2. Knob description

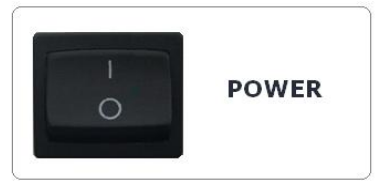

  3. Operation Instructiona). Turn ONCheck the antenna first, make sure it’s well connected. Then connect the power cord to home socket, press the power button to I position to turn ON the transmitter. O position means OFF. See picture on the right.After power on, the transmitter goes into working status. The screen will show working status which has 2 pages, turn the knob to shift between the two pages. See picture below:Display Page 1:• Audio input:  • Real-time working frequency: • RF output power: • Reflecting power: • SWR: • Real-time internal working temperature: • Line-in Volume: • Sound Mode: ST means Stereo，MO means Monob). Function and Parameter settingPress the knob to enter Menu page. Turn the knob to shift pages. There are 11 pages altogether• Frequency settingOn the Menu page, turn the knob to page 1 FERQ setting, press the knob to enter setting. Turn the knob to adjust the frequency by stepping of 0.1MHz, then press the knob to confirm setting and exit.• Audio input optional (line-in/MP3)On the Menu page, turn the knob to page 2 Audio setting, press the knob to enter setting. Turn the knob to set audio input (line-in/MP3), then press the knob to confirm setting and exit.• Line-in Volume settingOn the Menu page, turn the knob to page 3 LINE VOLUME setting, press the knob to enter setting. Turn the knob to adjust the volume within the range of 0~30, then press the knob to confirm setting and exit.• RF output power settingOn the Menu page, turn the knob to RF POWER setting, press the knob to enter setting. Turn the knob to adjust the output power within the range of 0~200w, then press the knob to confirm setting and exit.• MP3 SettingOn the Menu page, turn the knob to “MP3 PLAY SET”，press the knob to enter setting. Turn the knob to adjust the Mp3 Play setting,then press the knob to confirm setting and exit.• MP3 Plays songs numberOn the Menu page,turn the knob to “MP3 NUMBER SET”，press the knob to enter setting. Turn the knob to adjust the MP3 NUMBER SET,then press the knob to confirm setting and exit.• Sound mode settingOn the Menu page, turn the knob ST<OR>MO setting, press the knob to enter setting. Turn the knob to shift the sound mode between Stereo and Mono, then press the knob to confirm setting and exit.• Temperature Protection SettingOn the Menu page, turn the knob TEMP setting, press the knob to enter setting. Turn the knob to adjust the protection temperature point within the range of 50~70℃, then press the knob to confirm setting and exit.• SWR protection settingOn the Menu page, turn the knob SWR SET setting, press the knob to enter setting. Turn the knob to adjust the SWR protection point within the range of 1.5~3.5, then press the knob to confirm setting and exit.• Device ParameterOn the Menu page, turn the knob CONFIGURE SET setting，then press the knob to confirm setting and exit.• Exit settingOn the Menu page, turn the knob to MENU EXIT, press the knob to exit setting and return to main page.

Technical Specification

Troubleshooting
