DF Robot Non-Contact Liquid Level Sensor XKC-Y25-T12V User Manual
SKU: SEN0204
From Robot Wiki
Introduction
The non-contact liquid level sensor utilizes advanced signal processing technology by using a powerful chip with high-speed operation capacity to achieve non-contact liquid level detection. No contact with liquid makes the module suitable for hazardous applications such as detecting toxic substances, strong acid, strong alkali and all kinds of liquid in an airtight container under high pressure. There are no special requirements for the liquid or container and the sensor is easy to use and easy to install.
The liquid level sensor is equipped with an interface adapter that makes it compatible with DFRobot “Gravity” interface. There are 4 levels of sensitivity which are set by pressing the SET button.
Specification
- Operating Voltage (InVCC) : DC 5 ~ 24 v
- Current consumption: 5 mA
- Output voltage (high level) : InVCC
- Output voltage (low level) : 0V
- Output current: 1 ~ 50 mA
- Response time: 500 ms
- Operating Temperature : 0 ~ 105 ºC
- Range for thickness of induction (sensitivity): 0 ~ 13 mm
- Humidity: 5% ~ 100%
- Material: ABS.
- Waterproof performance: IP67
- Dimension : 28 * 28 mm / 1.1 * 1.1 inches
Pin Description

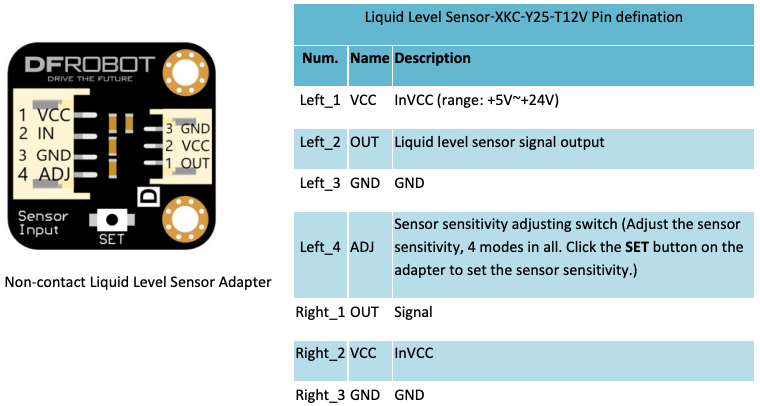

Non‐contact Liquid Level Sensor probeXKC‐Y25‐T12V
Tutorial Requirements
- Hardware
- Arduino UNO x1
- Liquid level sensor x1
- Software
- Arduino IDE V1.6.5 Click to Download Arduino IDE from Arduino® https://www.arduino.cc/en/Main/Software
Connection Diagram

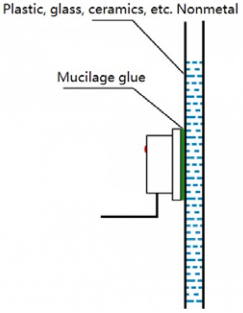

Non‐contact Liquid Level Sensor‐XKC‐Y25‐T12V Installation Instruction (Nonmetal)
Non‐contact Liquid Level Sensor‐XKC‐Y25‐T12V Installation Instruction (metal surface)

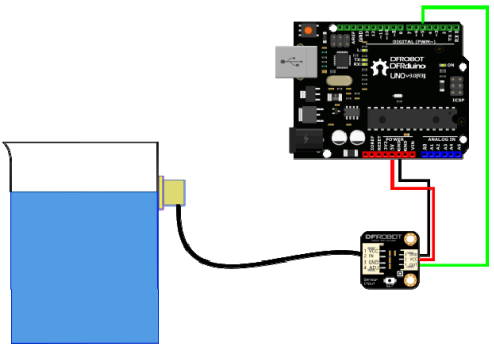

Non_contact Liquid Level Sensor‐XKC‐Y25‐T12V Connection diagram
Sample Code
Results
If the liquid level sensor detects the liquid level, it will output HIGH and turn the LED ON. If no liquid is detected it output LOW and turn the LED off.
